Description
This is a round downlight with a matt white trim, made to drop into a 100mm cut-out and keep the ceiling line quiet. The light source is a COB LED built in, drawing 12W and giving 1040 lumens of warm white light, with the driver supplied alongside. It is not dimmable, so it suits a plain switch, or a group of fittings you want at full output every time.
We reach for downlights like this in kitchens, hallways and landings, where a run of them across a ceiling does the work of a larger fitting without taking up any visual room. The beam is fairly tight rather than a broad wash, which makes it good over a worktop, along a corridor or above a stair, and useful for picking out a shelf or a framed print. The warm tone keeps rooms soft rather than clinical, so bedrooms and sitting rooms take it happily as well. It is meant for dry rooms indoors, on an ordinary household circuit.

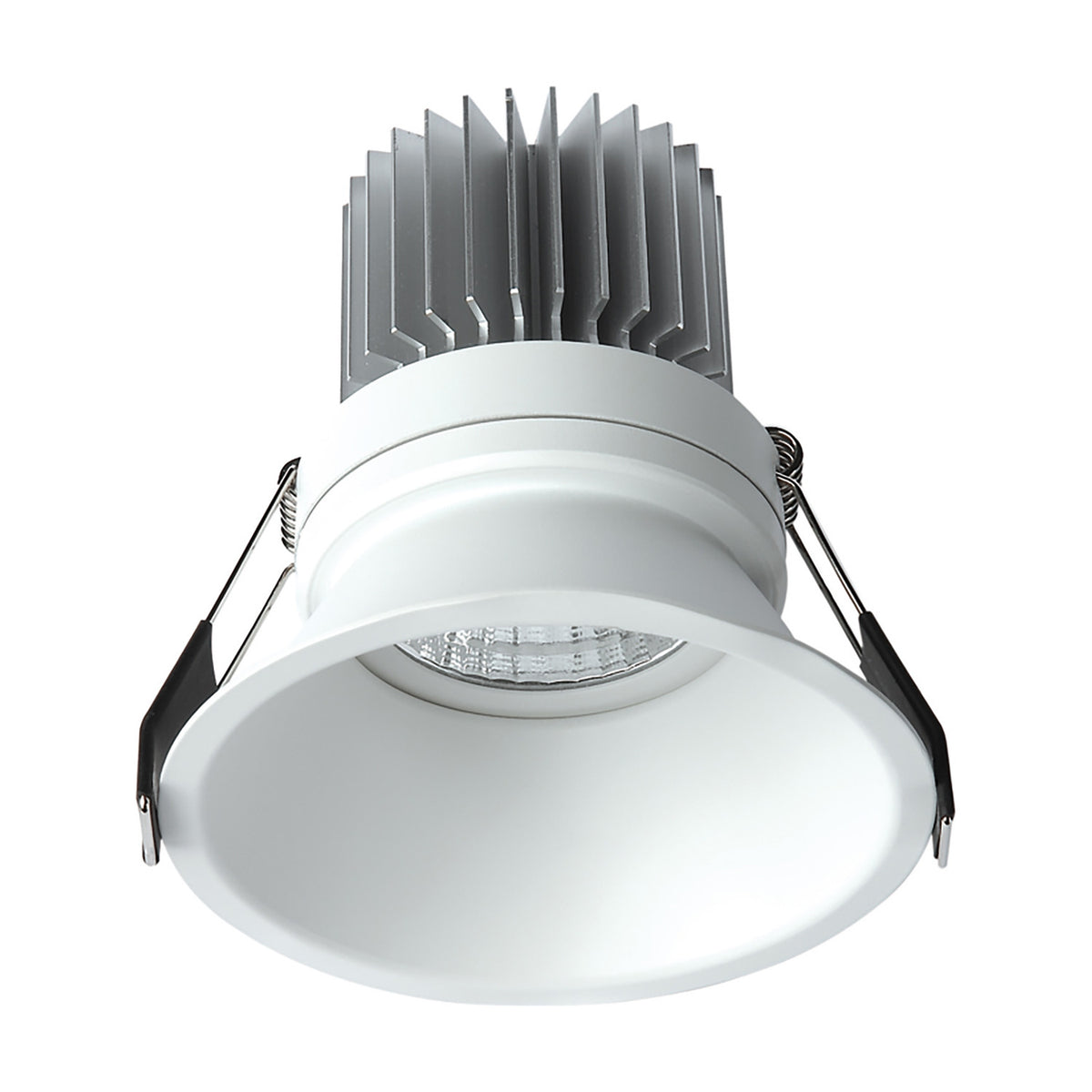

The housing is compact and round, finished in matt white so the trim reads as part of the ceiling rather than as hardware, and it is double insulated. Because the LED is integral, there is no lamp to change over the life of the fitting, and it carries a three year warranty. To clean, switch the light off at the wall, let it cool and wipe the visible trim with a dry cloth, keeping sprays and solvents away from the lens. We stock the same range in a smaller round size, and in a swivel version in both round and square if you would rather angle the beam at a wall or a work surface.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.32KG |
| Diameter |
108mm |
| Height |
108mm |
| Cut Out |
100mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 12W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
30000hrs |
| LED Brand |
CREE |
| LED Power |
12W (±5%) |
| Type of LED |
COB |
| Lumens per LED |
70-75lm |
| Lumens per Watt (lm/W) |
87lm/W (±5%) |
| Beam Angle |
35° |
| System Flux |
1040lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
300mA |
| Min/Max. Voltage Output |
24-42V |
| Load Range |
12W |
| Ta |
50°C |
| Tc |
90°C |
| Casing Material |
PC |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
12W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need?
The cut-out is 100mm. The visible trim measures 108mm across, so it covers the aperture with a little to spare.
Can I put it on a dimmer?
No. This version is non-dimmable and should be run from a standard switch. Fitting it to a dimmer circuit may cause flicker or damage the driver.
What colour is the light?
Warm white, at 3000K, which is a soft yellow-toned light close to a traditional bulb rather than a cool blue-white.
Is a driver included?
Yes, the driver is supplied with the downlight.
How bright is one downlight?
It produces 1040 lumens from 12W. For general lighting in a kitchen or hallway, several spaced across the ceiling usually gives a more even result than one on its own.
Can it go in a bathroom?
Not in a wet or splash zone. It is rated for dry indoor rooms only.
