Description

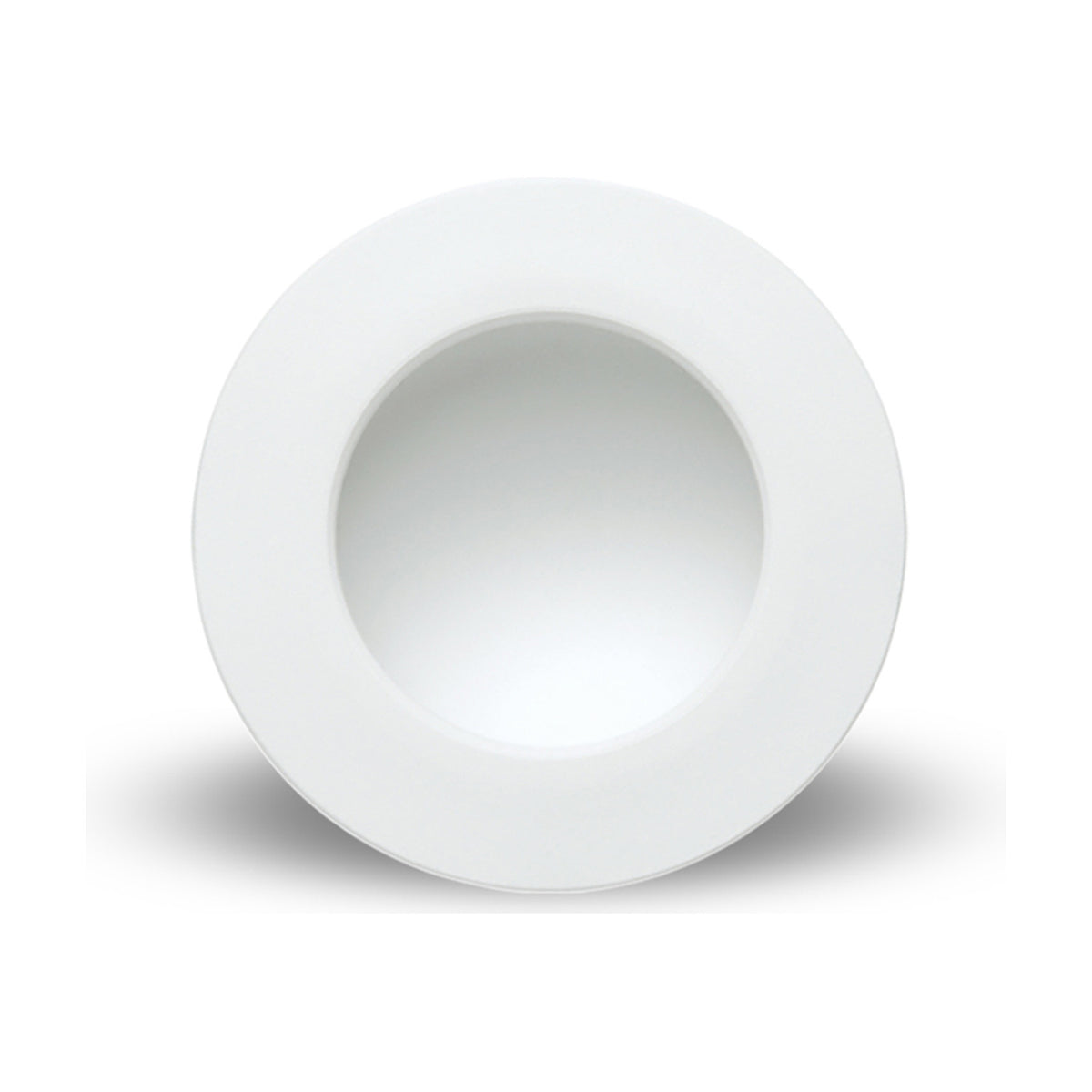

A small round recessed downlight with a plain matt white trim, shallow in body and flat against the ceiling line once set in. The LED is built in and rated at 6W, giving a neutral 4000K light with a wide, even spread rather than a tight spot, so a run of them washes a ceiling fairly evenly instead of leaving scallops. Output is around 540 lumens each, and the control gear comes with it. It is not a dimming fitting, so it is best wired to a straightforward on-off switch.

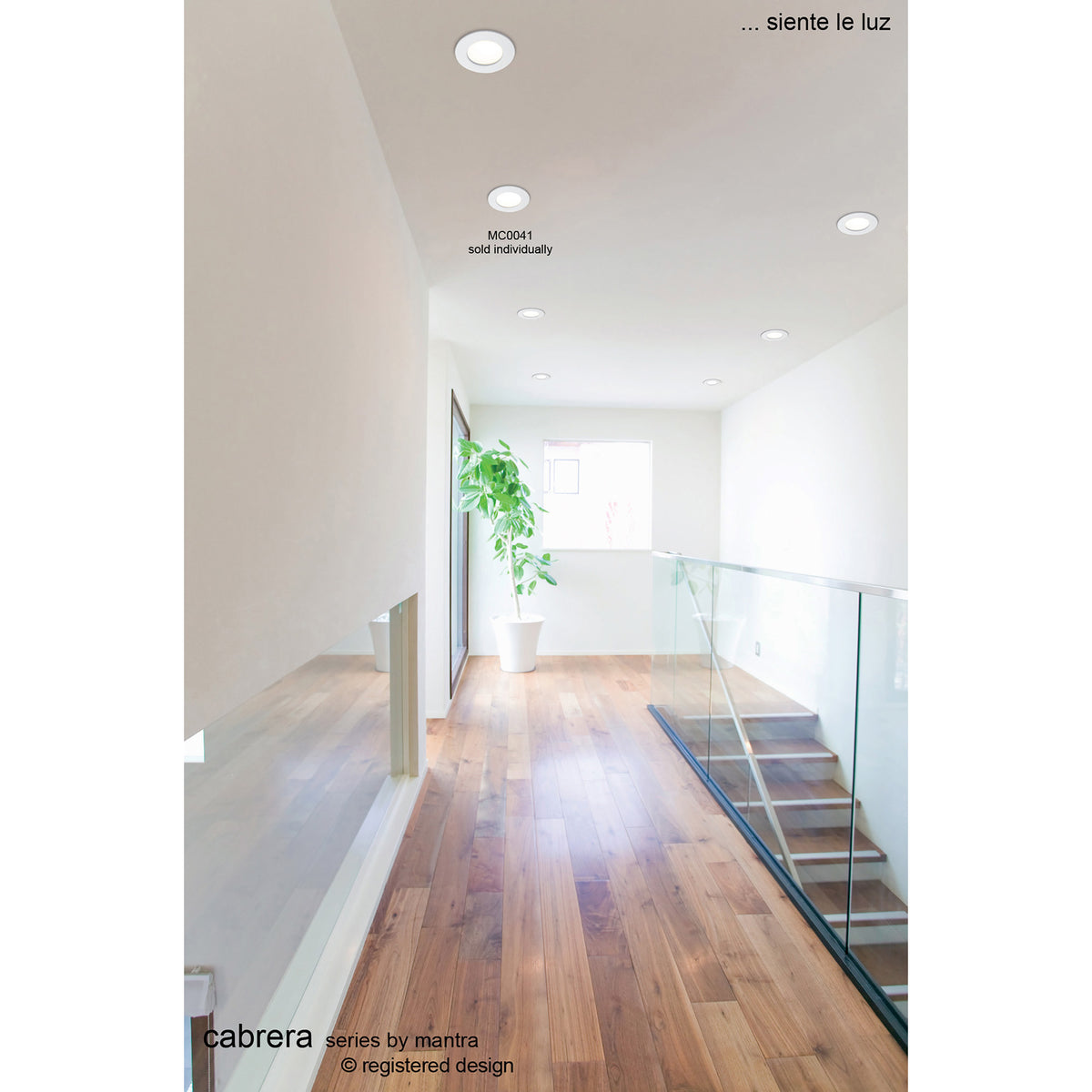

We reach for this size where the ceiling is busy and a bigger aperture would look heavy: hallways, landings, kitchens, utility rooms, cloakrooms, home offices and the shallow ceilings of loft conversions. Because it is a dry-room fitting, keep it away from shower and bath zones and out of open porches. In a kitchen, several across the working side of the room and a couple over the table gives you cool, clean light for chopping and reading labels; in a hallway, a line of three or four is usually plenty.

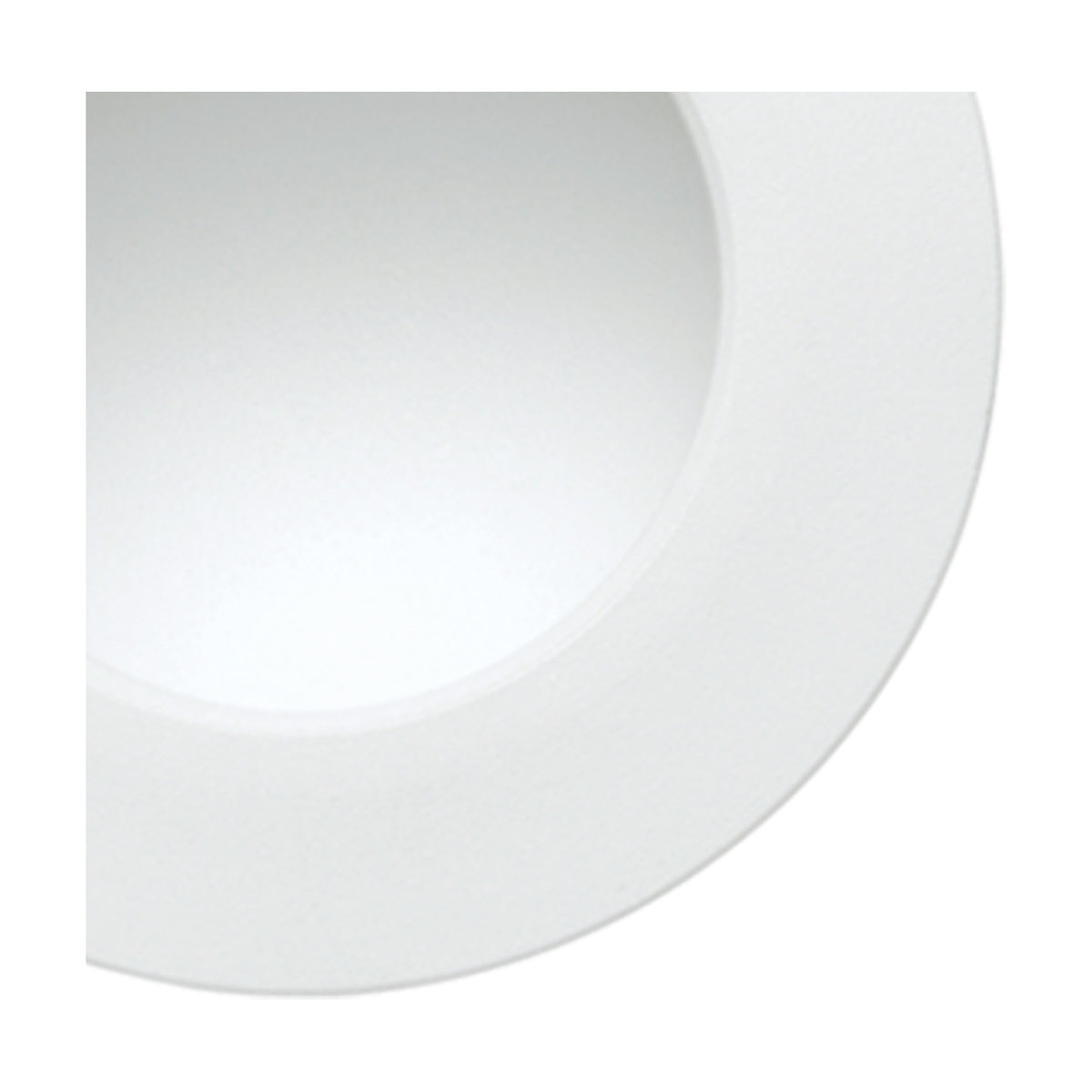

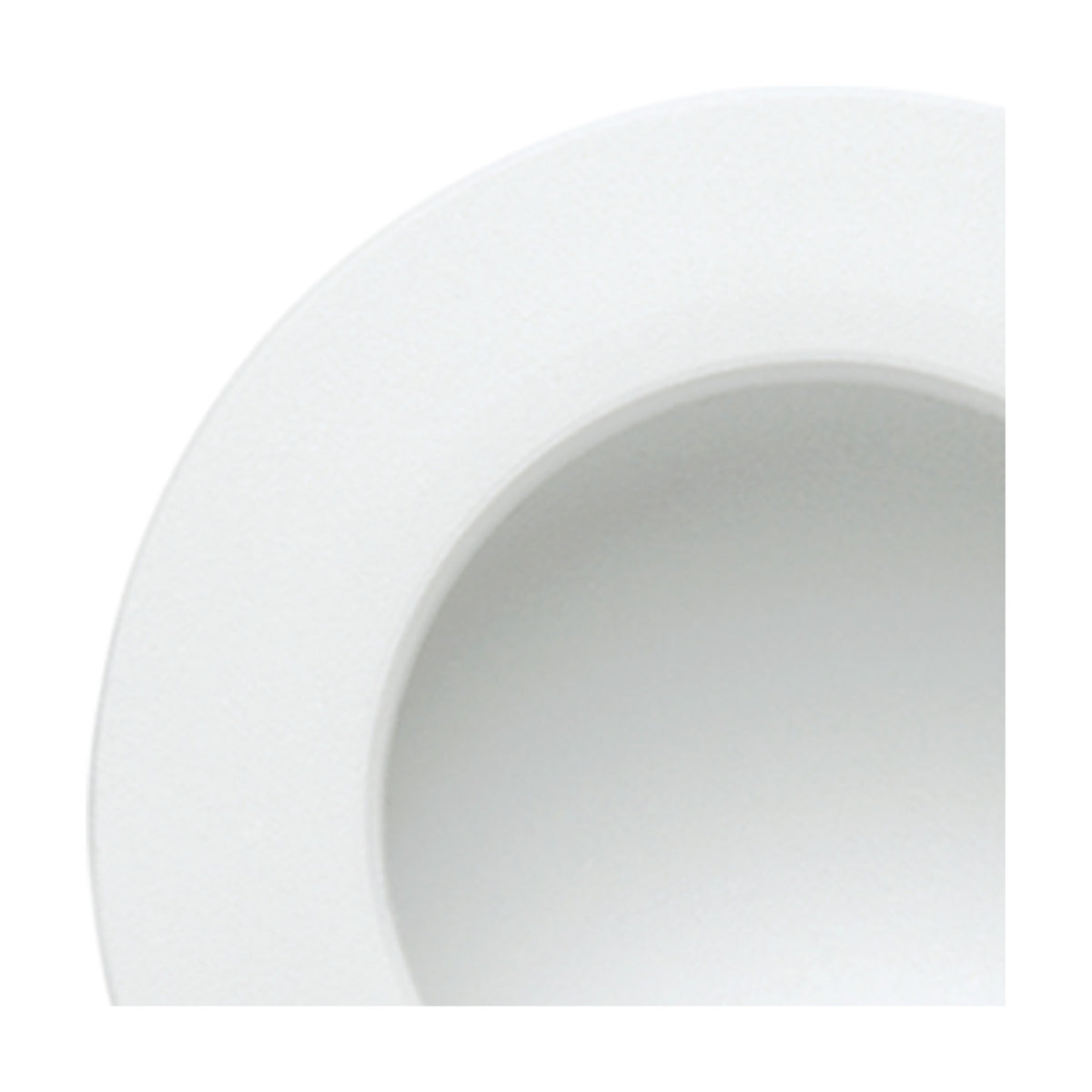

The trim is finished in a low-sheen white that sits happily against most painted ceilings without drawing the eye, and the flat face keeps dust off better than a stepped bezel. To clean, isolate the circuit at the wall switch, then run a dry microfibre cloth over the trim and lens; nothing wet, and no cream cleaners, as they will dull the matt surface. It carries a three year warranty. We stock the same size in a warmer white light, and the range steps up through larger diameters with higher outputs if you want fewer fittings doing more work, all in the same white trim so a mixed scheme still reads as one family. There is no lamp to buy for it.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.15KG |
| Diameter |
105mm |
| Height |
35mm |
| Cut Out |
95mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 6W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
4000K Cool White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
25000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
30 |
| SMD Chipset |
2835 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per Watt (lm/W) |
90lm/W (±5%) |
| Beam Angle |
130° |
| System Flux |
540lm (±5%) |
| CRI |
=80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
6W (±5%) |
| Input Voltage |
100-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life |
25000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
What size hole does it need?
The aperture is 95mm, with an overall trim diameter of 105mm, so the visible ring overlaps the opening by a few millimetres all round.
How deep is the fitting?
The body stands 35mm tall, which makes it a useful option where ceiling depth is tight.
Can it be dimmed?
No. It is a non-dimmable fitting and should be run from a standard switched circuit rather than a dimmer.
How bright is it, and what does the light look like?
It produces roughly 540 lumens at 4000K, a crisp neutral white with a broad 130 degree beam. It suits task areas and circulation space; for bedrooms and sitting rooms, the 3000K version in the same range is the softer choice.
Do I need to buy a bulb or a driver?
Neither. The LED is integral and the driver is supplied with the fitting.
How long should the LED last?
It is rated at an average life of 25,000 hours.
