Description

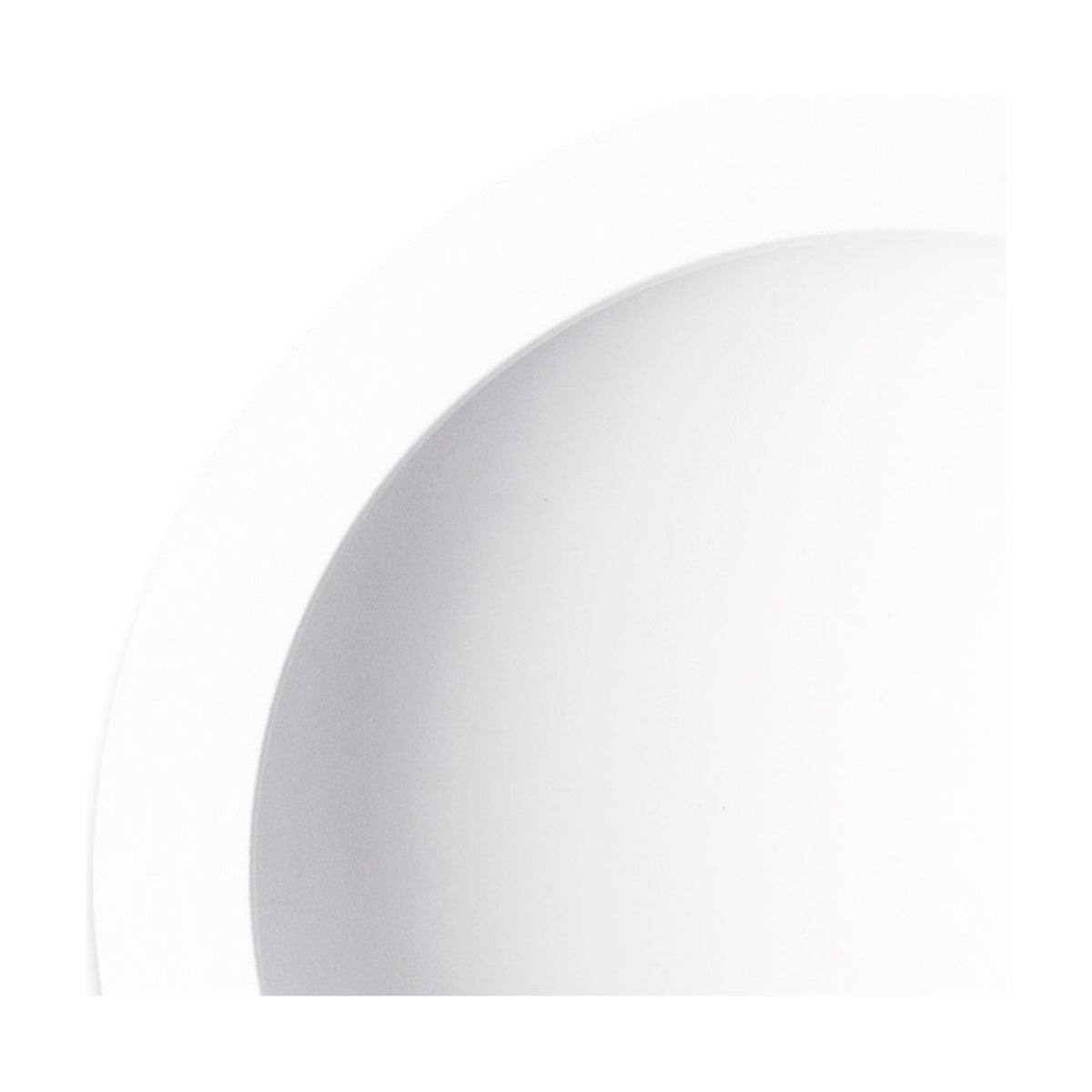

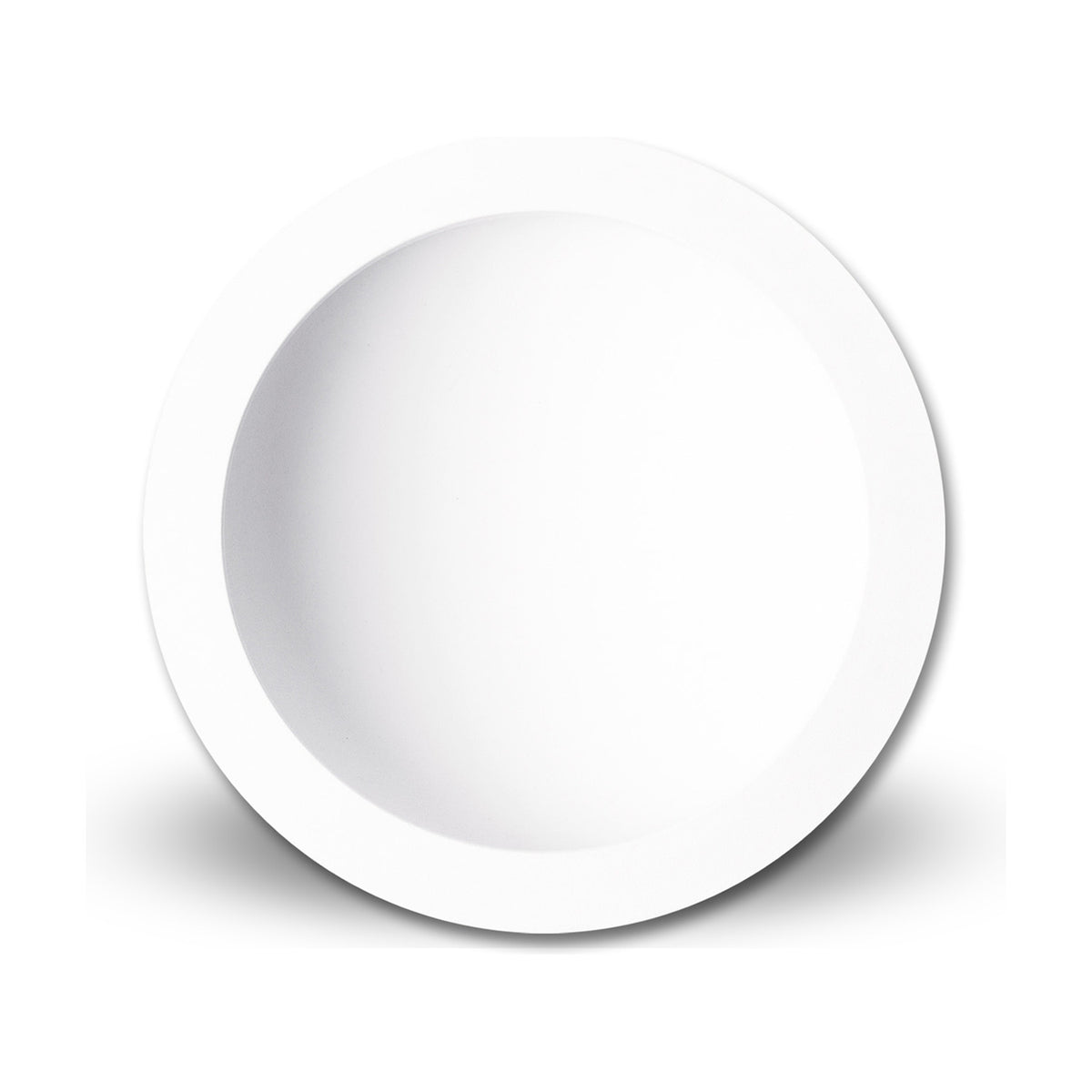

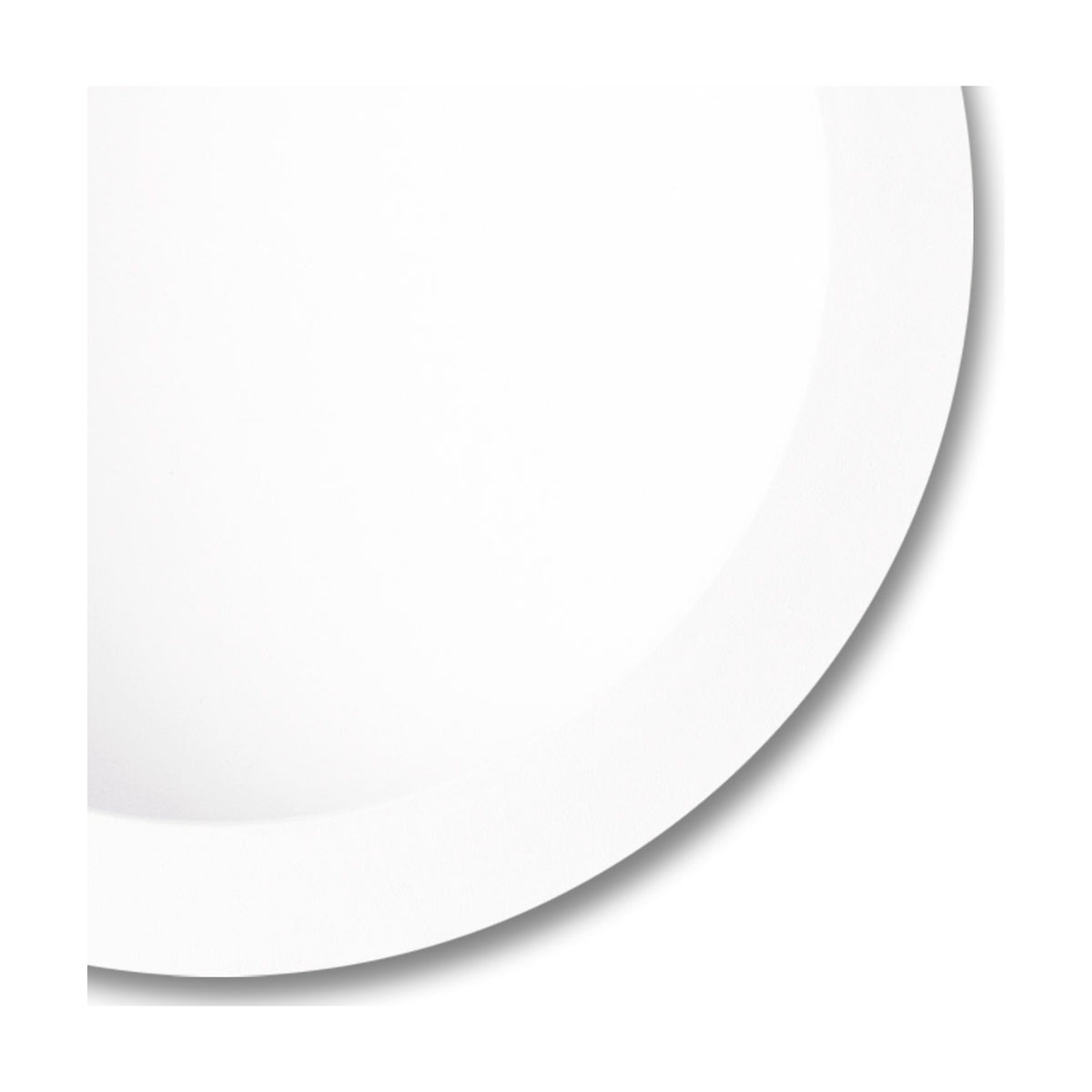

Here is a downlight built for scale: a wide round aperture that sits flush with the ceiling line, showing nothing but a matt white rim and a broad, evenly lit face. The LED module is integral and rated at 30W, putting out a warm white 3000K that lands closer to lamplight than daylight. Output is spread wide rather than punched into a tight pool, so the light falls softly across a room instead of picking out a single spot on the floor. It needs a 285mm cut-out and arrives with its driver.
We reach for a fitting this size where a room needs real light from very few points: an open plan kitchen and dining space, a hallway with a long run of ceiling, a landing, a home office. A single unit can cover ground that would otherwise want a scattered grid of small apertures, which keeps the ceiling calmer. Switching is straightforward on and off, so it suits circuits run from a plain wall switch rather than a dimmer. The warm tone keeps it comfortable in rooms where people sit, eat and talk.
The body is finished in matt white throughout, which reads quietly against a white ceiling and keeps the rim from drawing the eye. It is double insulated and carries a three year warranty. With no protection against moisture, it belongs in dry rooms; for a shower area or an outside soffit we would point you at something sealed. For upkeep, dust the visible rim with a dry cloth and lift marks with a barely damp one; the LED is built in, so there is no lamp to change. We stock the same round shape in smaller diameters down to a compact aperture, and in a cool white version at this size if you would rather the light read crisper.
Specification
| Colour |
Matt White |
| Ceiling Mountable |
Yes |
| Recessable |
Yes |
| Weight |
0.98KG |
| Diameter |
300mm |
| Height |
63mm |
| Cut Out |
285mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 30W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| Number of Switching Cycles |
30000 |
| Average Life of LED |
20000hrs |
| LED Brand |
Epistar |
| Qty of SMD |
144 |
| SMD Chipset |
2835 |
| LED Power |
0.2W (±5%) |
| Type of LED |
SMD |
| Lumens per LED |
24-26lm |
| Lumens per Watt (lm/W) |
85lm/W (±5%) |
| Beam Angle |
171° |
| System Flux |
2550lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output |
700mA |
| Min/Max. Voltage Output |
25-42V |
| Load Range |
30W |
| Ta |
50°C |
| Tc |
85°C |
| Casing Material |
Aluminium |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption |
30W (±5%) |
| Input Voltage |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| EMV/EMC |
Yes |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Sloped Ceiling Compatible |
Yes |
| Sloped Ceiling Adapter Required |
No |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How big is the aperture I need?
The cut-out is 285mm. The fitting itself measures 300mm across, so the rim covers the opening, and it stands 63mm deep behind the ceiling line.
How much light does it give?
2550 lumens from a 30W integral LED, at 3000K warm white. That is enough for a single point to light a good-sized room.
Can I put it on a dimmer?
No. This version is non-dimmable and should be run from a standard on/off switch.
Is there a bulb to buy or replace later?
No. The LED is integrated and the driver is supplied with the fitting.
Will it work in a bathroom or outside?
We would keep it to dry indoor rooms. It has no moisture protection, so shower zones, wet rooms and exterior soffits call for a sealed fitting.
Is a cooler light available in the same size?
Yes, the same 30W round fitting is made in a 4000K cool white, with 2600 lumens.
