Description

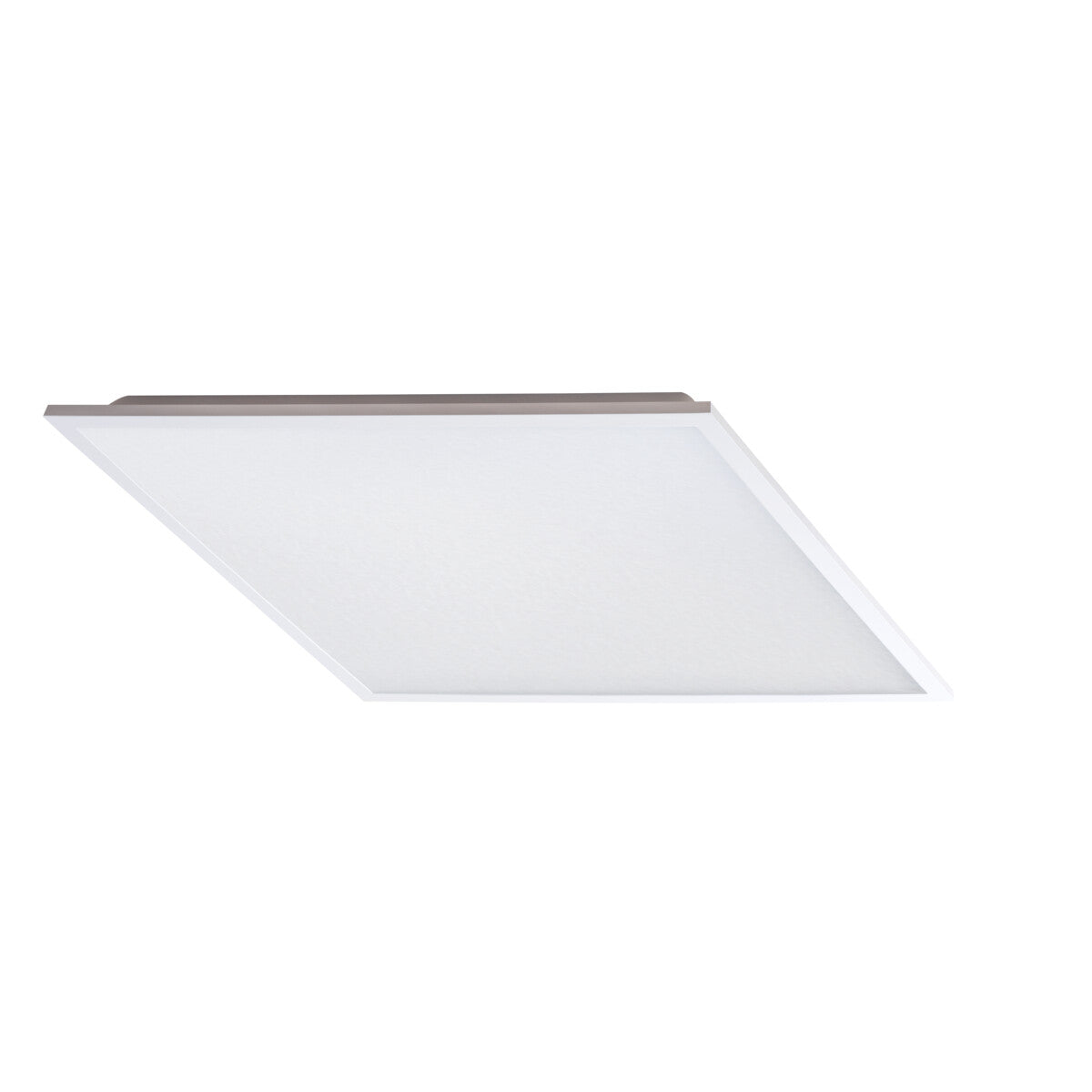

The Blingo is a recessed 600x600 LED panel that drops into a standard ceiling grid to give a clean, flush finish. It draws 38W direct from a 220-240V AC mains supply and pushes out 5400 lumens at a 4000K cool white tone, with an efficiency of 142 lm/W. Builders in the US market will know the 600x600 format as a 2x2 troffer, the square ceiling panel sized to one grid module. The wide 115 degree spread spills light evenly across the area below rather than focusing it, so there are no harsh pools or dark gaps.
At 5400 lumens this panel covers around 18 m² at general lighting levels, making it a sensible fit for offices, meeting rooms, reception areas, classrooms and retail floors. The cool white 4000K output keeps spaces looking crisp and neutral, which suits places where people read, work at screens or browse stock. It is built for a suspended grid ceiling and needs clearance in the void above for the body and driver, so check there is room before fitting. For larger rooms, lay out several units across the grid to keep the brightness consistent from wall to wall.
The frame is steel with a white finish and the panel measures 595 × 595 × 25 mm, weighing 1.53 kg. It runs from its included driver, so there is no separate control gear to source, and the unit is not dimmable, holding a steady output across its rated 50,000 hour life. The IP20 rating means it is for dry indoor use only and should be kept out of bathrooms and any damp or exposed location. The Blingo range also includes warm and selectable colour temperature panels alongside other grid sizes if you need to match fittings across a building.
Specification
| Power |
38W |
| Voltage |
220-240 AC |
| Luminous flux |
5400 lm |
| Efficiency |
142 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 80 |
| Beam angle |
115° |
| IP rating |
IP20 |
| Dimmable |
No |
| Driver included |
Yes |
| Mounting |
Recessed Mount In The Ceiling |
| Lifespan |
50,000 hours |
| Shape |
Square |
| Dimensions |
595 × 595 × 25 mm |
| Weight |
1.53 kg |
| Material |
Steel |
| Finish |
White |
Downloads
Frequently Asked
Is this panel dimmable?
No, the Blingo 600x600 is not a dimmable panel and runs at a fixed output. It comes with its driver included and connects straight to a 220-240V AC mains supply, holding a steady 5400 lumens throughout its life.
Will it fit a standard suspended ceiling grid?
Yes. At 595 × 595 × 25 mm it is sized to drop into a standard 600x600 grid module, known in the US as a 2x2 troffer. You will need clearance in the void above the grid to house the panel body and its driver.
How many lumens does it give and what room size does it suit?
It produces 5400 lumens of 4000K cool white light, which covers around 18 m² at general lighting levels. That makes a single unit suitable for a small office, classroom or retail bay, with extra panels laid across the grid for larger floors.
How do I clean the diffuser?
Switch the panel off and let it cool, then wipe the diffuser with a soft, dry or slightly damp cloth. Avoid solvents and abrasive cleaners, which can dull or scratch the surface. Keep it indoors and dry, as the IP20 rating means it is not suited to damp areas.
