AV:Link Figure 8 Speaker Wire 2 x 13 Strand 0.41mm² White/Black - 10m

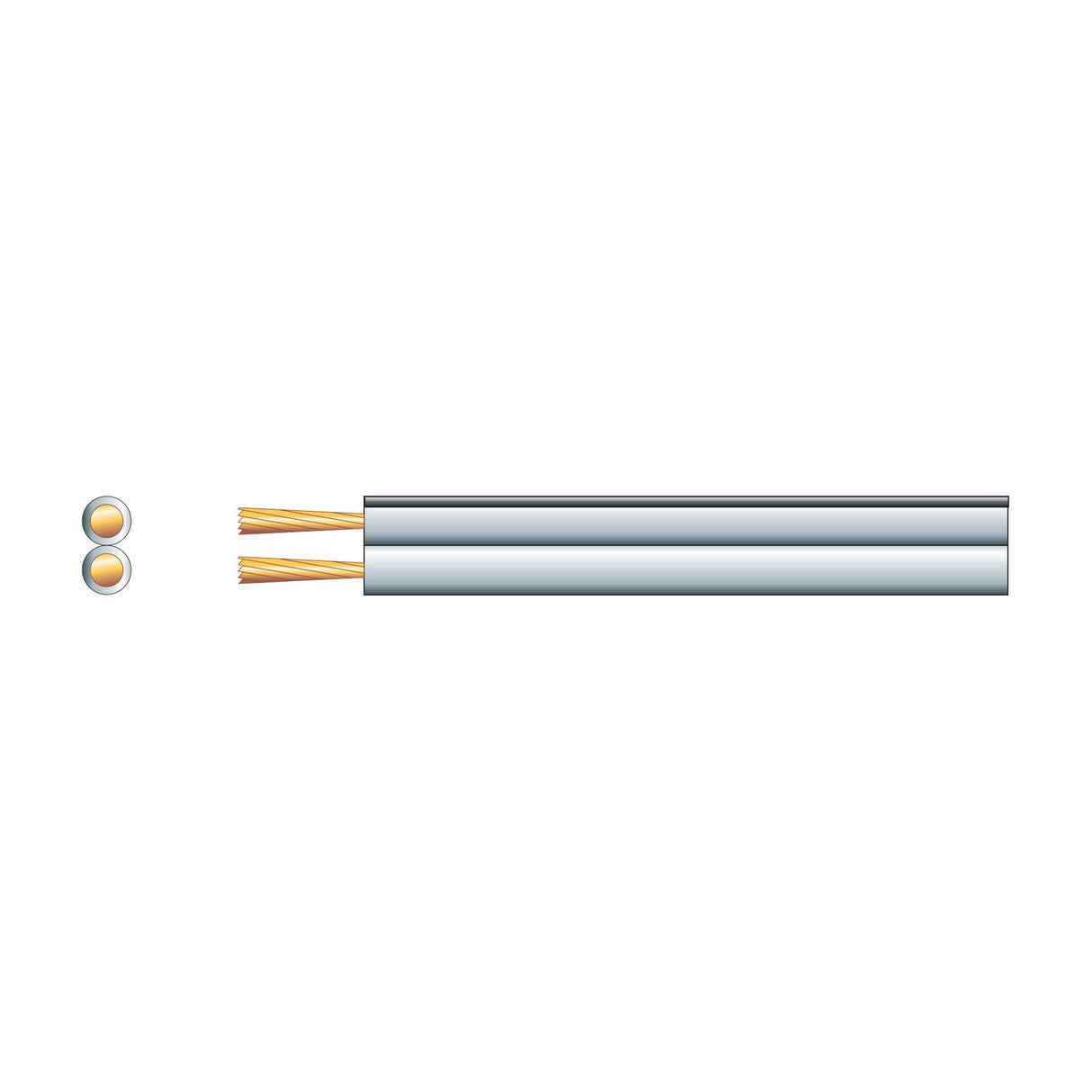

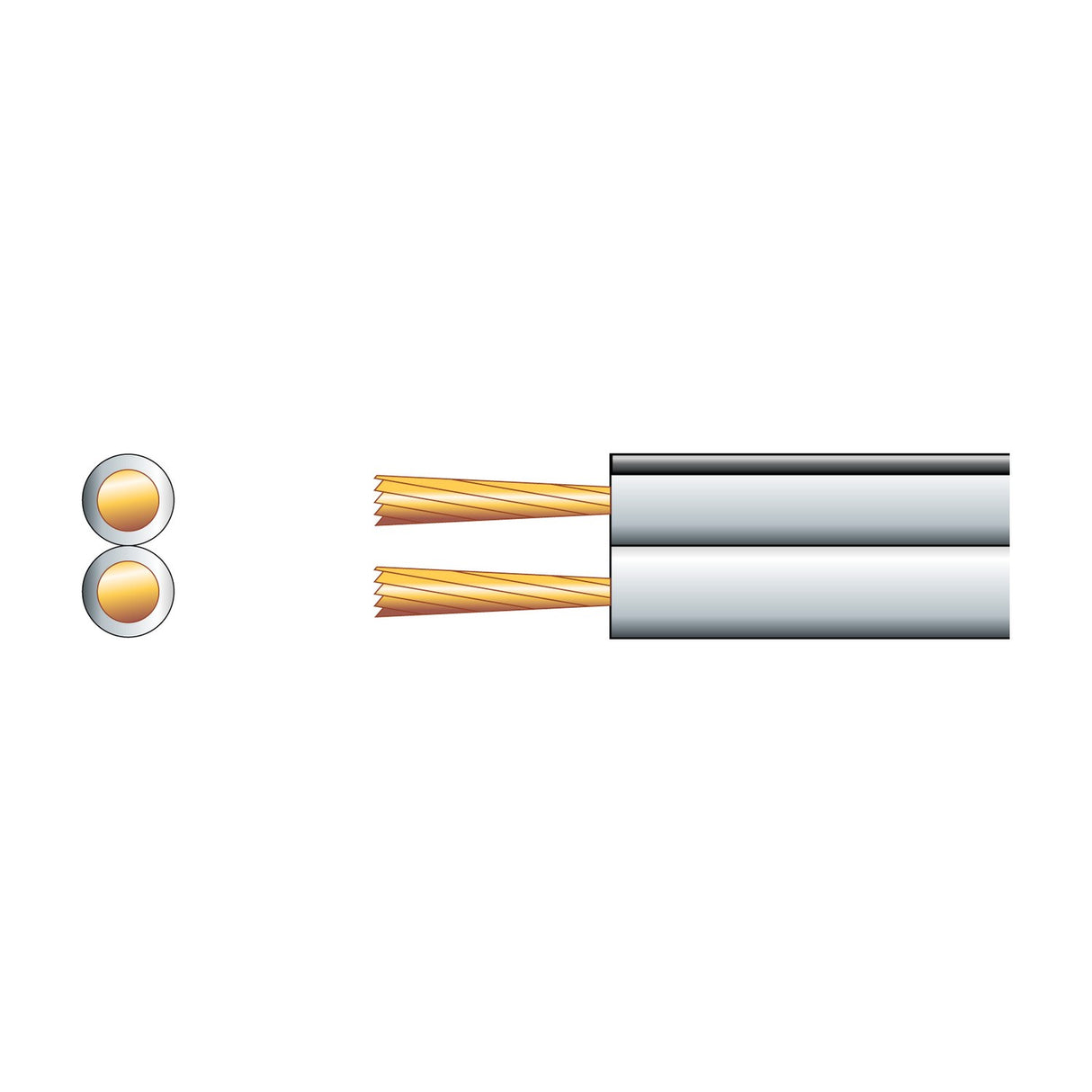

This AV:Link figure 8 speaker wire is a 10m run of twin-conductor cable with 0.41mm² cross-sectional area per conductor, built from copper-clad aluminium (CCA) strands in a 2 x 13 x 0.2mm configuration. The white PVC sheath carries one conductor with a black polarity marker running along its length, allowing quick visual identification of positive and negative during termination.

Designed for low-power audio distribution in domestic hi-fi systems, background music installations and small commercial AV setups, the cable suits runs between amplifiers and passive loudspeakers where power handling stays below the 2.5A maximum current rating. The figure-8 profile sits flat against skirting boards and under carpets without the bulk of round twin-core cable, and the twin conductors separate cleanly when stripped for screw-terminal or spring-clip speaker connections.

The 0.41mm² CSA provides adequate conductivity for short to medium runs (under 10m) at 8-ohm impedance without significant voltage drop, making it suitable for stereo pairs in typical living rooms, retail background music zones, and office meeting spaces. The CCA conductor material offers a lower-cost alternative to pure copper while maintaining acceptable performance for non-critical audio applications. The cable arrives in a sealed retail bag for resale or project stock.

What's the maximum recommended speaker distance?

At 0.41mm² CSA and 8-ohm impedance, runs under 10m maintain acceptable voltage drop for domestic hi-fi and background music systems. Longer runs or lower-impedance speakers may benefit from a larger gauge cable to avoid power loss.

What's the difference between CCA and pure copper?

CCA (copper-clad aluminium) uses an aluminium core with a thin copper coating, providing lower cost and lighter weight than pure copper. Pure copper offers better conductivity and is preferred for high-fidelity or long-run installations, but CCA performs adequately for short runs and non-critical audio applications.

How do I identify polarity when terminating?

One conductor has a black marker stripe running along the white sheath. This marked conductor is typically assigned to the negative terminal, with the unmarked conductor going to positive, but consistent polarity across both speakers matters more than which conductor is which.

Can this cable be used outdoors?

The PVC sheath is not rated for outdoor or UV exposure. For garden or outdoor speaker installations, use cable specifically rated for external use with UV-resistant and moisture-proof sheathing.
