Description

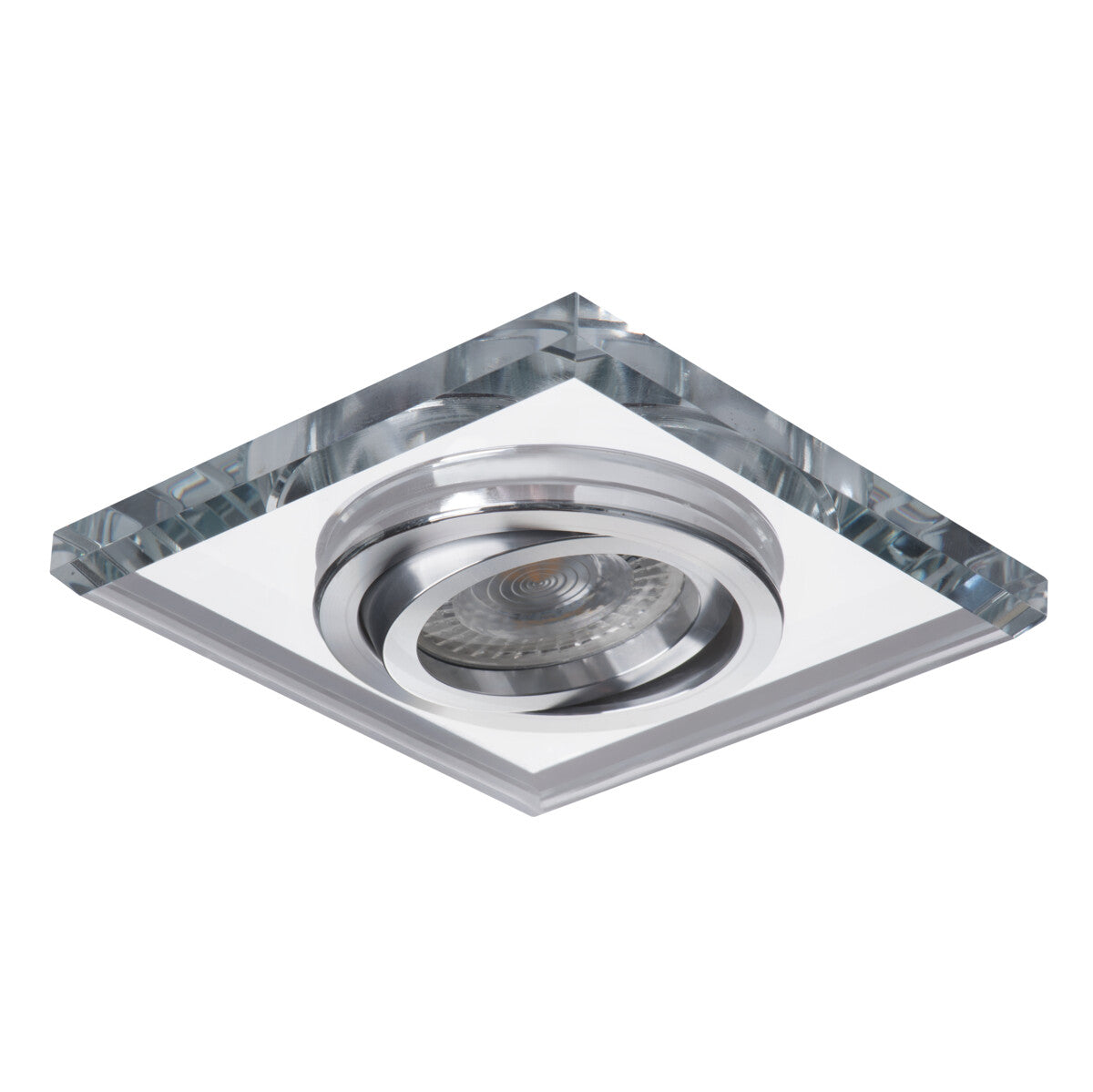

This square recessed spotlight is a fitting that accepts a single GU10 twist-lock lamp, which is supplied separately. The head tilts through 30 degrees, so the beam can be angled away from straight down to pick out a particular spot rather than washing the floor below. It takes any standard GU10 bulb up to 10W, letting you choose the brightness and tone you want from the lamp itself.

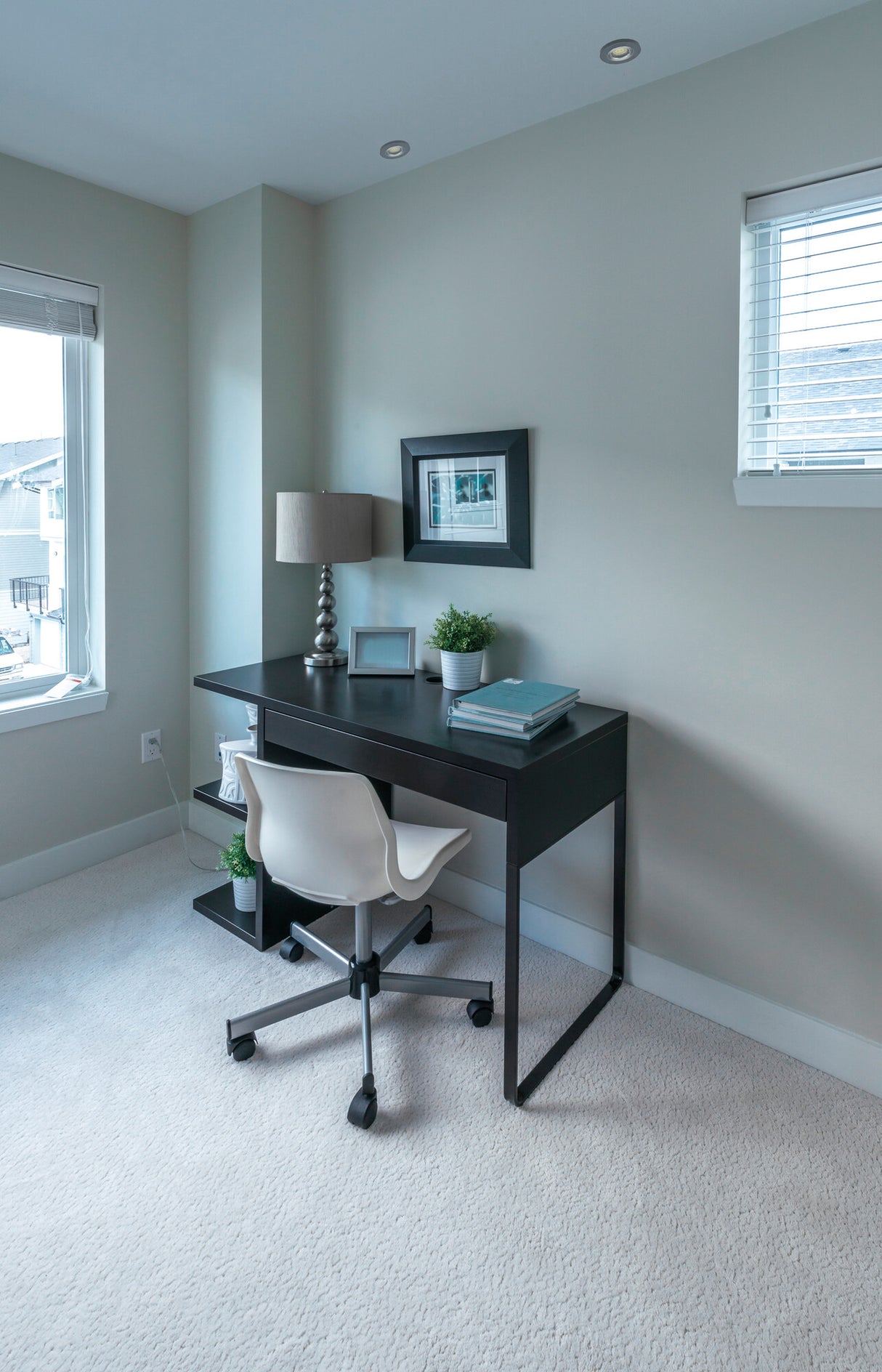

The 30 degree tilt makes it well suited to directing light onto artwork, a feature wall, shelving or a defined zone within a room. Set into a kitchen, hallway or living space ceiling, a row of these can be aimed to graze a surface or highlight an object, and each one can be adjusted independently for a tailored layout. The compact 90 by 90mm square face keeps the visible trim neat against the ceiling line.
The fitting recesses into a 75mm cut-out and is built with a glass front in a silver finish. It carries an IP20 rating, so it is intended for dry indoor positions only and should be kept clear of bathrooms and exposed outdoor sites. The lamp holder is GU10, the lamp is not included, and you can fit a bulb to match your required output.
Specification
| Fitting type |
Adjustable spotlight |
| Bulb cap (lamp not included) |
GU10 twist-lock |
| Adjustment |
Tiltable, 30° |
| Cut-out |
75mm cut-out |
| Max lamp wattage |
max 10W |
| IP rating |
IP20 |
| Material |
Glass |
| Colour / finish |
Silver |
| Dimensions |
90 × 90 × 24 mm |
| Lamp included |
No, supplied without a bulb |
Frequently Asked
Which bulb does this spotlight take, and is one included?
It accepts a single GU10 twist-lock lamp rated up to 10W. The bulb is not included, so you can choose the brightness and colour tone that suits the space.
What cut-out size do I need to install it?
The fitting recesses into a 75mm cut-out in the ceiling. Make sure there is enough void depth above the ceiling to seat the housing, which is 24mm deep.
How far does the head adjust?
The head tilts through 30 degrees from the vertical, letting you angle the beam onto artwork, a wall or a particular zone rather than pointing it straight down.
Can it be used in a bathroom or outdoors?
No. It is rated IP20, so it is for dry indoor locations only and should be kept clear of bathrooms, porches and any exposed outdoor positions.
Downloads
Product Specification Sheet
Range Datasheet
