Adastra 1U 6 Gang UK PDU with 10A Breaker - 1.8m Lead

£2699
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

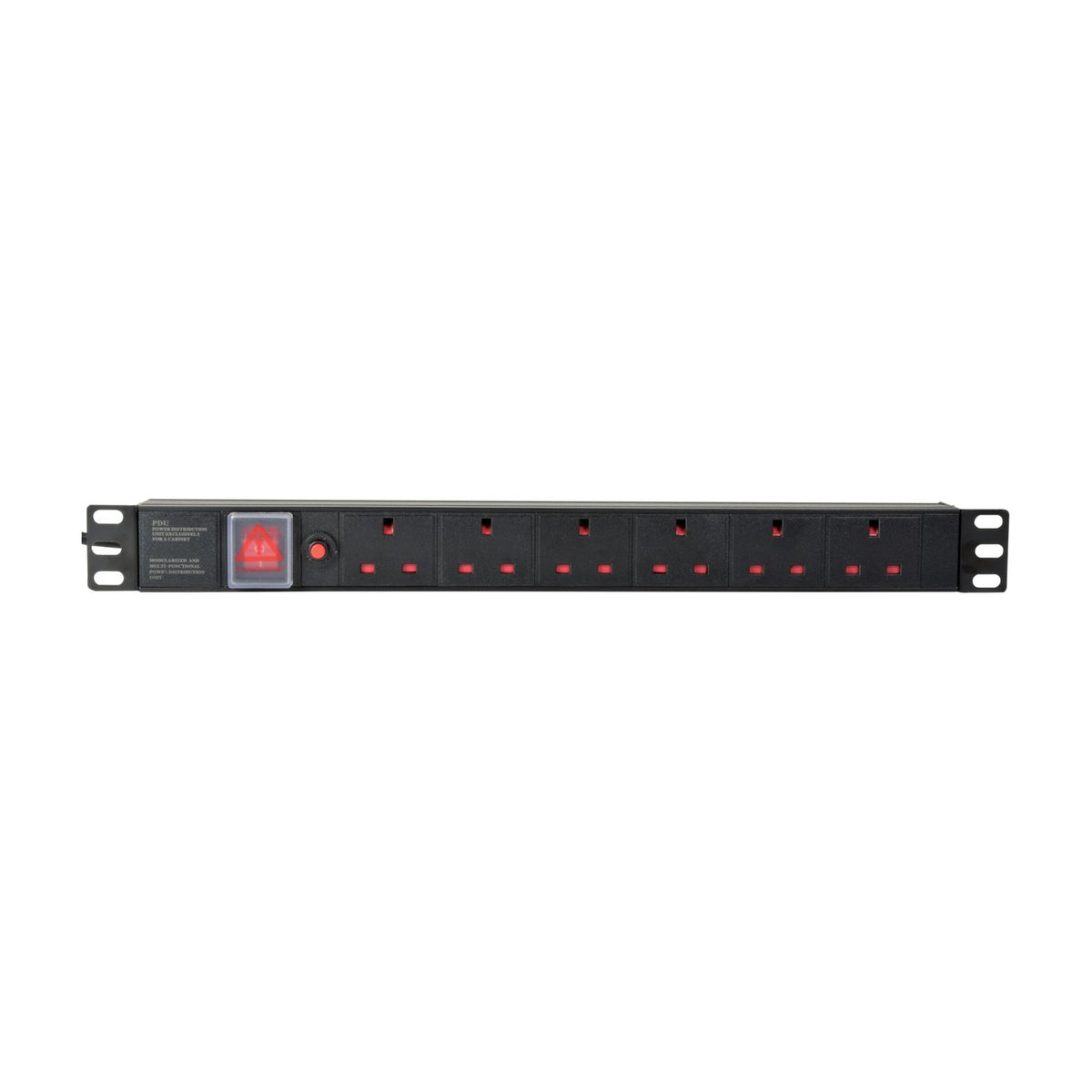

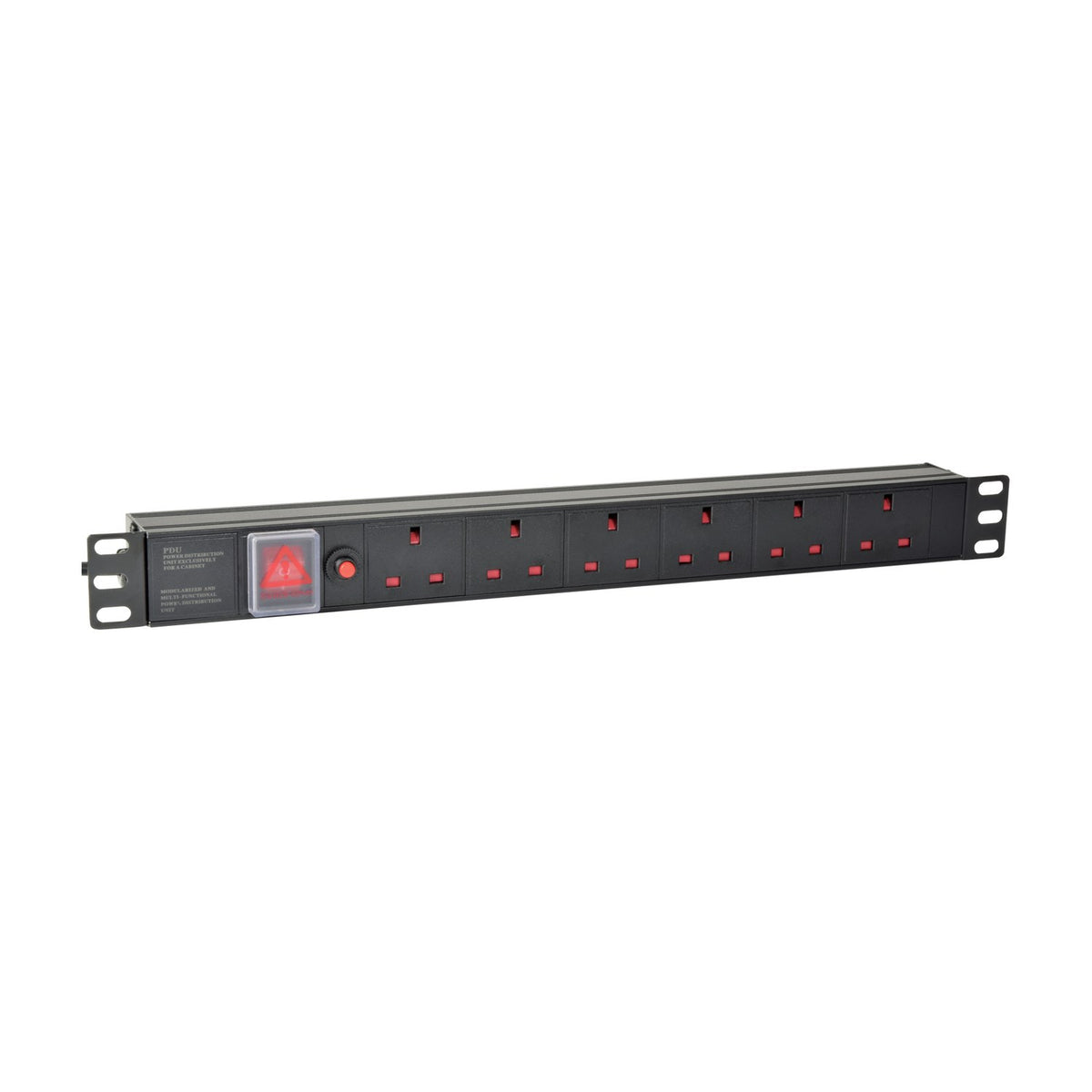

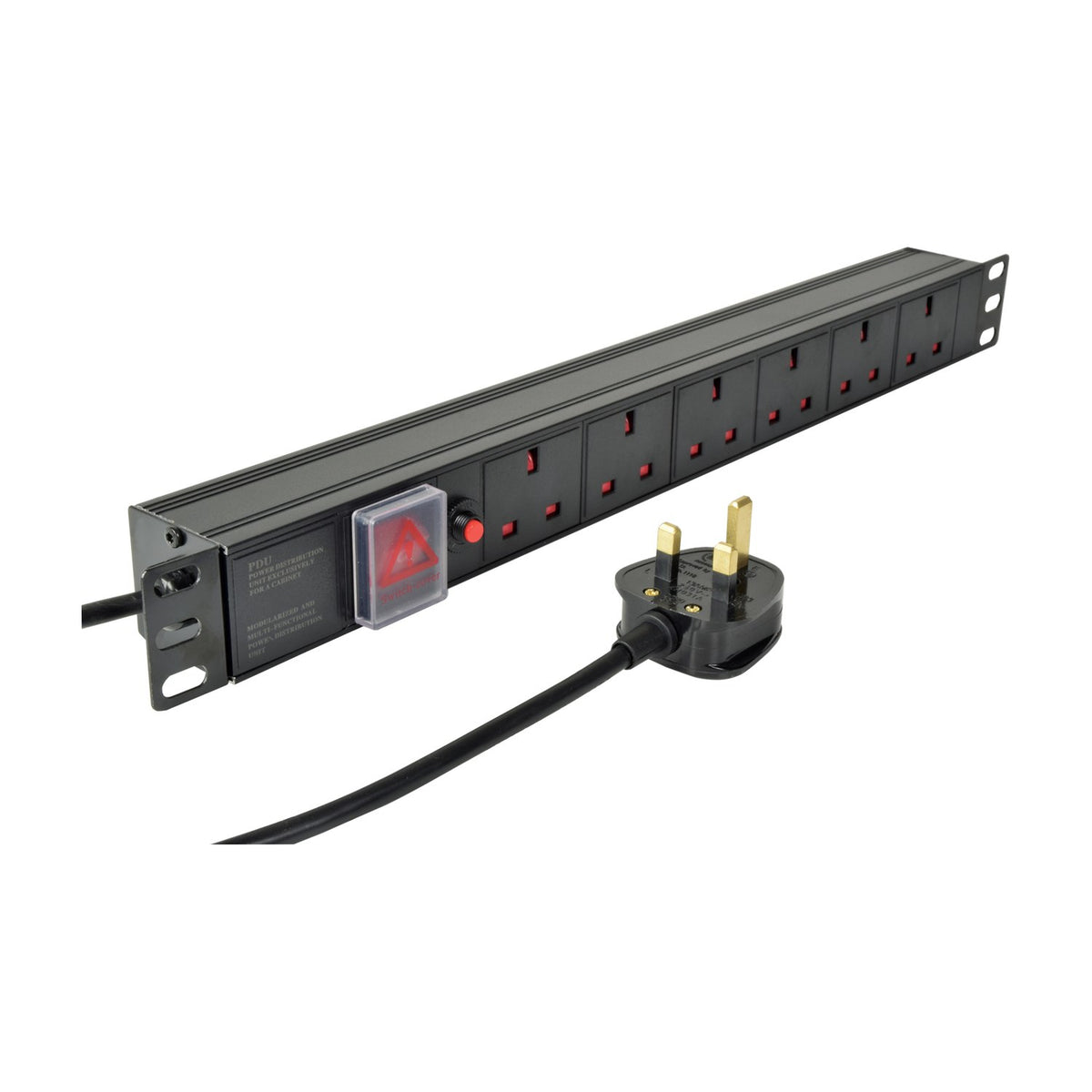

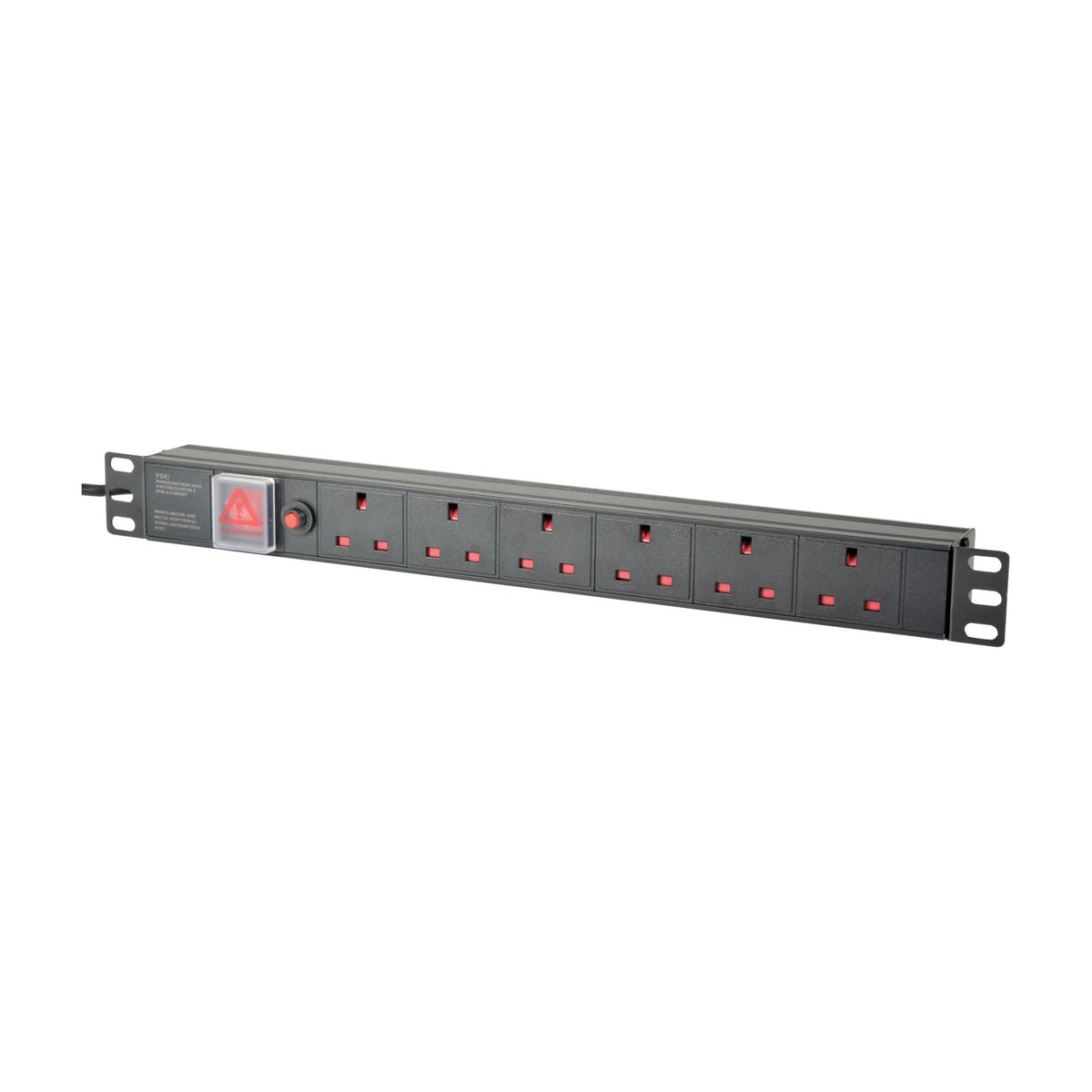

The Adastra 1U PDU is a rackmount power distribution unit providing six UK BS1363 sockets within a standard 19-inch 1U rack height. A resettable 10A circuit breaker protects the circuit from overload, while a master switch allows the entire PDU to be powered on or off without unplugging individual devices. The unit ships with a hard-wired 1.8m UK mains lead.

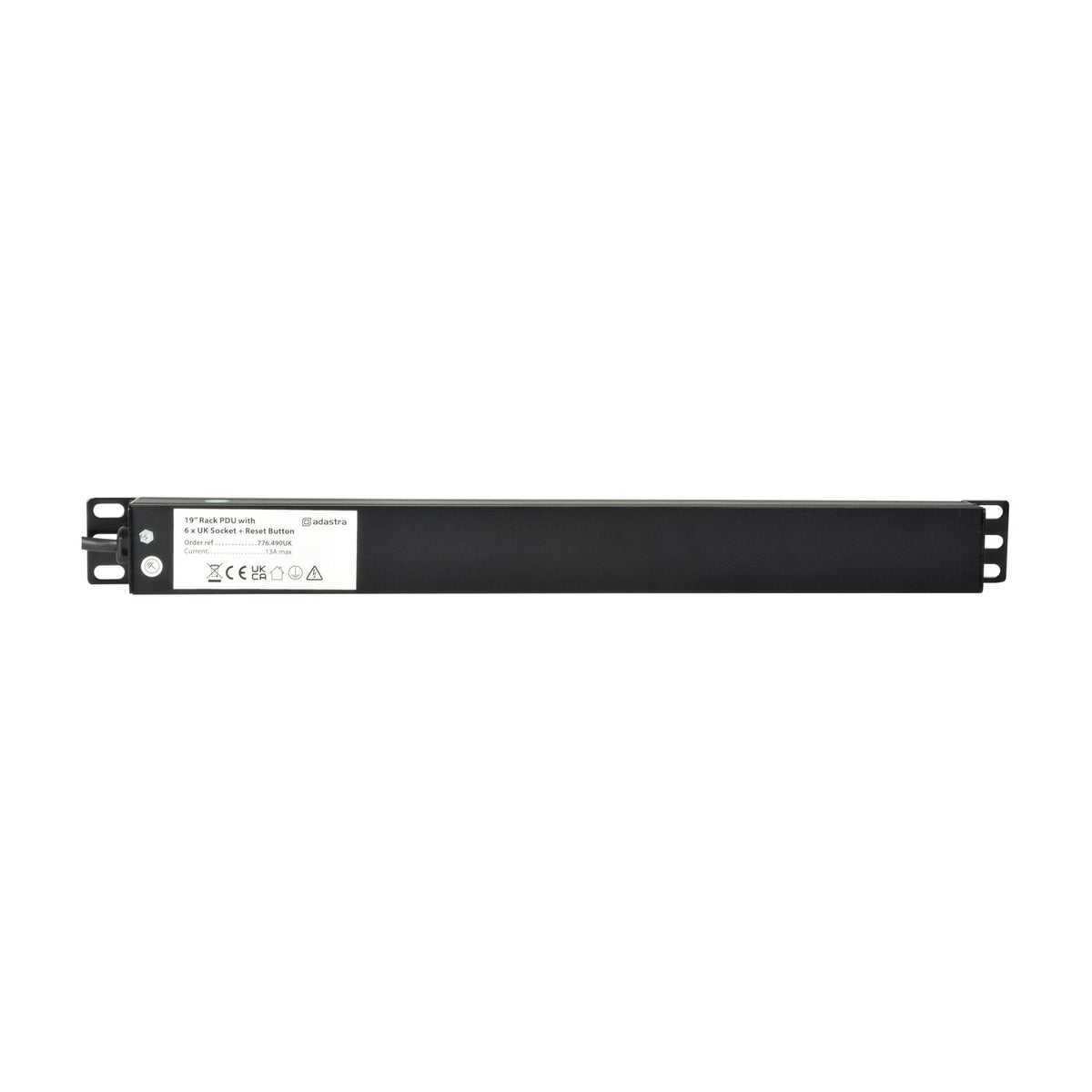

Designed for AV racks, server cabinets, studio installations and broadcast environments, the PDU mounts horizontally into a standard 19-inch rack using the flanged mounting ears on either side. The 1.8m lead length provides enough reach from the PDU position to a wall outlet or secondary distribution point without requiring extension leads. The six sockets are spaced to accommodate standard UK 13A plugs, though bulkier transformer blocks may obstruct adjacent sockets.

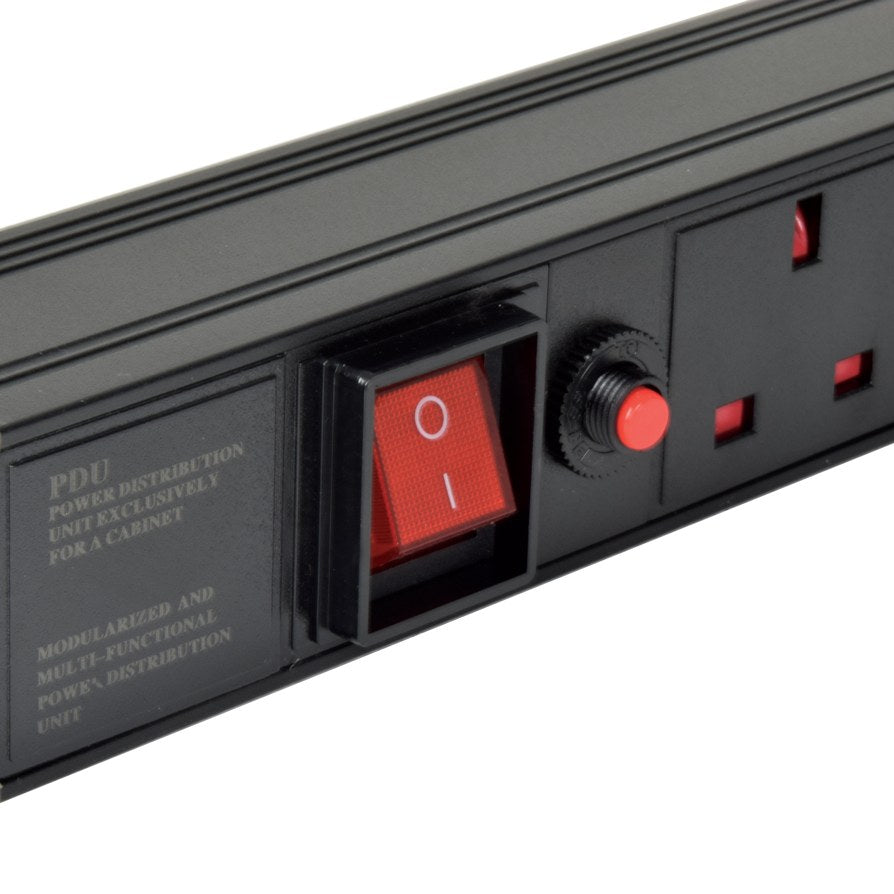

The 10A total load rating across all six sockets allows the PDU to power typical AV and IT equipment — mixers, amplifiers, monitors, media players, routers — without approaching the breaker threshold under normal operation. The breaker resets via a push-button on the front panel, visible through the rack door on most cabinets. The master switch sits adjacent to the breaker and glows red when the PDU is powered, providing a clear visual indication of circuit status.

Specification
Dimensions 483 x 53 x 44mm
Lead length 1.8m
Weight 720g
Max. current 10A total
Socket 6 x UK (BS1363)
Circuit protection Resettable 10A circuit breaker + master switch
Frequently Asked

What is the maximum total load across all six sockets?

10A total across all six sockets combined. Individual sockets are not rated separately — the 10A limit applies to the sum of all devices plugged into the PDU at the same time.

Can the breaker be reset without removing rack equipment?

Yes. The breaker resets via a push-button on the front panel, accessible through the rack door on most cabinets without needing to remove or unmount the PDU.

Does the master switch cut power to all six sockets?

Yes. The master switch isolates power to all six sockets simultaneously. The switch glows red when the PDU is powered, providing a visual status indicator.

Will bulky plug adapters fit all six sockets?

The six sockets are spaced to accommodate standard UK 13A plugs. Bulkier transformer blocks or angled plugs may obstruct adjacent sockets, reducing the usable socket count depending on plug size.
