Description

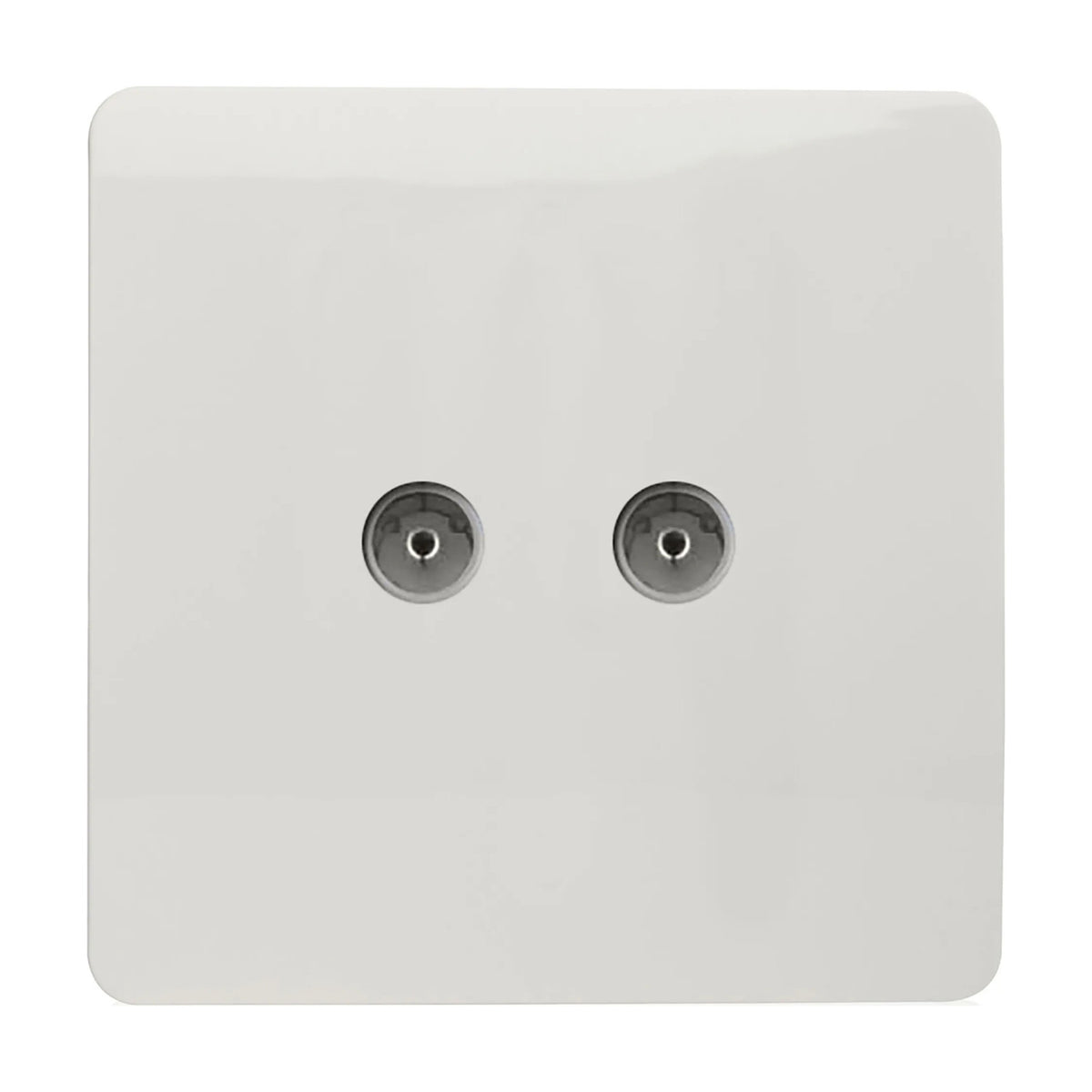

Two coaxial connections sit side by side behind one flat plate, finished in ice white with a soft sheen and nothing breaking up the front face. The screwless plate style is the appeal here: no visible fixing heads, just a clean square of white against the wall. At 88mm square it keeps to the same modest footprint as a standard single plate, so it reads as a small, quiet detail rather than something that draws the eye when the television is off.
This is the plate we would fit behind a television where an aerial lead and a second feed both need to land at the same spot, instead of one cable running off along the skirting board to another point across the room. It suits living rooms and bedrooms, and it earns a place in a study too, since it is rated for data circuits as well as aerial signal. It handles low voltage signal work rather than mains power, so it sits alongside your power points instead of taking the place of one, and it is intended for indoor rooms only.
The plate and inserts are moulded in ABS, which gives a hard, even surface that takes the ice white finish consistently across the face and the edges. To keep it looking right, wipe it with a barely damp cloth and dry it off straight away; household sprays and cream cleaners will dull the sheen if they are used repeatedly. It carries a ten year warranty. Ice white sits happily with most modern paint whites and with brushed metal around a media wall, and if you are running screwless plates elsewhere in the room, matching switches and power points in the same shade keep the wall consistent rather than piecemeal. Aerial and data leads are supplied separately.
Specification
| Colour |
Ice White |
| Type of Finish |
Core |
| Weight |
0.07KG |
| Length |
88mm |
| Width |
25mm |
| Height |
88mm |
| Back Box Depth |
25mm |
| Materials Used |
Polycarbonate, Metal |
| Protection Class |
Class 3 - Low Voltage |
| IP Rating |
IP20 |
| Warranty |
10yrs |
| UKCA/CE |
Yes |
| Additional Certification |
BS EN 60669 |
| Number of Gangs |
2 |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician. 25mm Box Depth Is Recommended. |
| Suitable For |
Indoor Use Only. Data circuits. |
| Country of Origin |
China |
Frequently Asked
How big is the plate?
It is 88mm high by 88mm wide, with a depth of 25mm, so it matches the footprint of a standard single plate.
What is it made from?
The plate and inserts are moulded ABS in an ice white finish, with no screws showing on the front face.
Can I use it for satellite or data as well as an aerial?
It is a coaxial socket suitable for aerial signal and data circuits. Both sockets take standard coaxial connections.
Is it suitable for a bathroom or an outbuilding?
No. It is rated IP20 and intended for dry indoor rooms only.
How should I clean it?
A barely damp cloth, then dry it off. Keep solvents, bleach and abrasive cream cleaners away from the face, as they will mark the finish.
Does it carry a warranty?
Yes, it carries a ten year warranty from the manufacturer.
