Mercury Economy Figure 8 Speaker Cable 2 x 7 White/Black - 100m

£799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

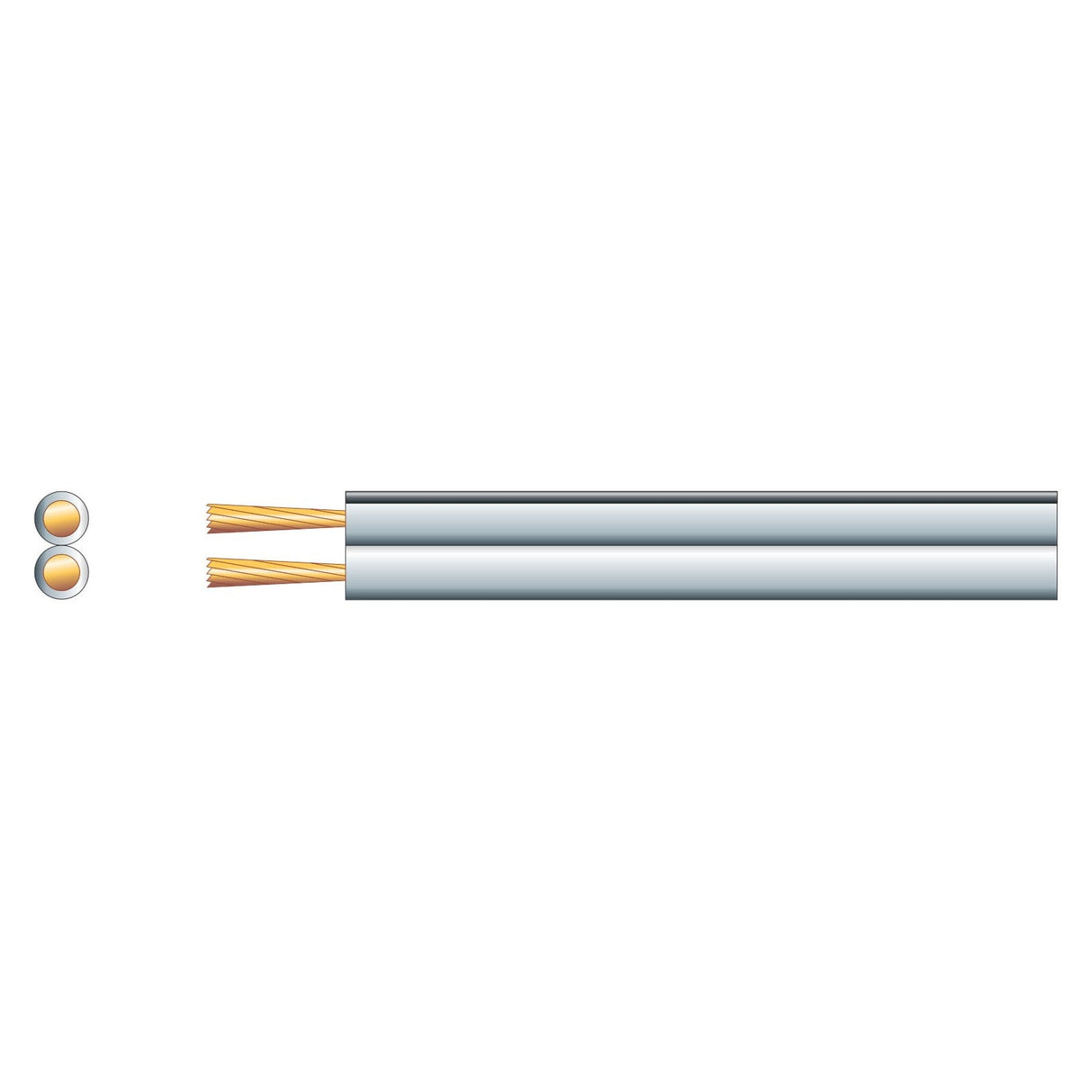

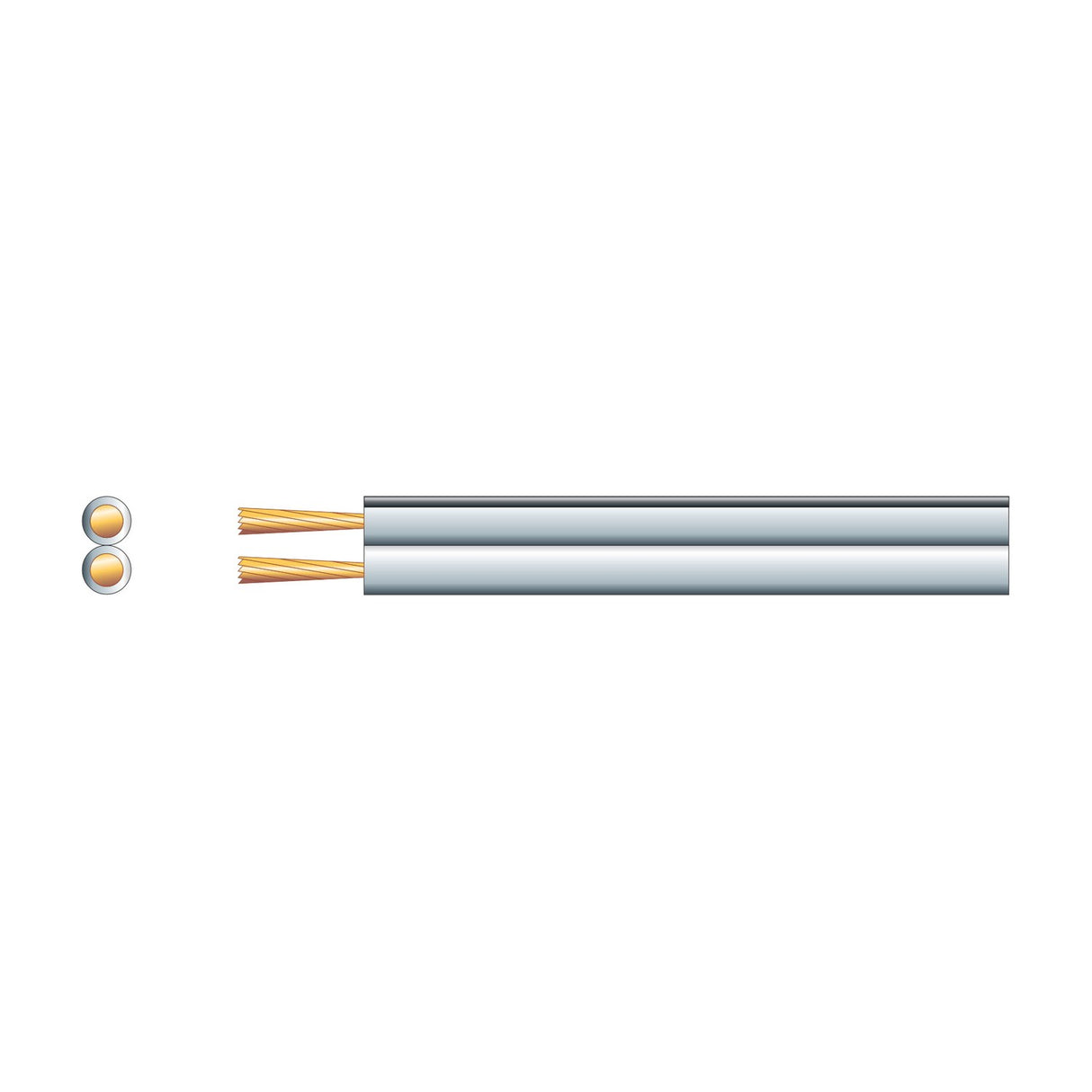

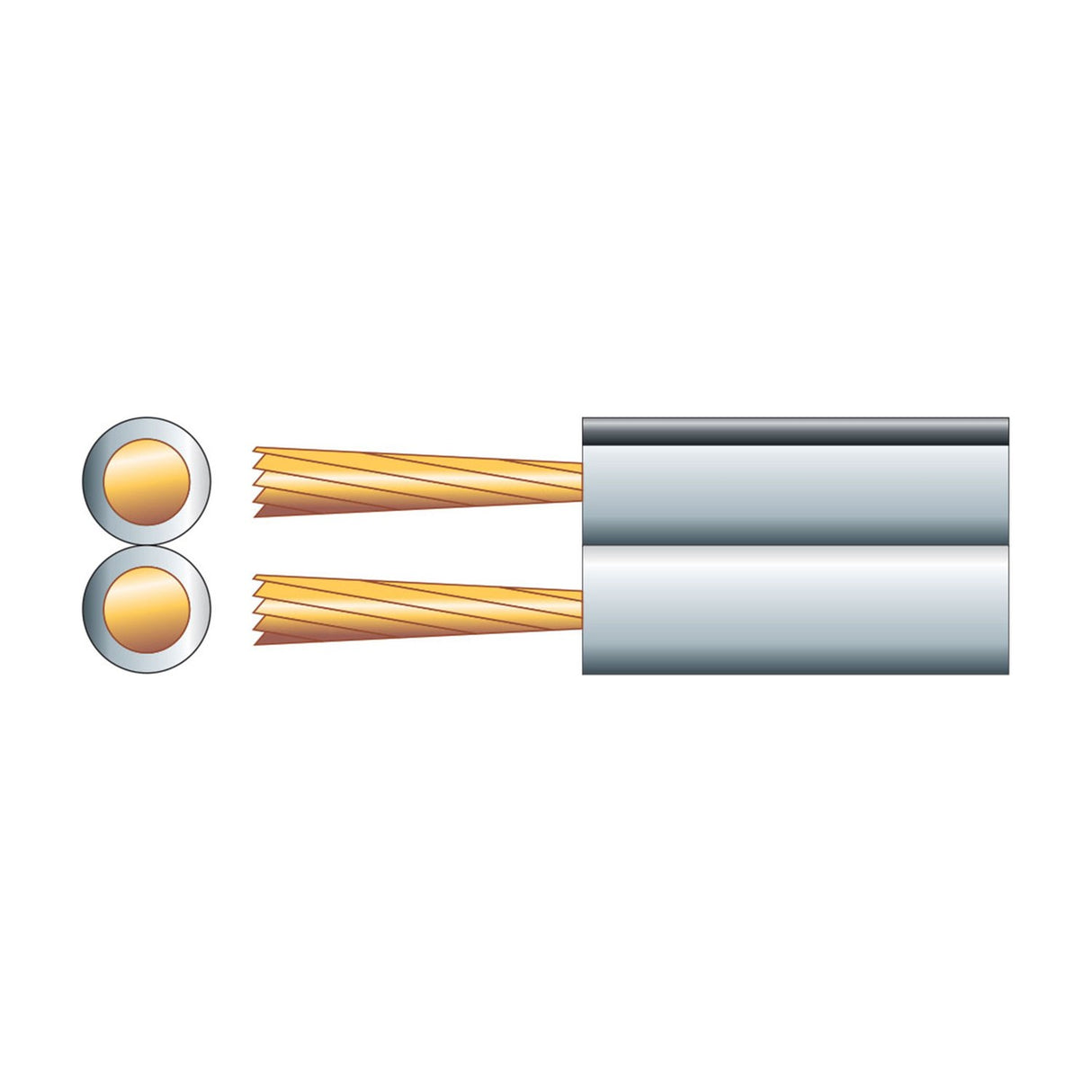

The Mercury Economy Figure 8 Speaker Cable is a 100m reel of twin-core CCA (copper clad aluminium) speaker cable in a white sheath with a black polarity line running along one conductor. Each core contains 7 strands of 0.2mm diameter wire, giving a 0.22mm² cross-sectional area rated for up to 1.0A maximum current. The figure 8 profile measures 1.8 x 3.6mm overall, making it the thinnest speaker cable AVSL produce.

Designed for background music systems, small ceiling speakers, desktop monitors and intercoms where power draw is under 1 amp and cable runs are short, the Mercury cable suits discreet installations where a slim profile matters more than high current capacity. The figure 8 jacket allows the two conductors to be separated by hand for termination without needing a blade, and the black polarity marking keeps positive and negative consistent across multiple speakers.

CCA conductors provide lower conductivity than pure copper but at approximately 60% of the cost, making this cable suitable for budget-conscious installations where audio quality requirements are moderate. The 100m reel supports multiple short runs across a typical residential or small commercial installation without joining reels mid-project. The white sheath blends into ceilings, skirting and painted surfaces more readily than black alternatives.

Specification
Conductor Copper Clad Aluminium
Length 100m
CSA 0.22mm²
Strands 2 x (7 x 0.2mmØ)
Dimensions 1.8 x 3.6mm
Sheath White
Polarity Black
Packed quantity 8 reels
Current 1.0A max.
Frequently Asked

What is the difference between CCA and pure copper speaker cable?

CCA (copper clad aluminium) has an aluminium core with a thin copper coating, giving lower conductivity than solid copper wire. For short runs under 10m to low-power speakers (under 1A draw), the difference in audio quality is minimal. For longer runs, higher power or audiophile applications, pure copper cable is recommended.

What applications is this cable suitable for?

The 0.22mm² CSA and 1.0A rating make this cable suitable for background music systems, ceiling speakers in offices or shops, desktop monitors, intercoms and doorbell chimes. It is not suitable for high-power home cinema speakers, PA systems or subwoofers.

Can the two conductors be separated?

Yes. The figure 8 jacket allows the two cores to be pulled apart by hand for termination without needing a cutting tool. The black polarity line on one conductor ensures consistent positive/negative wiring across multiple speakers.

What is the maximum safe cable run length?

At 0.22mm² CSA, voltage drop becomes significant beyond 10-15m runs at 1A load. For longer distances, step up to 0.5mm² or 0.75mm² cable to maintain signal integrity and avoid power loss.
