Description

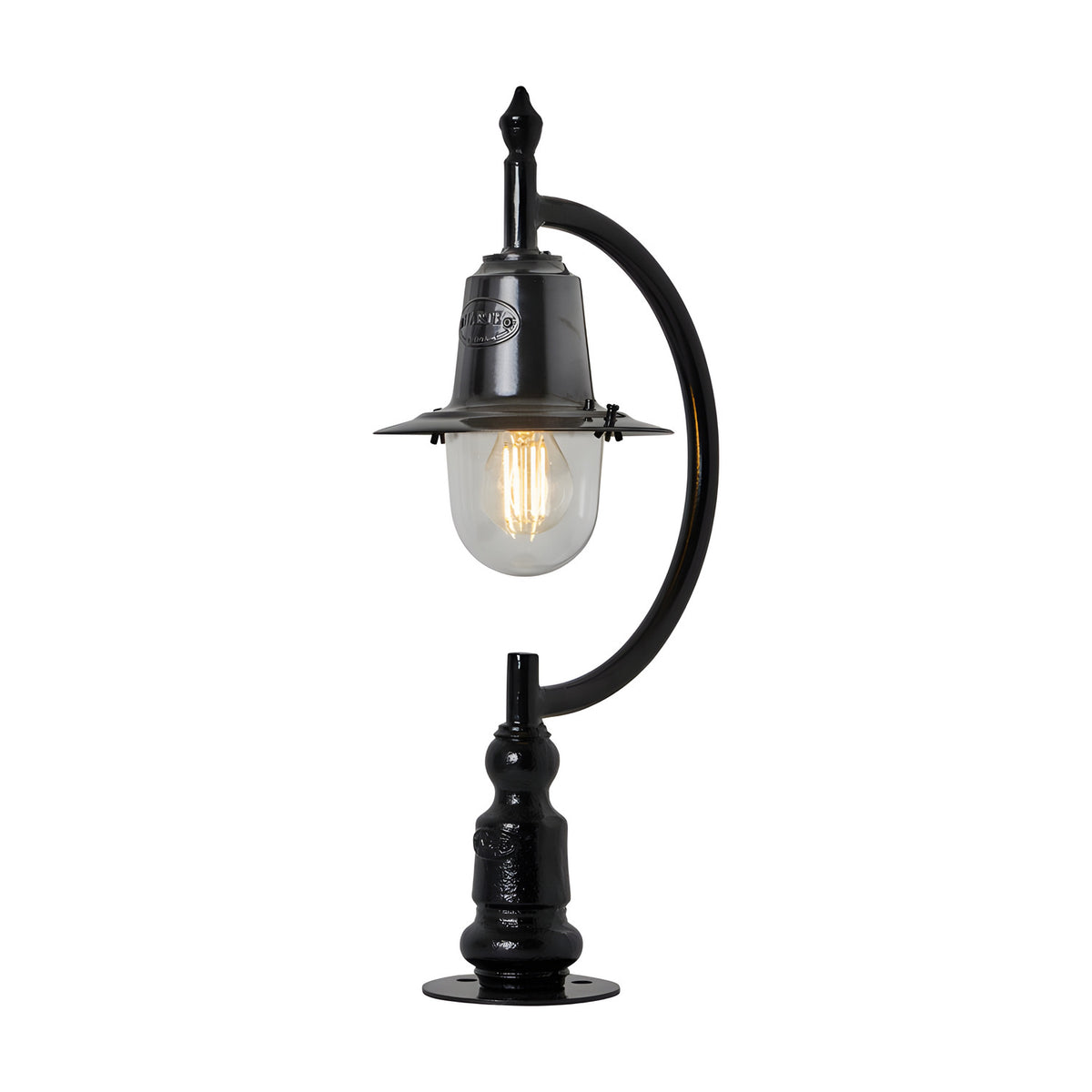

This is the smaller of the two pillar lights in the Goose Neck range, the old farmyard curve, carrying a spun teardrop shade over a clear glass dome. It stands 584mm tall and measures 290mm across. It is made for a narrow pier cap.
It sits on the pier cap itself, not on a wall, so the light starts at the gate rather than beside it. It weighs 4.50KG, so the pier cap needs to be sound and the base plate bolted through it. Harte rate it IP44, which covers splashing from any direction, so a covered or partly sheltered position is right; for a fully exposed position look at the IP65 fittings in the range. The same pattern runs from 584mm to 910mm, so you can match a pair across two positions without changing the look.
Glazing is polycarbonate and the lamp is an E27 screw fitting supplied without a bulb, so you choose the output and the colour rather than accepting a sealed unit. The maximum is 100W in total across one lamp; a 7W LED at 2700K is the usual choice. It is made in cast iron and galvanised steel. Harte cast, spray and glaze each light to order in County Wexford, so allow two to five weeks, and any RAL colour can go on in place of gloss black if you say so when ordering. An LED panel option is available in place of the lamp holder. Wiring an outdoor fitting needs a qualified electrician.
Specification
| Height |
584mm |
| Width |
290mm |
| Maximum Wattage |
1 x 100W max (lamps not included) |
| Socket |
E27 |
| Bulb(s) Included |
No |
| IP Rating |
IP44 |
| Material |
Cast Iron & Galvanised Steel |
| Glazing |
Polycarbonate |
| Finish |
Hand Sprayed Enamel Gloss Paint |
| Colour |
Black |
| Voltage |
220-240V |
| Cable |
3 Core Insulated |
| Weight |
4.50KG |
| LED Panel Option |
Yes |
| Country of Origin |
Ireland |
Downloads
Data Sheet
Frequently Asked
How tall is it?
584mm and 290mm across. Check the height against the position before ordering.
What does it weigh and what fixing does it need?
4.50KG. The fixing needs to go into structural timber or masonry rather than into plasterboard.
Can it go in an exposed position?
It is rated IP44, which covers splashing from any direction, so a covered or partly sheltered position is right.
What bulb does it take?
E27 screw lamp, not supplied. A 7W LED at 2700K suits most positions. The maximum for the fitting is 100W in total.
What else is in this range?
Large Vintage Cast Iron Pillar Light for Narrow Piers. They share the casting and the finish, so they read as a set.
How long does it take to arrive?
Harte make each one to order in County Wexford, so allow two to five weeks. Delivery is free over £99.
