Description

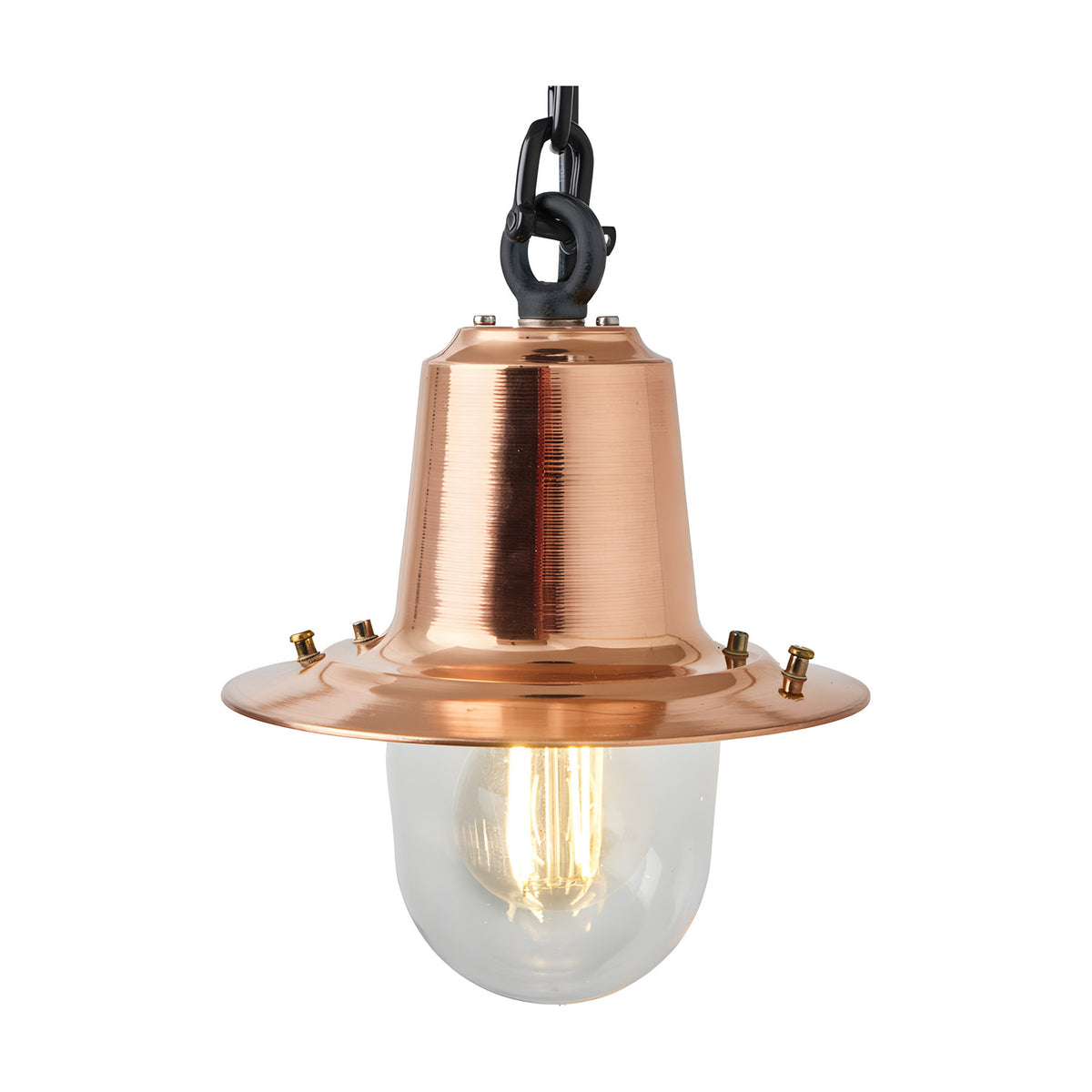

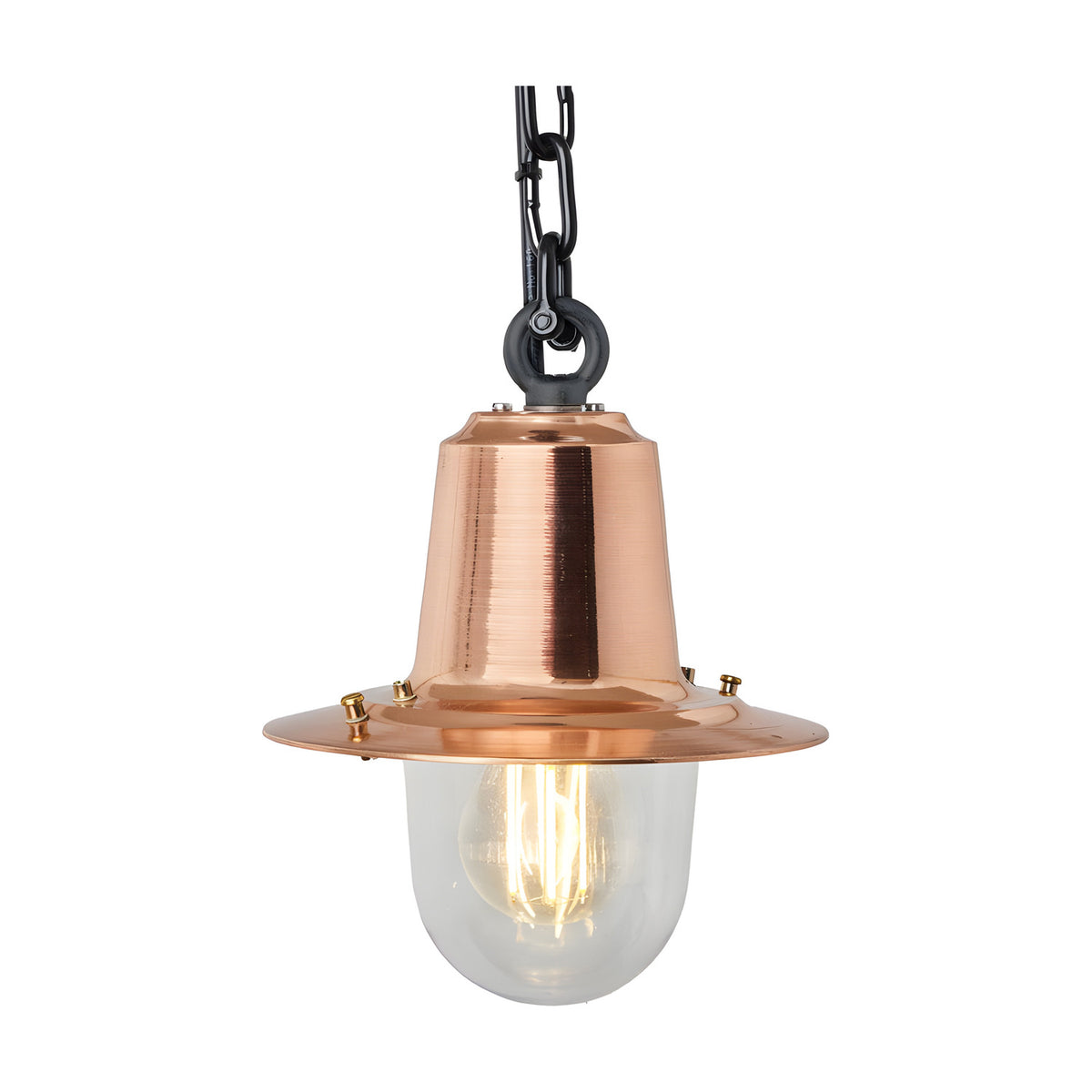

This is the smallest of the three hanging lanterns in the Station Master range, the railway platform pattern: a spun shade under a hoop or a trussed cast arm, over a clear glass dome. It stands 210mm tall and measures 320mm across. The chain is 300mm, which is what gives the overall drop.
It belongs on a porch, a covered entrance, a carriage arch or an open-sided outbuilding. It weighs 4.50KG, which an ordinary wall plug into masonry will carry. Harte rate it IP44, which covers splashing from any direction, so a covered or partly sheltered position is right; for a fully exposed position look at the IP65 fittings in the range. The same pattern runs from 210mm to 530mm, so you can match a pair across two positions without changing the look. The shade is hand spun copper on a black body: it arrives bright and dulls back to a brown patina within a few months, then to green over years.
Glazing is polycarbonate and the lamp is an E27 screw fitting supplied without a bulb, so you choose the output and the colour rather than accepting a sealed unit. The maximum is 100W in total across one lamp; a 7W LED at 2700K is the usual choice. It is made in copper and galvanised steel. Harte make, spray and glaze each light to order in County Wexford, so allow two to five weeks, and any RAL colour can go on in place of gloss black if you say so when ordering. An LED panel option is available in place of the lamp holder. Wiring an outdoor fitting needs a qualified electrician.
Specification
| Height |
210mm |
| Width |
320mm |
| Chain Length |
300mm |
| Maximum Wattage |
1 x 100W max (lamps not included) |
| Socket |
E27 |
| Bulb(s) Included |
No |
| IP Rating |
IP44 |
| Material |
Copper & Galvanised Steel |
| Glazing |
Polycarbonate |
| Finish |
Hand Sprayed Enamel Gloss Paint |
| Colour |
Copper & Black |
| Voltage |
220-240V |
| Cable |
3 Core Insulated |
| Weight |
4.50KG |
| LED Panel Option |
Yes |
| Country of Origin |
Ireland |
Downloads
Data Sheet
Frequently Asked
How tall is it?
210mm and 320mm across. Measure your ceiling height before ordering, because the drop is not adjustable.
Can the chain be shortened or lengthened?
The chain is supplied at 300mm. Ask us before ordering if you need a different drop, as it is made to order.
What does it weigh and what fixing does it need?
4.50KG. The fixing needs to go into structural timber or masonry rather than into plasterboard.
Can it go in an exposed position?
It is rated IP44, which covers splashing from any direction, so a covered or partly sheltered position is right.
What bulb does it take?
E27 screw lamp, not supplied. A 7W LED at 2700K suits most positions. The maximum for the fitting is 100W in total.
Is the whole light copper?
No. The shade is hand spun copper; the body, bracket and fixings are black. That is what the copper shade in the title refers to.
