Description

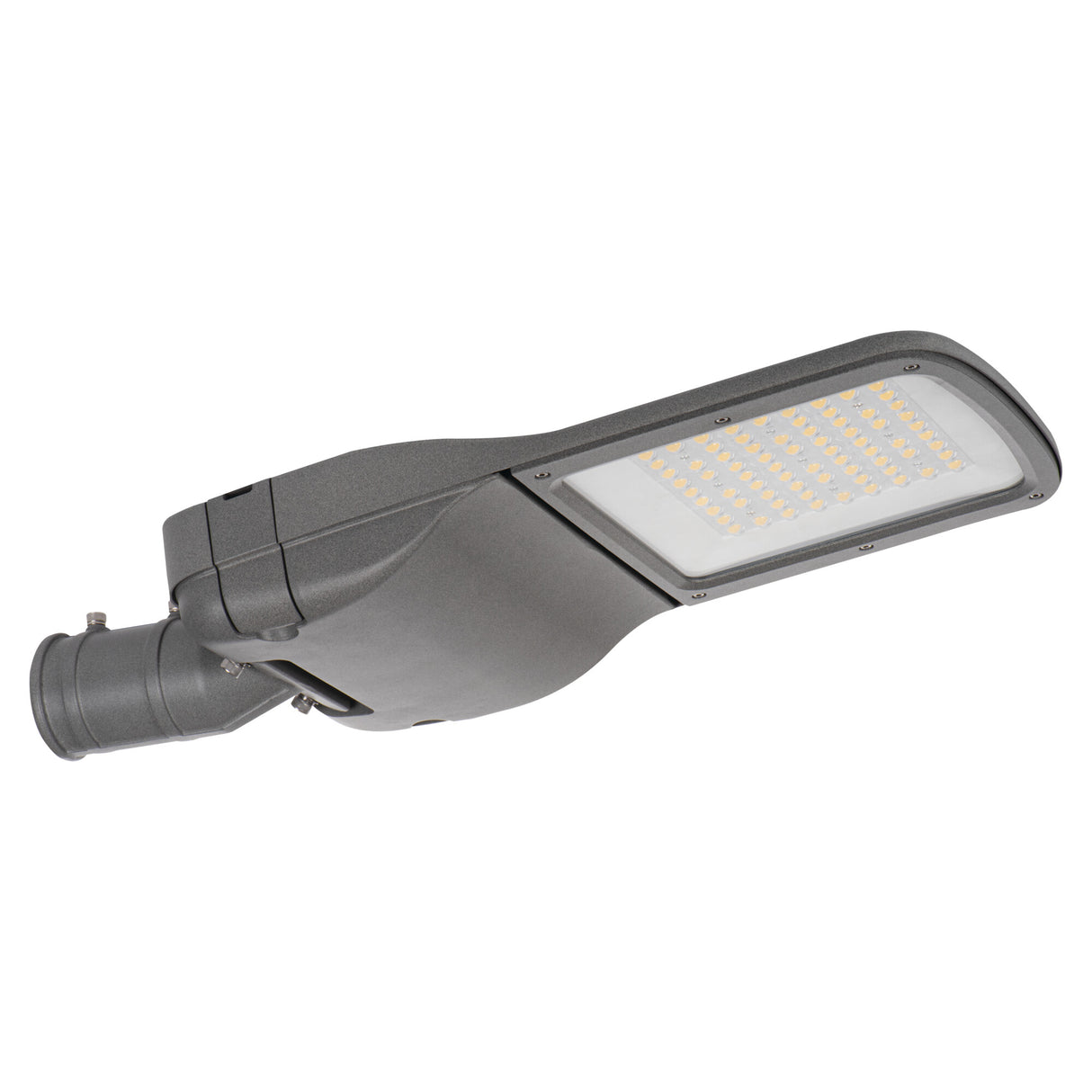

The PRO-S is an 85W LED street light built for pole and column mounting along roads, car parks and access ways. It delivers 13540 lumens at 159 lm/W in a neutral 4000K white, with a wide asymmetric 150° × 125° beam that pushes light out along the carriageway rather than straight down. North American buyers will recognise this format as a shoebox area light or parking lot light, sized for spigot fixing at the top of a column. The forward-throw optic spreads coverage between poles so the run reads evenly rather than as bright pools with dark gaps.

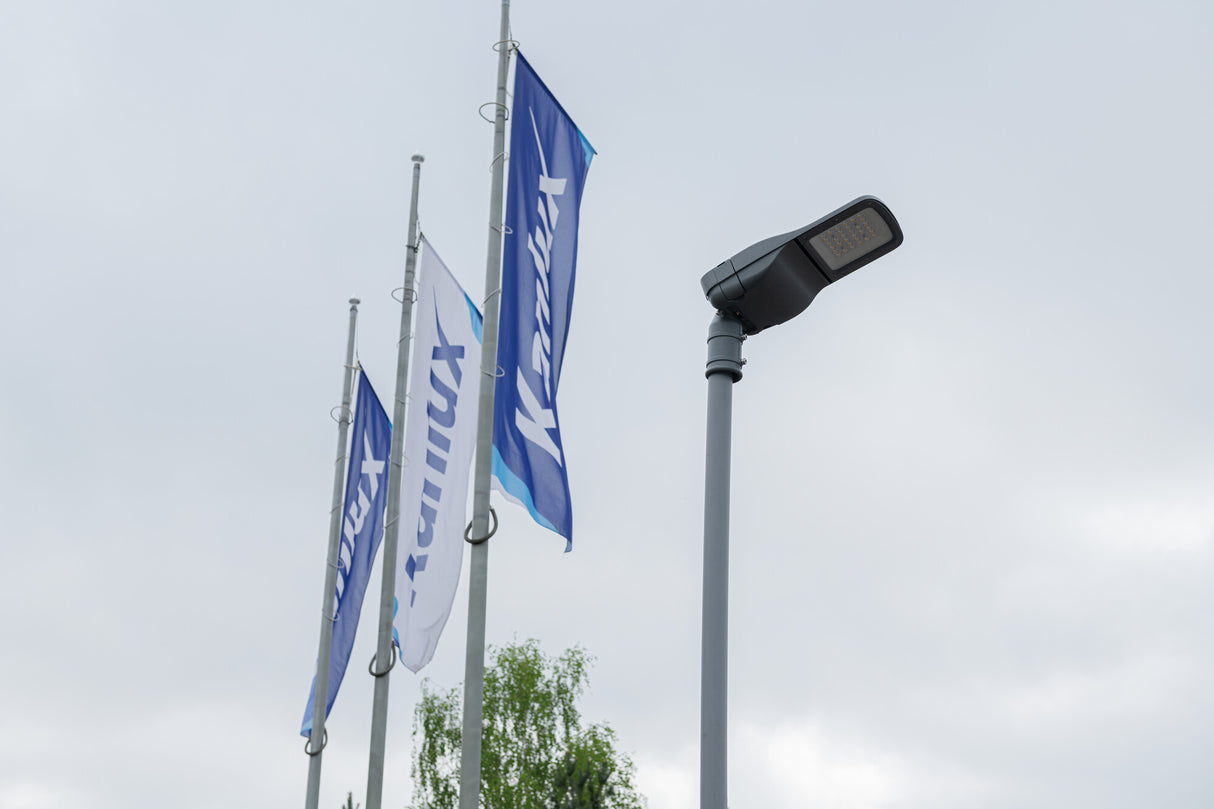

Mounted on a street pole or car-park column, the PRO-S suits road lighting, parking areas, service yards and commercial outdoor approaches. Because this is directional area lighting rather than ambient room light, its reach is best judged by spacing and throw: the wide asymmetric beam lets columns sit further apart while keeping the surface lit between them, with the 13540 lumen output giving a strong, consistent wash across a parking bay or roadway. Column height and spacing set the final spread, so plan pole positions to the asymmetric throw rather than a fixed coverage figure. It is a capable replacement for older SON or metal-halide lanterns of similar duty.
The body is aluminium alloy in a grey finish, rated IP66 for fully exposed outdoor and wet locations and IK08 for impact resistance. It fixes to a street pole via the spigot mount, with no wall fixing involved, and the integrated LED is rated to 100,000 hours to keep maintenance visits low across a site. The fitting runs on 220 to 240V AC and is not dimmable. The wider PRO-S range covers further wattages and sizes for matching road and car-park schemes.
Specification
| Power |
85W |
| Voltage |
220-240 AC |
| Luminous flux |
13540 lm |
| Efficiency |
159 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 70 |
| Beam angle |
150° × 125° |
| IP rating |
IP66 |
| IK rating |
IK08 |
| Dimmable |
No |
| Mounting |
Street Pole |
| Lifespan |
100,000 hours |
| Dimensions |
605 × 265 × 108 mm |
| Weight |
4.17 kg |
| Material |
Aluminium Alloy |
| Finish |
Grey |
Downloads
Product Specification Sheet
Range Datasheet
Frequently Asked
How is this street light mounted?
The PRO-S fixes to the top of a street pole or car-park column via its spigot mount. It is a pole and column fitting only and is not designed for wall mounting or fixing to a building. Match the spigot to your column to ensure a secure fit.
Is it suitable for fully exposed outdoor and wet locations?
Yes. The PRO-S carries an IP66 rating, so it withstands driving rain, wash-down and exposed weather without protection. It also holds an IK08 impact rating, making it suited to roadsides and public car parks.
How should poles be spaced for even coverage?
The wide 150° × 125° asymmetric beam throws light forward along a road or across a car park, so columns can be spaced further apart while keeping the surface evenly lit between them. Final spacing depends on pole height and the lighting level required. Plan positions to the asymmetric throw rather than a single coverage area.
What does it replace and how bright is it?
At 85W the PRO-S produces 13540 lumens in neutral 4000K white at 159 lm/W. It is a suitable LED replacement for older SON or metal-halide street and car-park lanterns of comparable duty, at far lower running cost and with a 100,000 hour rated lifespan.
