Description

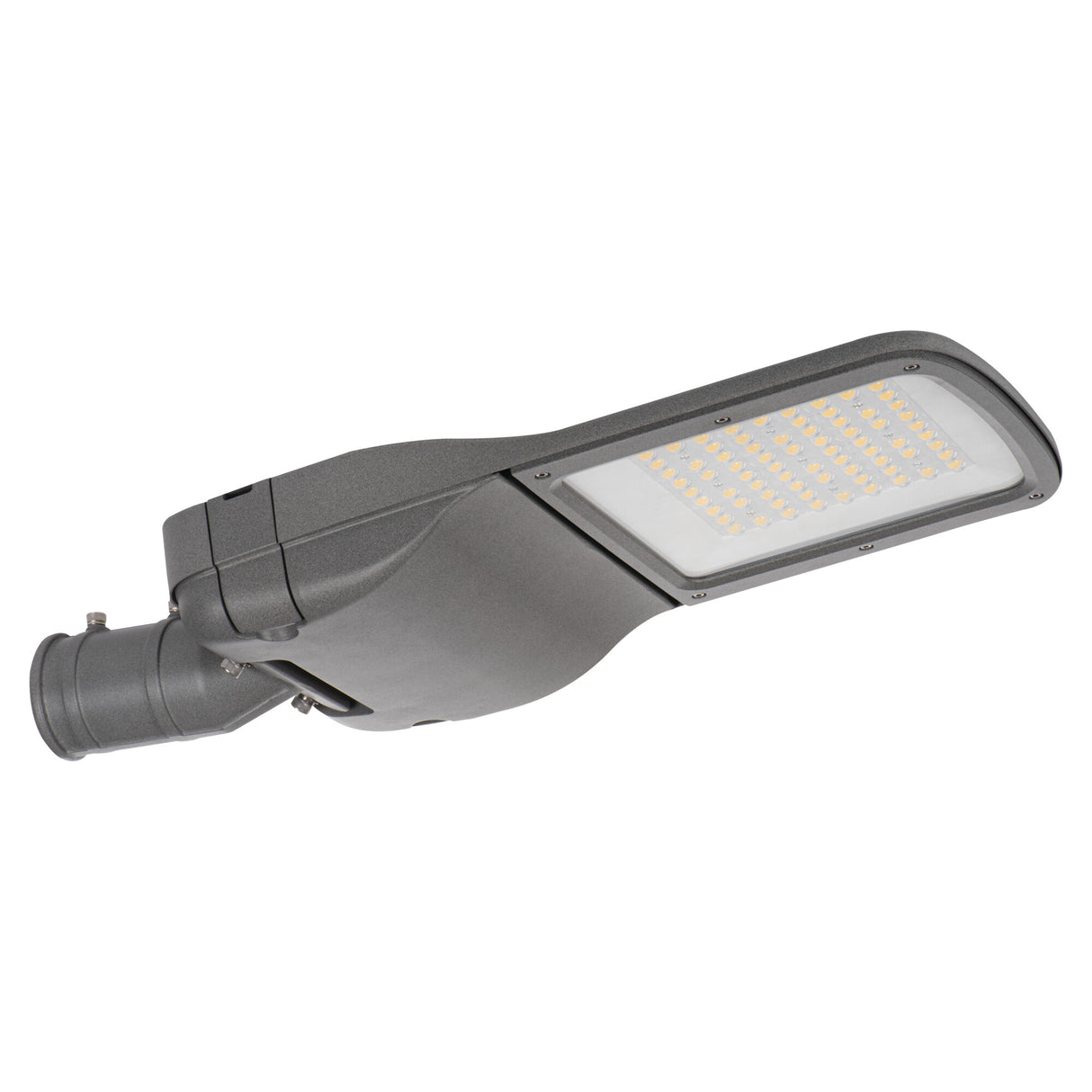

The PRO-S is a pole-mounted LED street light that fits to a road or car-park column on a spigot, putting 9670 lumens of neutral 4000K light onto the ground below. Drawing 65W at an efficiency of 149 lm/W, it is the kind of fitting American specifiers would call a parking lot light or shoebox area light, and its broad asymmetric 150 by 125 degree beam is shaped to spread light forward along the carriageway rather than straight down. The body measures 535 by 210 by 108 mm and weighs 3.17 kg, keeping the load on the column modest.

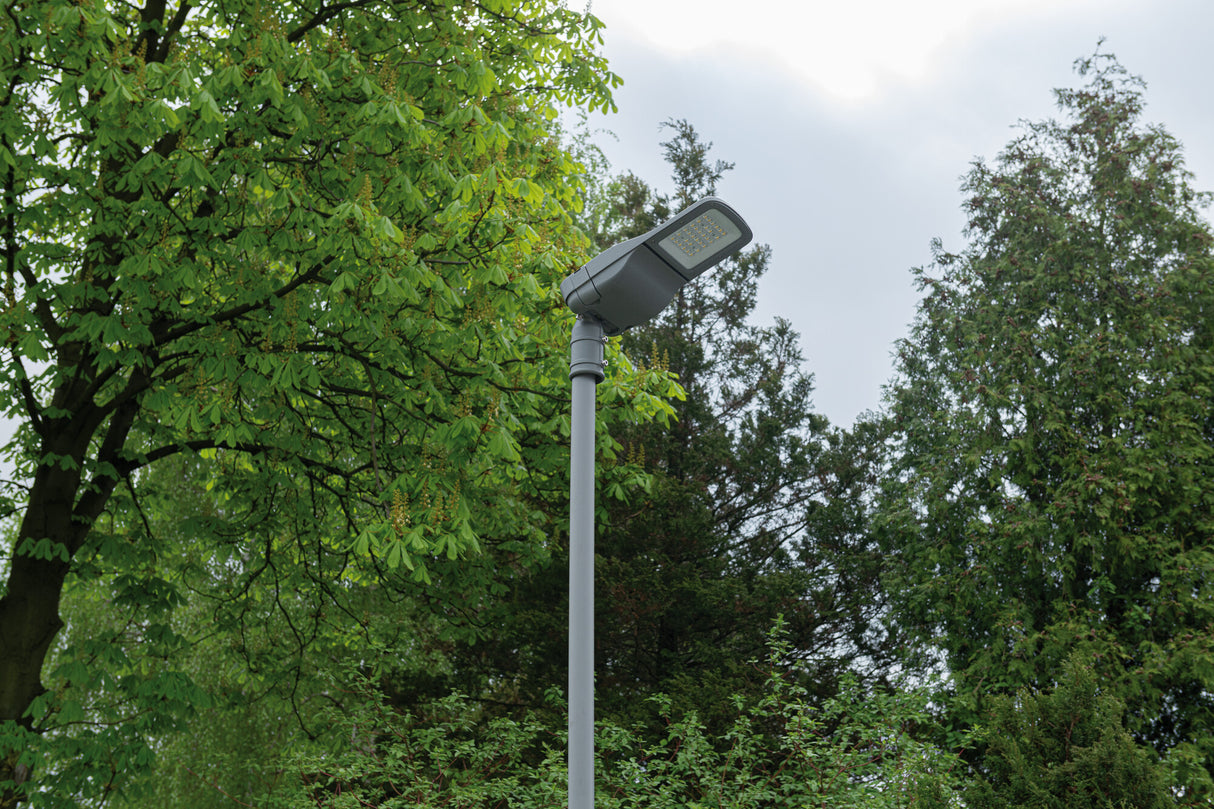

Pole-top and column-mounted, the PRO-S suits residential streets, access roads, amenity areas and open car parks where even lighting between columns matters. The wide forward-throwing beam lets the fitting carry light across the gaps between poles, so a line of them spaces out along a road or around a car park without dark patches. At a neutral 4000K the colour is a clean white that reads number plates and signage clearly, and the throw is best judged by column height and spacing on site rather than by a fixed coverage figure. It works as a like-for-like replacement for older SON or metal-halide lanterns of comparable output.
Built from aluminium alloy with a grey finish, the PRO-S carries an IP66 rating, so it is sealed against driving rain, dust and wash-down in fully exposed outdoor positions, and an IK08 rating gives solid impact resistance. The integrated LED is rated to 100,000 hours, reducing how often a crew needs to reach a column head, and runs on 220 to 240V AC mains. This model is not dimmable and mounts via a pole spigot. The PRO-S range covers several outputs for matching different road and car-park duties.
Specification
| Power |
65W |
| Voltage |
220-240 AC |
| Luminous flux |
9670 lm |
| Efficiency |
149 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 70 |
| Beam angle |
150° × 125° |
| IP rating |
IP66 |
| IK rating |
IK08 |
| Dimmable |
No |
| Mounting |
Street Pole |
| Lifespan |
100,000 hours |
| Dimensions |
535 × 210 × 108 mm |
| Weight |
3.17 kg |
| Material |
Aluminium Alloy |
| Finish |
Grey |
Downloads
Product Specification Sheet
Range Datasheet
Frequently Asked
How does the PRO-S mount?
It is a pole or column mounted street light, fitting onto a spigot at the top of a lighting column or post. It is designed for road and car-park columns and is not a wall-mounted fitting.
Is it suitable for fully exposed outdoor use?
Yes. The PRO-S is rated IP66, so it is sealed against dust, driving rain and wash-down in completely open outdoor positions. The IK08 rating also gives it solid resistance to knocks and impact.
How should the columns be spaced for even coverage?
The wide 150 by 125 degree asymmetric beam throws light forward along the road or across a car park, which helps fill the gaps between columns. Exact spacing depends on column height and the lux level required, so it is best set out to suit the site layout.
What does it replace?
At 65W and 9670 lumens it serves as a modern LED replacement for older SON or metal-halide street and car-park lanterns of similar output. The integrated LED is rated to 100,000 hours, cutting how often the column head needs servicing.
