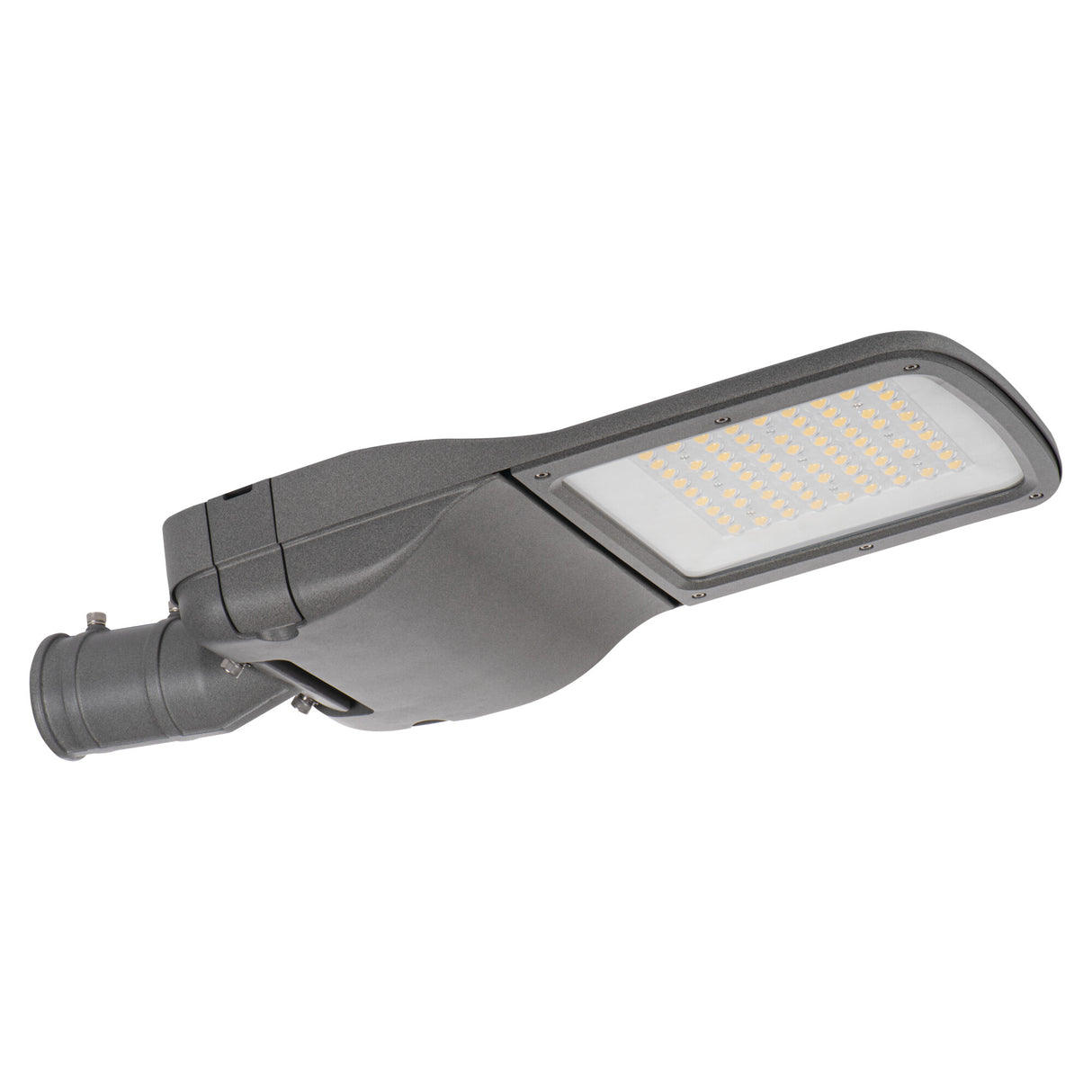

PRO-S 540x210 50W ZH Street Light IP66 - Grey

The PRO-S is a 50W LED street light built for pole and column mounting along roads, access lanes and car parks. It draws 50W from a 220-240V AC supply and delivers 7790 lumens at an efficiency of 156 lm/W, with a neutral 4000K output that keeps surfaces and signage clearly readable after dark. The wide X150/Y125° asymmetric beam is shaped to spread light forward and along the carriageway rather than straight down, which is what an American specifier would recognise as a shoebox-style area or parking lot light. It is a fixed-output luminaire rated at 100,000 hours of service life.

Mounted on a street pole, column or post-top spigot, this luminaire suits roadways, residential streets, service yards and open car parks where even coverage between mounting points matters more than peak brightness underneath each head. The forward-throwing beam lets units be spaced along a road or around a parking area so the light overlaps cleanly and avoids dark gaps between poles. As an area luminaire it is sized for amenity and traffic routes rather than task work, so coverage is best judged by pole height and spacing on site. Its neutral white tone and 70 CRI rendering give the practical visibility expected of street and parking-area lighting.

The body is aluminium alloy in a grey finish, weighing 3.17 kg across dimensions of 535 by 210 by 108 mm. It carries an IP66 rating, so it withstands fully exposed outdoor positions including driving rain and wet weather, backed by an IK08 impact rating for resilience in public spaces. Mounting is via a street pole or column spigot, and the fitting is not dimmable, running at its rated 50W output. The wider PRO-S range covers further wattages for matching road and car-park schemes.

Product Specification Sheet

Range Datasheet

How is this street light mounted?

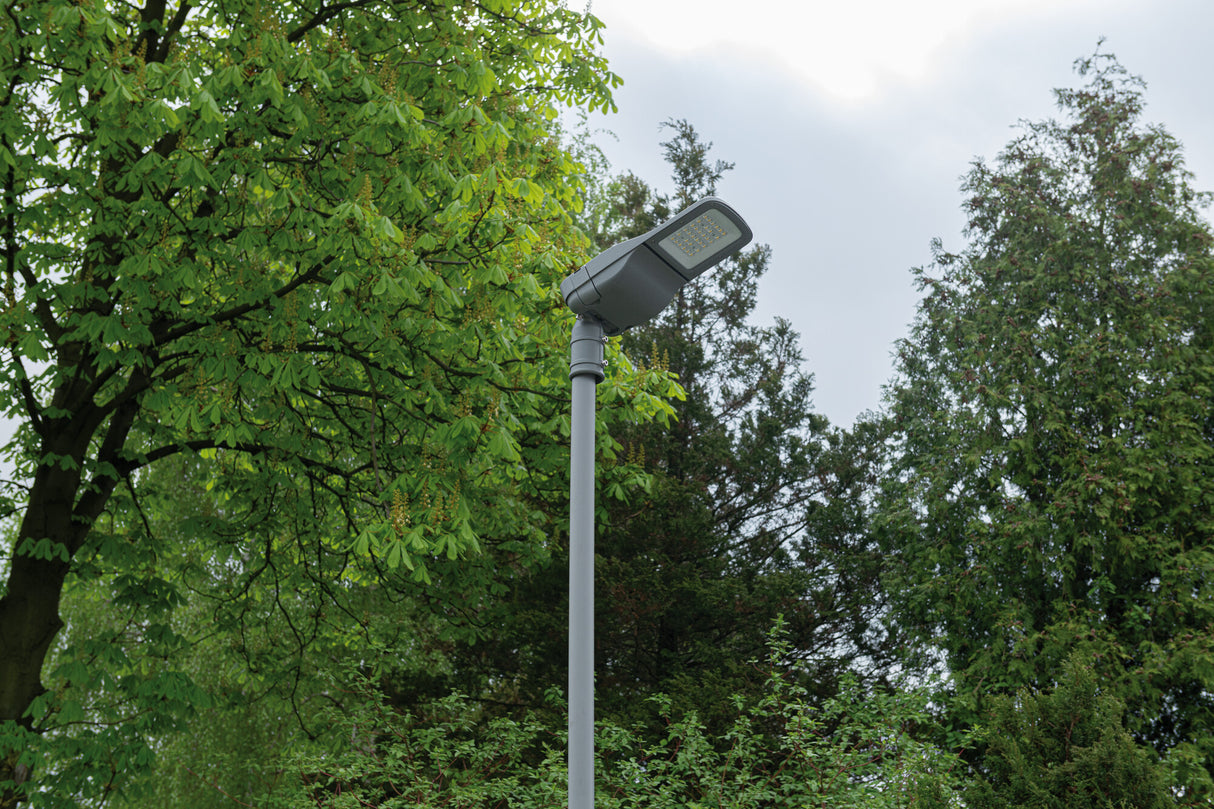

It is designed for pole, column or post-top mounting via a spigot, fixed at the head of a street column or car-park pole. It is not a wall fitting and should not be fixed to a building. This lets units be spaced along a road or around a parking area for even coverage.

Is it suitable for fully exposed outdoor locations?

Yes. With an IP66 rating it is weatherproof and rated for exposed outdoor and wet locations, including driving rain. An IK08 impact rating adds resilience for public roadside and car-park use.

How much area does one fitting cover?

At 7790 lumens with a wide X150/Y125° beam, the throw is spread forward along a road or across a parking area rather than concentrated under the pole. Actual coverage depends on mounting height and the spacing between poles, so units are normally laid out to overlap and avoid dark gaps between heads.

How should the luminaire be cleaned?

Wipe the lens and aluminium body with a soft damp cloth once the fitting is isolated and cool. Clearing road grime and dust from the optic keeps the 7790 lumen output and beam spread effective. Avoid abrasive cleaners that could mark the grey finish.
