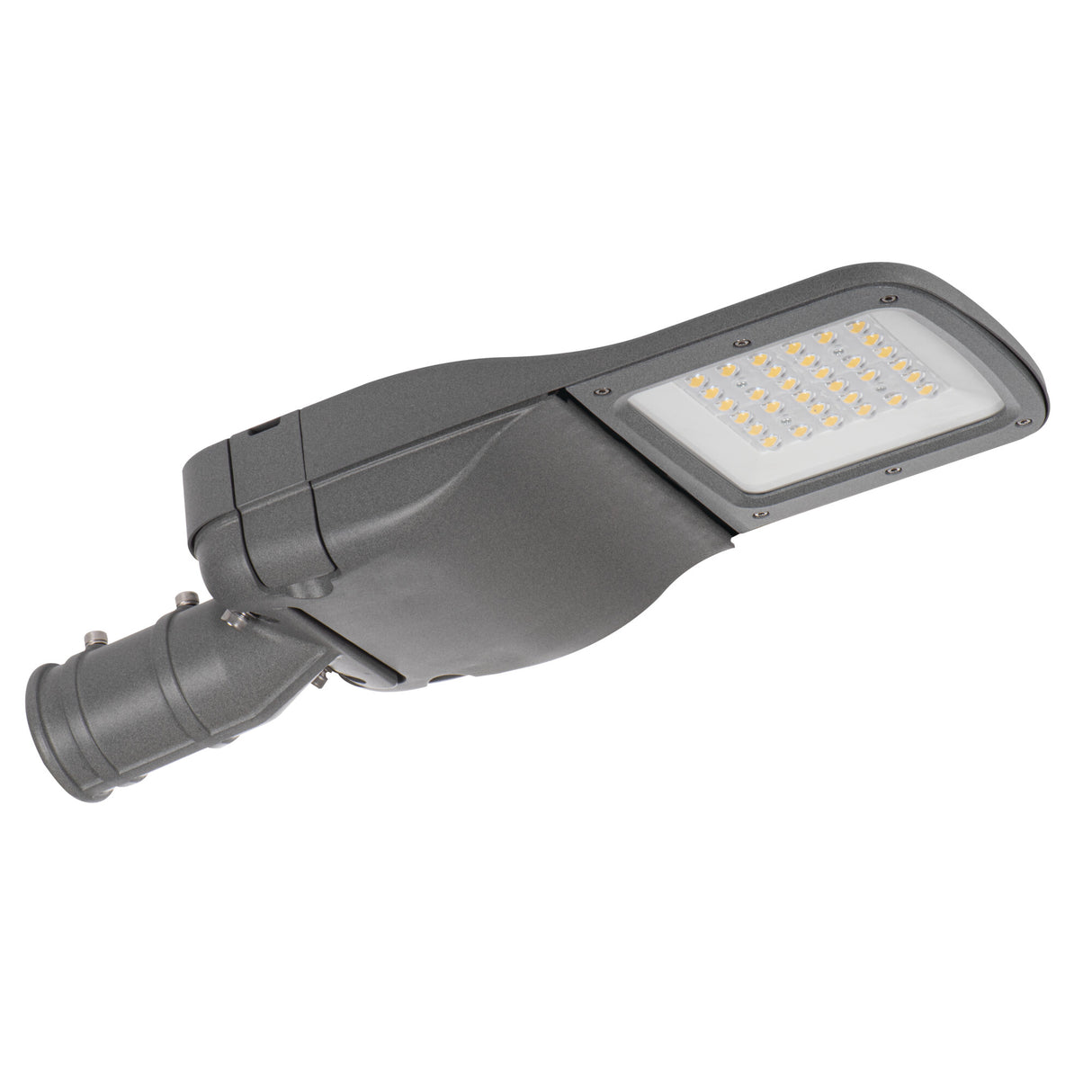

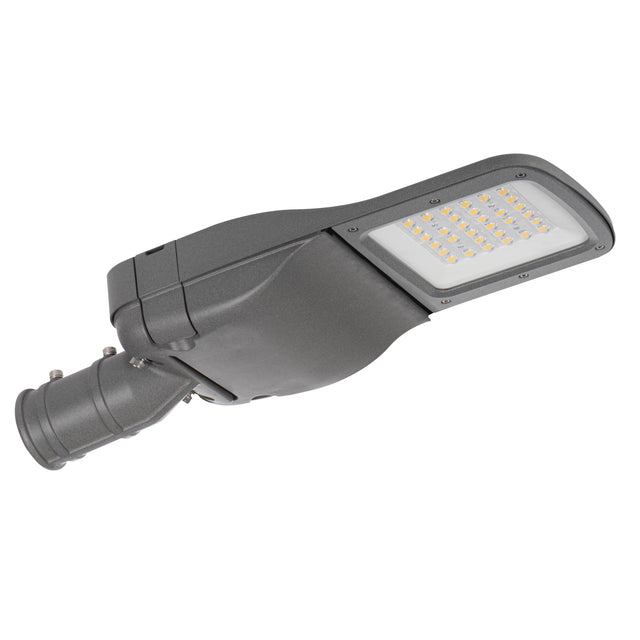

PRO-S 540x210 45W LED Street Light IP66 - Grey

The PRO-S is a 45W LED street light built for pole and column mounting along roads, access routes and car parks. It draws 220 to 240V AC and delivers 6950 lumens at an efficiency of 154 lm/W, giving plenty of output from a modest power draw. The colour temperature is a neutral 4000K, a clean white that keeps surfaces, signage and vehicles easy to read after dark. Its asymmetric 150° x 125° beam spreads light forward and across the carriageway rather than straight down, the kind of wide throw that US specifiers tend to call an area or shoebox light.

The fitting suits adoptable and private roads, estate access lanes, car parks, loading yards and similar outdoor areas where even spacing matters more than a tight pool of light. The wide asymmetric beam lets each unit cover a long stretch of road or a broad parking bay, so columns can be spaced further apart while still avoiding dark gaps between them. Mounted at typical street-column heights, the 6950 lumen output and 4000K tone give steady, glare-controlled coverage for both drivers and pedestrians. It is a straightforward LED replacement for older SON or metal-halide lanterns running far higher wattages.

The body is aluminium alloy in a grey finish, rated IP66 for full weatherproof use in exposed and wet outdoor locations and IK08 for impact resistance. It fixes to a street pole or column via its spigot mount, not to a wall or building, and is not dimmable. Rated for 100,000 hours, it is sized 535 x 210 x 108 mm and weighs 3.08 kg. The wider Pro-S range covers further wattage and size options for matching a scheme across different road and car-park layouts.

Product Specification Sheet

Range Datasheet

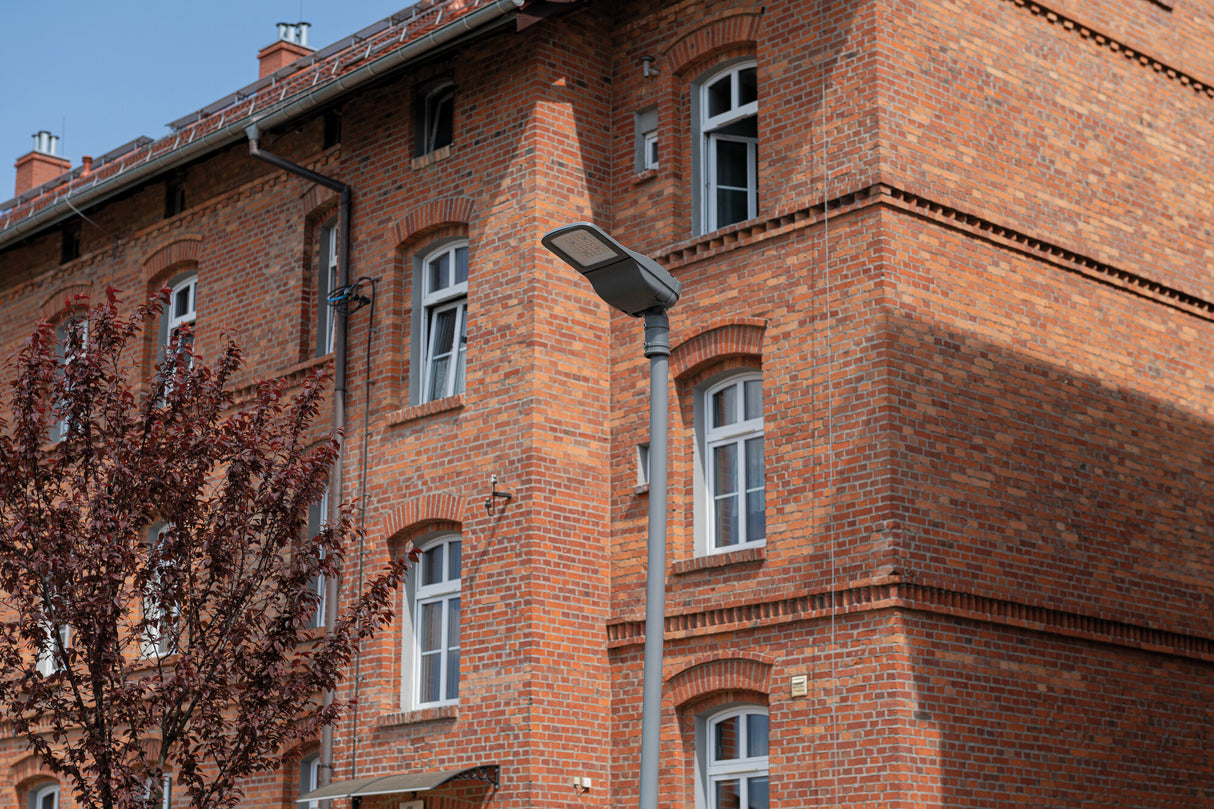

How is the PRO-S mounted?

It is designed for pole or column mounting via its spigot, suiting street columns, car-park lighting posts and access-road poles. It is not a wall fitting and should not be fixed to the side of a building. Matching the spigot to your existing column bracket is the only requirement.

Is it suitable for fully exposed outdoor and wet locations?

Yes. The PRO-S carries an IP66 rating, so it is sealed against dust and powerful water jets and is fine in fully exposed positions through all weather. The IK08 rating also gives a useful degree of impact resistance for public areas.

How should units be spaced for even coverage?

The asymmetric 150° x 125° beam throws light forward and across the road rather than straight down, which lets each unit cover a long stretch between columns. This allows wider spacing along a road or car park while keeping the light even and avoiding dark gaps. Exact spacing depends on column height and the lux level required for the application.

What does it replace?

At 45W producing 6950 lumens, it is a direct LED alternative to older SON or metal-halide street lanterns that drew far more power for similar output. Running at 154 lm/W with a 100,000 hour rated life, it cuts both energy use and maintenance visits. The neutral 4000K white also gives better colour clarity than traditional orange SON lamps.
