PRO-S 540x210 30W ZH Street Light - Grey

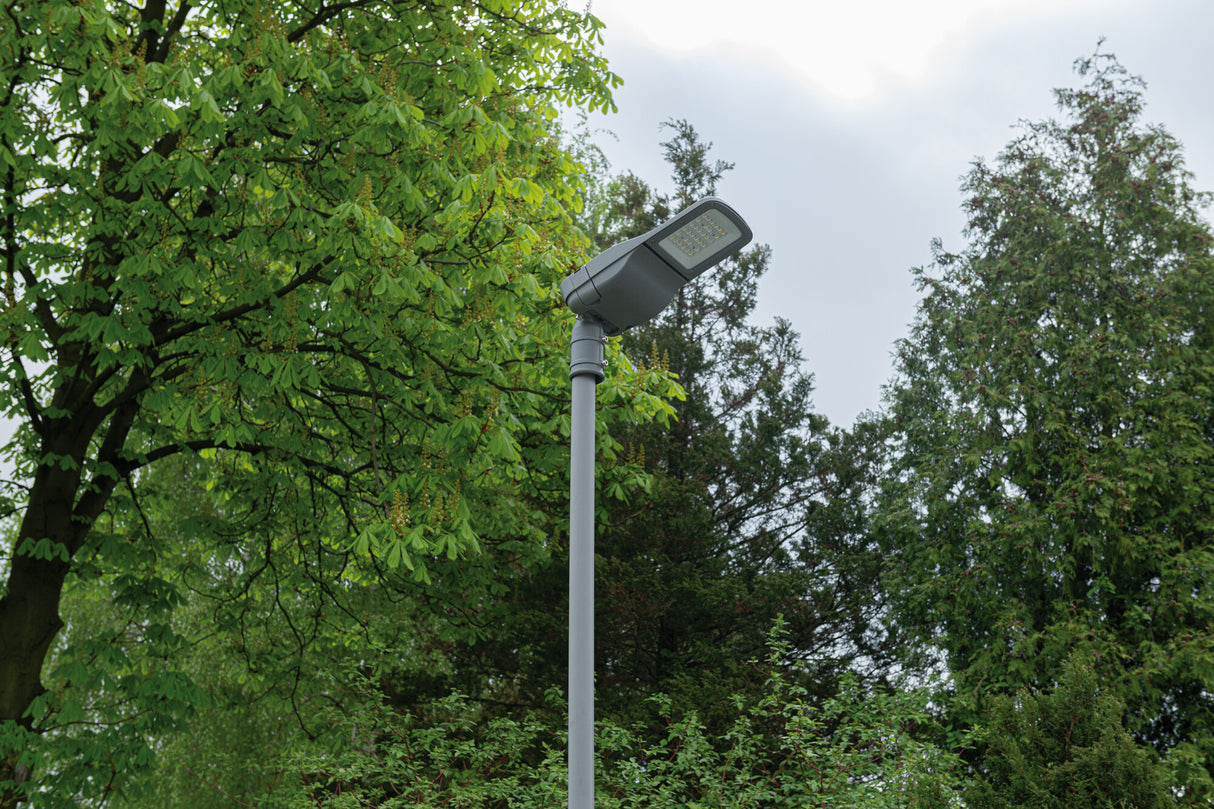

The PRO-S is a pole-mounted LED street light built for roads, car parks and outdoor amenity areas. It draws 30W and puts out 4640 lumens at an efficiency of 155 lm/W, with a neutral white 4000K tone that keeps surfaces and signage clearly readable after dark. The wide X150 by Y125 degree asymmetric beam spreads light forward and across the carriageway rather than straight down, which is what gives this style of luminaire its even spacing along a route. In US terms this is the kind of shoebox area light or parking lot fitting you see on a column at the edge of a lot, sized here at 535 by 210 by 108 mm.

The PRO-S suits roadside lighting, residential streets, access roads, car parks and the approaches to commercial sites. It is designed to sit on top of a pole or column, so plan the mounting height and spacing to the layout you are lighting; raising the head and using the asymmetric throw lets each unit reach further along the run and reduces dark gaps between poles. Coverage is best judged by throw and overlap along the route rather than by a single floor area, since this is directional outdoor lighting and not ambient room lighting. The neutral 4000K output works well where colour clarity matters for drivers and pedestrians.

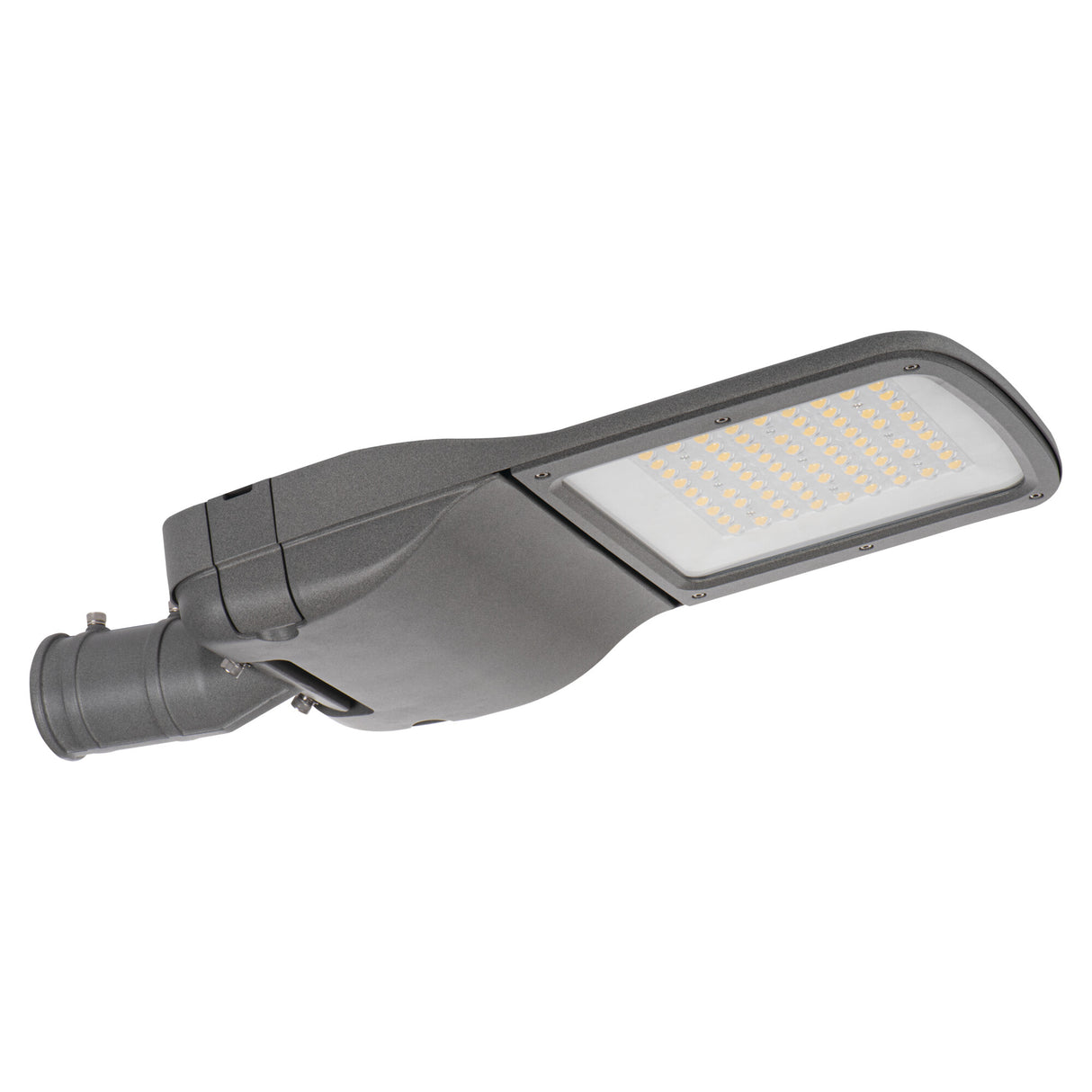

Construction is aluminium alloy with a grey finish, rated IP66 against dust and powerful water jets and IK08 for impact, so it stands up to fully exposed outdoor and wet locations. It runs on 220 to 240V AC mains and is rated for 100,000 hours of service, with a colour rendering of Ra 70 and a weight of 2.99 kg. This model is not dimmable and is mounted on a street pole rather than fixed to a building. The PRO-S range covers several wattages, so heavier road and car-park duties can be matched to the right output.

Product Specification Sheet

Range Datasheet

How is the PRO-S mounted?

It is a pole, column or post-top luminaire that fits onto a street pole rather than a wall or building. Match the spigot to your column and set the mounting height to suit the road or car park you are lighting. Spacing the poles to overlap the beam throw gives even coverage along the route.

Is it suitable for fully exposed outdoor use?

Yes. With an IP66 rating it is sealed against dust and high-pressure water jets, so it copes with exposed roadside and car-park positions in all weather. The IK08 rating also gives it useful impact resistance for public areas.

How bright is it and what does it replace?

The PRO-S produces 4640 lumens from 30W, at an efficiency of 155 lm/W. For lighter residential streets, access roads and smaller car parks it offers a low-energy alternative to older SON or metal-halide lanterns, while drawing far less power. The 4000K neutral white keeps surfaces and signage easy to read.

How should the units be spaced along a road or car park?

The wide X150 by Y125 degree asymmetric beam throws light forward and across rather than straight down, so each pole covers a length of the route. Set the pole height and pitch so the beams overlap and leave no dark patches between fittings. Higher mounting and wider spacing suit through-roads, while closer pitch suits pedestrian and car-park areas.
