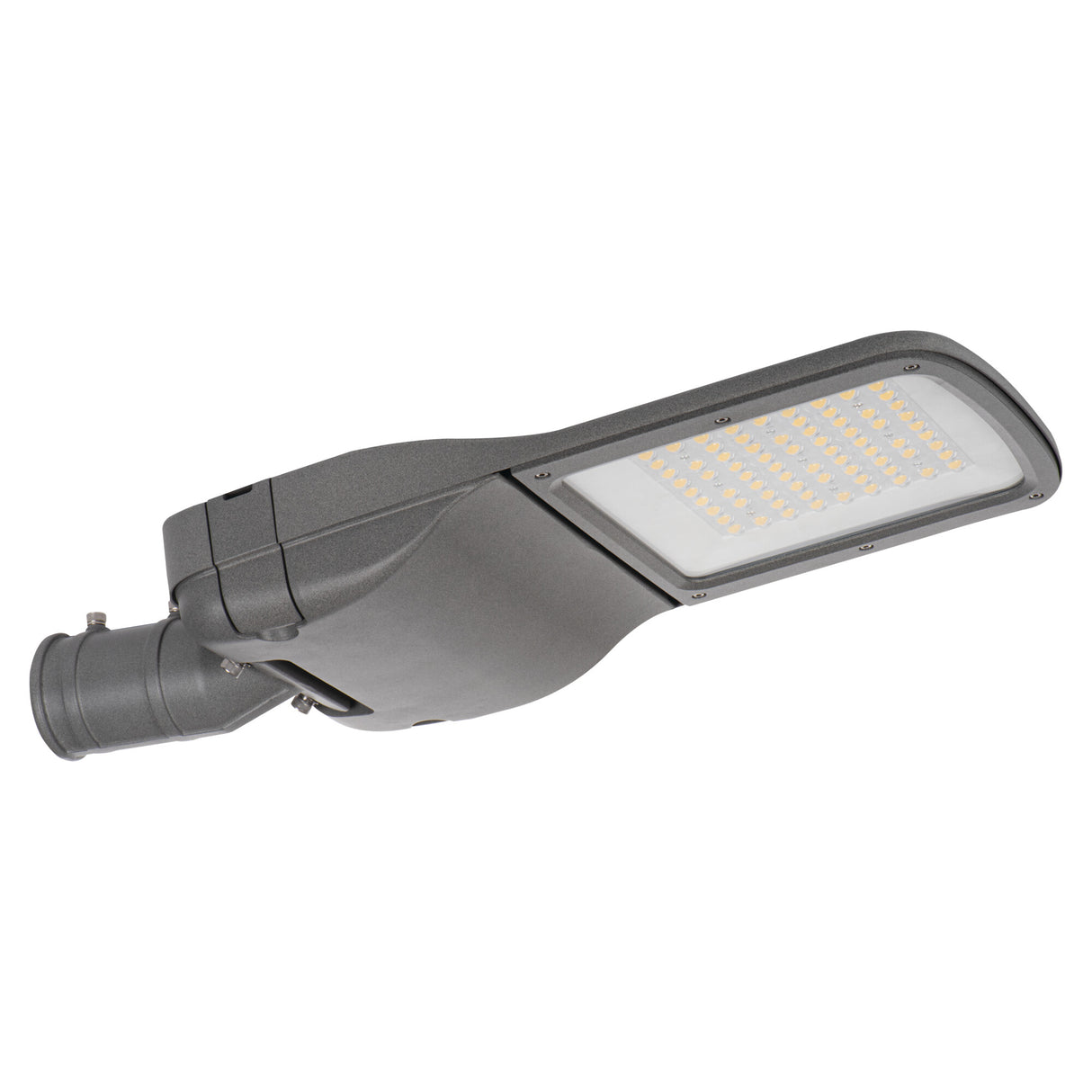

PRO-S 540x210 15W ZH LED Street Light IP66 - Grey

The PRO-S is a pole-mounted LED street light delivering 2200 lumens from a 15W draw, with an efficiency of 147 lm/W and a neutral white 4000K tone. The wide asymmetric beam of 150° × 125° throws light forward along the carriageway rather than straight down, which is what gives a street luminaire its even spread between columns. North American buyers will recognise this format as an area light or shoebox-style street lantern, sized here for amenity roads and smaller parking areas rather than major highways.

Mounted to the top of a pole or column via its spigot fitting, the PRO-S suits residential streets, access roads, footpaths, car parks and small commercial yards. The asymmetric optic is designed for spacing along a route, so a line of columns gives consistent overlap without dark gaps between fittings; the 2200 lumen output and 147 lm/W efficiency make it a practical replacement for an ageing low-wattage SON or metal-halide lantern. As guidance, the forward throw covers a generous span of carriageway per column, with the exact column spacing set by mounting height and the road width being lit.

Built from aluminium alloy with a grey finish, the PRO-S carries an IP66 rating for full weatherproofing in exposed and wet outdoor locations, plus an IK08 impact rating for public settings. It runs on 220-240V AC mains and is rated for 100,000 hours of service, reducing maintenance visits on remote columns. The fitting is not dimmable and mounts to a street pole only. The wider Pro-S range covers further wattages and body sizes for matching a scheme across a site.

Product Specification Sheet

Range Datasheet

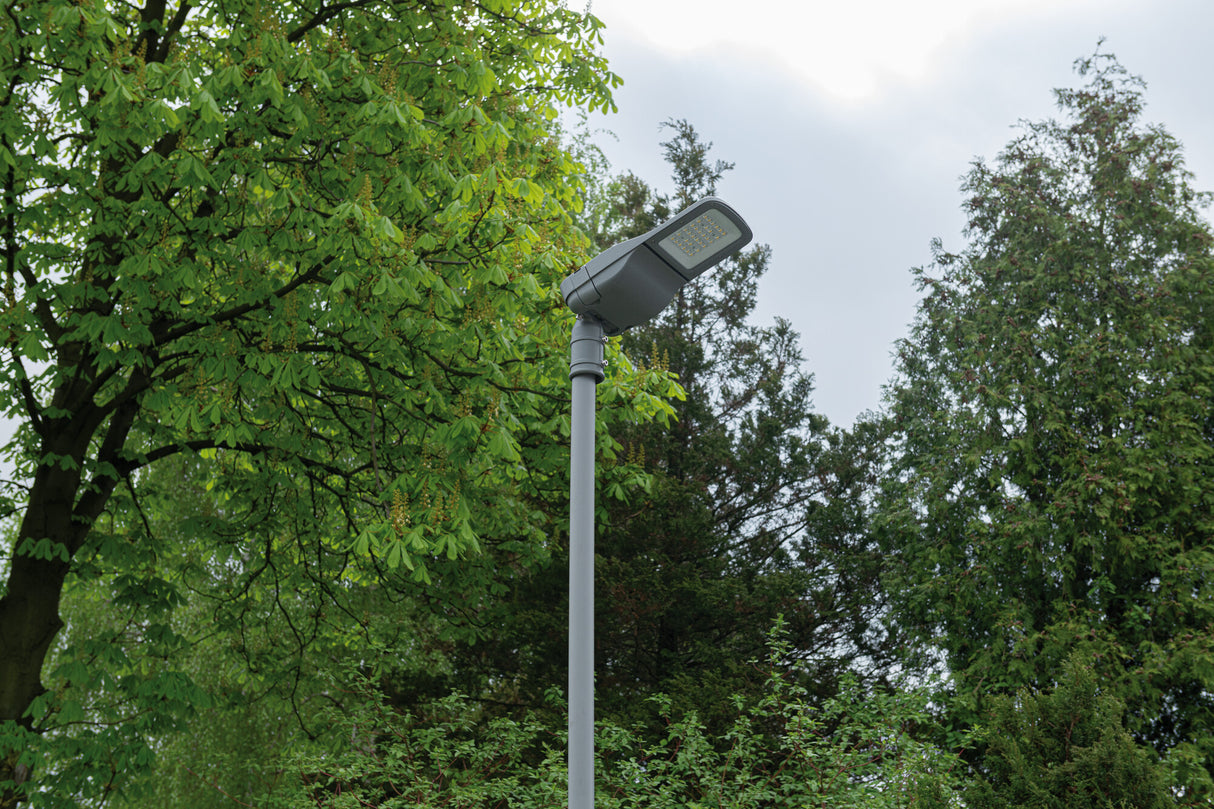

How is the PRO-S mounted?

The PRO-S is a pole, column or post-top luminaire, fitted to the top of a street column or car-park pole via its spigot. It is designed for road, footpath and parking-area lighting and is not intended for any other mounting method.

Is it suitable for fully exposed outdoor use?

Yes. The PRO-S is rated IP66, so it is fully weatherproof against dust and heavy rain in exposed outdoor and wet locations. The IK08 rating also gives it resistance to knocks in public areas.

What does it replace and how bright is it?

It produces 2200 lumens at 147 lm/W from a 15W draw, in a neutral 4000K white. This makes it a sensible LED upgrade from an older low-wattage SON or metal-halide street lantern for residential streets, paths and car parks.

How should the columns be spaced along a road or car park?

The PRO-S uses a wide asymmetric beam of 150° × 125° that throws light forward along the route for even coverage between columns. The right spacing depends on your mounting height and the width of the road or car park, with higher columns covering a wider span.
