Description

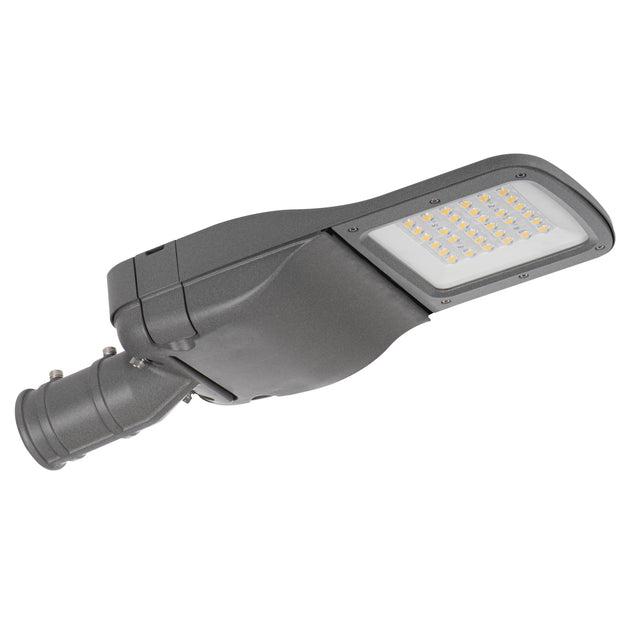

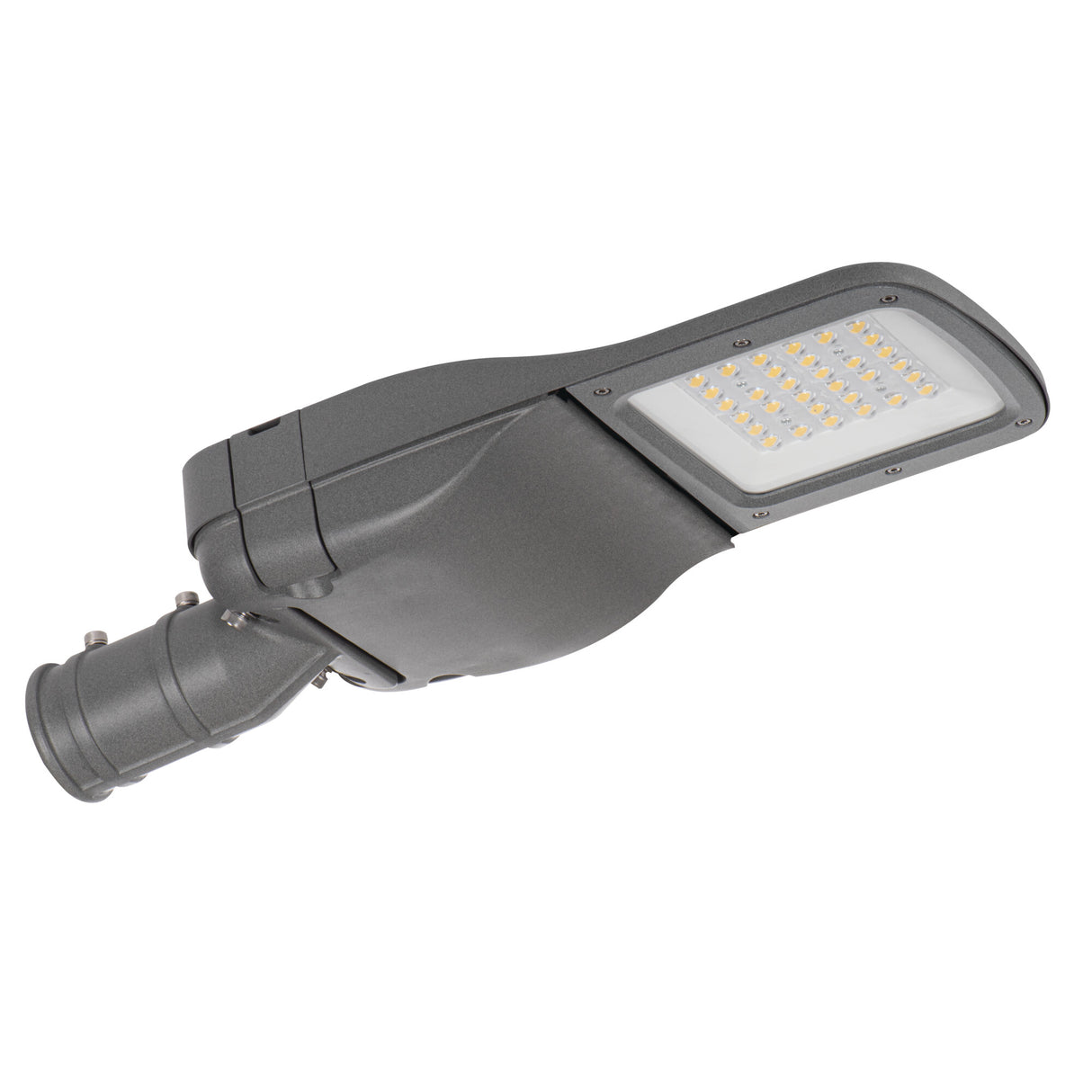

The PRO-S is a pole-mounted LED street light drawing 35W and delivering 5600 lumens at 160 lm/W, with a neutral 4000K output that keeps roads, junctions and car parks clearly lit. Its wide X150/Y125 degree asymmetric beam spreads light forward along a carriageway rather than straight down, the pattern that US specifiers know as a shoebox or area light. Built for spigot fitting to a pole top or column, it throws an even, far-reaching wash that suits linear road runs and open parking bays alike.

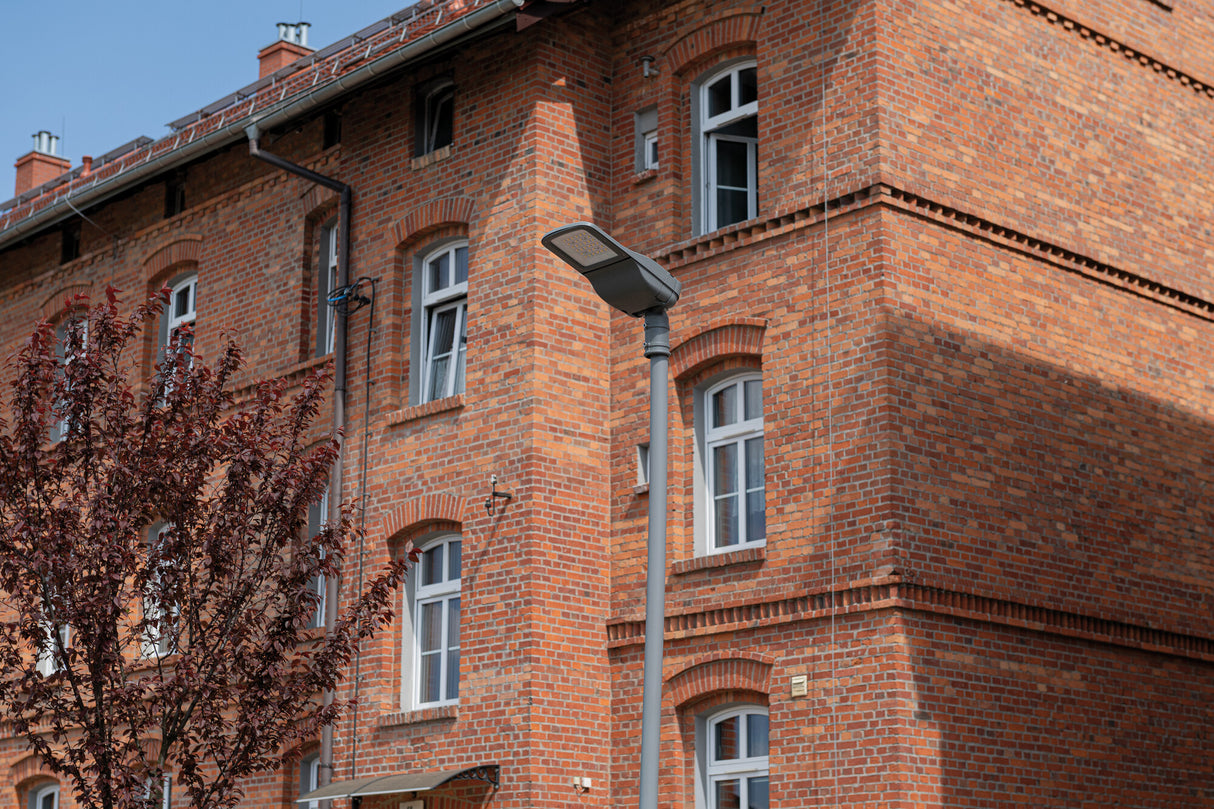

Mounted on a street pole or car-park column, the PRO-S works as a road lantern, an amenity area light or a parking-lot fitting. The forward-biased beam is shaped to light the surface ahead and to the sides, so units spaced along a column line give continuous coverage without dark gaps between poles. For car parks and access roads, the 5600 lumen output covers a generous span of tarmac per fitting, with spacing set to suit pole height and the road or bay width rather than a fixed room figure. It is a practical replacement for older SON or metal-halide lanterns of similar duty.
The body is aluminium alloy in a grey finish, rated IP66 against driving rain and wind-blown dust and IK08 for impact resistance, so it stands up to fully exposed outdoor sites. It runs on 220 to 240V AC mains, is not dimmable, and is rated for 100,000 hours of service. At 535 by 210 by 108 mm and 3.08 kg, it mounts to a standard pole spigot. The wider PRO-S range covers further wattages and sizes for matched road and car-park schemes.
Specification
| Power |
35W |
| Voltage |
220-240 AC |
| Luminous flux |
5600 lm |
| Efficiency |
160 lm/W |
| Colour temperature |
4000K |
| Colour rendering (CRI) |
Ra 70 |
| Beam angle |
150° × 125° |
| IP rating |
IP66 |
| IK rating |
IK08 |
| Dimmable |
No |
| Mounting |
Street Pole |
| Lifespan |
100,000 hours |
| Dimensions |
535 × 210 × 108 mm |
| Weight |
3.08 kg |
| Material |
Aluminium Alloy |
| Finish |
Grey |
Downloads
Product Specification Sheet
Range Datasheet
Frequently Asked
How does the PRO-S street light mount?
It fits to a street pole top or car-park column via a spigot, not to a wall or building. It is designed for pole and post mounting on roads, access ways and open parking areas. Spacing is set by pole height and the width of the road or bay.
Is it suitable for fully exposed outdoor and wet locations?
Yes. The PRO-S carries an IP66 rating, so it is weatherproof against driving rain and wind-blown dust. The IK08 rating adds impact resistance for exposed roadside and car-park use.
What output does it give and how should poles be spaced?
It produces 5600 lumens at 35W and 160 lm/W, with a wide X150 by Y125 degree asymmetric beam. The forward-biased spread lights the surface ahead and to the sides, so poles can be spaced to give continuous coverage along a road or across a car park.
What does it replace and how long does it last?
The PRO-S is a practical swap for older SON or metal-halide street and car-park lanterns of similar duty, at much lower running power. It is rated for 100,000 hours of service. Note that it is not dimmable.
