Description

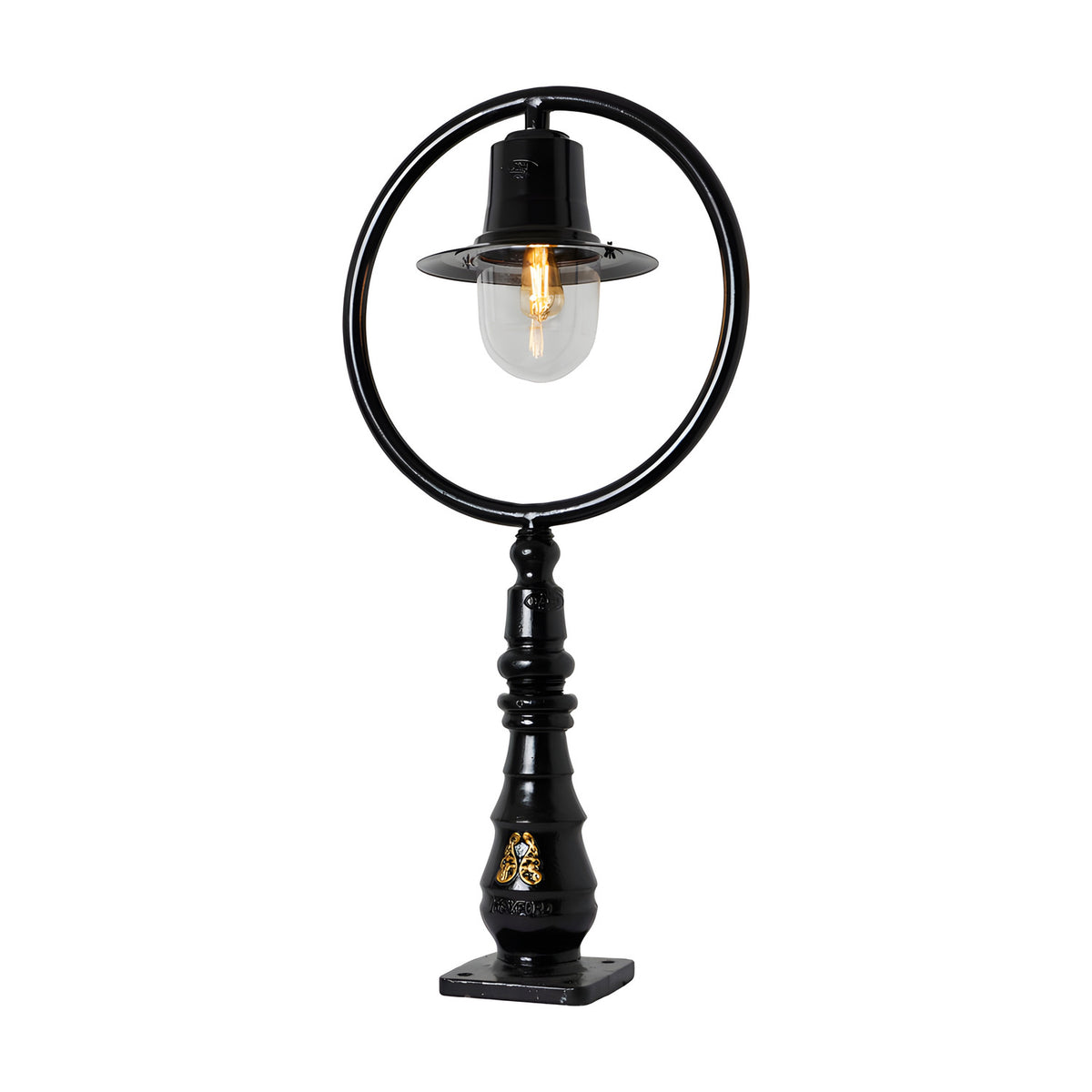

This is the larger of the two pedestal lights in the Station Master range, the railway platform pattern: a spun shade under a hoop or a trussed cast arm, over a clear glass dome. It stands 1.21m tall and measures 560mm across.

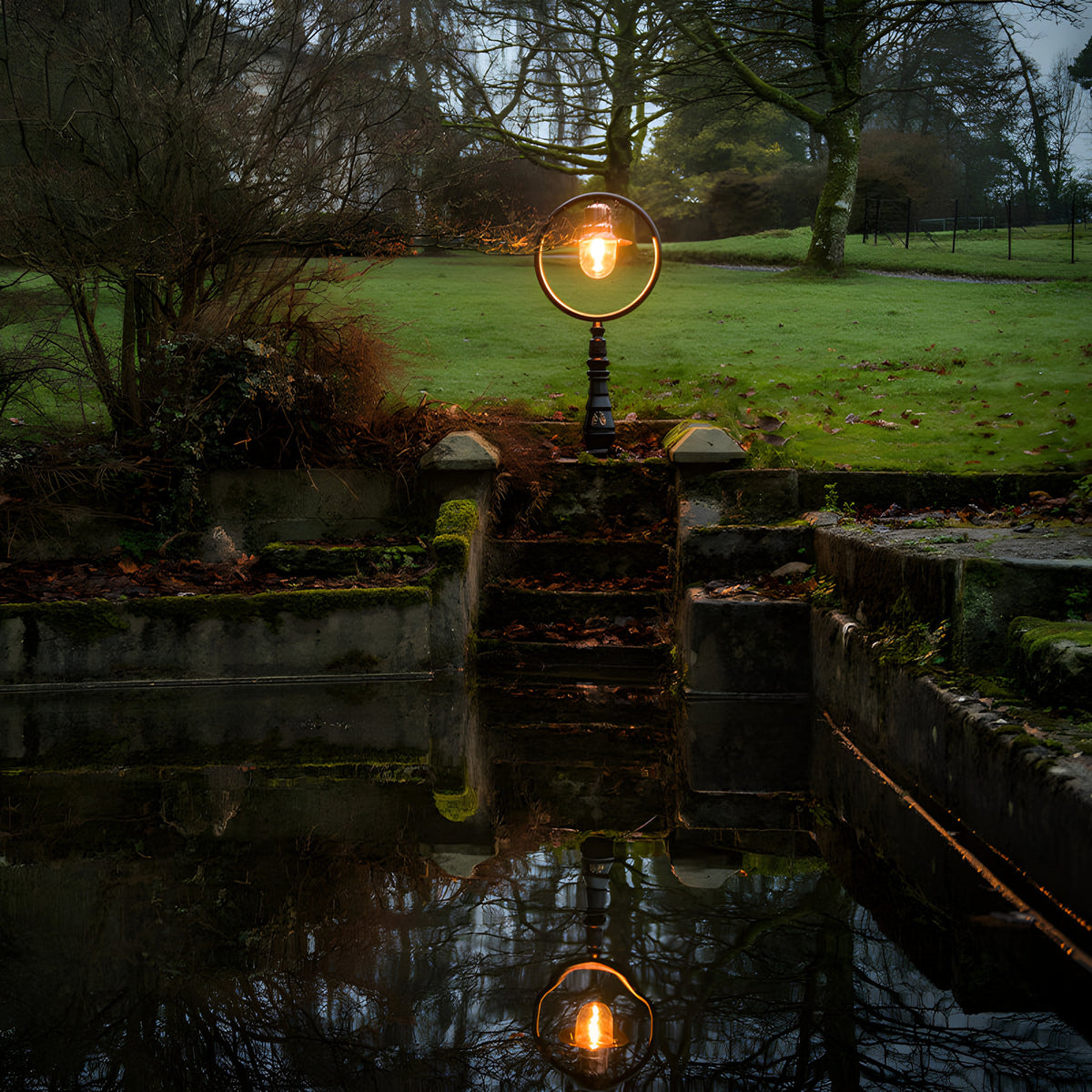

It belongs on a path edge, a step, a terrace or a low wall. It weighs 31.00KG, so the fixing needs to go into structural timber or masonry rather than into plasterboard. Harte rate it IP44, which covers splashing from any direction, so a covered or partly sheltered position is right; for a fully exposed position look at the IP65 fittings in the range. The same pattern runs from 750mm to 1.21m, so you can match a pair across two positions without changing the look.
Glazing is polycarbonate and the lamp is an E27 screw fitting supplied without a bulb, so you choose the output and the colour rather than accepting a sealed unit. The maximum is 100W in total across one lamp; a 7W LED at 2700K is the usual choice. It is made in cast iron and galvanised steel. Harte cast, spray and glaze each light to order in County Wexford, so allow two to five weeks, and any RAL colour can go on in place of gloss black if you say so when ordering. An LED panel option is available in place of the lamp holder. Wiring an outdoor fitting needs a qualified electrician.
Specification
| Height |
1210mm |
| Width |
560mm |
| Maximum Wattage |
1 x 100W max (lamps not included) |
| Socket |
E27 |
| Bulb(s) Included |
No |
| IP Rating |
IP44 |
| Material |
Cast Iron & Galvanised Steel |
| Glazing |
Polycarbonate |
| Finish |
Hand Sprayed Enamel Gloss Paint |
| Colour |
Black |
| Voltage |
220-240V |
| Cable |
3 Core Insulated |
| Weight |
31.00KG |
| LED Panel Option |
Yes |
| Country of Origin |
Ireland |
Downloads
Data Sheet
Frequently Asked
How tall is it?
1.21m and 560mm across. Check the height against the position before ordering.
What does it weigh and what fixing does it need?
31.00KG. The fixing needs to go into structural timber or masonry rather than into plasterboard.
Can it go in an exposed position?
It is rated IP44, which covers splashing from any direction, so a covered or partly sheltered position is right.
What bulb does it take?
E27 screw lamp, not supplied. A 7W LED at 2700K suits most positions. The maximum for the fitting is 100W in total.
What else is in this range?
Small Railway Style Cast Iron Pedestal Post Light. They share the casting and the finish, so they read as a set.
How long does it take to arrive?
Harte make each one to order in County Wexford, so allow two to five weeks. Delivery is free over £99.
