QTX Mounting Hook For Stage Lighting - Silver

£399
The RRP is the manufacturer's recommended retail price of the item.
100 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

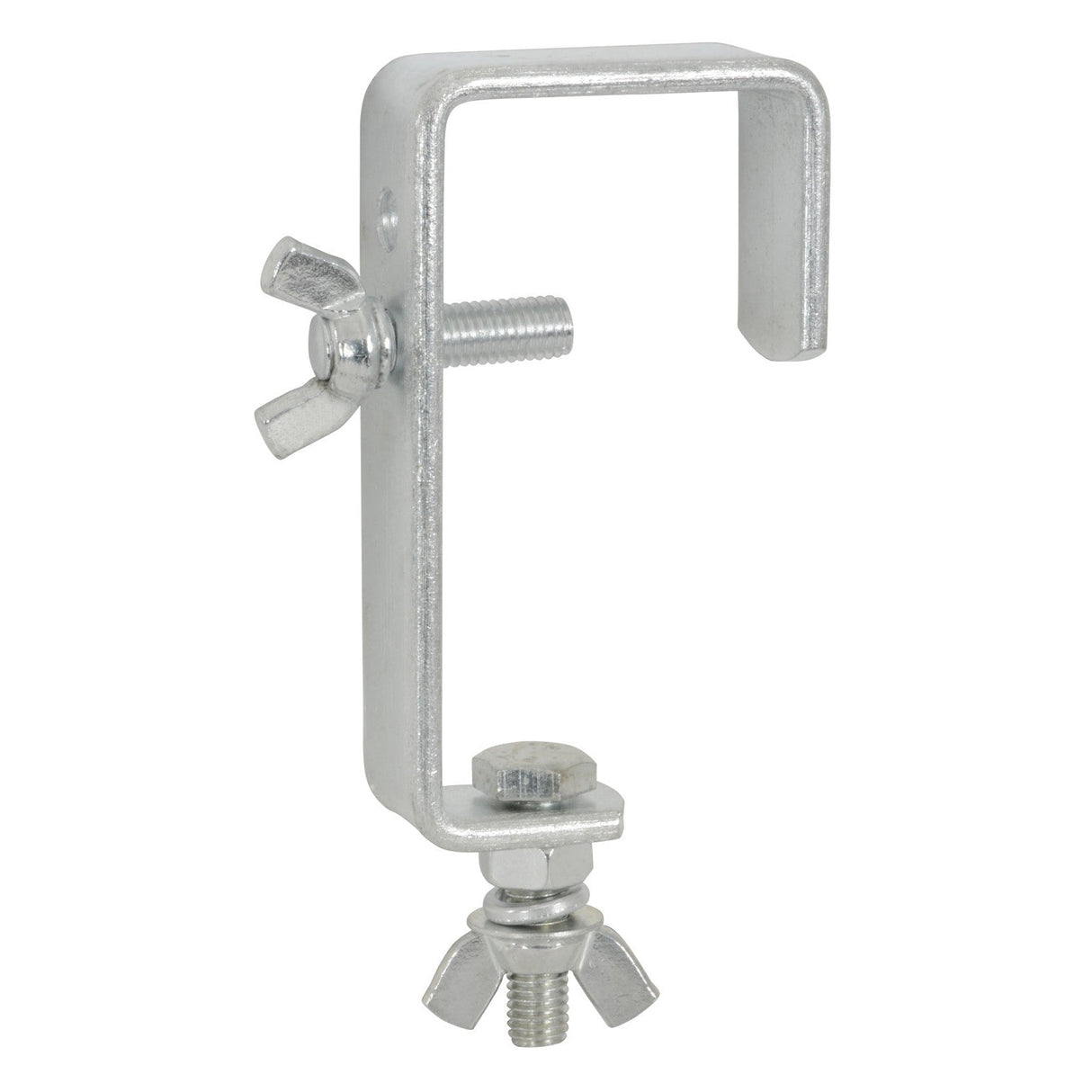

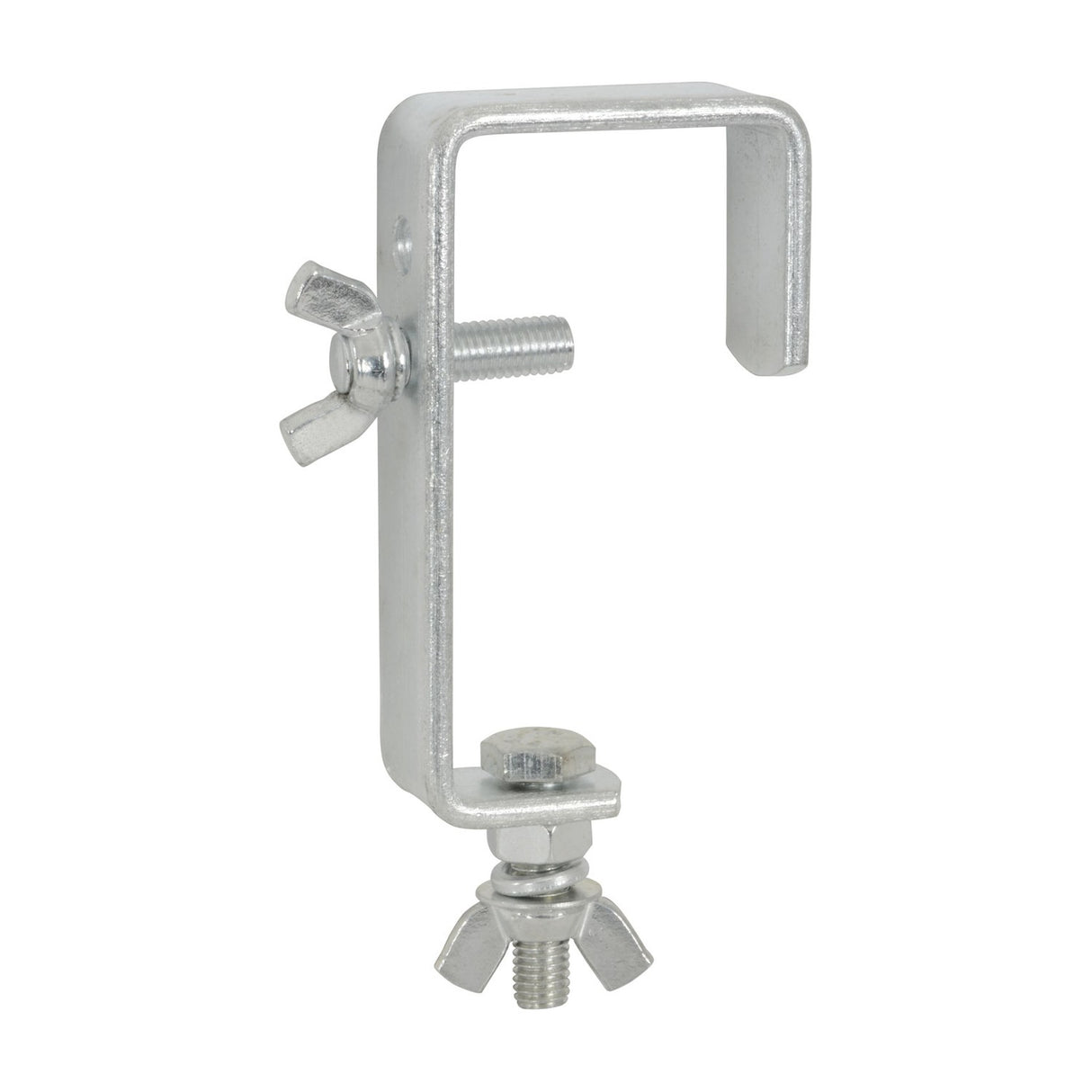

The QTX mounting hook is a metal screw-clamp fixture designed to hang stage lighting equipment from horizontal poles, trusses and scaffold bars between 37mm and 50mm in diameter. The hook provides a 25kg maximum load capacity and uses a threaded wing-nut clamp to secure the bracket to the pole without tools.

Designed for use in stage, theatre, event and installation environments where lighting fixtures need to be mounted to overhead rigging, the hook accommodates the common 48mm scaffold pole diameter used in UK venues alongside smaller truss tube sizes. The screw-clamp tightens onto the pole from one side, allowing the hook to be fitted and removed without disassembling rigging structures.

The hook body is fabricated from metal with a galvanised silver finish that resists corrosion in storage and transport. The wing-nut mechanism provides hand-tightening without requiring spanners or drivers, allowing technicians to adjust fixture positions during rigging and focus. The lower bolt accepts standard M10 threaded fixture yokes and clamps, making it compatible with the majority of theatre and event lighting fixtures that use threaded mounting hardware.

Specification
Max. weight load 25.00KG
Diameter 50
Type Clamps
Frequently Asked

What pole sizes does this hook fit?

The QTX mounting hook fits poles and truss tubes from 37mm to 50mm in diameter. This range covers standard 48mm scaffold poles commonly used in UK venues and most aluminium truss tube diameters used in portable rigging.

How is the hook secured to the pole?

The hook uses a threaded screw clamp with a wing-nut that tightens onto the pole from one side. The wing-nut can be hand-tightened without tools, though a spanner can be used for additional torque if needed for heavier fixtures.

What thread size is the lower mounting bolt?

The lower bolt that accepts the lighting fixture yoke is M10 threaded, which is the standard size used on most theatre and event lighting fixtures with threaded mounting clamps.

Can this be used outdoors?

The galvanised silver finish provides some corrosion resistance for short-term outdoor events, but the hook is primarily designed for indoor stage and theatre use. For permanent outdoor installations, stainless steel rigging hardware is recommended.
