QTX Derby9 9x3W LED Derby Light Effect - DMX & Sound-Activated

The QTX Derby9 is a compact LED derby effect light housing nine 3W LEDs in nine different colours—red, green, blue, amber, yellow, purple, warm white, cool white and UV—split through precision optics to project rotating multi-colour beam patterns across walls and ceilings. The unit measures 200 x 162 x 140mm and weighs 1.1kg, making it portable enough for mobile DJ setups while delivering wide area coverage from a single fixture.

Designed for mobile discos, small stage shows, bars and party venues, the Derby9 operates in three modes: DMX512 via 3-pin XLR for integration into larger lighting rigs, internal auto programs that cycle through pre-set colour and rotation sequences, and sound activation that responds to music via a built-in microphone. The included infrared remote allows program selection and speed adjustment without accessing the rear panel. Power draw is 30W on 220-240Vac mains.

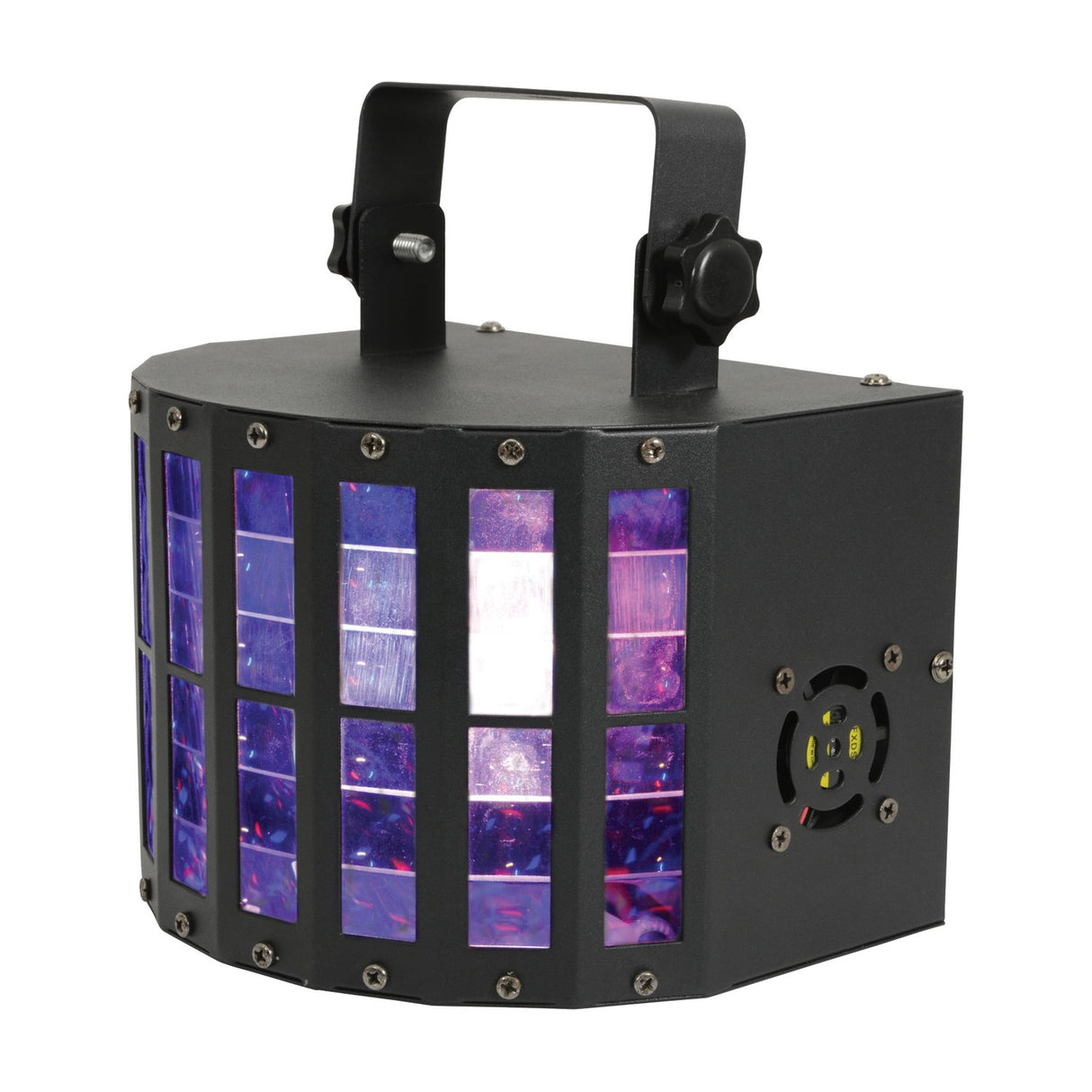

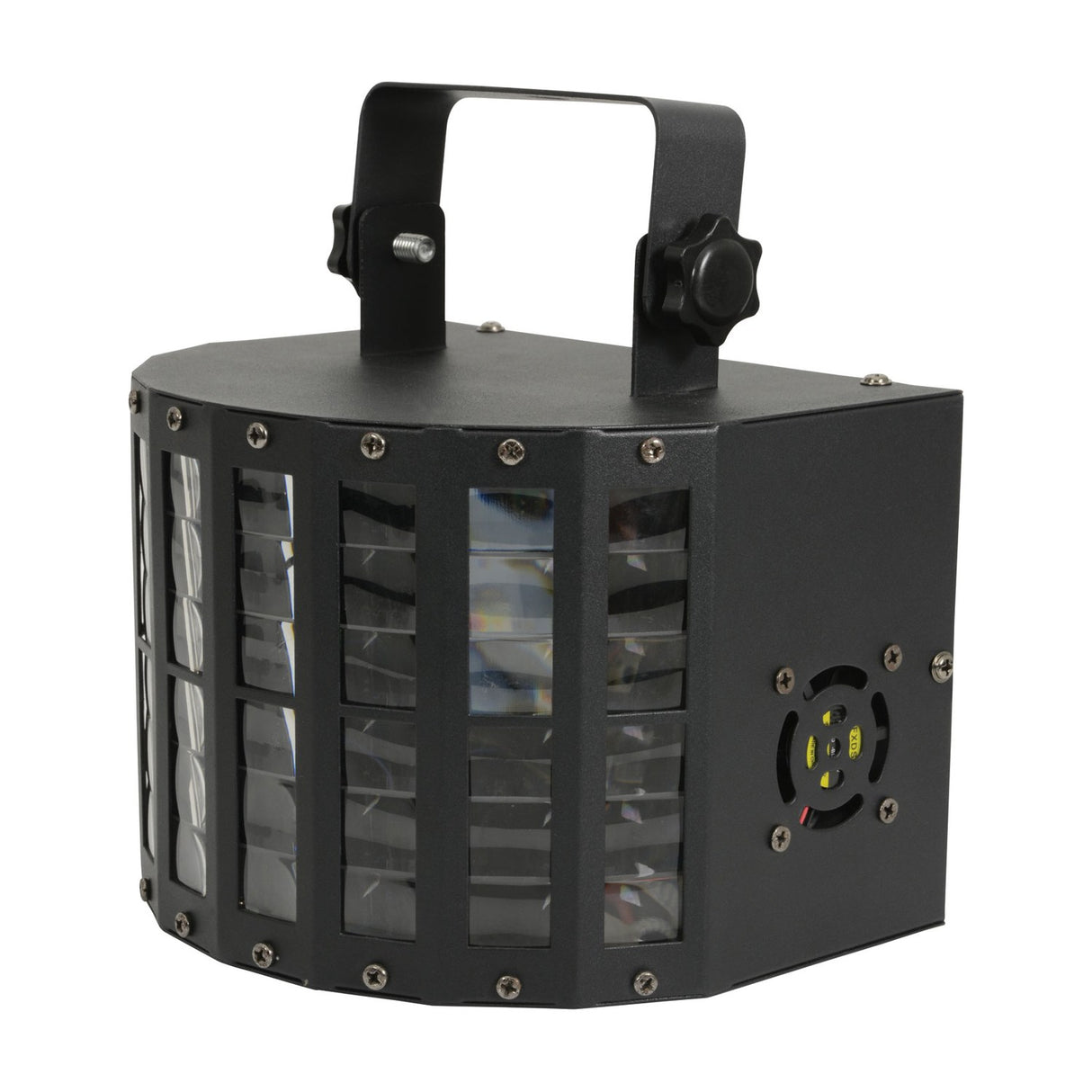

The matte black metal housing includes a carry handle and mounting bracket with adjustable tilt, allowing the unit to be floor-mounted, rigged overhead or clamped to a lighting stand. The nine-colour LED array provides a broader palette than standard RGB derbies, with the addition of amber, yellow, purple, warm white, cool white and UV expanding the available colour combinations. Seven-channel DMX control enables independent colour selection, rotation speed and strobe effects when linked to a DMX desk.

Product Manual

What control options does the Derby9 offer?

The Derby9 can be controlled via DMX512 using 7 channels over 3-pin XLR, set to internal auto programs that cycle through pre-set sequences, or switched to sound-activated mode where it responds to music via a built-in microphone. An infrared remote is included for selecting modes and adjusting speed without accessing the rear panel.

What colours does it produce?

The Derby9 uses nine 3W LEDs in nine different colours: red, green, blue, amber, yellow, purple, warm white, cool white and UV. This nine-colour array provides a broader palette than standard RGB derby effects.

Can it be daisy-chained with other DMX fixtures?

Yes. The Derby9 has both DMX in and DMX out via 3-pin XLR connections, allowing it to be daisy-chained with other DMX-compatible fixtures when operating under DMX control.

Is it suitable for mobile DJ use?

Yes. The compact 200mm footprint, 1.1kg weight, carry handle and 30W power draw make the Derby9 practical for mobile setups. The sound-activated mode means it can operate standalone without a DMX controller when needed.
