AV:Link USB 2.0 Type-A Wall Plate Module - 50mm x 25mm

£399
The RRP is the manufacturer's recommended retail price of the item.
10 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

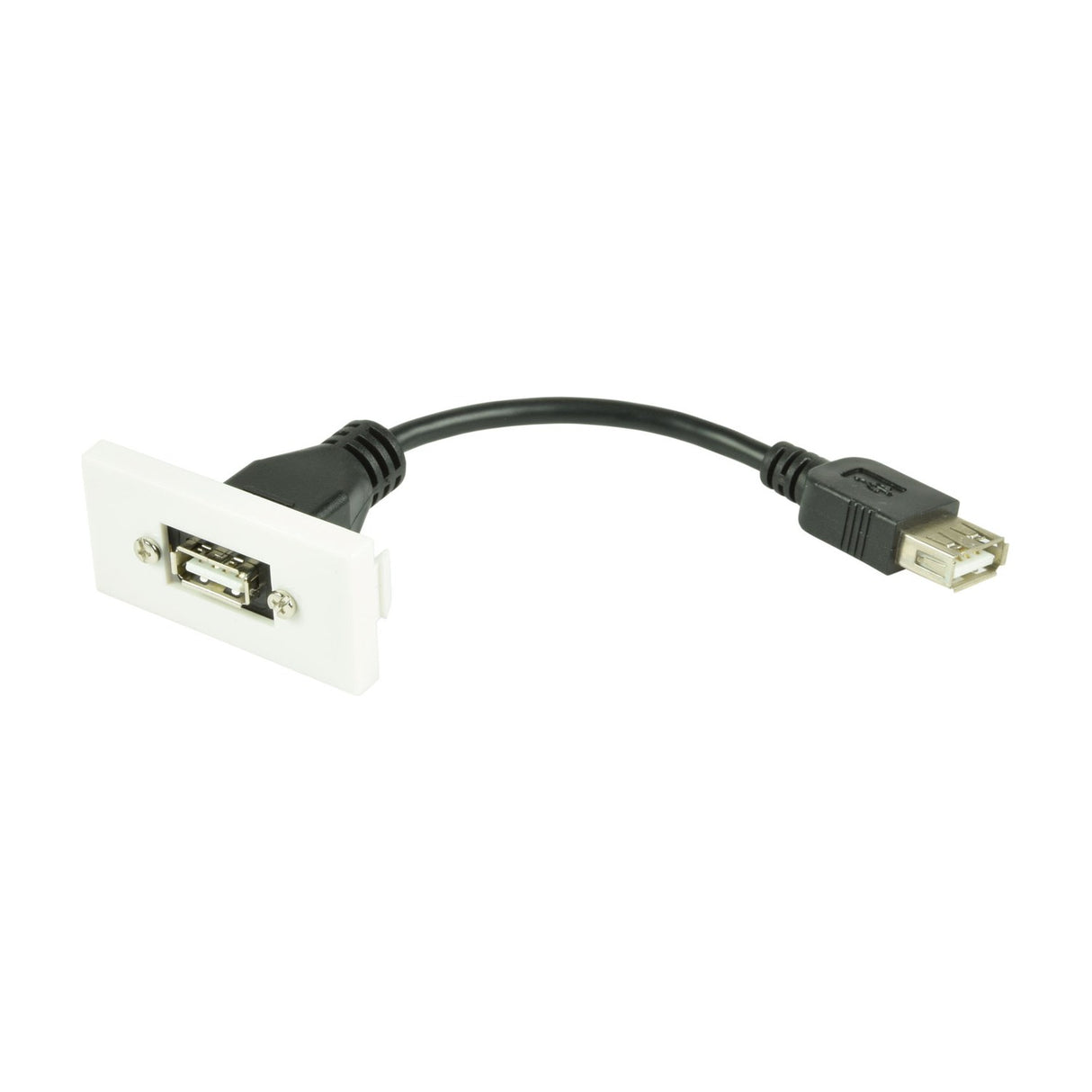

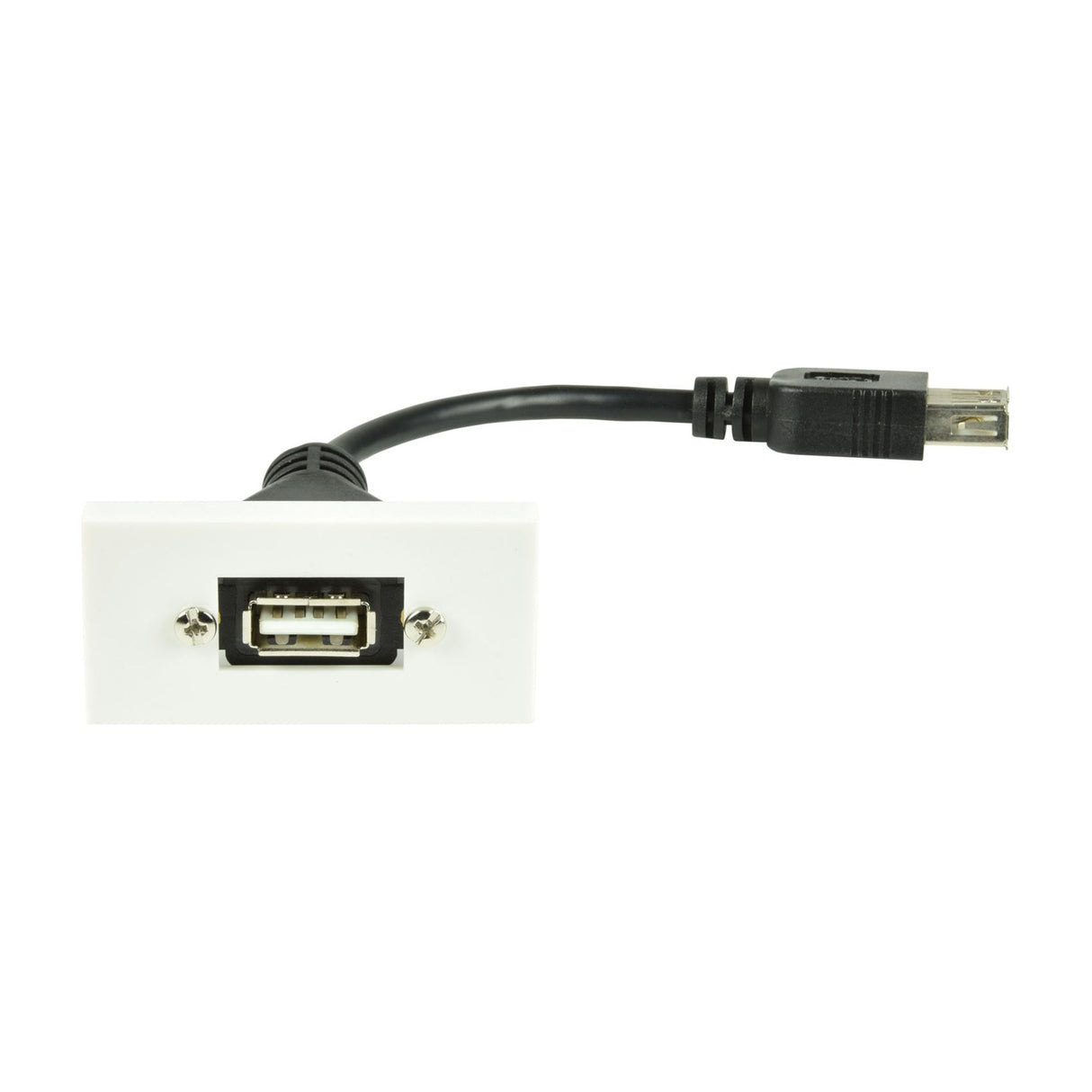

The AV:Link USB 2.0 Type-A wall plate module is a 50mm x 25mm clip-in module with a USB 2.0 Type-A socket on the faceplate and a 155mm female tail extending from the rear. The module fits into compatible modular wall plate frames, allowing USB peripherals to be connected at a wall-mounted position without visible trailing cables.

Designed for installation in residential, commercial and educational spaces, the module creates a fixed USB socket point for connecting devices such as USB-powered displays, charging hubs, or media players. The 155mm female tail connects to a USB source cable run through cavity walls or surface trunking, with the tail terminating at a male USB plug to connect to the source device or hub behind the wall.

The module clips into AV:Link modular wall plate frames (122.500UK and 122.505UK, sold separately), which hold one or more modules within a standard UK single or double wall box aperture. This allows USB sockets to be combined with other AV modules (HDMI, audio, Ethernet) in a single faceplate. At 26g the module adds minimal load to the frame, and the 15mm depth projection from the back of the module determines the minimum cavity depth needed behind the wall plate.

Specification
Dimensions 50mm x 25mm x 155mm
Weight 0.03KG
Diameter 50
Type Modular
Frequently Asked

What wall plate frame does this fit?

This module clips into AV:Link modular wall plate frames 122.500UK (single aperture) and 122.505UK (double aperture). The frames are sold separately and mount into standard UK wall boxes.

What is the female tail used for?

The 155mm female tail extends from the rear of the module and terminates at a USB Type-A socket. This connects to a male USB plug on a cable run from the source device behind the wall, allowing the USB connection to pass through the wall without exposed cables on the room side.

Can this module be used for charging devices?

Yes, provided the USB source connected to the female tail supplies power. The module itself is a passive connector with no built-in power supply, so charging capability depends on the upstream device or hub it connects to.

What cavity depth is needed behind the wall plate?

The female tail projects 15mm from the back of the module, and the module itself adds depth to the frame. A minimum 35mm back box depth is recommended to accommodate the module and allow cable bend radius behind the frame.
