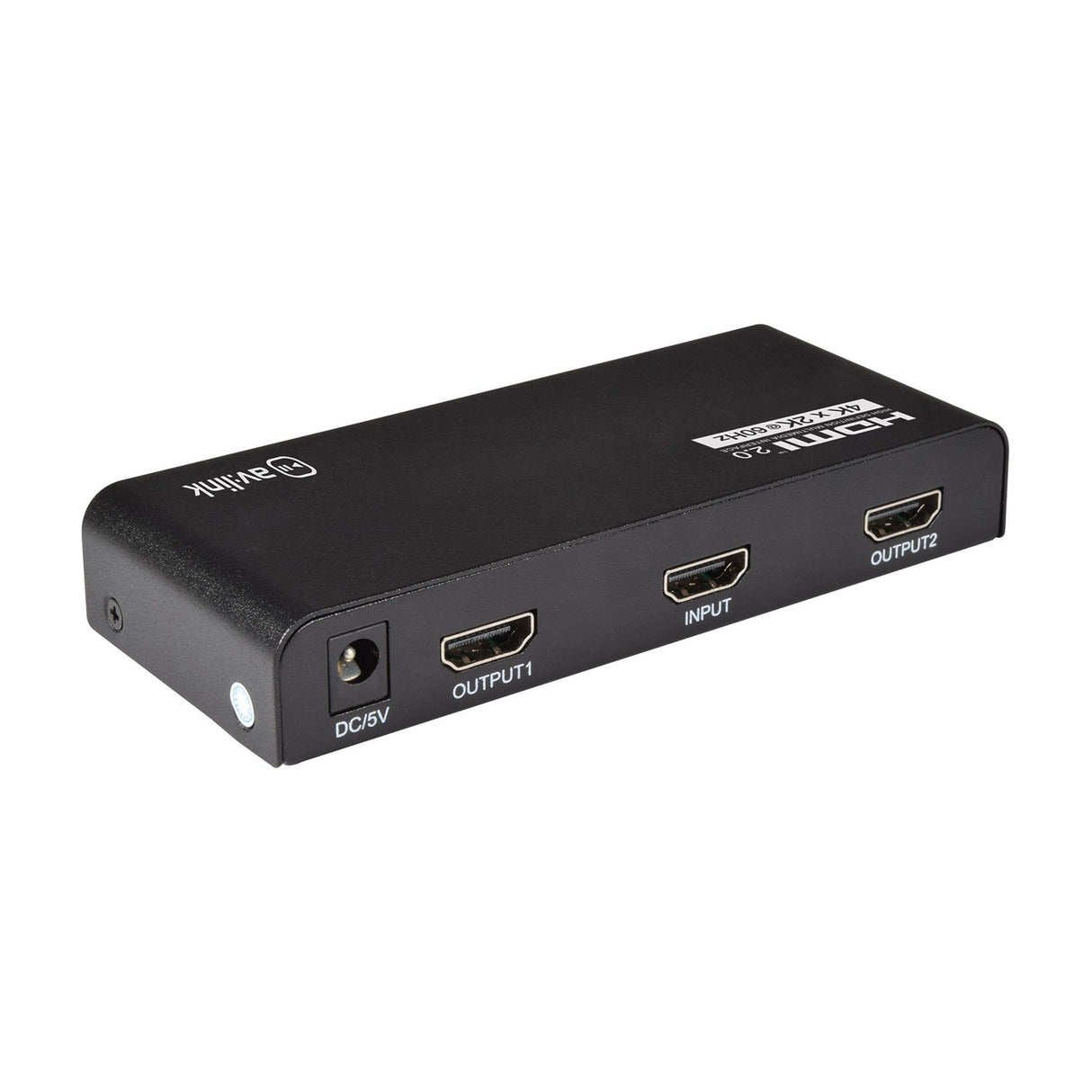

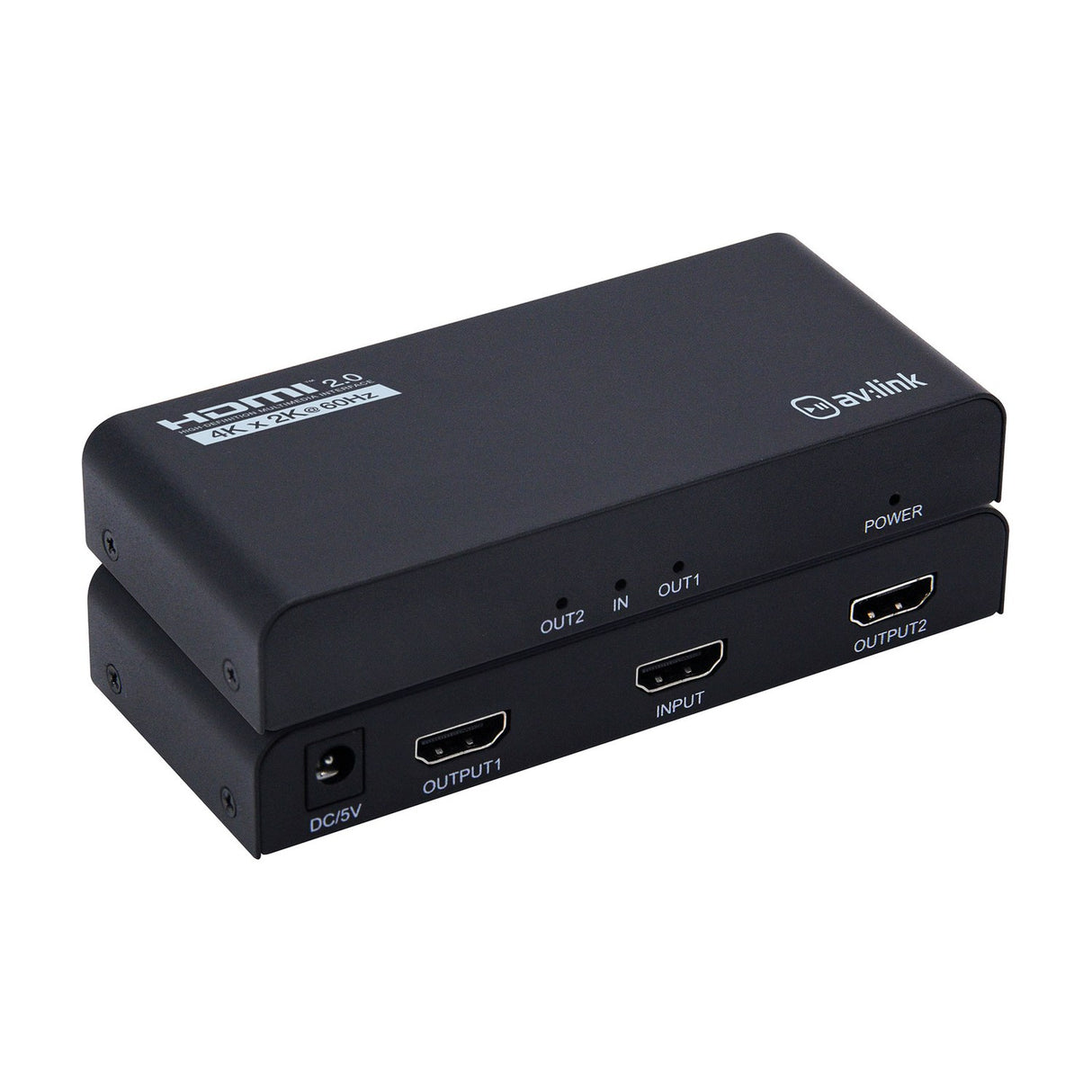

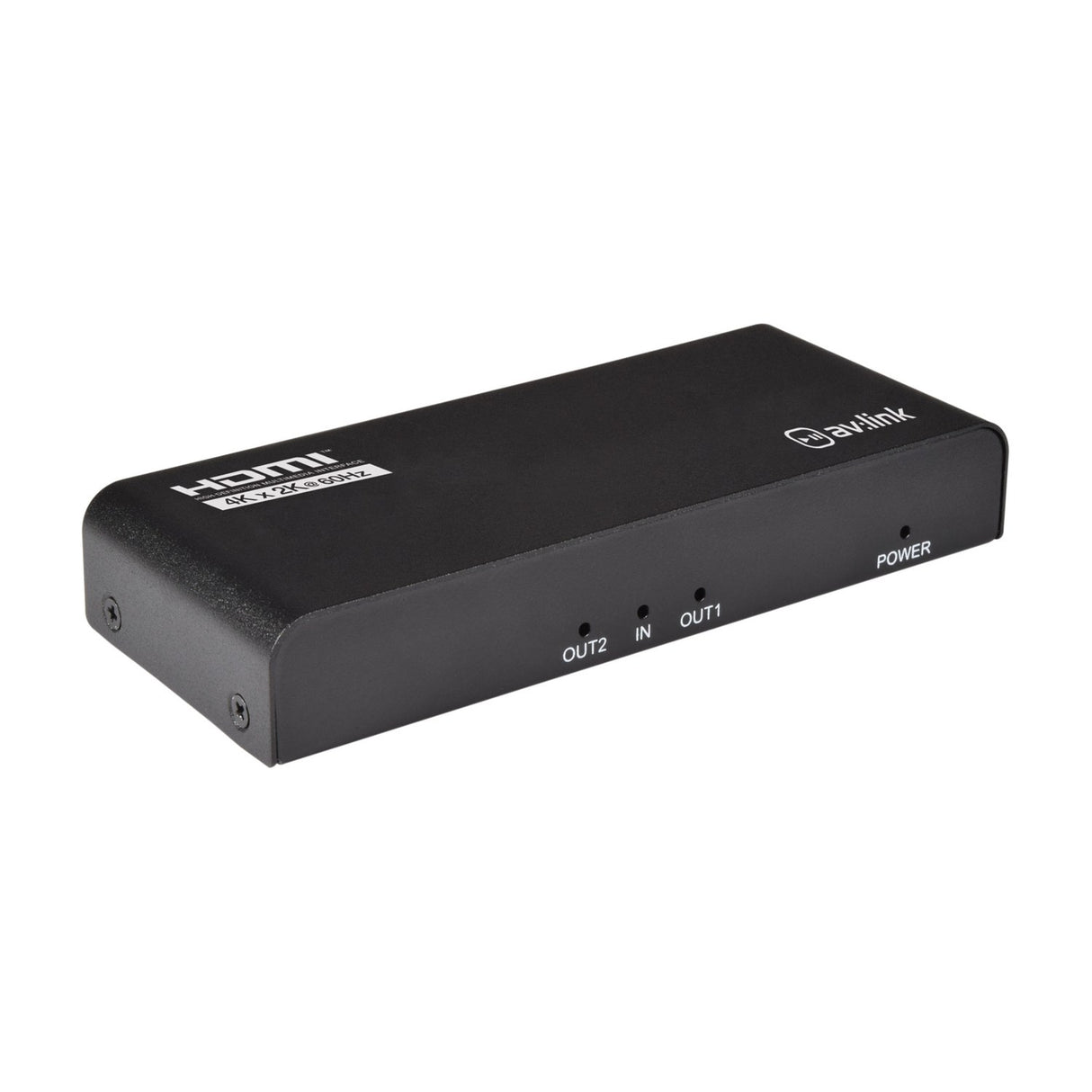

AV:Link HDMI 2.0 4K Splitter 1 Input 2 Outputs

£2499
The RRP is the manufacturer's recommended retail price of the item.
100 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The AV:Link HDMI 2.0 splitter takes one HDMI input and duplicates it to two HDMI outputs simultaneously, maintaining 4K resolution at 3840 x 2160 60Hz on both displays. The unit supports HDMI 2.0b, HDCP 2.2 copy protection, 18Gbps bandwidth, and passes through multi-channel audio formats including DTS-HD, Dolby TrueHD, DTS, Dolby AC3 and DSD without downmixing.

Designed for home cinema setups where a single source feeds two TVs in different rooms, digital signage installations requiring identical content on twin screens, and gaming setups where console output needs to reach both a recording display and a viewing display, the splitter requires no switching or configuration once connected. Plug in the source to the input port, connect both displays to the output ports, and apply power via the included UK DC 5V adaptor. The metal housing dissipates heat efficiently and the compact 128 x 53 x 23.5mm footprint fits behind wall-mounted displays or inside AV cabinets.

The gold-plated HDMI connectors reduce signal degradation over repeated plugging cycles and the unit handles 8-bit, 10-bit and 12-bit deep colour for HDR content pass-through where both the source and displays support it. Maximum transmission distance is 10m at 4K 60Hz or 35m at 4K 30Hz and Full HD, measured from source to splitter to display using standard HDMI cables. Operating temperature range is -15°C to +55°C, allowing use in unheated commercial environments.

Specification
Weight 0.14KG
Dimensions 128mm x 53mm x 23.5mm
Power supply Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
Max. working current 450mA
Max. baud rate 18Gbps
Output connections 2x HDMI
Video resolution Up to 3840 x 2160 @ 60Hz
Display colours 8/10/12bit deep colour
Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
HDCP version 2.2
Max. bandwidth 600MHz
Transmission distance 35m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
Operating temperature range -15°C to +55°C
Downloads

Product Manual

Frequently Asked

Can both displays show different content?

No. The splitter duplicates the same signal to both outputs simultaneously. Both displays show identical content at the same resolution and refresh rate. For independent content on each display, you need an HDMI matrix switcher rather than a splitter.

Does it work with 4K at 60Hz on both outputs?

Yes, provided the HDMI cable run from splitter to each display is 10m or less. Longer cable runs may require reducing to 4K 30Hz or Full HD 60Hz depending on cable quality.

Does it support HDR content?

The unit supports 8-bit, 10-bit and 12-bit deep colour pass-through, which is required for HDR10 content. Both the source device and both displays must also support HDR for the full chain to work.

What's in the box?

The splitter unit, a UK DC 5V 1A power adaptor, and a product manual. HDMI cables are sold separately.
