AV:Link HDMI 2.0 4K Splitter 1 In 4 Out - 3840x2160 @ 60Hz

£2999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The AV:Link HDMI 2.0 splitter distributes one HDMI source to four displays simultaneously, supporting resolutions up to 3840 x 2160 @ 60Hz with HDCP 2.2 copy protection. The unit accepts a single HDMI input and replicates the signal across four HDMI outputs, allowing identical content to be shown on multiple screens without quality degradation.

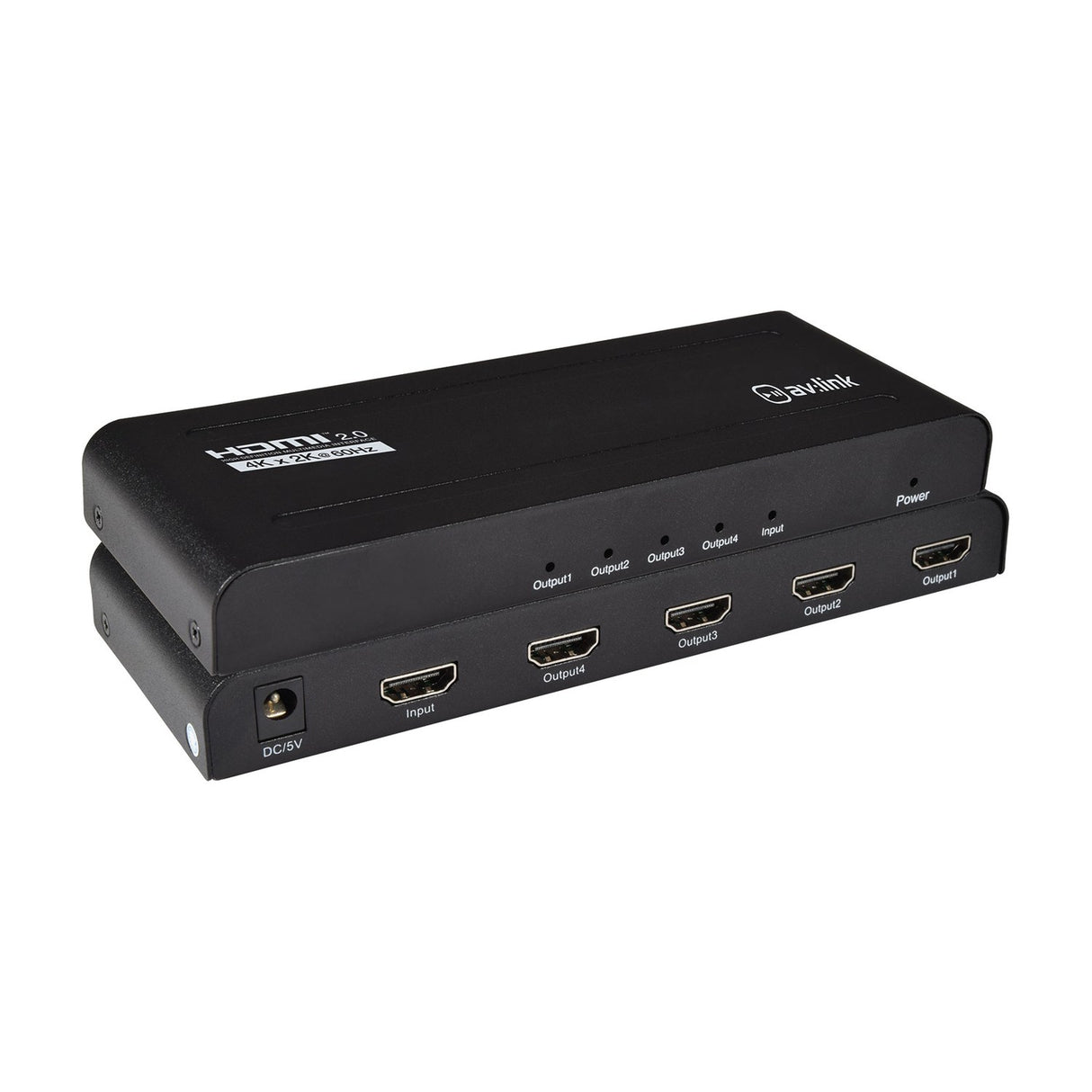

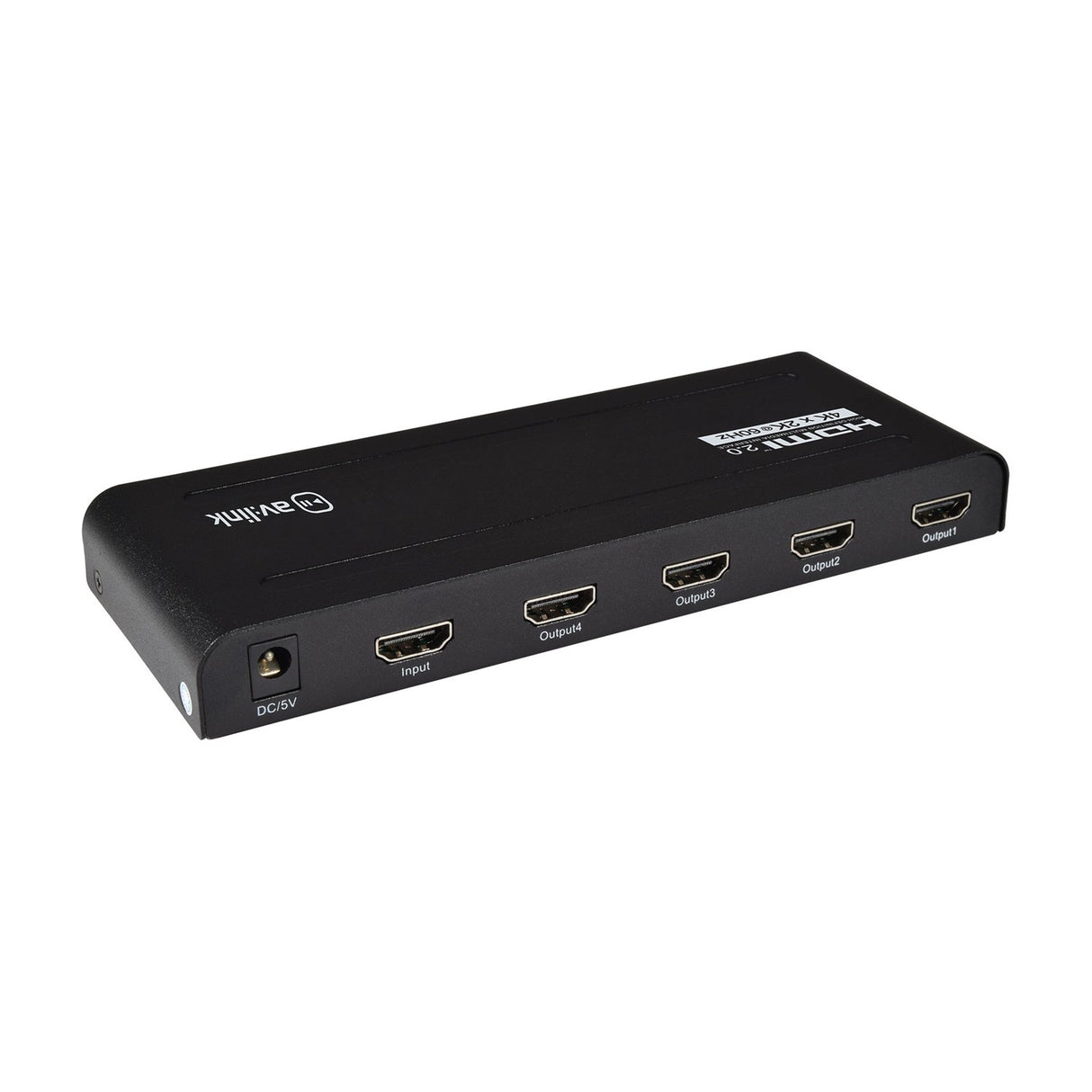

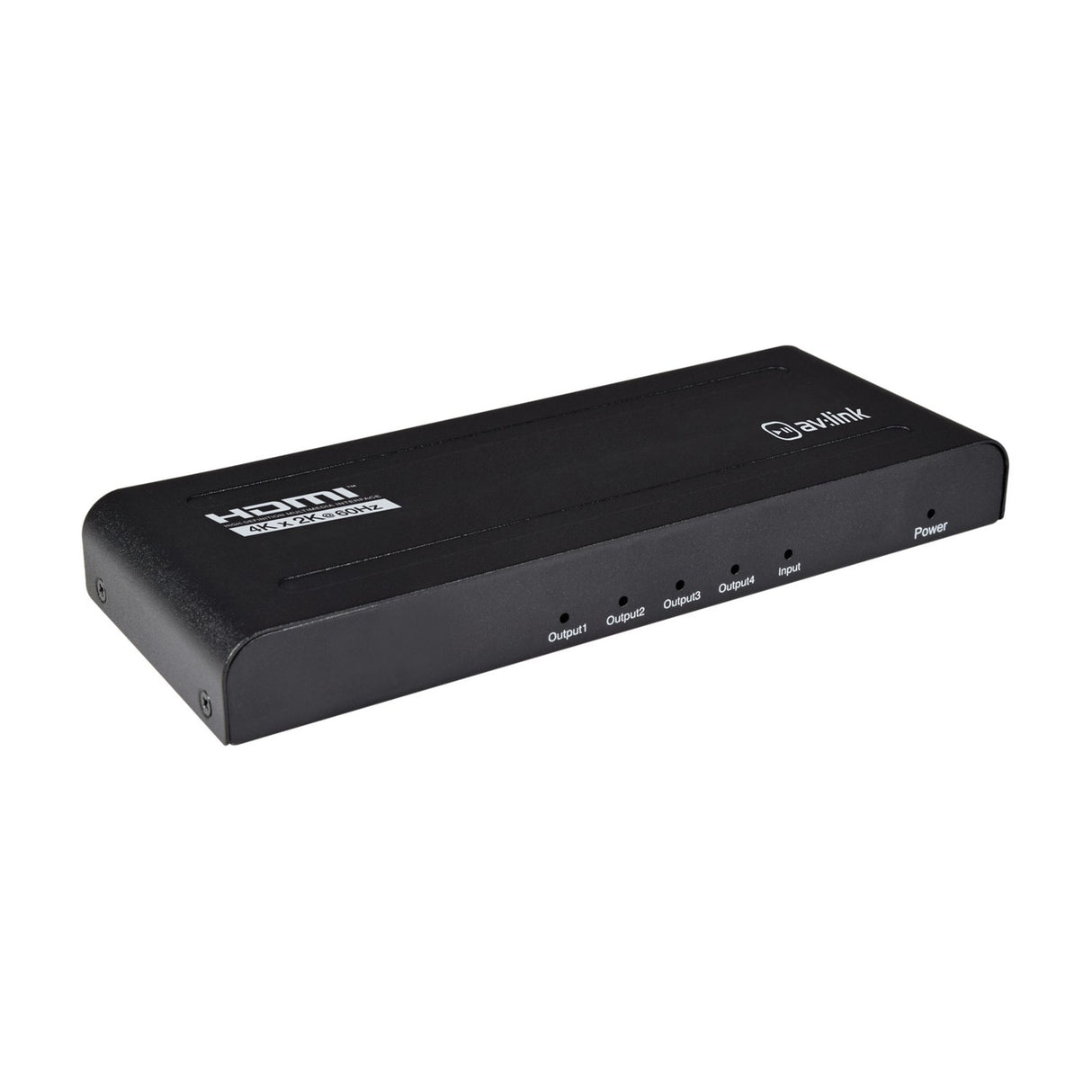

Designed for retail digital signage, hospitality installations, home cinema multi-room setups and conference room AV, the splitter handles 4K UHD content from set-top boxes, media players, gaming consoles and laptops. The metal chassis measures 178 x 67 x 23mm and weighs 230g, making it compact enough to fit behind displays or in AV racks. Gold-plated HDMI connectors on all five ports (one input, four outputs) reduce contact resistance and maintain signal integrity across the 600MHz bandwidth.

Audio passthrough includes DTS-HD, Dolby TrueHD, DTS, Dolby-AC3 and DSD formats, preserving multi-channel audio from Blu-ray players and streaming devices. The splitter supports 8-bit, 10-bit and 12-bit deep colour, allowing HDR content to pass through to compatible displays. Maximum transmission distance varies by resolution: 35m for 4K @ 30Hz and Full HD content, or 10m for 4K @ 60Hz over standard HDMI cables. The unit operates on 100-240V AC mains via the included UK power adaptor (DC 5V/1A output, 650mA max current draw).

Specification
HDMI version v2.0b
Video resolution Up to 3840 x 2160 @ 60Hz
Display colours 8/10/12bit deep colour
Audio format DTS-HD, Dolby True, DTS, Dolby-AC3 and DSD
HDCP version 2.2
Max. bandwidth 600MHz
Transmission distance 35m max 4K @ 30Hz and FHD or 10m max 4K @ 60Hz
Operating temperature range -15°C to +55°C
Max. baud rate 6Gbps
Output connections 4x HDMI
Dimensions 178 x 67 x 23mm
Weight 230g
Max. working current 650mA
Power supply Input: AC (50Hz, 60Hz) 100-240V, Output: DC5V/1A
Downloads

Product Manual

Frequently Asked

Does this support 4K @ 60Hz on all four outputs simultaneously?

Yes. The splitter supports 3840 x 2160 @ 60Hz across all four outputs at the same time, provided the source device and all connected displays are 4K-capable and the HDMI cables used are rated for 18Gbps bandwidth (HDMI 2.0 standard).

What's the maximum cable length between the splitter and displays?

For 4K @ 60Hz content, use HDMI cables no longer than 10m between the splitter and each display. For 4K @ 30Hz or Full HD (1080p) content, cables up to 35m can be used without significant signal degradation.

Is HDCP 2.2 required for the source and displays?

Yes. The splitter is HDCP 2.2 compliant, which means both the source device (Blu-ray player, streaming box, console) and all connected displays must support HDCP 2.2 to view protected 4K content such as Ultra HD Blu-ray discs or 4K streaming services.

Can I power this from a USB port instead of mains?

No. The splitter requires DC 5V/1A and draws up to 650mA under full load, which exceeds the current capacity of standard USB 2.0 ports (500mA max). Use the included UK mains adaptor or a regulated DC 5V/1A+ power supply with a compatible connector.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
