20AX DP Switch Module - White

£399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

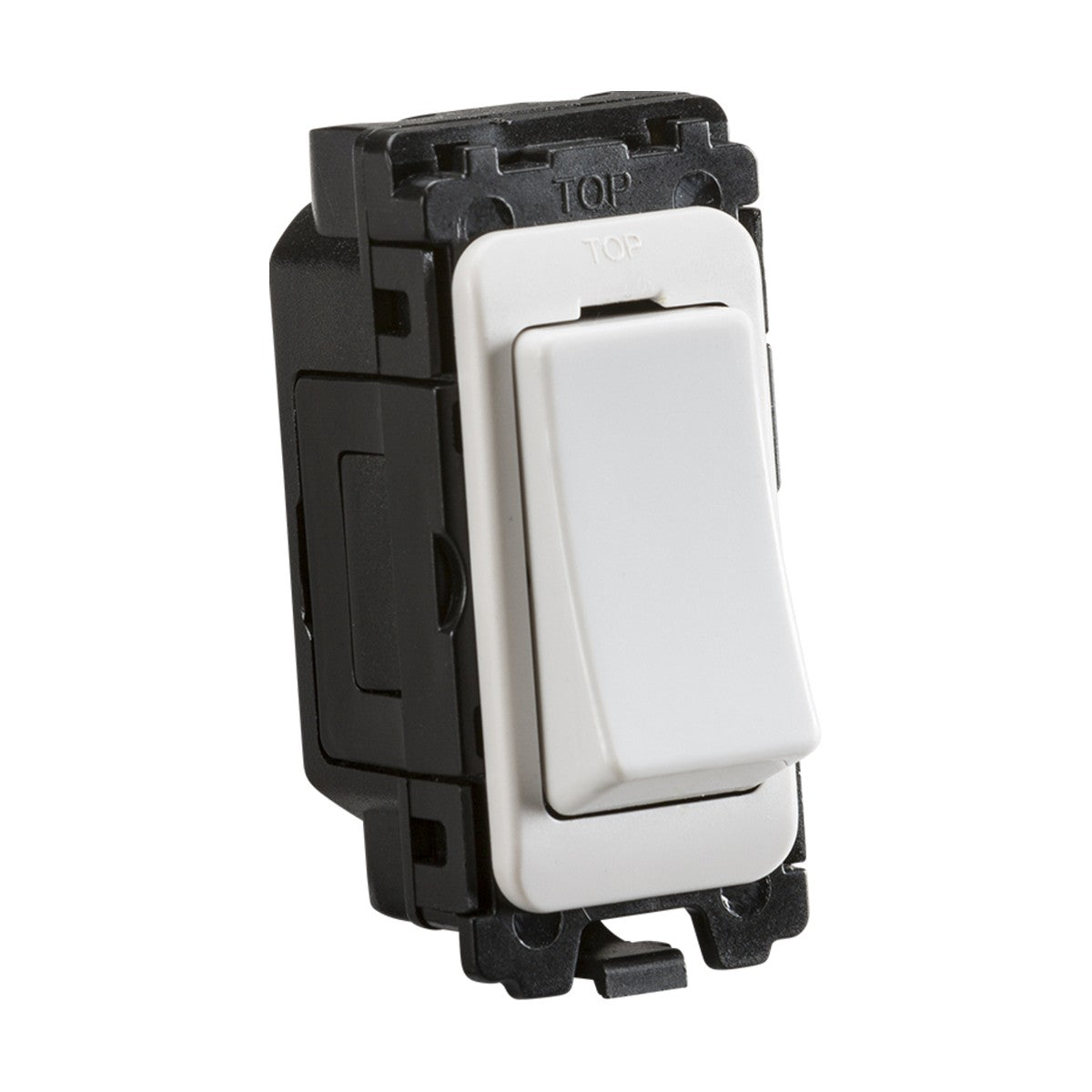

The Knightsbridge 20AX DP switch module is a single-gang double pole rocker switch designed for front-mounting grid systems in the curved edge range. The module carries a 20AX rating at 230V, handling loads up to 4,600W — suitable for water heaters, cooker circuits and other high-demand appliances where double pole isolation is required.

The module fits curved edge grid plates (sold separately) and requires a minimum 35mm back box depth for installation. The double pole switching isolates both live and neutral lines when turned off, providing full circuit isolation rather than just breaking the live conductor. The white rocker cover can be replaced with a labelled variant if needed, allowing circuits to be identified without printed stickers.

Constructed from thermoset resin with antimicrobial properties tested to ISO 22196:2011, the module is rated IP20 for indoor dry locations. The 25mm width makes it compatible with standard single-module grid positions, and multiple modules can be combined in multi-gang grid plates to create custom switch configurations. The white finish pairs with both contemporary and traditional interiors where white accessories are specified.

Specification
Height 55 mm
Width 25 mm
Depth 25 mm
Recessed Depth 20 mm
Min. Mounting Box Depth 35mm
Construction Thermoset resin
Finish White
IP Rating IP20
Primary Voltage 230V 50Hz
Anti-Microbial Properties 3rd Party Tested to ISO 22196:2011
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What is the difference between single pole and double pole switching?

Single pole switches break only the live conductor, while double pole switches isolate both live and neutral. Double pole switching is required for high-load circuits (water heaters, cookers) and provides complete circuit isolation for safety during maintenance.

What grid plate does this module fit?

This module is designed for Knightsbridge curved edge grid plates only. It will not fit standard flat-edge grid systems or other manufacturers' grid ranges. Grid plates are sold separately in 1-6 gang configurations.

Can the rocker cover be replaced?

Yes. The white rocker can be replaced with a labelled variant (sold separately) to identify specific circuits — common labels include 'Water Heater', 'Cooker', 'Immersion', and custom-printed options.

What back box depth is needed?

A minimum 35mm back box depth is required. Standard 25mm back boxes are not deep enough to accommodate the module safely.
