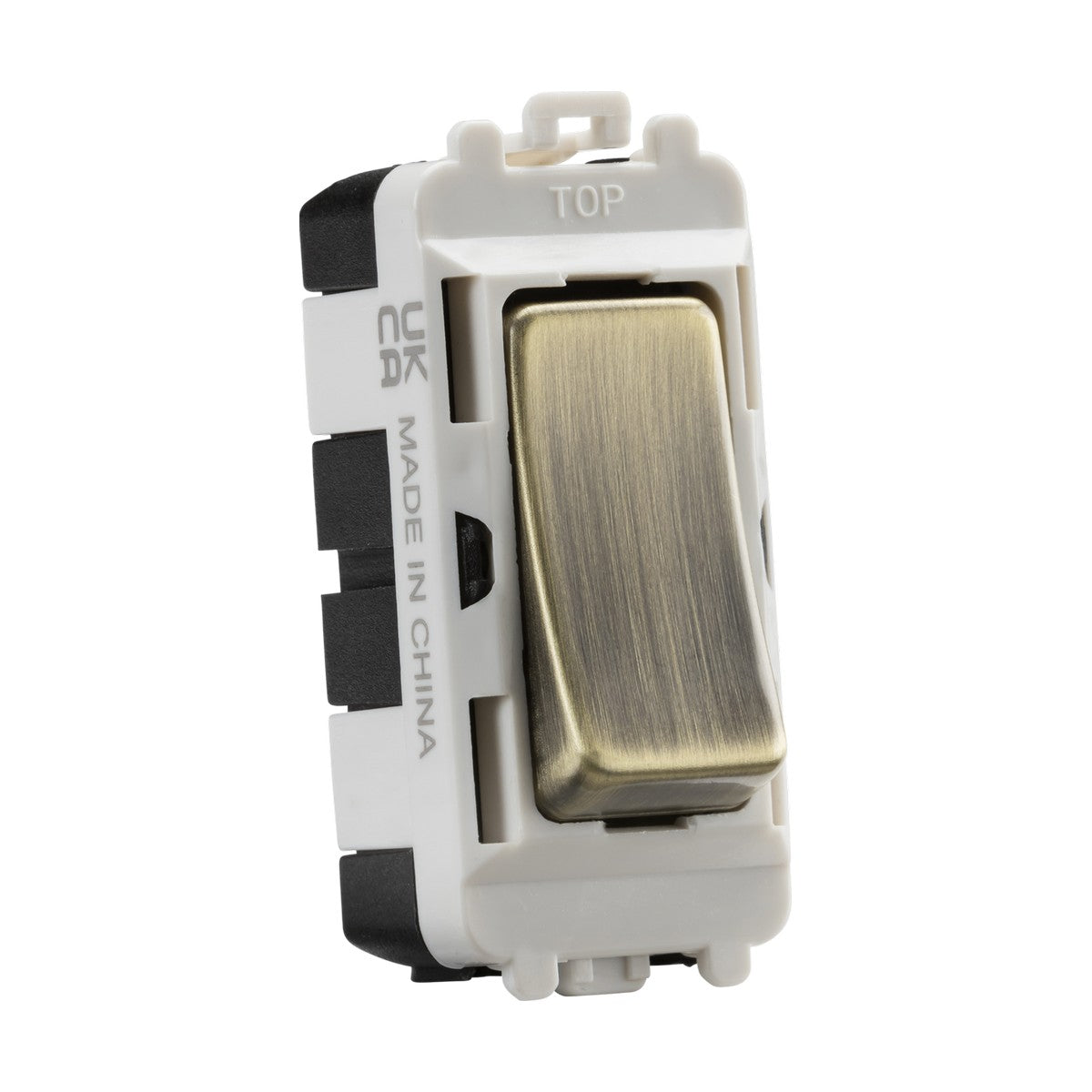

20AX 2 Way SP Grid Module - Antique Brass

£499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Knightsbridge GDM001AB is a 20AX 2-way single pole grid module finished in antique brass, designed to clip into modular mounting frames from the front without removing the frame from the wall. The module measures 24.8mm wide by 56.3mm high, fitting Knightsbridge's standard grid system alongside other modules to build custom switch and socket configurations.

Grid modules suit installations where multiple switching and socket functions need to be grouped in a single faceplate, such as kitchen islands with multiple appliance circuits, home offices requiring mixed data and power outlets, or commercial reception areas needing consolidated control points. The front-clip fitting means modules can be added or reconfigured without disturbing the back box wiring once the mounting frame is installed.

The antique brass finish provides a warm, aged metallic tone that sits between polished brass and darker bronze, pairing well with traditional, period and warm-toned interiors. The module body is constructed from ABS with steel contact components, rated IP20 for indoor dry locations. The 20AX rating handles switching loads up to 4,600W at 230V, suitable for higher-draw appliances and lighting circuits beyond standard 10AX switching.

Specification
Height 56.3 mm
Width 24.8 mm
Projection 7 mm
Recessed Depth 18.7 mm
Min. Mounting Box Depth 35mm
Construction ABS
Construction 2 & steel
Finish Antique Brass
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 25
Downloads

Product Specification Sheet

Frequently Asked

What mounting frame is needed?

This module requires a separate Knightsbridge grid mounting frame, sold separately. Frames are available in 1-gang, 2-gang, 3-gang and 4-gang configurations to hold multiple modules. The module clips into the frame from the front once the frame is fixed to the back box.

What does 20AX mean?

20AX is the switching rating: 20 amps, suitable for loads up to 4,600W at 230V. This is higher than standard 10AX modules, making it appropriate for high-draw appliances, water heaters or lighting circuits with multiple fittings.

What back box depth is required?

A 35mm minimum back box depth is needed. The module itself recesses 18.7mm and projects 7mm from the mounting frame once clipped in.

Can modules be mixed in the same frame?

Yes. Knightsbridge grid modules are designed to be mixed within the same mounting frame, allowing switches, sockets, dimmers, data ports and blank modules to be combined in a single faceplate. All modules in the same frame should share the same finish for a consistent appearance.
