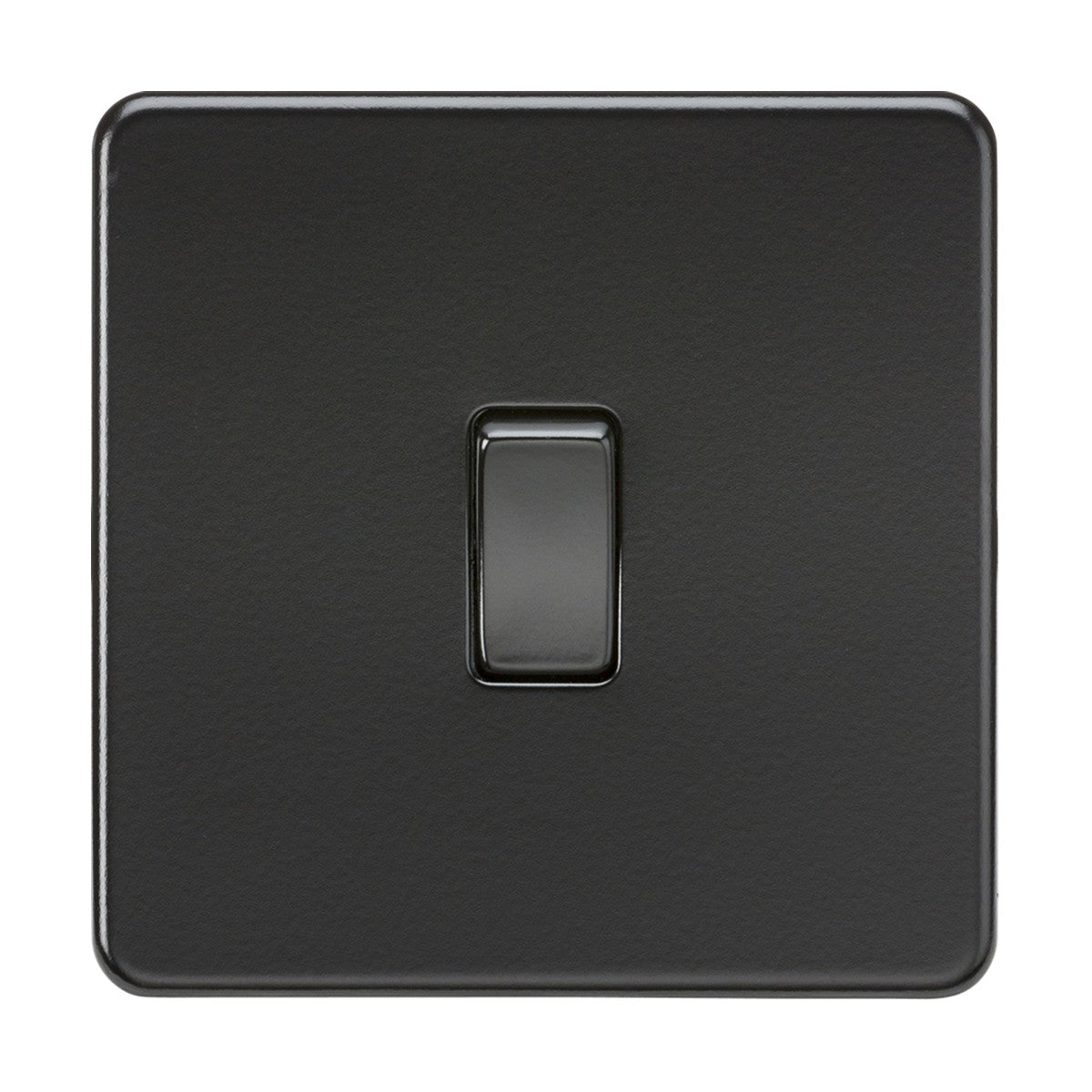

20A 1 Gang DP Switch - Matt Black Screwless

£999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Knightsbridge 20A 1-gang DP switch is a double pole isolator designed for fixed appliances drawing up to 20A at 230V, including immersion heaters, water heaters, and large commercial catering equipment. The switch breaks both live and neutral lines when turned off, providing full isolation for maintenance or appliance servicing. The screwless matt black faceplate clips onto a separate steel sub-frame, hiding all fixings behind the cover plate.

Intended for residential kitchens, utility rooms, plant rooms and commercial installations where fixed appliances require dedicated isolation switches, the unit fits a standard 25mm minimum back box depth. The 87.5mm square faceplate aligns with UK standard electrical accessory sizing, allowing it to sit alongside standard sockets and switches from the same Knightsbridge Screwless Matt Black range. The matt black premium-grade steel finish provides a low-sheen surface that minimises fingerprints and reflections.

The switch carries EN 60669-1 certification and includes an IP20 rating for indoor dry-location use. The built-in gasket between the faceplate and the back box reduces dust ingress and improves the seal around the rocker aperture. The earth terminal on the metal sub-frame ensures the faceplate is safely earthed when installed. Knightsbridge backs this switch with a 25-year warranty, covering material and manufacturing defects under normal domestic use.

Specification
Height 87.5 mm
Width 87.5 mm
Projection 4.3 mm
Min. Mounting Box Depth 25mm
Construction Premium grade steel
Finish Matt Black
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Earth Terminal Yes
Neon Indicator No
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What's the difference between single pole and double pole switching?

A single pole switch breaks only the live conductor. A double pole switch breaks both live and neutral, providing full electrical isolation. DP switching is required by UK Building Regulations for immersion heaters and is recommended for any fixed appliance where complete isolation is needed for safe servicing.

What appliances need a 20A switch?

Immersion heaters, water heaters, commercial ovens, large extraction fans, and some air conditioning units typically require 20A isolation switches. Standard 13A switches are not rated for these loads. Check the appliance specification plate before selecting a switch rating.

Is the screwless plate removable for decorating?

Yes. The matt black cover plate clips onto a steel sub-frame that's fixed to the back box. The cover can be removed for painting or wallpapering around the switch and re-clipped without disturbing the wiring.

What back box depth is required?

A 25mm minimum back box depth is needed for safe installation. The 4.3mm projection of the faceplate adds minimal depth from the wall once fitted.
