Track L Right Angle Connector - Satin Nickel

£599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

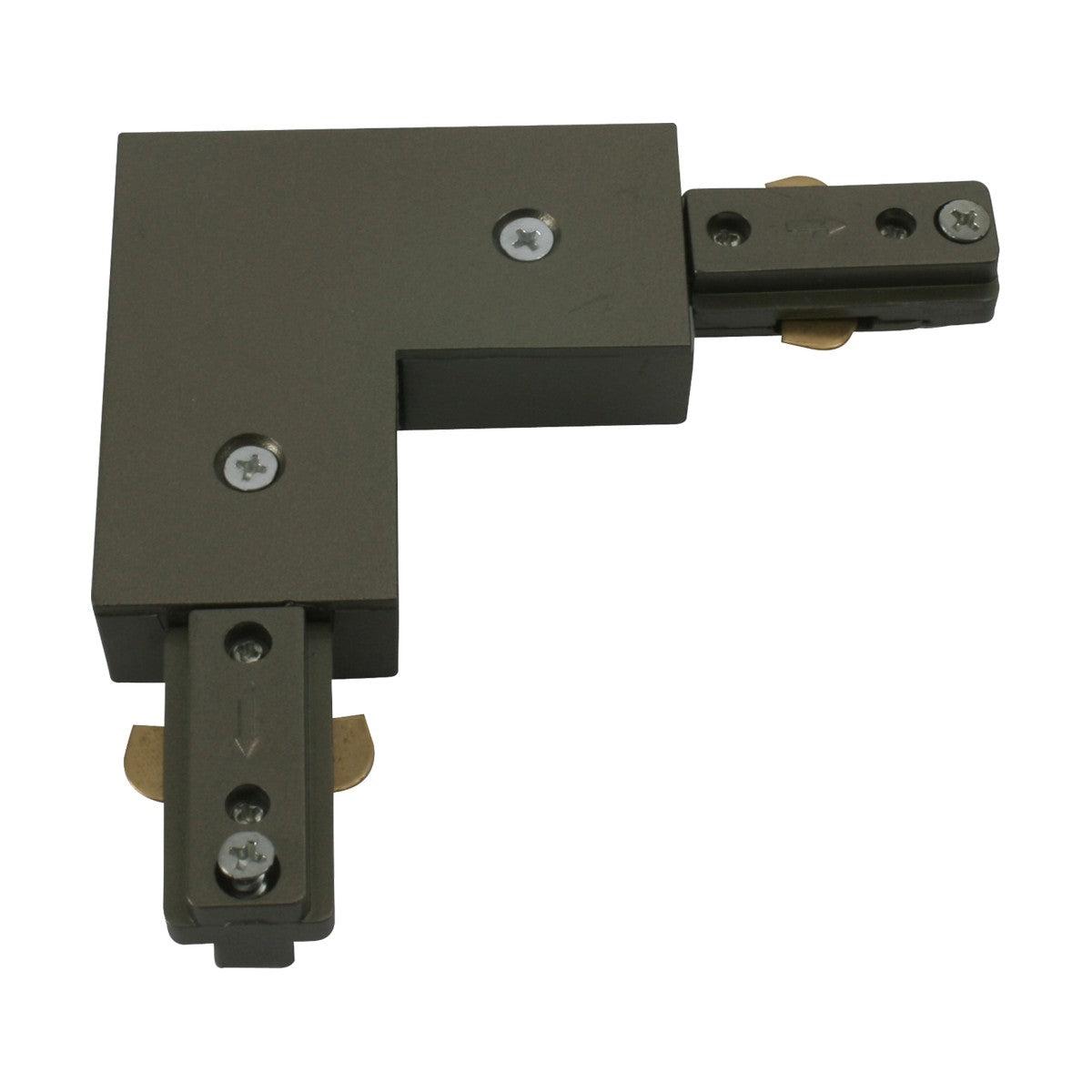

The Knightsbridge TRKRA1S is an L-shaped right-angle connector for joining two sections of single-circuit track lighting rail at 90 degrees. The connector carries live, neutral and earth conductors through the corner, maintaining electrical continuity across the junction and allowing track heads to be positioned either side of the corner without needing separate power feeds.

Designed for residential and commercial track lighting installations where track needs to turn a corner around a room perimeter, alcove or ceiling beam, the connector fits Knightsbridge TRKSPxx series track. The 108mm leg length on each arm provides enough material to seat firmly into the track channel on both sides of the corner, while the 18mm projection from ceiling matches the profile of the track itself.

The polycarbonate body houses copper conductors rated for 230V 50Hz mains, with screw terminals visible on each leg for secure connection to the track's internal busbars. The satin nickel finish on the visible L-plate matches the standard finish across Knightsbridge's track range, giving a consistent metallic appearance where the connector sits exposed at the corner. The connector can also function as a central power feed point if the mains cable is brought to the corner rather than to a separate feed-in connector.

Specification
Length 108 mm
Width 35 mm
Projection 18 mm
Construction Polycarbonate
Construction 2 & copper
Finish Satin Nickel
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 2
Downloads

Product Specification Sheet

Frequently Asked

Which Knightsbridge track is this compatible with?

The TRKRA1S works with Knightsbridge's TRKSPxx series single-circuit track. This includes the TRKSP1M (1m), TRKSP2M (2m) and TRKSP3M (3m) track lengths in matching satin nickel finish.

Can this connector be used as a power feed point?

Yes. The connector can function as a central power feed if the mains cable is brought to the corner junction. This removes the need for a separate feed-in connector at a different point on the track run.

What's the IP rating and where can it be used?

The connector carries an IP20 rating, meaning it's suitable for dry indoor locations only. It cannot be used in bathrooms, outdoor canopies or any environment where moisture is present.

How is the track attached to each side of the connector?

Each leg of the L-connector slots into the open end of the track section. Screw terminals on the connector's copper busbars are tightened onto the corresponding busbars inside the track channel, creating a secure mechanical and electrical connection.
