Single Circuit Track Flexible Connector 230V - White

£1299
The RRP is the manufacturer's recommended retail price of the item.
60 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

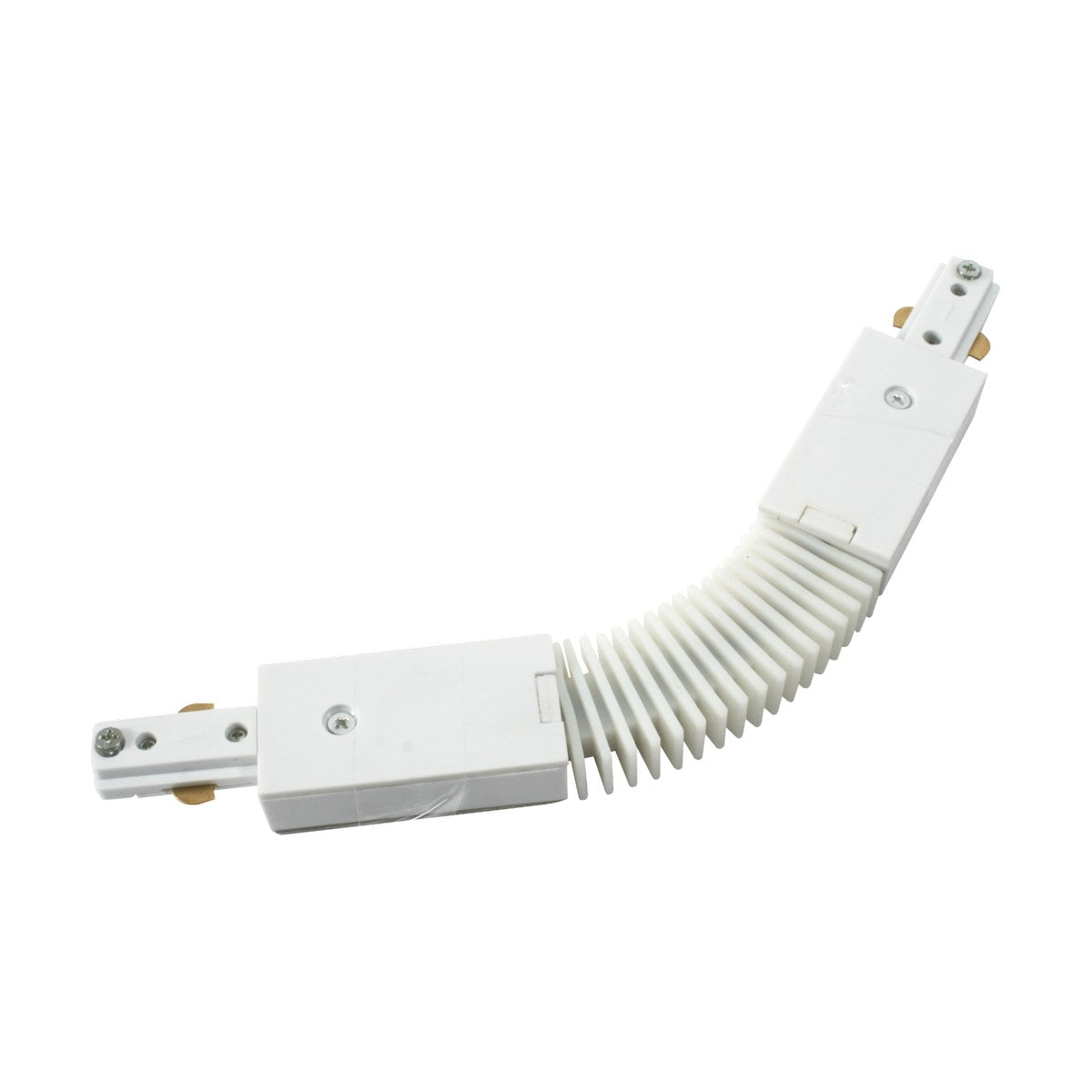

The Knightsbridge TRKFC1W is a flexible connector for single-circuit 230V track lighting systems, allowing two straight track sections to join at any angle up to 90 degrees. The 294mm flexible section uses a ribbed thermoplastic housing over copper conductors, maintaining power continuity through the bend while absorbing minor misalignments between track runs during installation.

Designed for residential and commercial track lighting installations where runs need to navigate corners, ceiling joist positions or architectural features without rigid 90-degree elbows. The connector fits the Knightsbridge TRKSPxx track series and can function as a central power feed point, allowing mains supply to enter the track system mid-run rather than only at the ends. This is useful when installing tracks on ceilings where the existing ceiling rose sits away from the track termination point.

The white thermoplastic finish matches standard white track sections and maintains the IP20 rating of the track system, making it suitable for dry indoor locations only. The flexible section bends to the required angle on installation and holds that position once the track sections either side are secured to the ceiling, but it is not designed to be repeatedly flexed once installed. Each connector end uses the standard track coupling mechanism found across the TRKSPxx range, so no additional adaptors are needed.

Specification
Length 294 mm
Width 35 mm
Projection 18 mm
Construction Thermoplastic
Construction 2 & copper
Finish White
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 2
Downloads

Product Specification Sheet

Frequently Asked

What track systems is this compatible with?

The TRKFC1W is compatible with Knightsbridge TRKSPxx series single-circuit track lighting systems. It will not fit other manufacturers' track systems or Knightsbridge's three-circuit track range.

Can this be used as a power feed point?

Yes. The flexible connector can function as a central power feed, allowing mains supply to enter the track system mid-run. This is useful when the existing ceiling rose sits away from the track end positions.

What angle can the connector bend to?

The 294mm flexible section allows track runs to join at any angle up to 90 degrees. The connector is bent to the required angle during installation and holds that position once the track sections are secured to the ceiling.

Is this suitable for bathroom or outdoor use?

No. The IP20 rating means the connector is only suitable for dry indoor locations. It is not rated for use in bathrooms, kitchens near sinks, or any outdoor application.
