Description

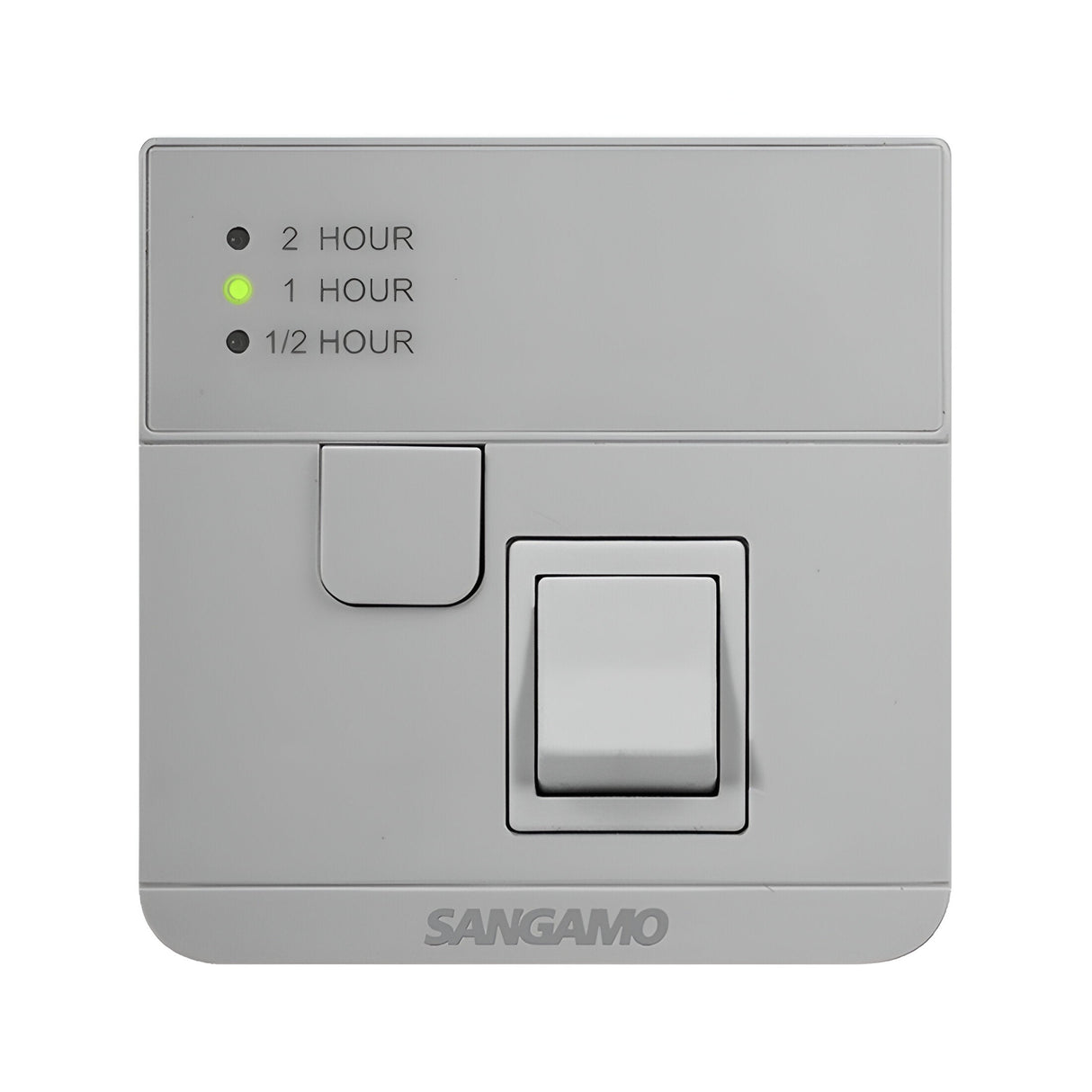

The Sangamo Powersaver Plus is a boost controller with an integrated 13A fused spur, combining timed boost control and a switched fused outlet in a single-gang unit. The controller provides three timed boost options — 30 minutes, 1 hour, and 2 hours — selected via a rocker switch, with LED indication showing which interval is active. A separate manual switch controls the fused spur outlet independently of the boost timer.
Designed for electric heating applications such as towel rails, underfloor heating mats, or fan heaters where temporary boost operation is needed outside programmed schedules, the controller allows a user to override the main heating timer without leaving the appliance on continuously. The boost function automatically returns to off after the selected interval expires. The 13A fused spur outlet handles loads up to 3,120W at 240V AC and comes supplied with a replaceable BS1362 13A fuse.
The unit measures 90mm high by 86mm wide, fitting a standard single-gang mounting box for either surface or flush installation. A surface-mount back box is included in the package. The silver finish sits flush with the wall when surface-mounted, and the LED indicators remain visible from across a typical bathroom or utility room. The fused spur provides isolation for hardwired appliances, eliminating the need for a separate switched fused connection unit where boost control is required.
Specification
| Product Net Weight (KG) |
0.25 |
| Product Gross Weight (KG) |
0.28 |
| Outer Gross Weight (KG) |
12.6 |
| Product Length (mm) |
90 |
| Product Width (mm) |
68 |
| Product Height (mm) |
92 |
| Outer Length (mm) |
285 |
| Outer Width (mm) |
360 |
| Outer Height (mm) |
310 |
Downloads
Product Specification Sheet
Product Manual
Frequently Asked
What appliances is this designed for?
The boost controller suits electric heating appliances such as towel rails, underfloor heating mats, panel heaters, or fan heaters where temporary boost operation is needed outside the main heating schedule. The 13A rating handles loads up to 3,120W.
Does the boost function turn off automatically?
Yes. After selecting 30 minutes, 1 hour, or 2 hours via the rocker switch, the controller automatically returns to off when the selected interval expires. The active LED indicates which boost period is currently running.
Can it be surface-mounted?
Yes. A surface-mount back box is included in the package. The unit can also be flush-mounted into a standard single-gang wall box.
Is the fuse replaceable?
Yes. The unit is supplied with a BS1362 13A fuse which can be replaced if it blows. Replacement fuses are available from most electrical retailers.
