MagDuo Battery Expansion Box - Dark Grey

£27099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

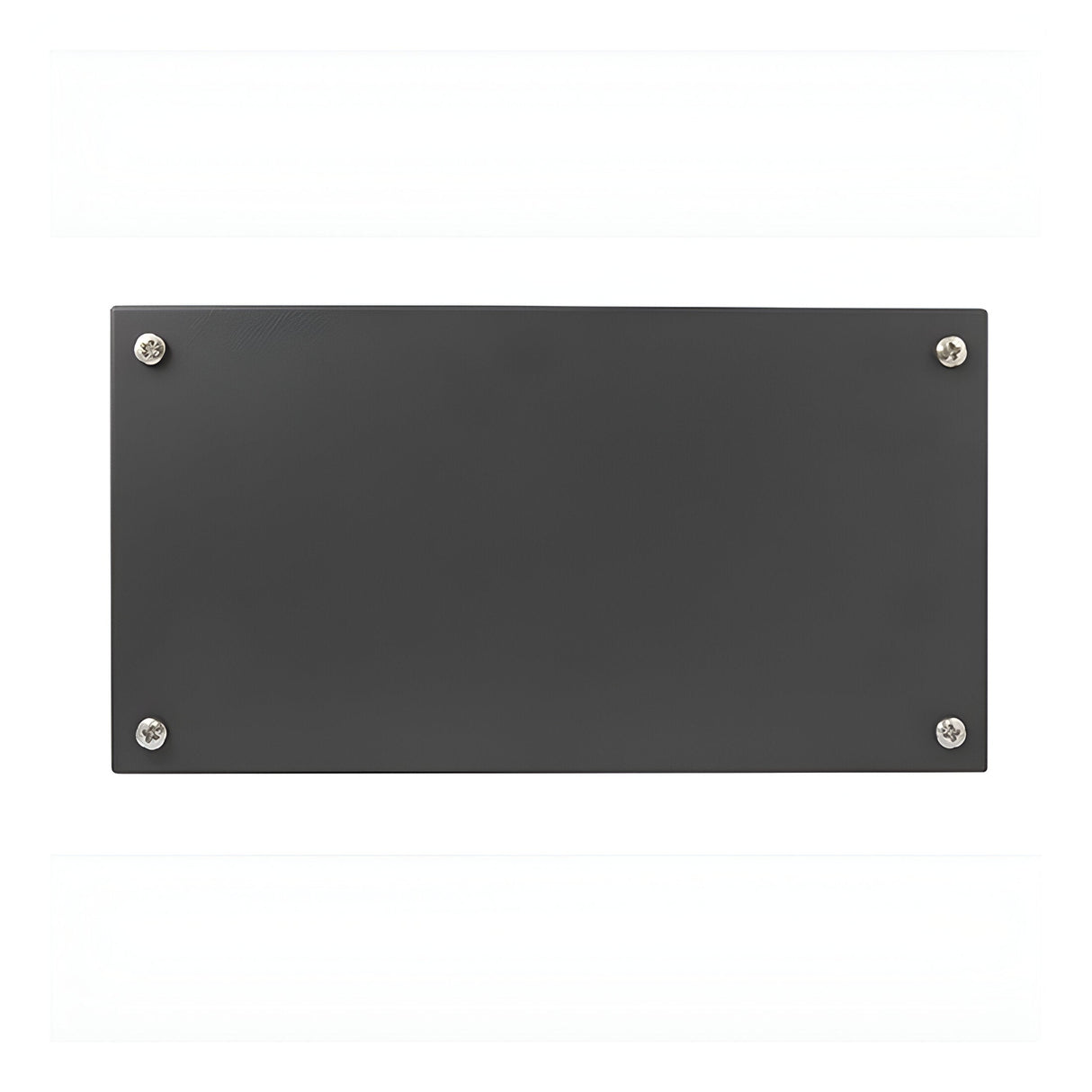

The MagDuo Battery Expansion Box is a dark grey steel enclosure designed to house additional backup batteries for ESP MagDuo fire alarm control panels. The box measures 340 x 350 x 101mm and provides a secure, wall-mountable housing for extending the standby power capacity of a fire alarm system beyond the capacity of the main panel's internal battery compartment.

Designed for commercial and industrial fire alarm installations where extended standby times are required by building regulations or site specifications, the expansion box allows installers to add battery capacity without replacing the main control panel. The box ships with conduit bushes for cable entry, a coupling to connect to the main MagDuo panel, and pre-terminated battery leads ready to connect to the batteries and the panel's power supply unit.

The dark grey powder-coated steel finish matches the standard MagDuo panel enclosure, allowing the expansion box to be wall-mounted alongside the main panel without visual mismatch. The four corner mounting holes accept M4 or M5 fixings for installation onto blockwork, plasterboard with suitable backing, or metal stud partitions. The 2kg net weight sits comfortably within the load capacity of standard wall fixings when the box is empty, though installers must account for the additional weight of batteries when specifying fixings.

Specification
Product Net Weight 2 kg
Product Gross Weight 2.3 kg
Dimensions 340 x 350 x 101 mm
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What batteries does this box accept?

The box is designed to house sealed lead-acid batteries for ESP MagDuo fire alarm panels. The exact battery size and capacity depend on the required standby time for the installation. Refer to the MagDuo panel manual or the product manual linked above for battery sizing calculations based on system load.

Is this compatible with all MagDuo panels?

Yes. The expansion box is designed specifically for ESP MagDuo fire alarm control panels and includes the coupling and battery leads needed to connect to the panel's power supply unit. It is not compatible with other fire alarm panel brands or models.

What's included in the box?

The expansion box ships with conduit bushes for cable entry, a coupling to connect to the main MagDuo panel, and pre-terminated battery leads. Batteries, wall fixings and conduit are not included and must be purchased separately.

Can it be surface-mounted?

Yes. The box has four corner mounting holes and is designed for surface mounting onto walls using M4 or M5 fixings. The shallow 101mm depth allows it to sit flush against most wall surfaces without protruding excessively.
