LYYT RGB COB LED Strip T-Connector 10mm - 5 Pack

£799
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

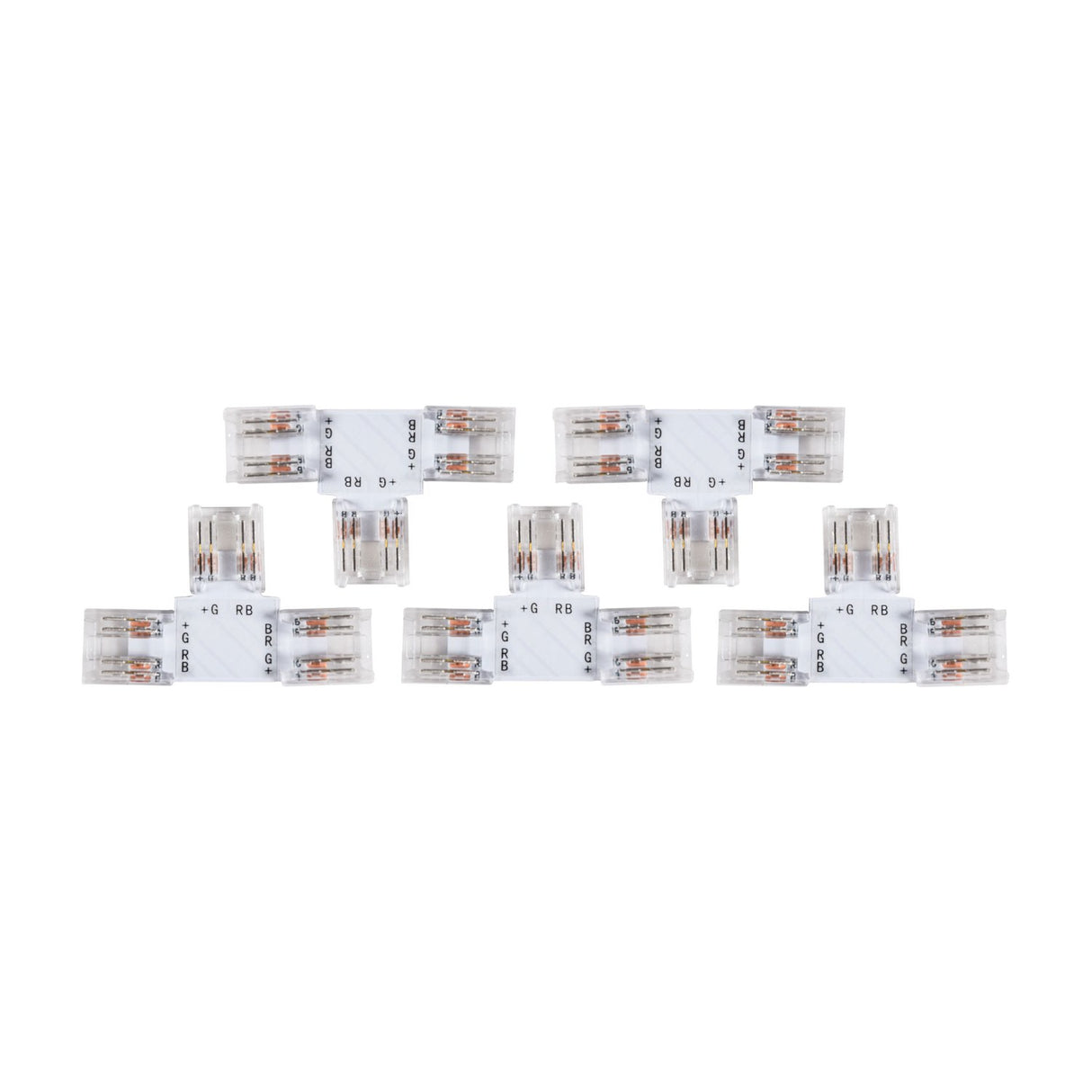

The LYYT RGB COB T-connector joins three lengths of 10mm RGB COB LED strip in a T-shaped configuration, allowing lighting runs to branch in multiple directions from a single junction point. The transparent polycarbonate housing maintains the continuous glow of COB (chip-on-board) LED strips across the join, avoiding the dark gaps that typically appear at traditional connector points.

Designed for retail accent lighting, under-cabinet installations, signage backlighting and architectural cove lighting where strip runs need to branch or split, the connector uses a solderless clip-in mechanism. Each strip end slides into one of the three apertures until the copper contact pads align with the internal terminals, then the top plate crimps down to lock the strips in place and maintain electrical contact. The IP20 rating suits dry indoor locations.

Each connector measures 27 x 27 x 6mm and weighs 0.4g, giving a low-profile junction that sits flush against mounting surfaces without creating visible bulk under diffuser channels or translucent covers. The pack of five suits installations where multiple branch points are needed across a single project. The connectors are designed specifically for LYYT 10mm RGB COB LED strips and may not be compatible with standard 5050 or 3528 RGB strip due to differing contact pad positions and strip widths.

Specification
Tape version RGB 10mm COB Strip
IP rating IP20
Dimensions 27 x 27 x 6mm
Weight 0.4g
Frequently Asked

Do these connectors work with standard RGB LED strip?

No. These are designed specifically for 10mm COB (chip-on-board) RGB LED strip where the LEDs form a continuous line rather than individual chips. Standard 5050 or 3528 RGB strip has different contact pad spacing and will not align correctly with the internal terminals.

Is soldering required?

No. The connector uses a clip-in mechanism. Slide each strip end into an aperture until the copper pads align with the internal contacts, then press the top plate down to crimp and lock the connection.

Can these be used outdoors?

No. The IP20 rating means the connectors are not sealed against moisture or dust ingress and are only suitable for dry indoor installations. For outdoor or bathroom use, sealed IP65 or IP67 connectors would be required.

What LED strip product code are these compatible with?

These connectors are designed for use with LYYT RGB COB LED strip, product code 156.667UK. Check the strip width and contact pad layout before ordering to confirm compatibility.
