LYYT LED RGB COB L-Shape Strip Connector 10mm - 5 Pack

£599
The RRP is the manufacturer's recommended retail price of the item.
22 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

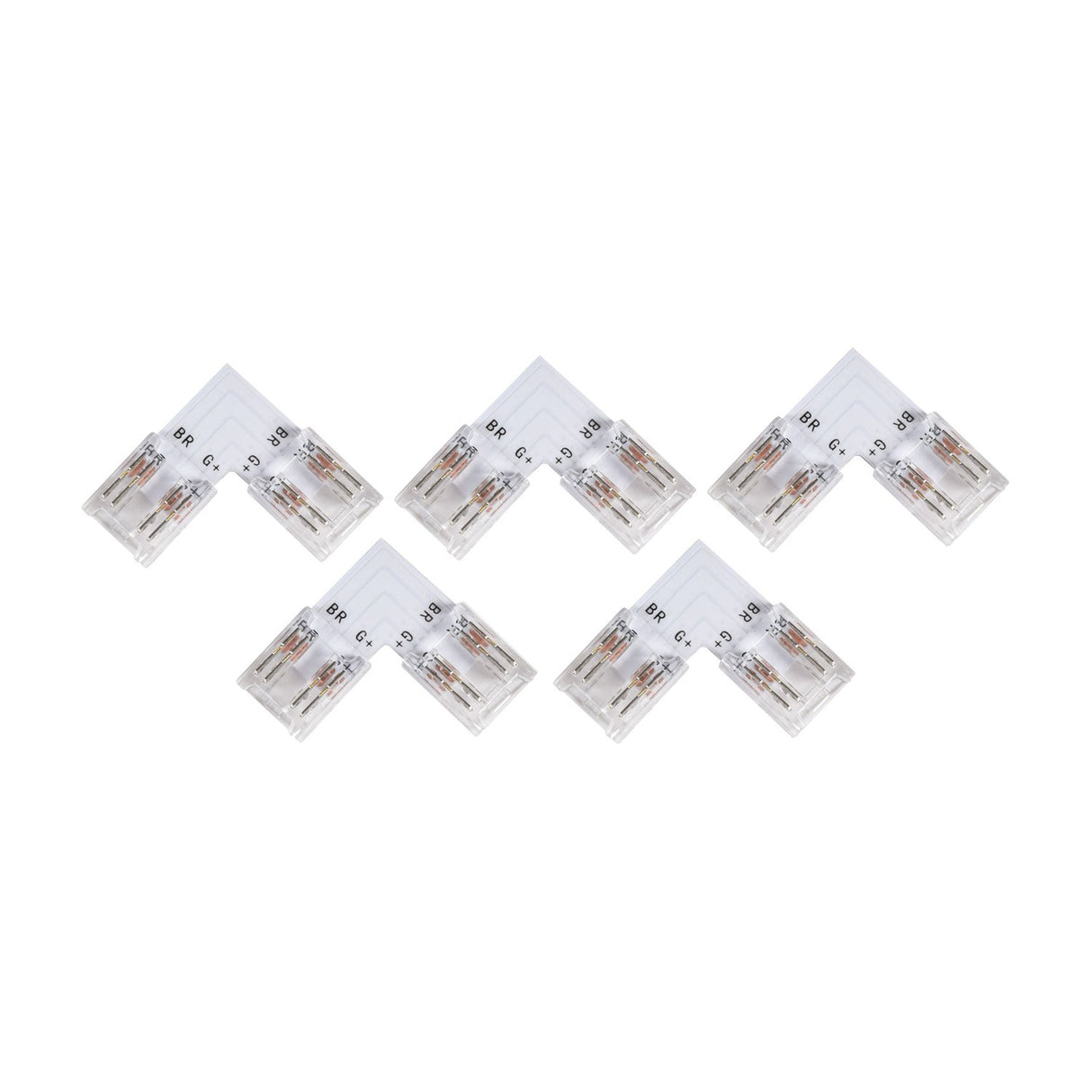

The LYYT RGB COB L-shape connector creates 90° corner joins in 10mm RGB COB LED strip runs without soldering. The transparent polycarbonate housing allows light to pass through the connector itself, maintaining a continuous glow around corners rather than leaving a dark gap. Each connector measures 27 x 27 x 6mm and weighs 0.4g.

Installation involves aligning the copper contact points on the cut end of the COB strip into the connector's internal terminals and crimping the housing closed to secure the connection. The crimped contact holds both the electrical connection and the physical grip, removing the need for solder, flux or heat tools. The L-shape configuration suits under-cabinet lighting runs that turn corners, retail shelf lighting, signage perimeters, and architectural cove details where the strip needs to change direction at a right angle.

Designed specifically for use with LYYT RGB COB LED strips (product code 156.667UK), the connector accommodates the 10mm strip width and the four-contact RGB+common configuration. The IP20 rating limits use to dry indoor locations away from moisture. Supplied in packs of five, the connectors support multi-corner installations or provide spares for larger projects.

Specification
Tape version RGB 10mm COB Strip
IP rating IP20
Max. current 6A
Frequently Asked

Does this work with single-colour COB strip?

No. The connector is configured for RGB COB strips with four copper contacts (red, green, blue, common). Single-colour strips use a two-contact configuration and require a different connector type.

Can the connector be reused if the strip is removed?

The crimp mechanism is designed for single use. Once crimped closed, attempting to open and reuse the connector risks damaging the internal terminals or losing the contact pressure needed for a reliable electrical connection.

What COB strip does this fit?

The connector is designed for LYYT RGB COB LED strips, product code 156.667UK. It accommodates 10mm-wide RGB COB strip with the standard four-contact configuration.

Is the transparent housing rated for outdoor use?

No. The IP20 rating means the connector has no moisture protection and is suitable only for dry indoor locations. For outdoor or bathroom installations, use IP65 or IP67 rated strip and matching connectors.
