LYYT End Cap for Rope and Tube Light - 20mm

£149
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

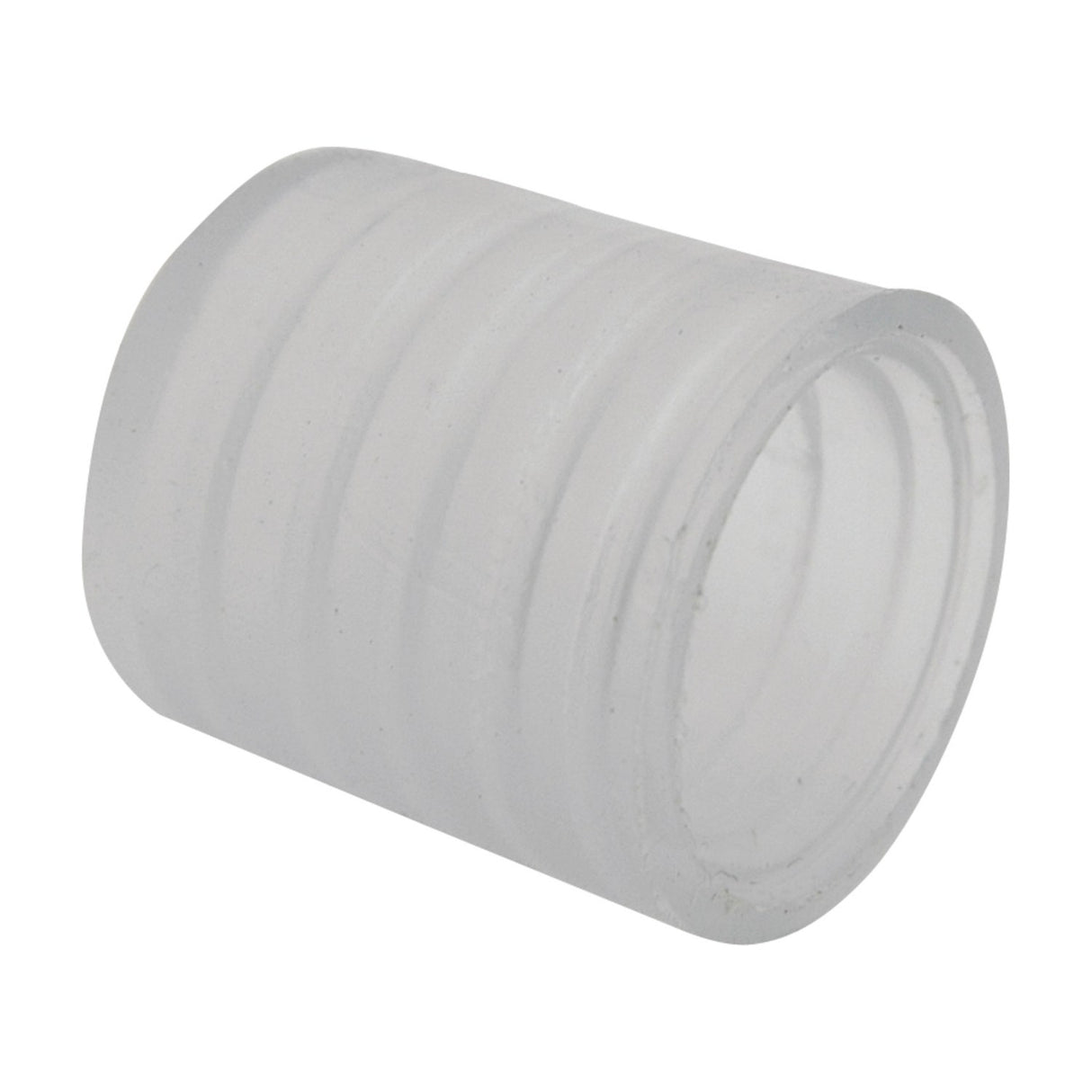

The LYYT end cap is a protective termination component for 20mm rope light and tube light installations, designed to seal the cut end of a rope light run where no connection is needed. The 20 x 20mm aperture fits standard LYYT rope light profiles and the 15mm depth provides enough room for the cut end of the rope light plus a thin layer of silicone adhesive.

Used in combination with silicone glue and heat shrink sleeving, the end cap creates a watertight seal that prevents moisture ingress at the termination point. This makes it suitable for outdoor rope light installations where the cut end would otherwise be exposed to rain or condensation. The cap is fitted over the rope light end, silicone adhesive is applied around the joint, and heat shrink sleeving is then applied over the cap and a short section of the rope light before being heated to form a tight seal.

The white plastic construction matches most LYYT rope light outer sleeves and weighs just 10g, so it does not add noticeable weight to a suspended rope light run. Each cap seals one termination point — for a typical rope light installation you will need one end cap per cut end that does not connect to a power supply or another section.

Specification
Dimensions 20 x 20 x 15mm
Weight 10g
Frequently Asked

What size rope light does this fit?

The 20 x 20mm aperture fits LYYT rope light and tube light with a 20mm outer diameter. Check the outer diameter of your specific rope light before ordering.

Is silicone glue included?

No. The end cap is supplied on its own. You will need to purchase silicone adhesive and heat shrink sleeving separately to achieve a watertight seal.

Can it be used indoors without the silicone and heat shrink?

The end cap can be fitted over a cut rope light end for indoor installations where moisture protection is not critical, but it will not provide a secure or watertight seal without the silicone adhesive and heat shrink sleeving.

How many end caps are needed per installation?

One end cap is needed for each cut end of rope light that does not connect to a power supply or another section. A typical single rope light run requires one end cap at the far end, with the power supply connection at the other end.
