LYYT 8mm Single Colour LED Strip X Connector (5 Pack)

£599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

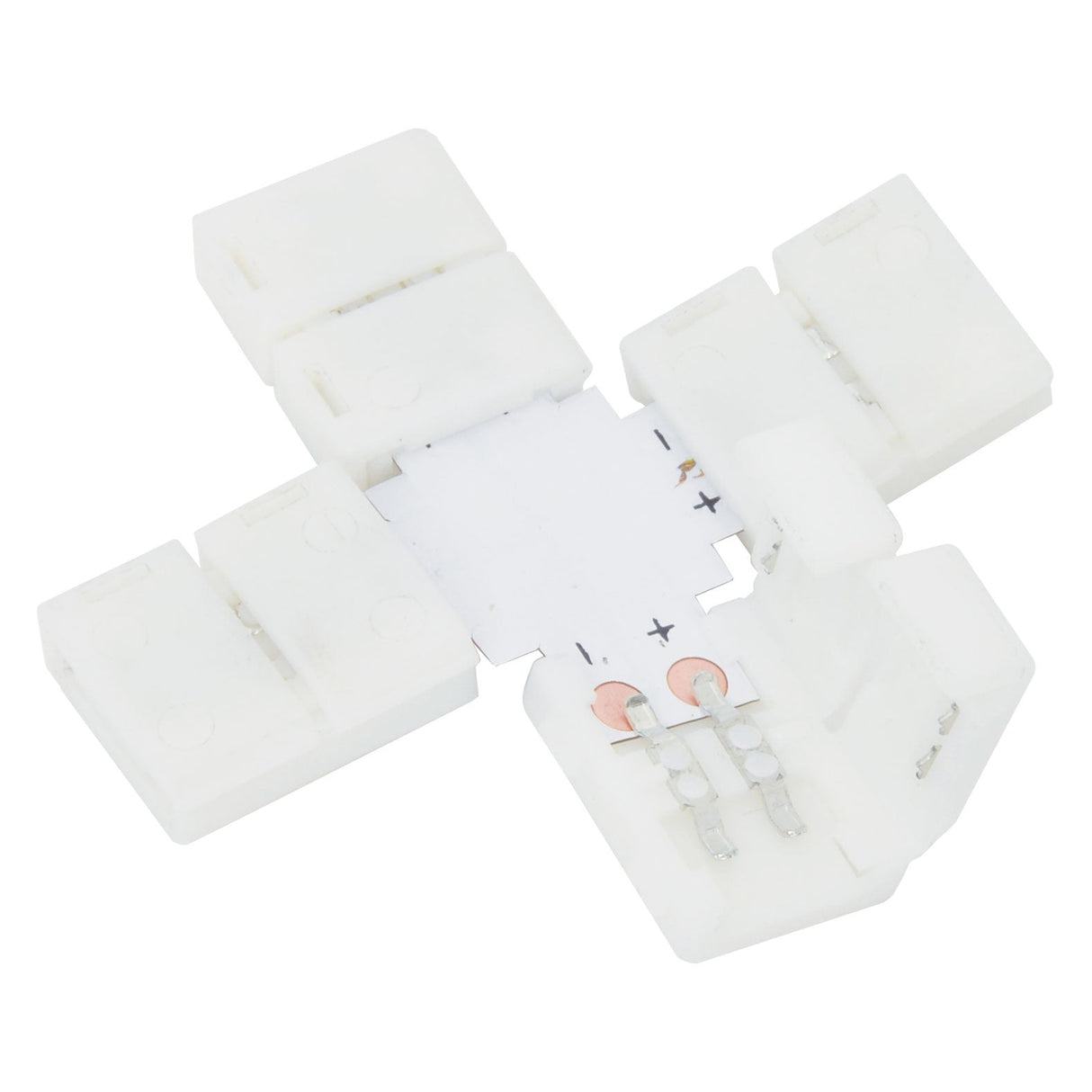

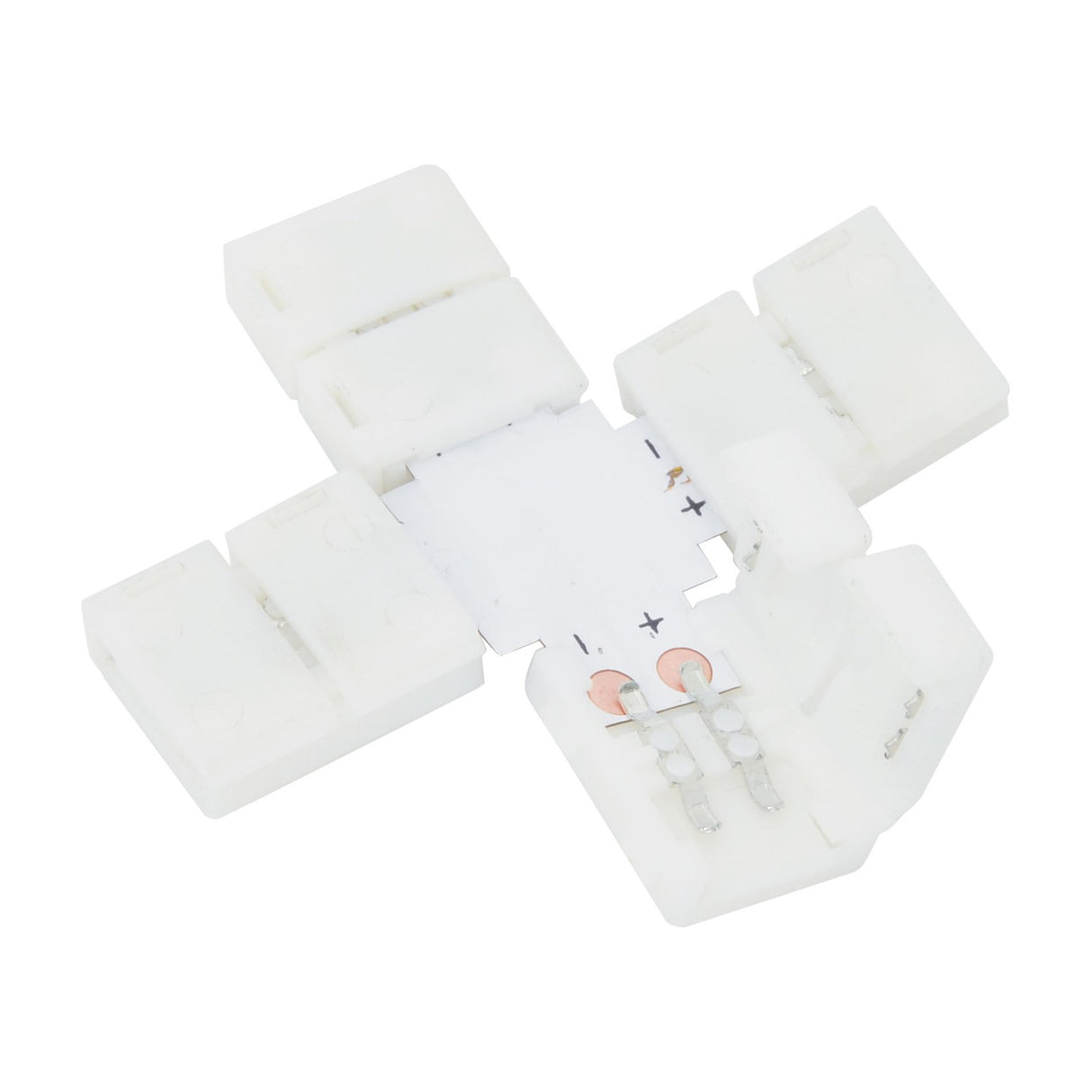

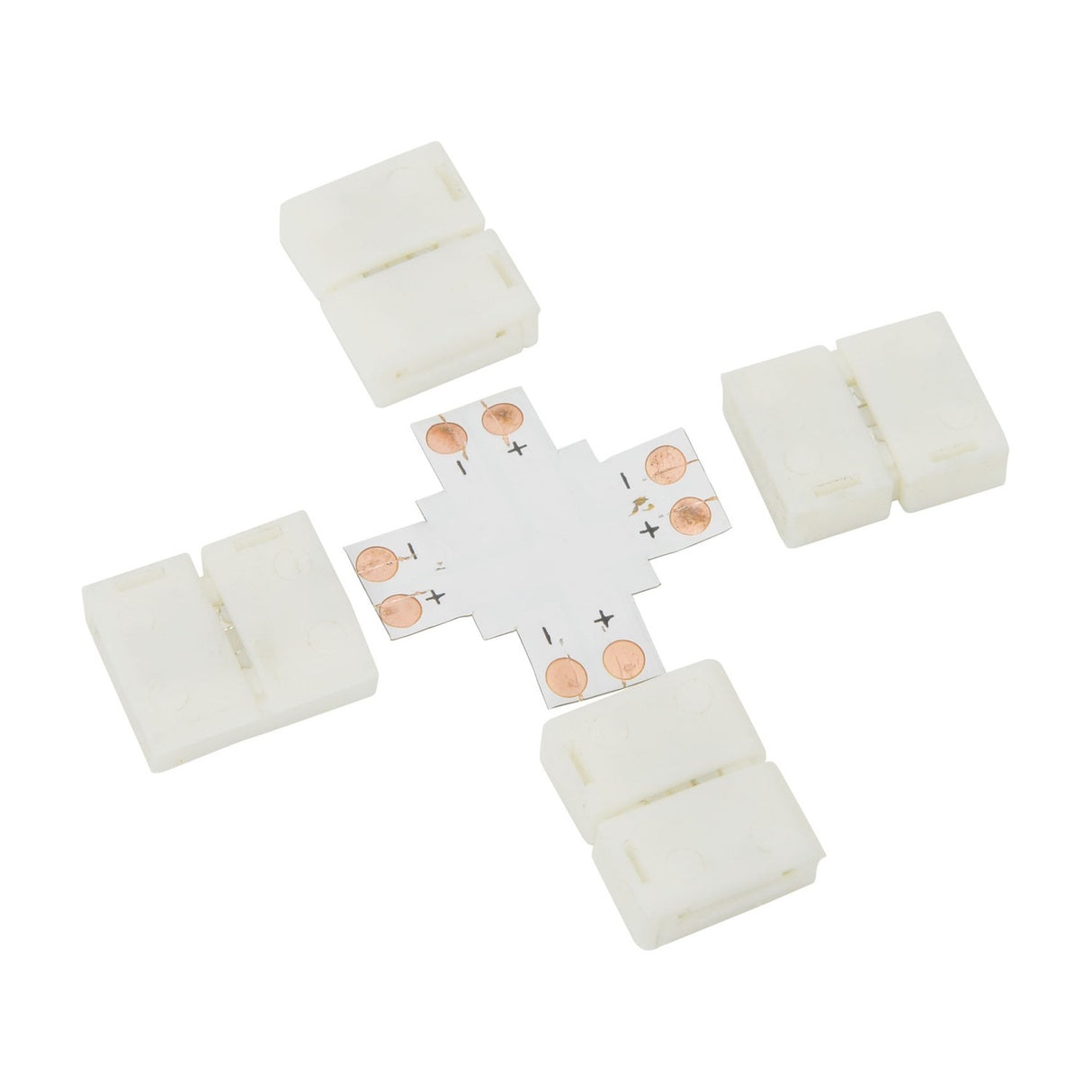

The LYYT 8mm single colour LED strip X connector joins four strips of 8mm LED tape at a central point without soldering. Each connector measures 48 x 48mm with a 3mm profile and uses a snap-fit mechanism that clamps onto the copper pads of standard 8mm single colour LED strip. The connector is supplied in packs of five and rated IP20 for indoor use.

Designed for installations where LED strip needs to branch in multiple directions from a single feed point, the X connector suits retail display lighting, under-cabinet runs that split into multiple zones, signage backlighting, and architectural installations where LED tape follows complex geometric patterns. The snap-fit design allows installation without specialist tools or soldering equipment, reducing fitting time compared to traditional wired junctions.

Each connector maintains electrical continuity across all four outputs, distributing power evenly to connected strips. The 48mm footprint keeps the junction compact enough to hide behind trim, inside channel or under surfaces where the LED strip itself is concealed. The white polycarbonate body blends with most mounting surfaces when the connector is visible, and the lightweight 3.3g construction adds negligible load to adhesive-mounted strip runs.

Specification
IP rating IP20
Tape version 8mm single colour
Weight 3.3g
Dimensions 48 x 48 x 3mm
Frequently Asked

What LED strip is this compatible with?

This connector is designed for 8mm wide single colour LED strip tape only. It will not fit 10mm strip, RGB strip, or dual white LED tape. Check the width of your LED strip before ordering — 8mm strip typically has two copper pads on the back.

Does it require soldering?

No. The connector uses a snap-fit mechanism that clamps onto the copper contact pads on the LED strip. Open the connector, insert the strip end into each of the four slots ensuring the pads align with the contact pins, then close the connector to secure.

Can it be used outdoors?

No. The IP20 rating means the connector is not protected against moisture and should only be used in dry indoor locations. For outdoor LED strip installations, use IP-rated connectors and enclosures designed for exterior use.

How many strips can be connected?

Each X connector joins four strips — one on each arm of the X. If you need to connect fewer than four strips, simply leave the unused arms empty. The connector will still function with two or three strips attached.
