LYYT 8mm Single Colour LED Strip L Connector (5 Pack)

£399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

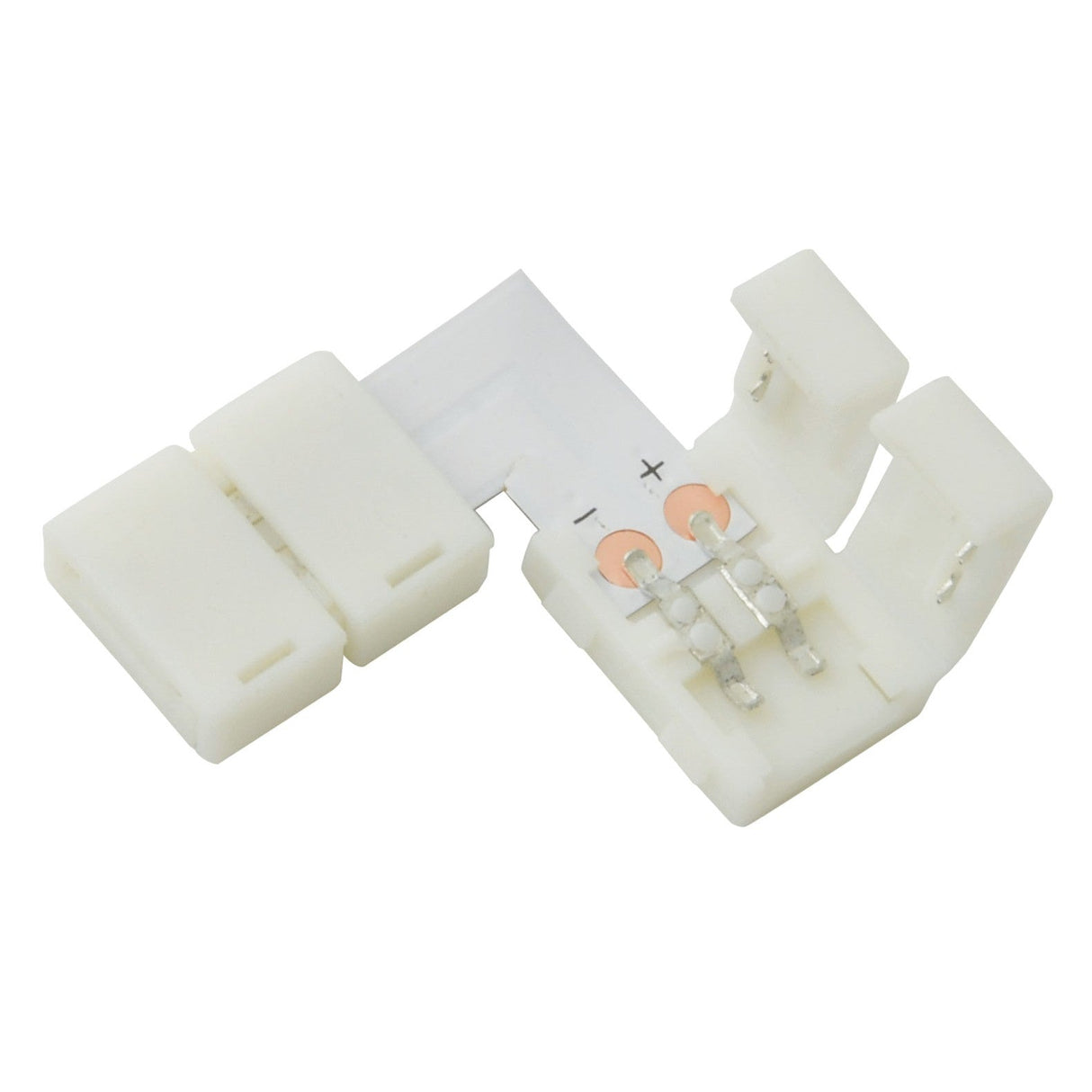

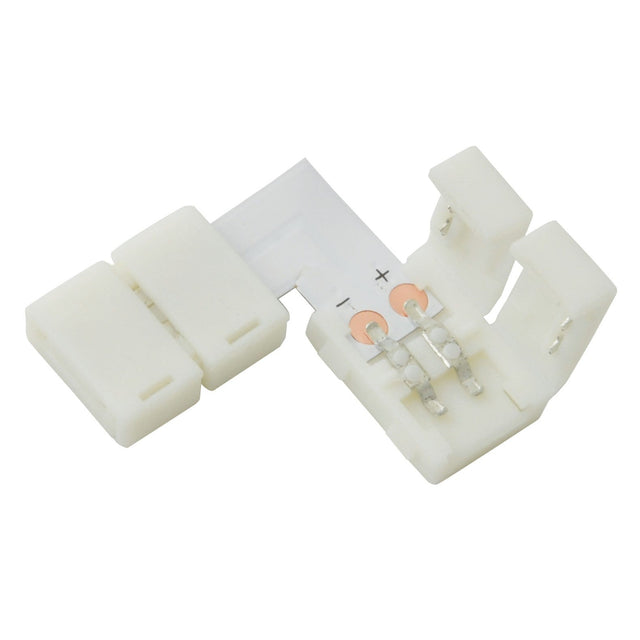

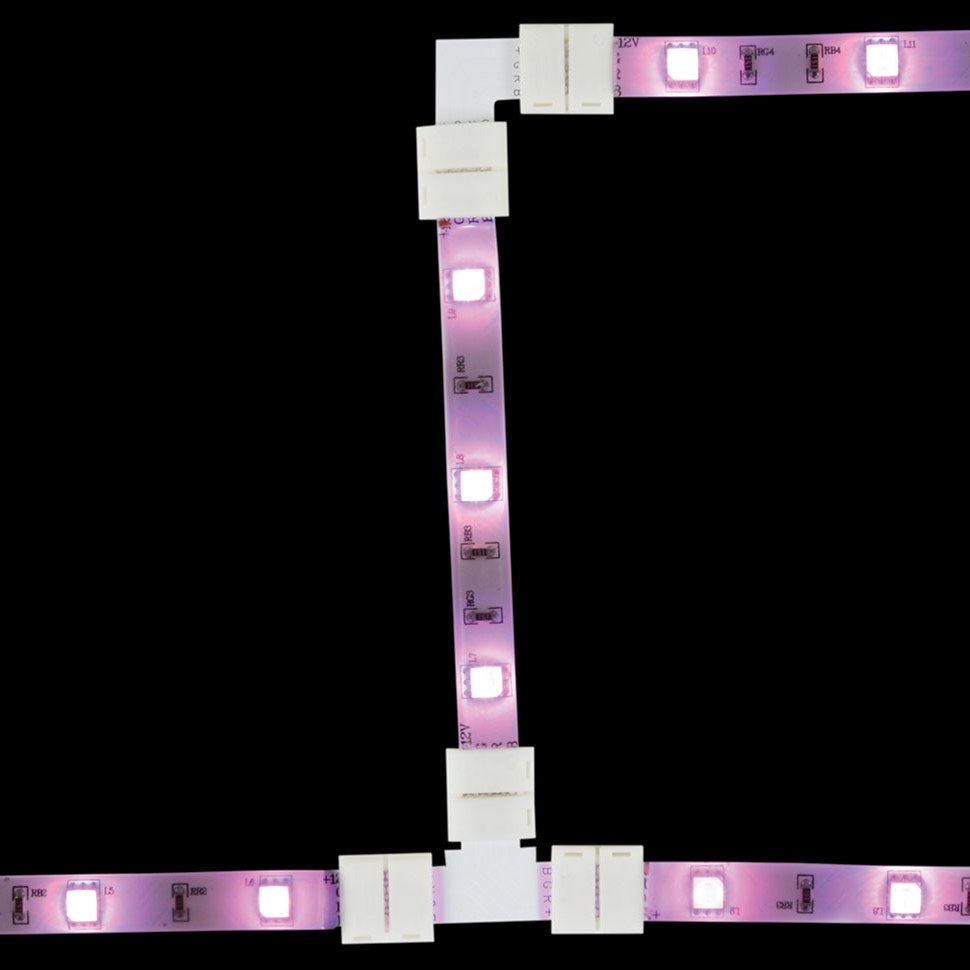

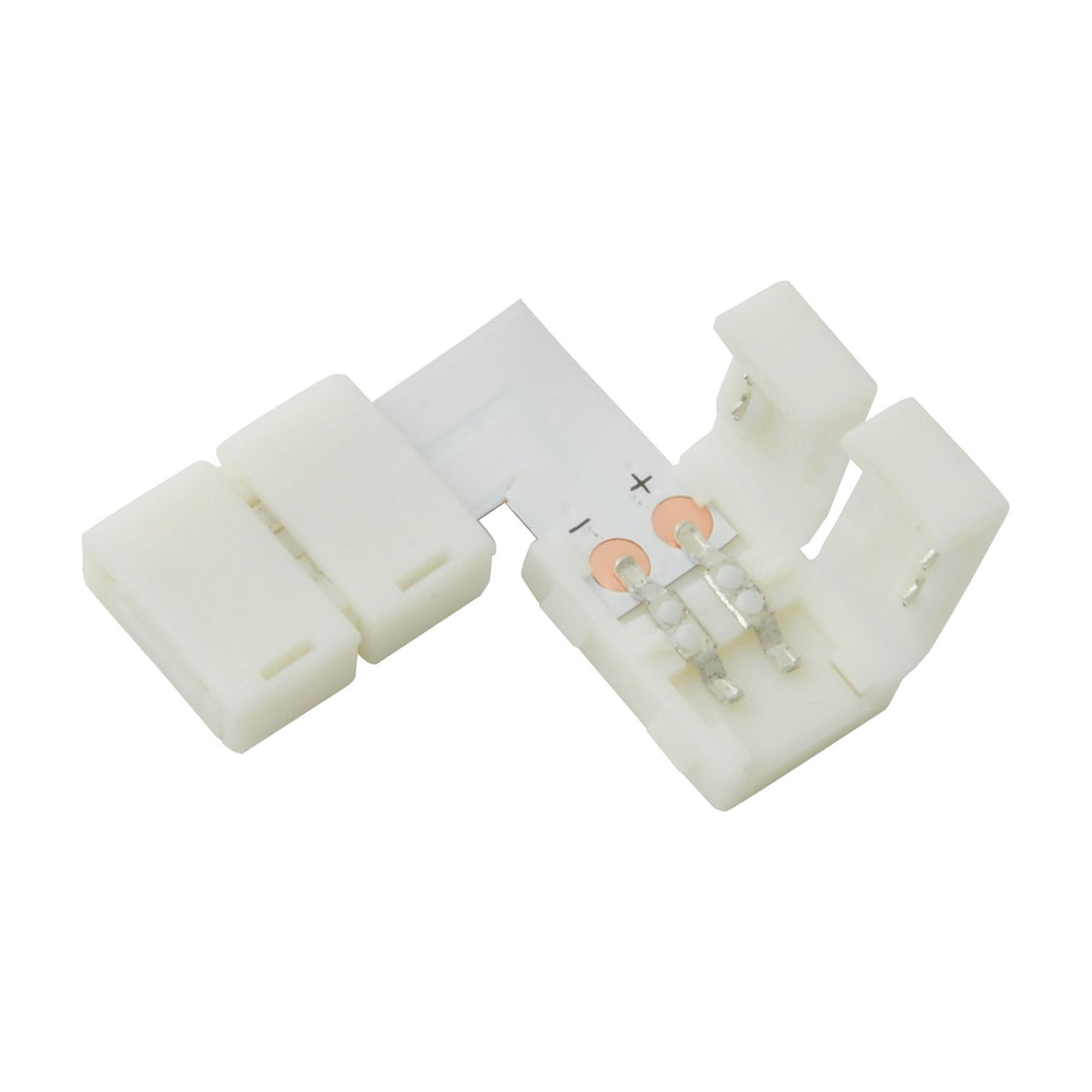

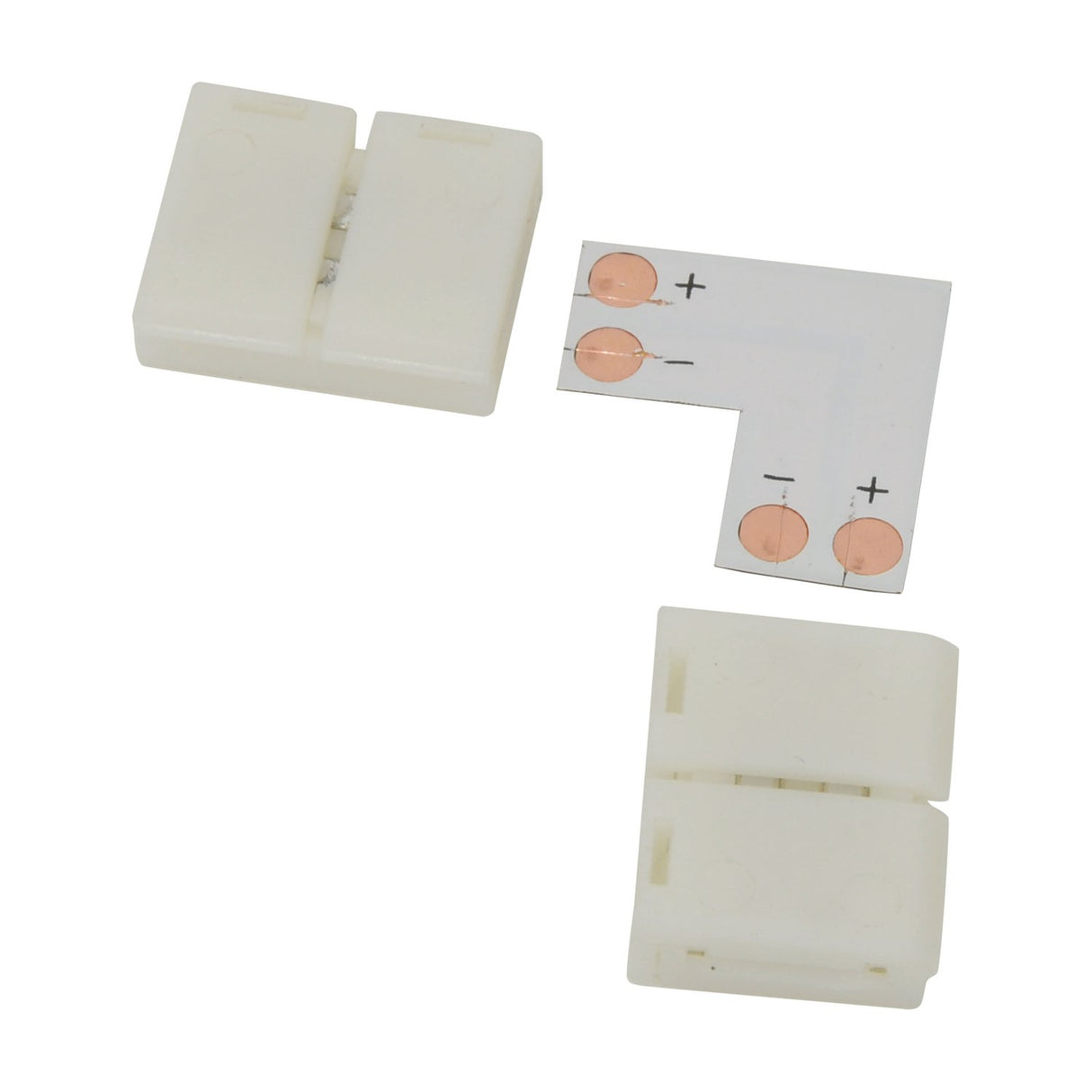

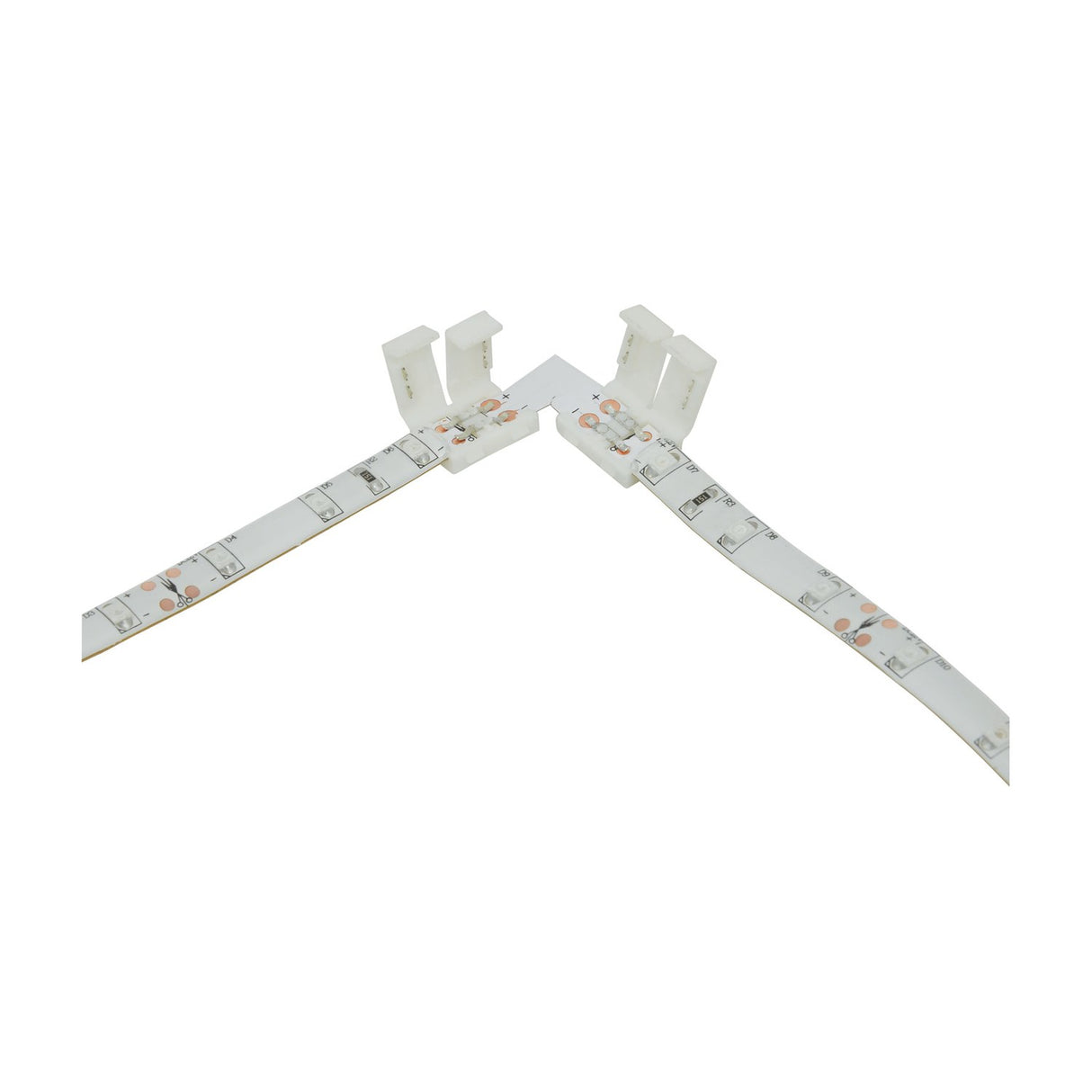

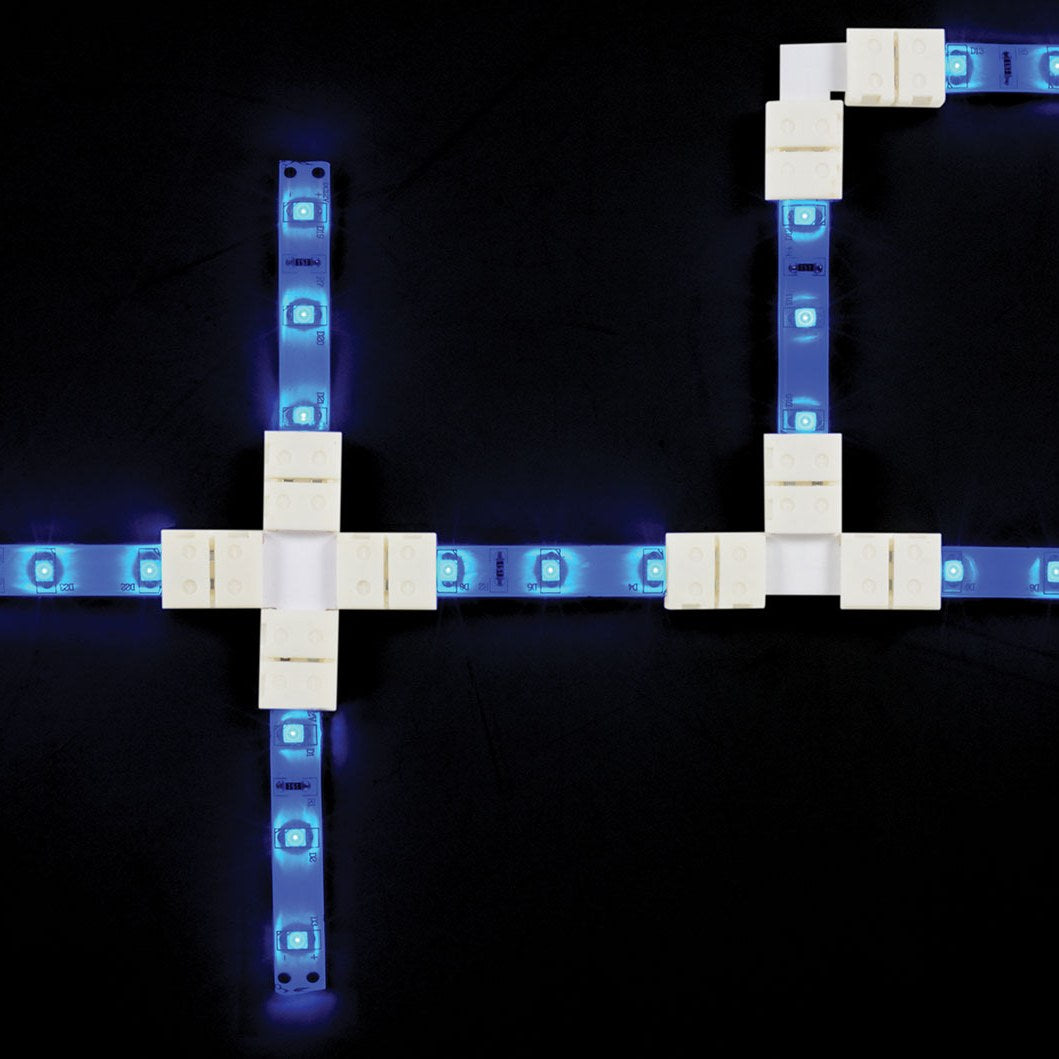

The LYYT 8mm single colour LED strip L connector creates a 90° corner join between two sections of 8mm single colour LED tape without requiring soldering or wire splicing. Each connector uses a snap-fit polycarbonate housing with two apertures set at right angles, into which the LED strip is inserted and clamped by internal metal contacts that grip the copper pads on the tape.

Designed for residential accent lighting, under-cabinet kitchen lighting, retail display shelving and signage installations where LED tape needs to turn a corner, the connectors suit standard 8mm single colour LED strip rated at 12V or 24V DC. The 28 x 28mm footprint sits flush against most surfaces and can be adhered in place using double-sided tape or left loose if the LED tape adhesive backing provides enough hold. The IP20 rating limits use to dry indoor environments.

Each connector weighs 1.7g and measures 28 x 28 x 3mm, making it unobtrusive once installed behind plinths, coves or cabinet edges. The polycarbonate housing resists yellowing under LED heat over typical domestic lifespans. The pack of five connectors suits multi-room installations or projects requiring multiple corners, avoiding the need to order individual connectors for each turn.

Specification
IP rating IP20
Tape version 8mm single colour
Weight 1.7g
Dimensions 28 x 28 x 3mm
Frequently Asked

What width LED strip does this fit?

The connector is designed for 8mm single colour LED strip only. It will not fit 10mm strips or RGB/RGBW multi-colour tapes, which require wider connectors with additional contacts.

Does it require soldering?

No. The connector uses a snap-fit mechanism with internal spring contacts that clamp onto the copper pads of the LED strip when the tape is inserted into the aperture. No tools or soldering are needed.

Can it be used outdoors?

No. The IP20 rating means the connector is not sealed against moisture or dust ingress. It is suitable for dry indoor environments only, such as kitchens, living rooms, bedrooms and retail interiors.

Can it work as a straight connector?

Yes. While designed primarily for 90° corner joins, the two apertures can also accept strip insertions aligned in a straight line if needed, making it usable as a basic straight joiner in certain configurations.

Shipping & Returns

Delivery UK delivery is £14.99, and delivery is free on all orders of £99 or more, in the UK and internationally.

Returns If you change your mind, you have 14 days from delivery to tell us, and a further 14 days to send the goods back. Return postage for a change-of-mind return is paid by you. Change-of-mind returns are subject to an inspection and handling deduction. See our full returns policy.

To arrange a return, call us on 020 8149 5199 or use our contact page.
