LYYT 10mm Single Colour LED Strip T Connector - 5 Pack

£499
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

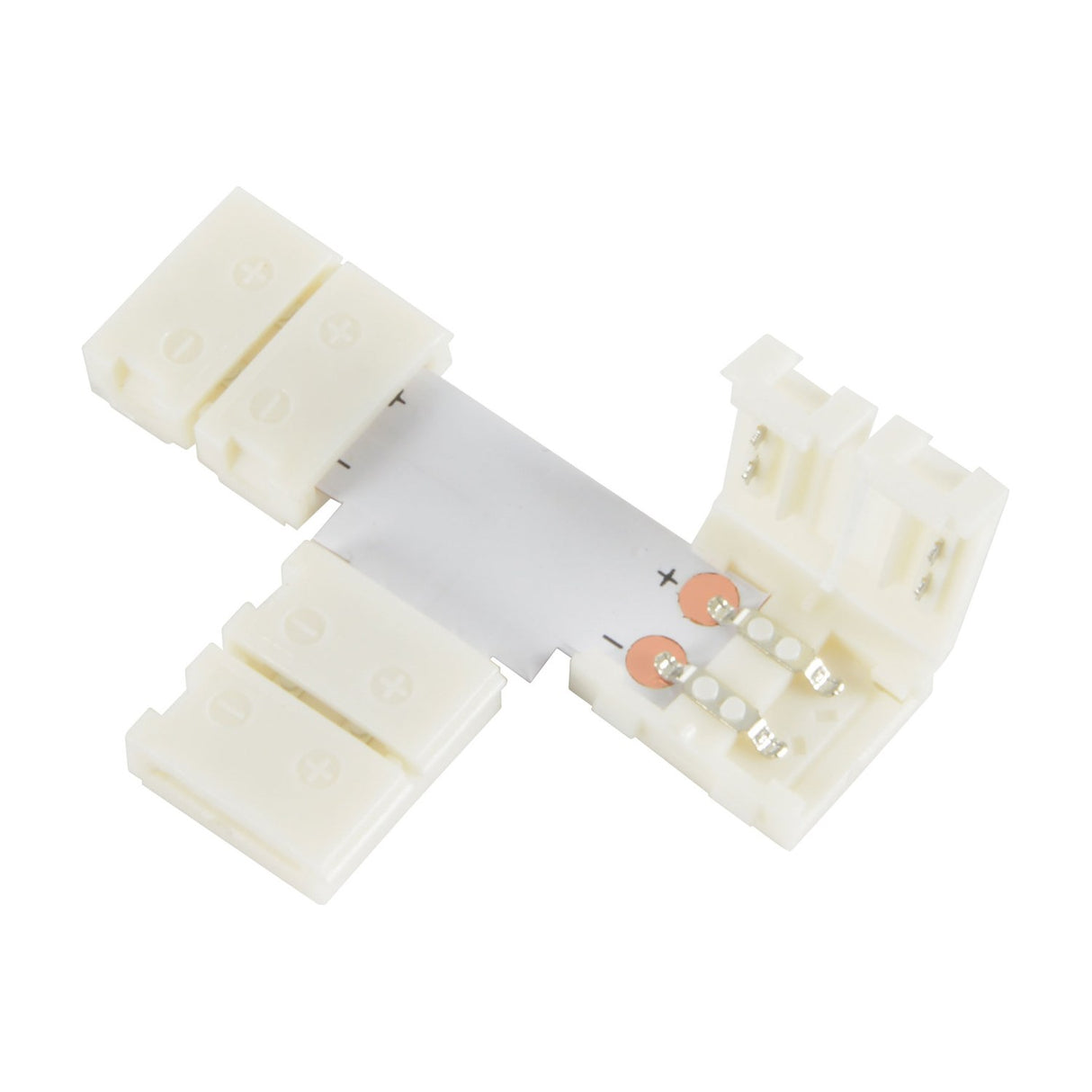

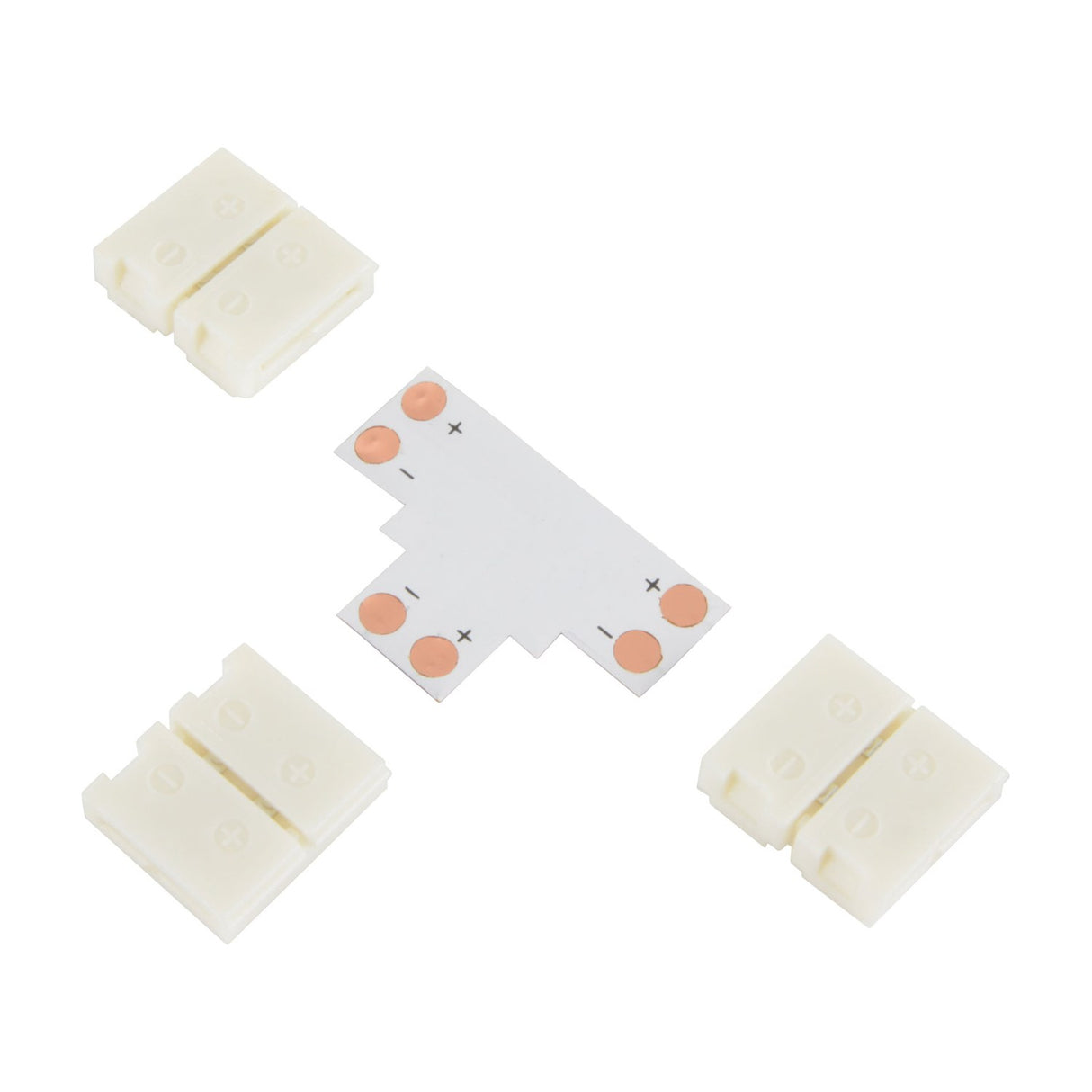

The LYYT 10mm single colour LED strip T connector joins two LED strips at a right angle to a third, creating a T-shaped branch in a continuous run. The snap-fit design clamps onto the copper contact pads on 10mm-wide single colour LED tape without soldering, using spring-loaded metal pins inside the connector body to maintain electrical contact.

Used in residential under-cabinet lighting, retail display installations and exhibition builds where LED strip runs need to branch across cabinets, shelves or architectural features. The connector accepts 10mm single colour LED tape (typically 2-pin tape with one positive and one negative contact) and locks the tape in place with a hinged cover that clips down over the copper pads. Each connector measures 50 x 32 x 3mm and weighs 2.8g.

The IP20 rating limits use to dry indoor locations only — the connector is not sealed against moisture or dust ingress. The polycarbonate housing and tin-plated copper contacts provide reliable conductivity for tape runs up to typical single colour strip ratings (12V or 24V depending on the tape used). Five connectors per pack allows multiple branches in a single installation without needing to order individual connectors.

Specification
IP rating IP20
Tape version 10mm single colour
Dimensions 50 x 32 x 3mm
Weight 2.8g
Frequently Asked

Does this work with RGB or RGBW LED strip?

No. This connector is for single colour LED strip only (10mm wide, 2-pin). RGB and RGBW strips require connectors with 4 or 5 pins to carry separate colour channels.

Is soldering required?

No. The connector uses a snap-fit design with spring-loaded pins that clamp onto the copper pads on the LED strip when the hinged cover is closed.

Can it be used outdoors?

No. The IP20 rating means the connector is not sealed against moisture or dust and is suitable for dry indoor locations only.

What voltage LED strip does it support?

The connector is passive — it simply joins the copper contacts on the LED strip. It will work with any voltage single colour strip (typically 12V or 24V) as long as the strip is 10mm wide with standard 2-pin contact spacing.
