Description

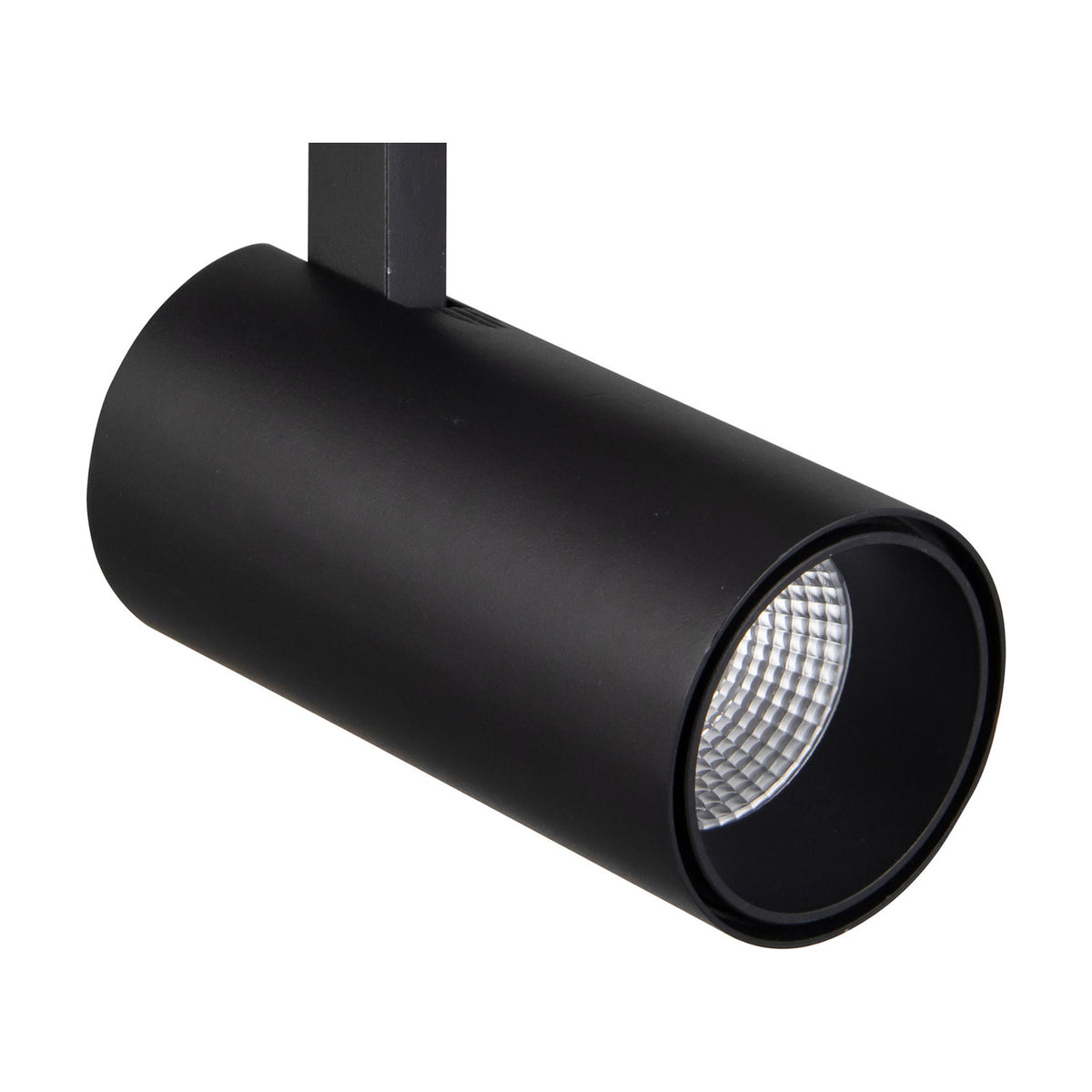

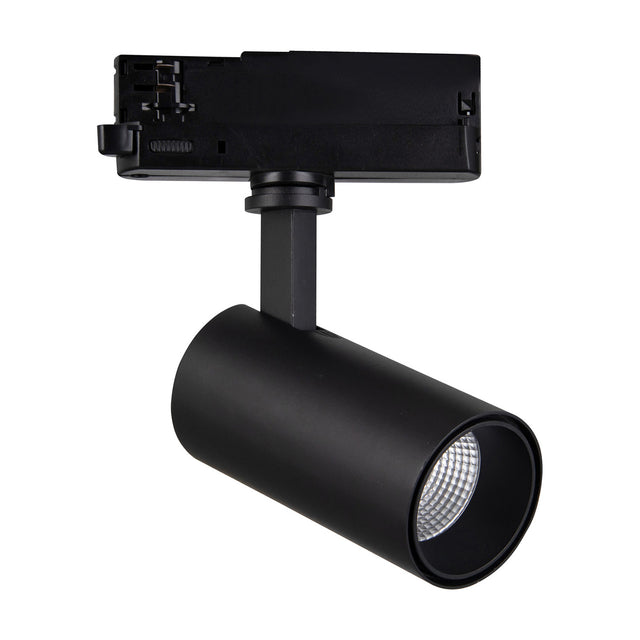

A compact adjustable head for three circuit track, this one puts a tight, controlled pool of light exactly where you point it. Its integrated LED runs at 3000K, a warm white that sits happily with wood, brick and warmer paint colours, and the 20W draw gives it real punch at domestic ceiling heights. The narrow beam is the point: light stays on what you are lighting rather than spilling across the room. It is not a dimming fitting, so it works straight from the switch.

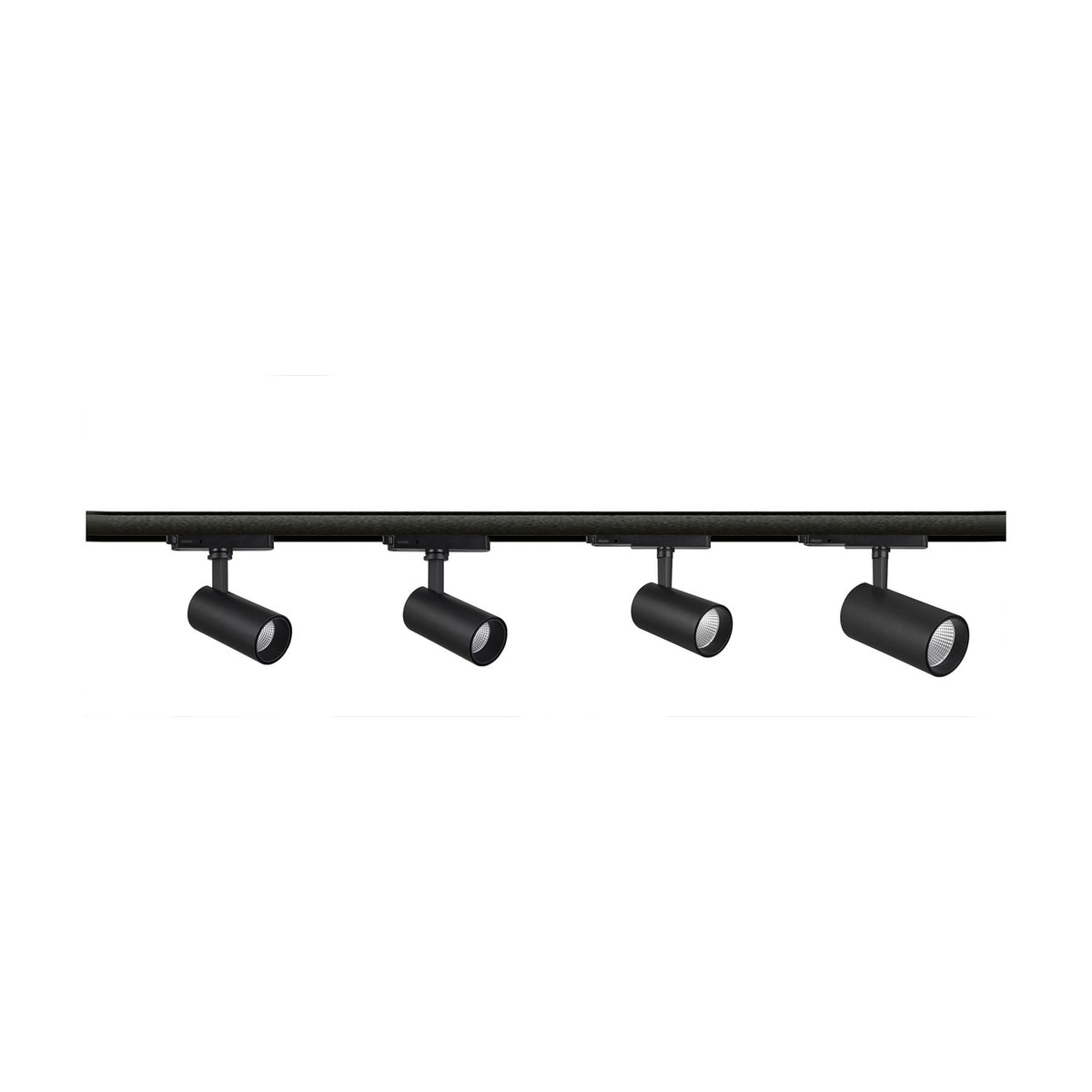

We reach for heads like this where the job is aiming rather than filling. On a run of track above a kitchen island it drops clean light onto the worktop; along a chimney breast or a hallway it will pick out a picture, a mirror or a shelf of books without washing the wall around it. It suits open plan rooms that want several small pools rather than one broad glow, and it does the same work in shops, studios and small galleries.
The housing is finished in black, a quiet choice that reads as hardware rather than decoration and all but disappears against dark track. The driver is built in. To keep the finish even, give the body and front rim an occasional pass with a dry microfibre cloth with the lighting circuit switched off, and keep sprays away from the lens. It carries a five year warranty. We also stock this head in white, in a cooler white light and in a lower output for closer work, and black heads on black track stay the tidiest. The LED is integral, so there is no lamp to change.
Specification
| Colour |
Black |
| Weight |
0.54KG |
| Width |
130mm |
| Diameter |
65mm |
| Height |
135mm |
| Materials Used |
Die-cast Aluminium |
| Energy Class |
F |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
F |
| Min Energy Class |
F |
| Lamp |
1 x 20W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
50000hrs |
| LED Brand |
Bridgelux |
| LED Power (W) |
20W (±5%) |
| Type of LED |
COB |
| Lumens Per Watt (lm/W) |
100lm/W (±5%) |
| Beam Angle (°) |
38° |
| System Flux (lm) |
2000lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Single Direction |
| Driver Included |
Yes |
| Type of Driver |
Constant Current |
| Constant Current Output (mA) |
500mA |
| Min/Max. Voltage Output (V) |
16-40V |
| Protection Class |
Class 2 - Double Insulated |
| Total Power Consumption (W) |
20W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Dimmable |
No |
| IP Rating |
IP20 |
| Average Life (hrs) |
50000hrs |
| Warranty |
5yrs |
| UKCA/CE |
Yes |
| TUV |
Yes |
| Bracket Dimensions (mm) |
140mm |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How much light does it give out?
System flux is 2000 lumens at 3000K warm white, from a 20W integrated LED.
How wide is the beam?
It is a 38 degree beam, narrow enough to hold light on a worktop, artwork or display without flooding the surrounding wall.
How big is the head?
The head measures 65mm in diameter, 130mm wide and 135mm high, and weighs 0.54kg.
Can I put it on a dimmer?
No. This version is non-dimmable, so it should be run from a standard switched lighting circuit.
Is it suitable for a bathroom or outside?
No. It is rated IP20 and belongs in dry interior rooms, away from splashes and weather.
What is the rated life of the LED?
The LED is rated at 50,000 hours, with a colour rendering index above 80.
