ESP Deep Base Junction Box for Bullet Cameras - White Aluminium

£1999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

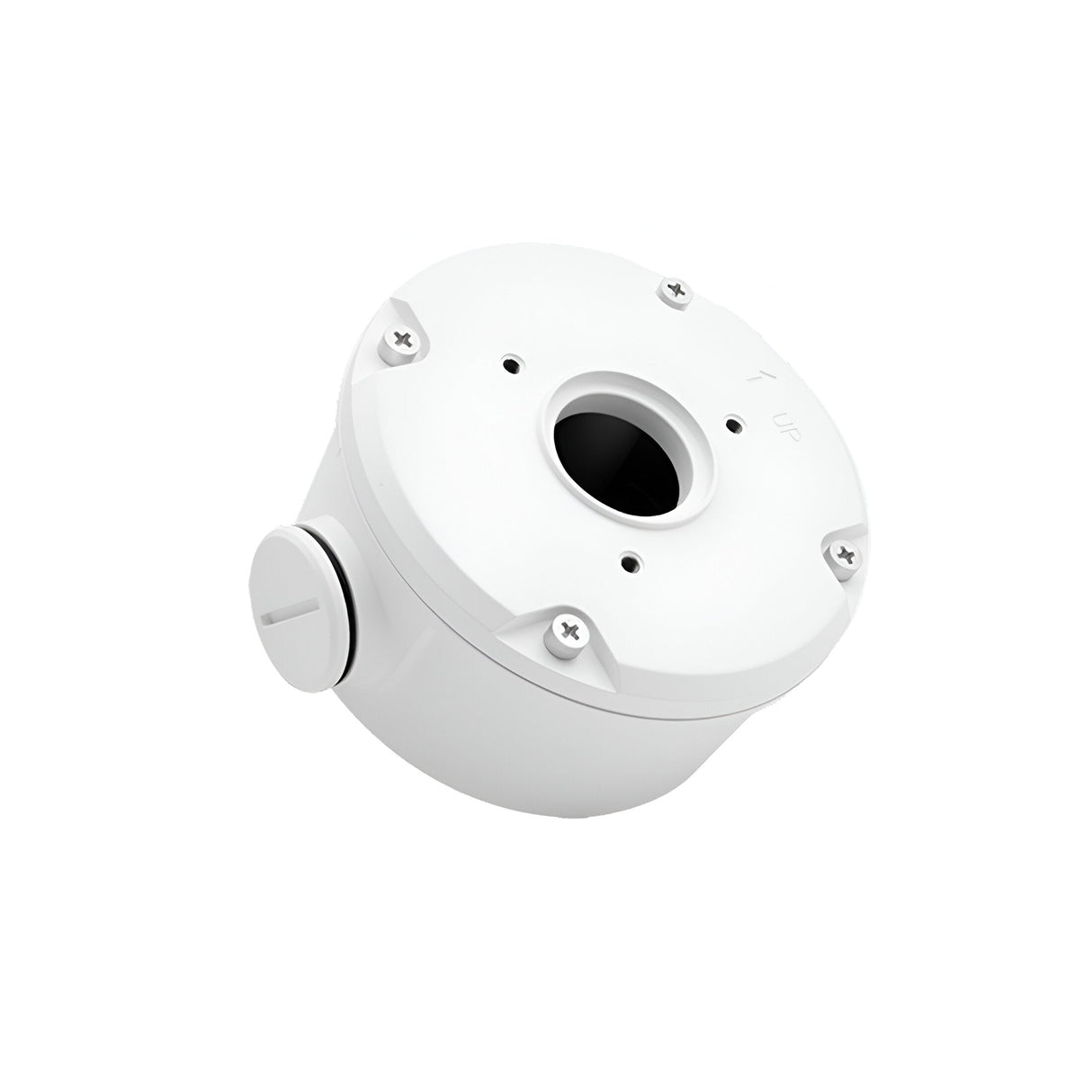

The ESP BBW1 is a white aluminium deep base junction box designed to house cable connections and provide a mounting surface for ESP bullet CCTV cameras. The box features a 25mm cable entry port on the side, allowing mains or PoE cabling to be routed through the base before terminating at the camera body, keeping connections concealed and protected from weather.

Intended for outdoor wall or soffit mounting where bullet cameras need to be positioned away from the mounting surface or where cable runs cannot be concealed within the wall itself, the deep base raises the camera body by 63mm and provides 122mm x 114mm of surface area for mounting the camera's bracket. The 25mm cable entry accepts standard outdoor-rated Cat5e/Cat6 cable or power cable with glands fitted externally.

The aluminium construction resists corrosion in outdoor installations and the white powder-coated finish matches common building trim colours and white-bodied bullet cameras from the ESP range. The base is compatible with the RC228FBW, HC528FBW, and HC828FBW bullet camera models, though the 25mm cable entry and four-point fixing pattern suit most bullet cameras using a similar bracket design.

Specification
Product Net Weight (KG) 0.397
Product Gross Weight (KG) 0.4202
Outer Gross Weight (KG) 18.07
Product Length (mm) 122
Product Width (mm) 114
Product Height (mm) 63
Outer Length (mm) 515
Outer Width (mm) 370
Outer Height (mm) 345
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What camera models is this base compatible with?

ESP lists compatibility with the RC228FBW, HC528FBW, and HC828FBW bullet camera models. The four-point fixing pattern and 25mm cable entry are common to most ESP bullet cameras, so the base may fit other models with similar bracket designs.

What size cable does the 25mm entry accept?

The 25mm entry port accepts standard Cat5e, Cat6 or power cable when a cable gland or rubber grommet is fitted externally. The entry is sized for single-cable runs rather than multiple cables bundled together.

Can this be used indoors?

Yes. The aluminium construction and cable entry design work equally well indoors and outdoors, though the deep base is most commonly used in outdoor installations where cable concealment within the wall is not possible.
