Description

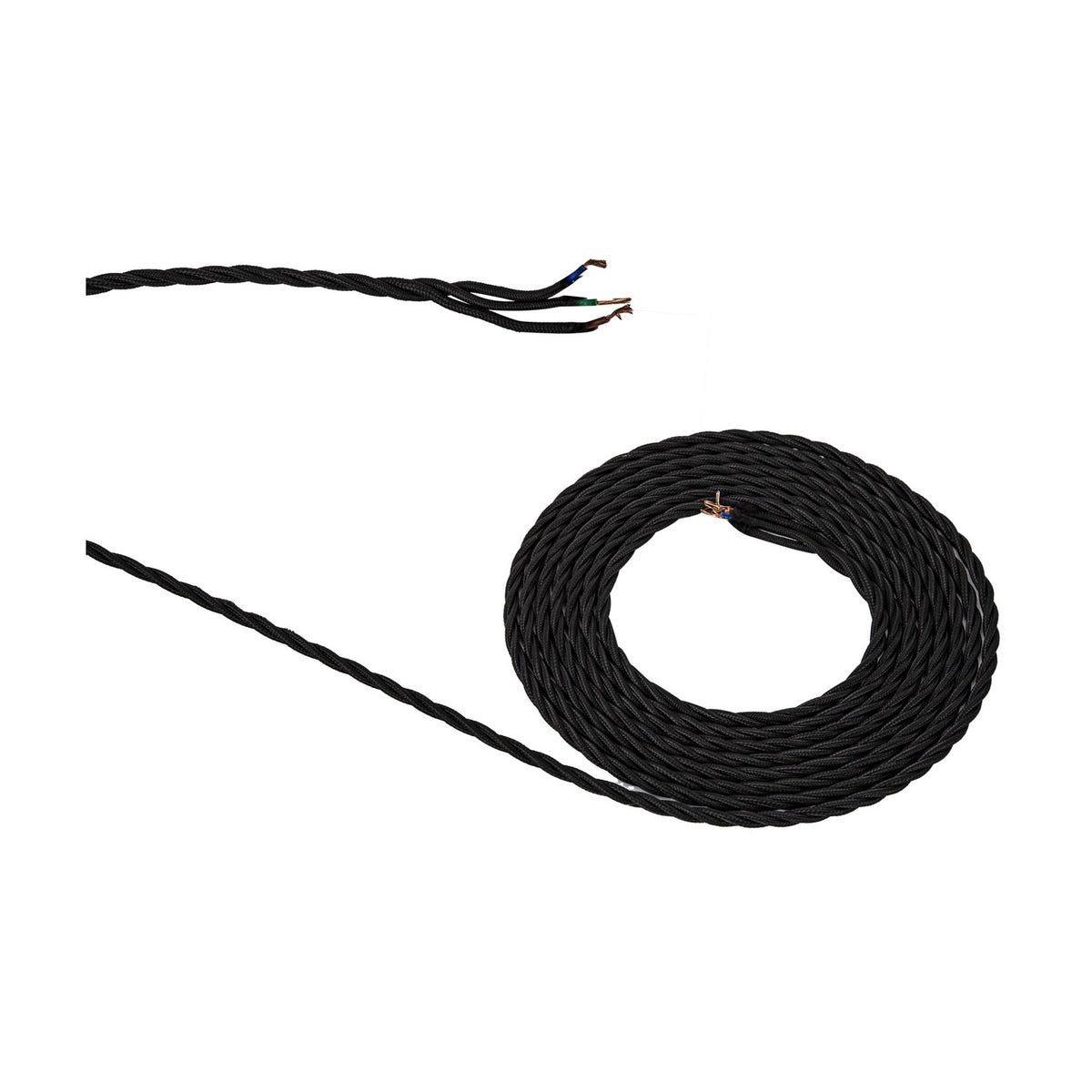

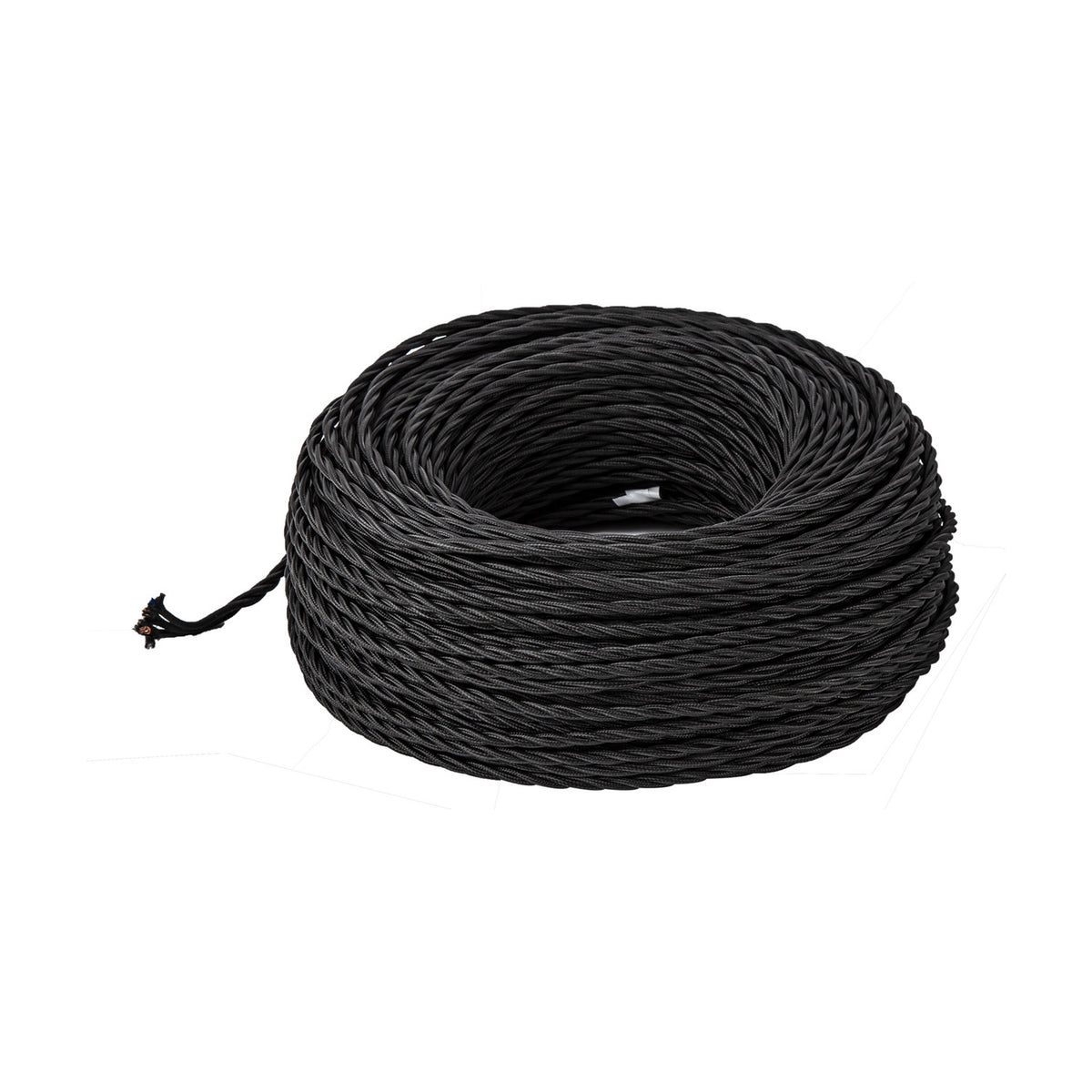

Black braided flex with a twisted lay, three core, with 0.75mm conductors, ordered by the metre and cut as one continuous run rather than handed over in short pieces. The woven outer sleeve gives it a softer, slightly ropey look next to smooth PVC, and it keeps a loose coil when you let it hang. It is VDE approved. Because it carries a third core, this is the flex to reach for where an earth connection is wanted rather than a two core cable.
We use it for pendant sets and hanging clusters, for reviving a junk shop lamp base, and anywhere a length of visible cord is part of the look instead of something to hide. Black reads quietly against dark shades, matt black ceiling roses and painted brick, and it holds its own in kitchens, workshops and studies where the wiring is on show. It suits anyone confident with a competent electrician on hand, and it is our usual choice for metal fittings.

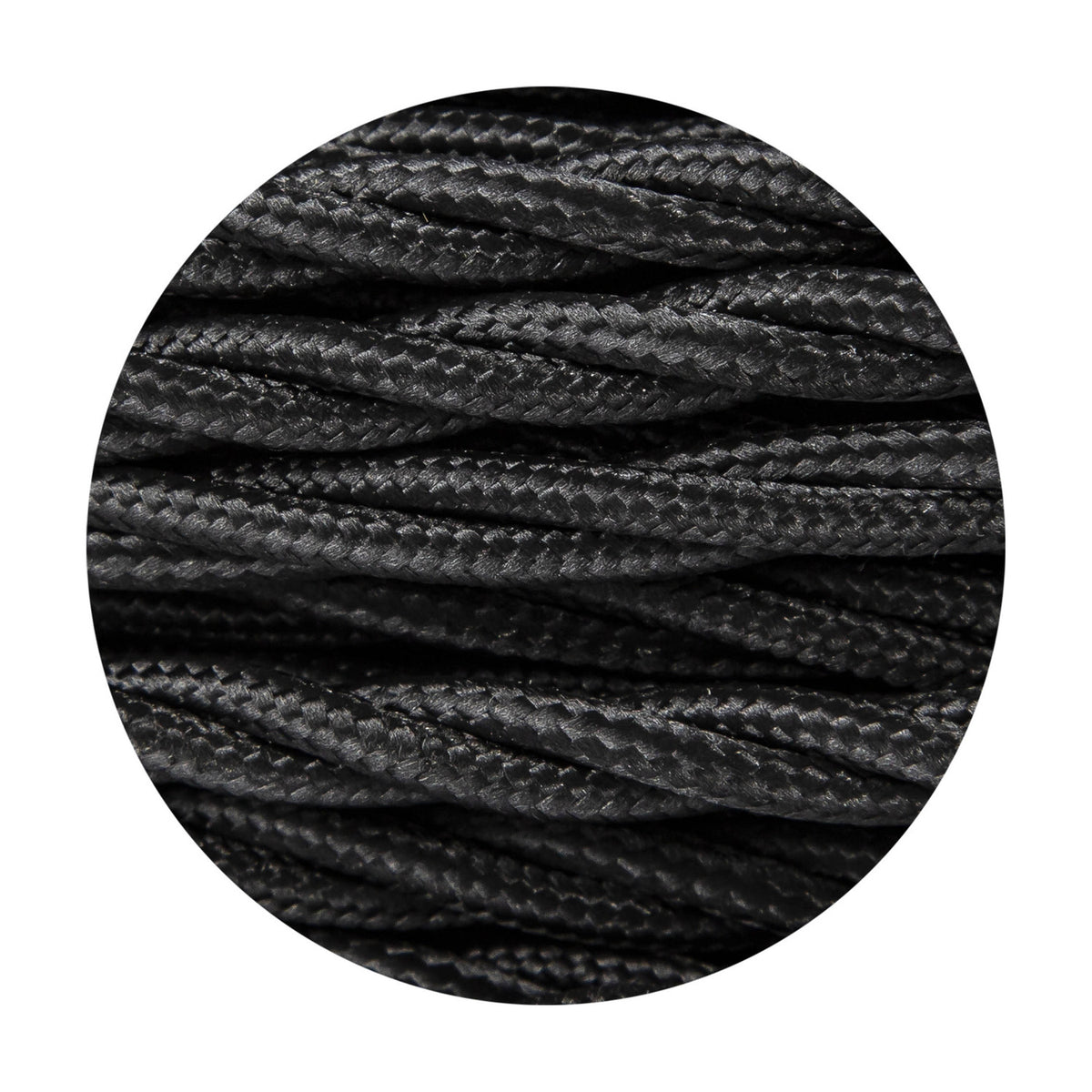

The braid is tightly woven over the twisted cores, so the finish stays even along the run and the black keeps its depth without the shine of a plastic sheath. A dry cloth run along the length lifts dust from the weave, which catches more than a smooth sleeve does, and it is best kept to dry indoor rooms away from damp and heat. It carries a one year warranty. We stock the braided two core version of the same weave in white, red, blue, purple and lime green, along with plainer black PVC and clear flat cable if you would rather the flex disappeared. Cable only, so lamp holders, roses and grips are chosen separately.
Specification
| Colour |
Black |
| Weight |
0.10KG |
| Length |
1000mm |
| Diameter |
5.3mm |
| Materials Used |
Fabric, Copper, PVC |
| Energy Class |
Not Applicable |
| Input Voltage (V) |
220-240V~50/60Hz |
| IP Rating |
IP20 |
| Warranty |
1yr |
| UKCA/CE |
Yes |
| Cable Information |
3 Core 0.75mm Braided Twisted. VDE Approved H03-VVF |
| Pieces Included |
1 |
| Installation |
Requires Installation By Qualified Electrician |
| Country of Origin |
China |
Frequently Asked
How thick is the cable?
It measures about 5.3mm across the outside of the braid, with each metre supplied as a single piece.

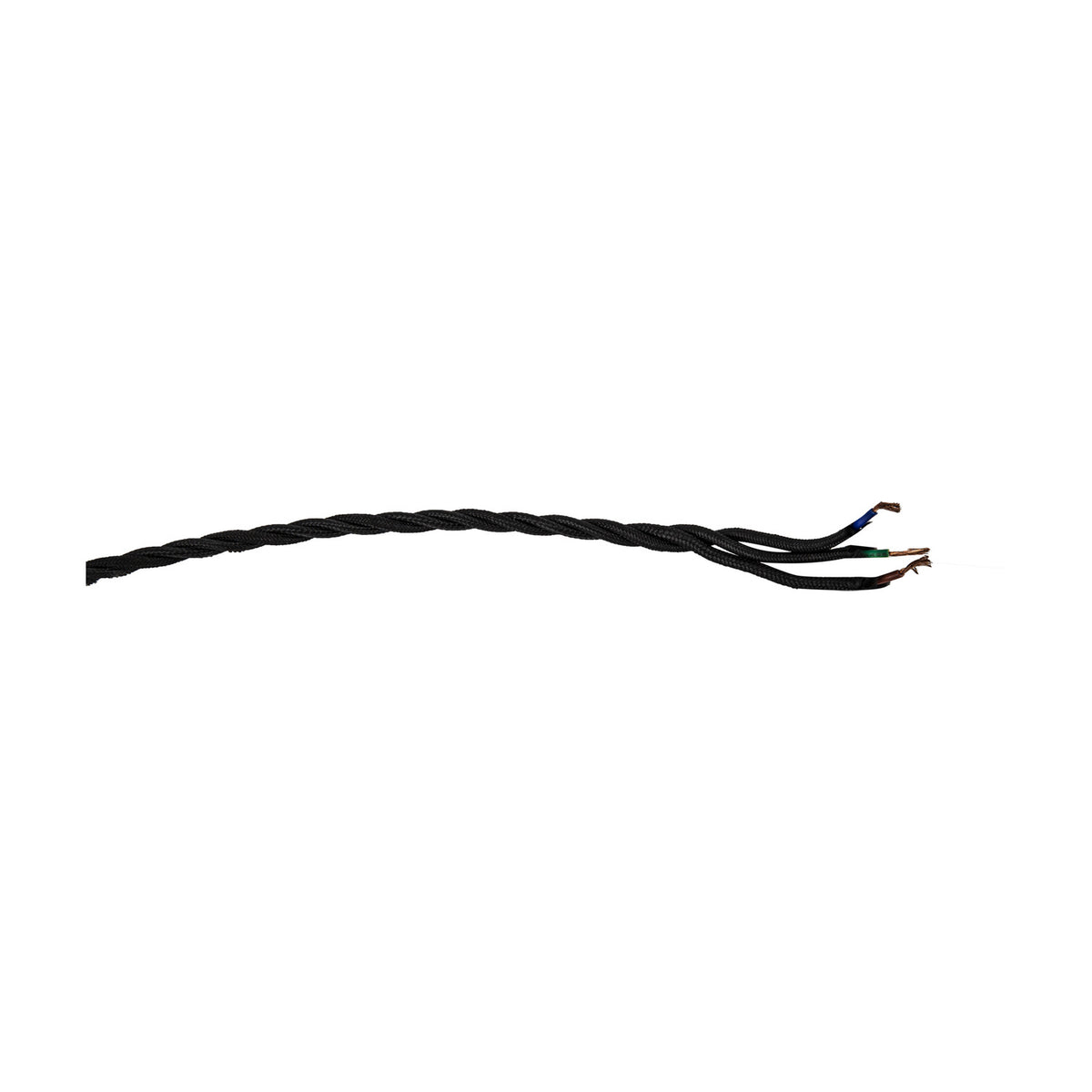

What are the three cores for?
They give you live, neutral and earth, so the cable can serve a fitting with metal parts that call for an earth connection as well as simpler ones that do not.
Can I run it outside or in a shower room?
No. It is meant for dry interiors only, so keep it away from damp areas and outdoor positions.
How do I order the length I need?
It is priced and sold by the metre, so order the number of metres your job calls for.
Does the braid unravel where it is cut?
The weave is tight and holds together well, but treat cut ends with care and keep them covered so the fabric stays neat.
How should I clean it?
Run a dry cloth along the length now and then. Avoid solvents and household sprays, which can mark the woven surface.
