AV:Link BNC Gold-Contact Nickel-Plated Screw Plug

£199
The RRP is the manufacturer's recommended retail price of the item.
500 In Stock - Ready to Ship
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

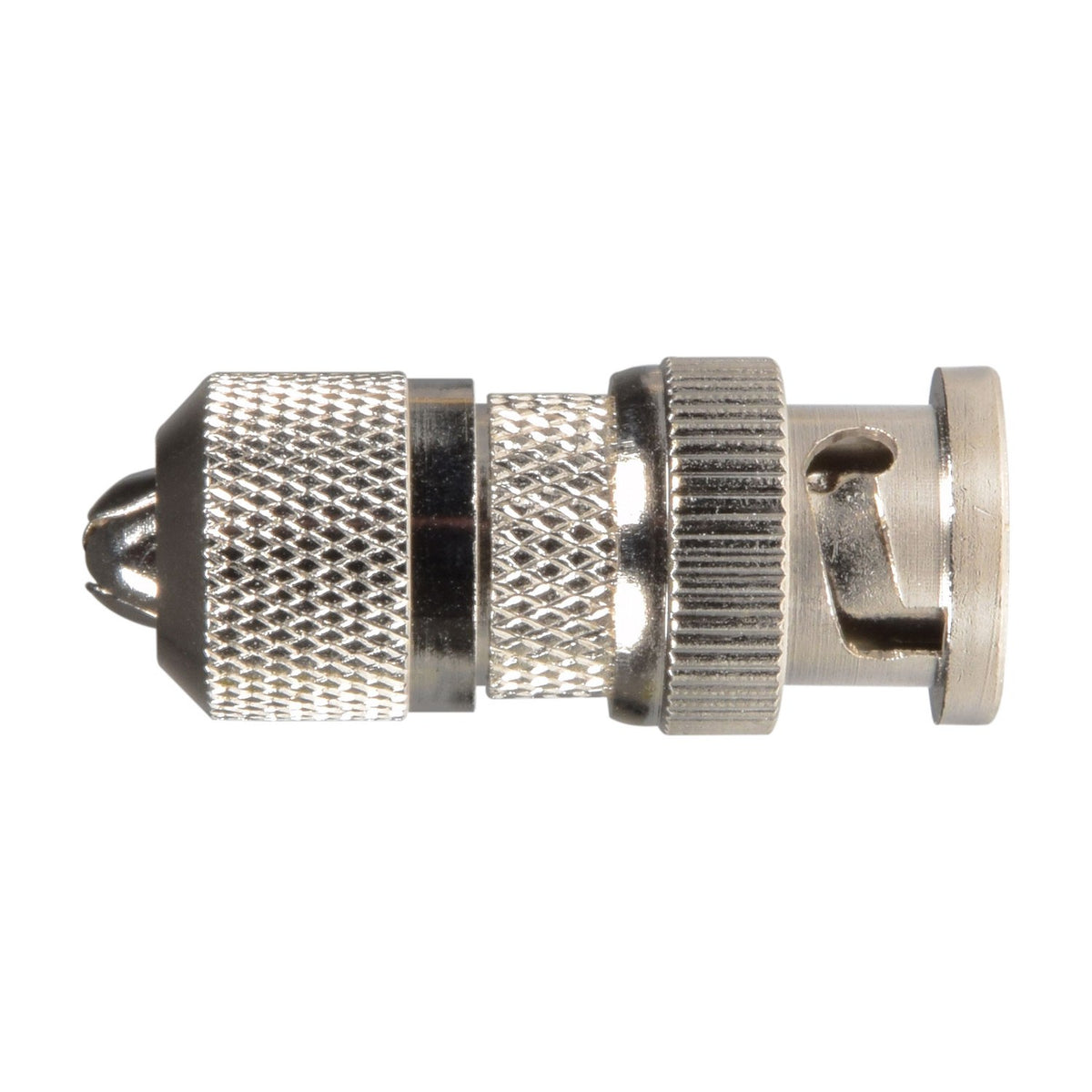

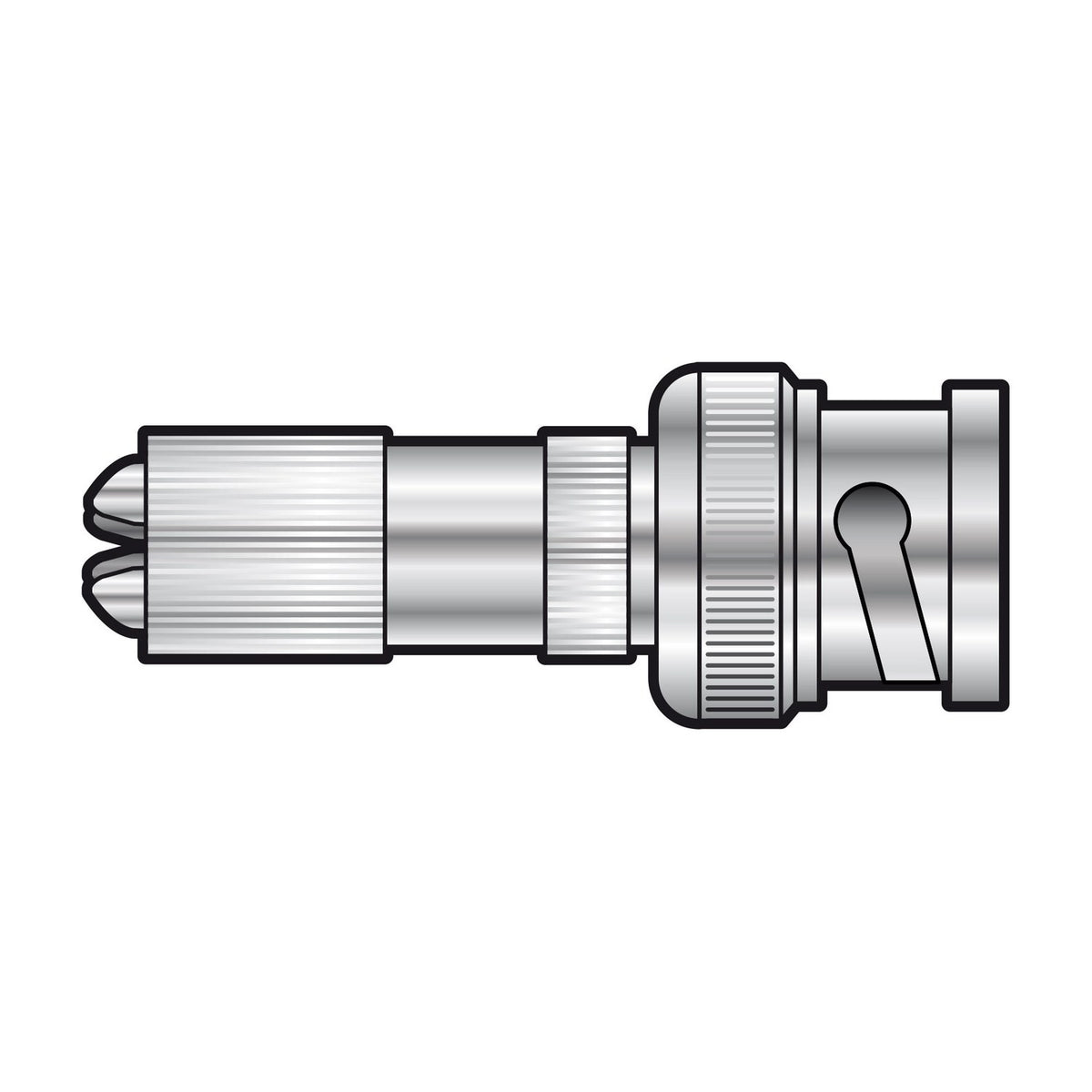

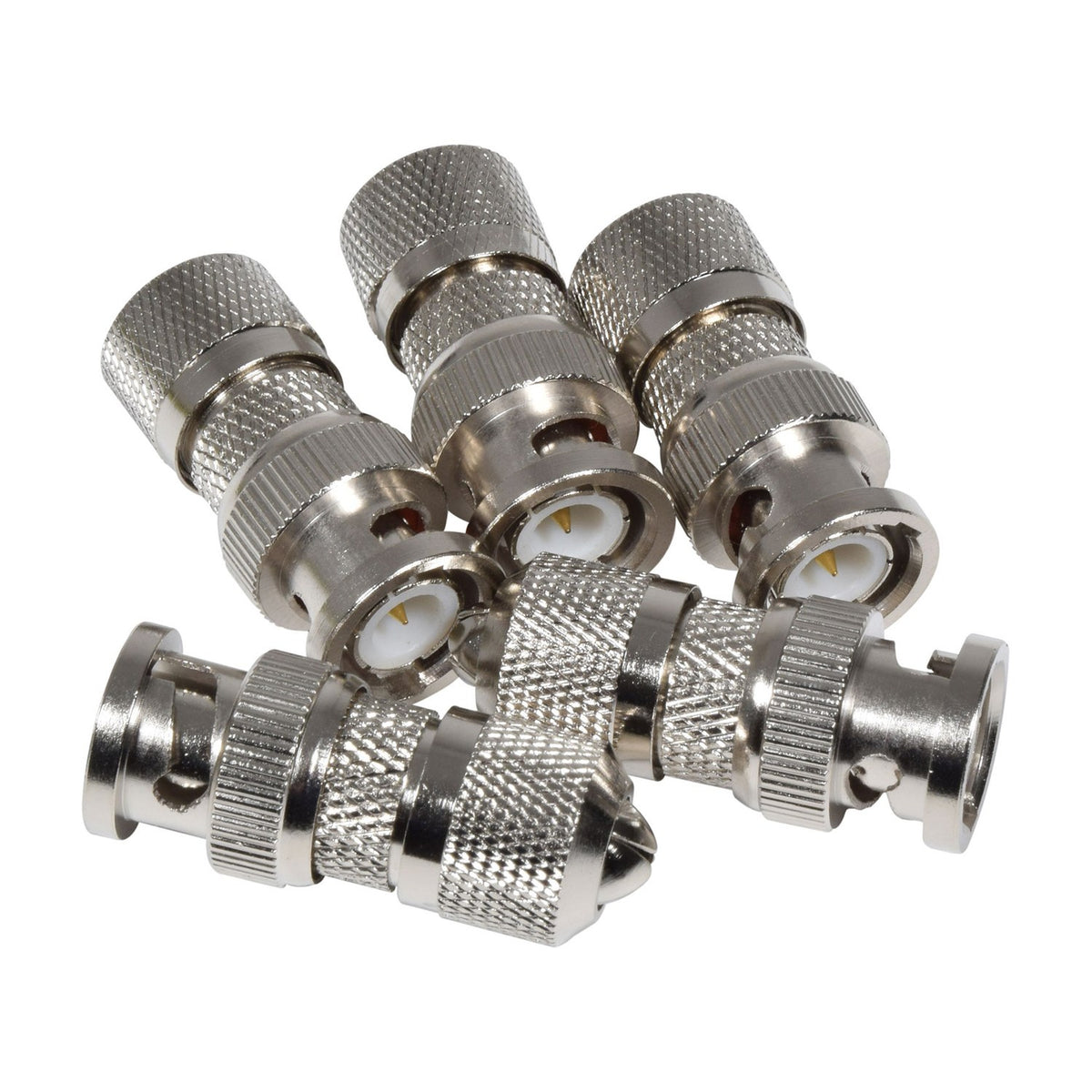

This BNC plug pairs a nickel-plated zinc body with a gold-plated centre contact pin and screw-down cable termination for 6.5mm outer diameter coaxial cables. The screw termination secures the centre conductor directly to the contact pin, while a separate braid clamp fixes the cable shield to the body, providing a secure mechanical and electrical connection without needing solder.

Designed for CCTV camera runs, analogue video patching and RF installations where BNC connectors are the standard interface, the plug accepts RG59 and similar 75-ohm coaxial cables with a 6.5mm jacket. The screw termination allows field assembly without specialist tools. A small flat-blade screwdriver is sufficient to tighten the centre pin and braid clamp screws on-site during installation or repair.

The gold plating on the centre contact reduces oxidation and maintains signal integrity over repeated mating cycles, while the nickel-plated body provides corrosion resistance in indoor and sheltered outdoor enclosures. The plug mates with standard BNC sockets on CCTV DVRs, cameras, monitors, video distribution amplifiers and test equipment, using the bayonet twist-lock mechanism for a secure connection that resists accidental disconnection.

Specification
Resistance 50 Ohms
Diameter 6.5
Type BNC (CCTV)
Frequently Asked

What cable types does this plug fit?

The plug is designed for 6.5mm outer diameter coaxial cables, which includes RG59 and other 75-ohm cables commonly used in CCTV and analogue video installations. The screw termination accommodates a range of centre conductor and shield braid sizes within that outer diameter.

Does it require soldering?

No. The screw termination secures the centre conductor and shield braid mechanically. A small flat-blade screwdriver is the only tool needed for assembly, making it suitable for field installation and on-site repairs.

Is the gold contact compatible with standard BNC sockets?

Yes. The gold-plated centre pin mates with any standard BNC socket, whether the socket contact is gold, nickel or tin-plated. The gold plating on this plug provides better long-term contact reliability, particularly in installations where the connection will be mated and unmated repeatedly.

Can it be used outdoors?

The nickel-plated body provides corrosion resistance suitable for sheltered outdoor locations such as under eaves or inside weatherproof enclosures. For fully exposed outdoor runs, consider housing the connection in a weatherproof junction box.
