Description

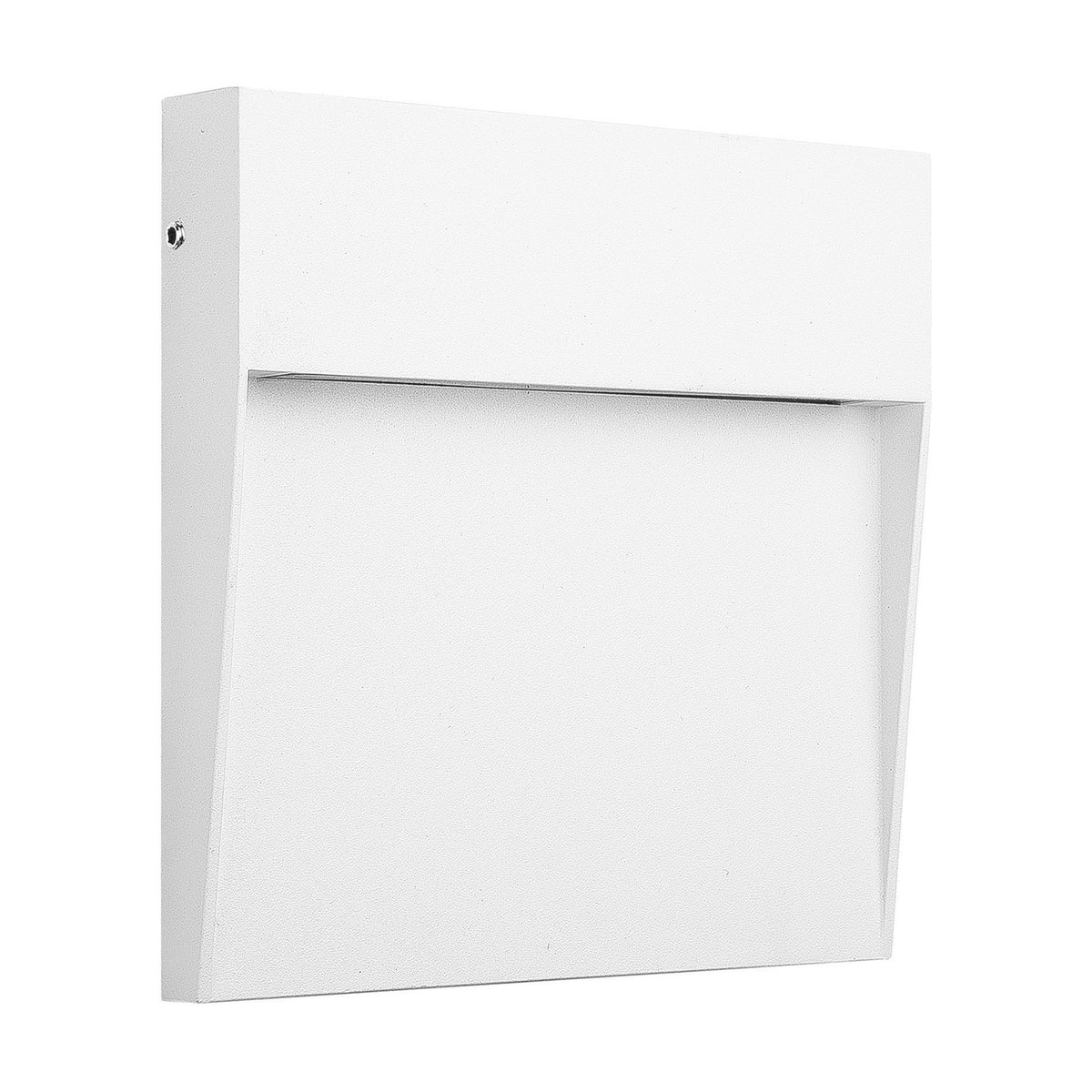

A neat square face in sand white, 16cm across and standing barely off the wall, so it reads as a quiet panel of light rather than a lantern. The LED sits inside and is fixed at a warm white 3000K, running at 6W, which keeps the tone soft and slightly yellow rather than clinical. There is no dimming; it works from the switch on its circuit.
We reach for these where a projecting lantern would be in the way: beside a front door, along a narrow side passage, up the wall of a set of steps or either side of a garage door. The spread is broad and even, washing the wall above and below the fitting, which makes it useful for marking a route across a patio or driveway without glare at eye level. It suits a house with plain render or brick, and anyone who would rather the light showed than the light fitting.
The housing is sealed against dust and splashing rain, so it holds up on an exposed elevation as well as under a porch roof, and the driver is carried on board. Sand white is a matt, low-key finish that sits well against pale render and painted timber. For upkeep, isolate the light, let it go cold, then wipe the face with a damp cloth and dry it; corners collect cobwebs and grit faster than a curved housing does, so give them a brush now and then. It carries a three year warranty. We stock the range in round faces too, in a smaller size, and in anthracite and rust brown as well as this sand white, so a run of them can be matched or mixed along one elevation. The LED is integral, so there is nothing to fit inside.
Specification
| Colour |
Sand White |
| Wall Mountable |
Yes |
| Weight |
0.40KG |
| Width |
160mm |
| Height |
160mm |
| Projection |
30mm |
| Materials Used |
Aluminium Die-Casting Body+Polycarbonate Diffuser |
| Energy Class |
G |
| Energy Class of Lamp |
Group A |
| Max Energy Class |
G |
| Min Energy Class |
G |
| Lamp |
1 x 6W integrated LED (no lamps to fit) |
| Lamp Cap |
Integral LED |
| Recommended Lamp |
Integral LED |
| Colour Temperature |
3000K Warm White (±5%) |
| No. of Switching Cycles |
30000 |
| Average Life of LED (hrs) |
50000hrs |
| SMD Chipset |
2835 / 0.2W |
| LED Power (W) |
0.2W (±5%) |
| Type of LED |
SMD 2835 0.2W |
| Lumens Per Watt (lm/W) |
70lm/W (±5%) |
| Beam Angle (°) |
85° |
| System Flux (lm) |
420lm (±5%) |
| CRI |
>80 |
| Light Distribution |
Down |
| Driver Included |
Yes - Driver On Board |
| Type of Driver |
Constant Current |
| Protection Class |
Class 1 - Earth Connection Required |
| Total Power Consumption (W) |
6W (±5%) |
| Input Voltage (V) |
220-240V~50/60Hz |
| Switch |
Not Switched |
| Dimmable |
No |
| IP Rating |
IP54 |
| Average Life (hrs) |
30000hrs |
| Warranty |
3yrs |
| UKCA/CE |
Yes |
| Base Material |
Aluminium, PC |
| Pieces Included |
1 |
| Unassembled |
No |
| Installation |
Requires Installation By Qualified Electrician |
| Product Care |
(1) Wipe clean with a dry cloth, do not use any cleaning detergents, do not use rough or coarse material to clean. (2) Ensure light is not illuminated when cleaning. |
| Country of Origin |
China |
Frequently Asked
How big is it and how far does it stand off the wall?
The face measures 160mm wide by 160mm high, with a projection of just 30mm, and the fitting weighs 0.4kg.
What sort of light does it give?
A warm white at 3000K from a 6W integral LED, with a wide spread that lifts the wall both above and below the fitting.
Can it be dimmed?
No. It is a non-dimmable fitting, so it should be run from a standard switched circuit rather than a dimmer.
Will it cope with rain?
It is IP54 rated against dust and splashing water, which covers an open wall as well as a sheltered doorway.
Is there a bulb to change later on?
There is not. The LED is built in and rated for an average life of 30,000 hours, and the driver is on board.
How do I keep the white finish looking clean?
Switch off at the circuit and let it cool, then wipe the face with a damp cloth and dry it. Avoid abrasive creams and solvents on the paint.
