Adastra RM120-WIFI 100V WiFi Mixer-Amplifier

£38999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

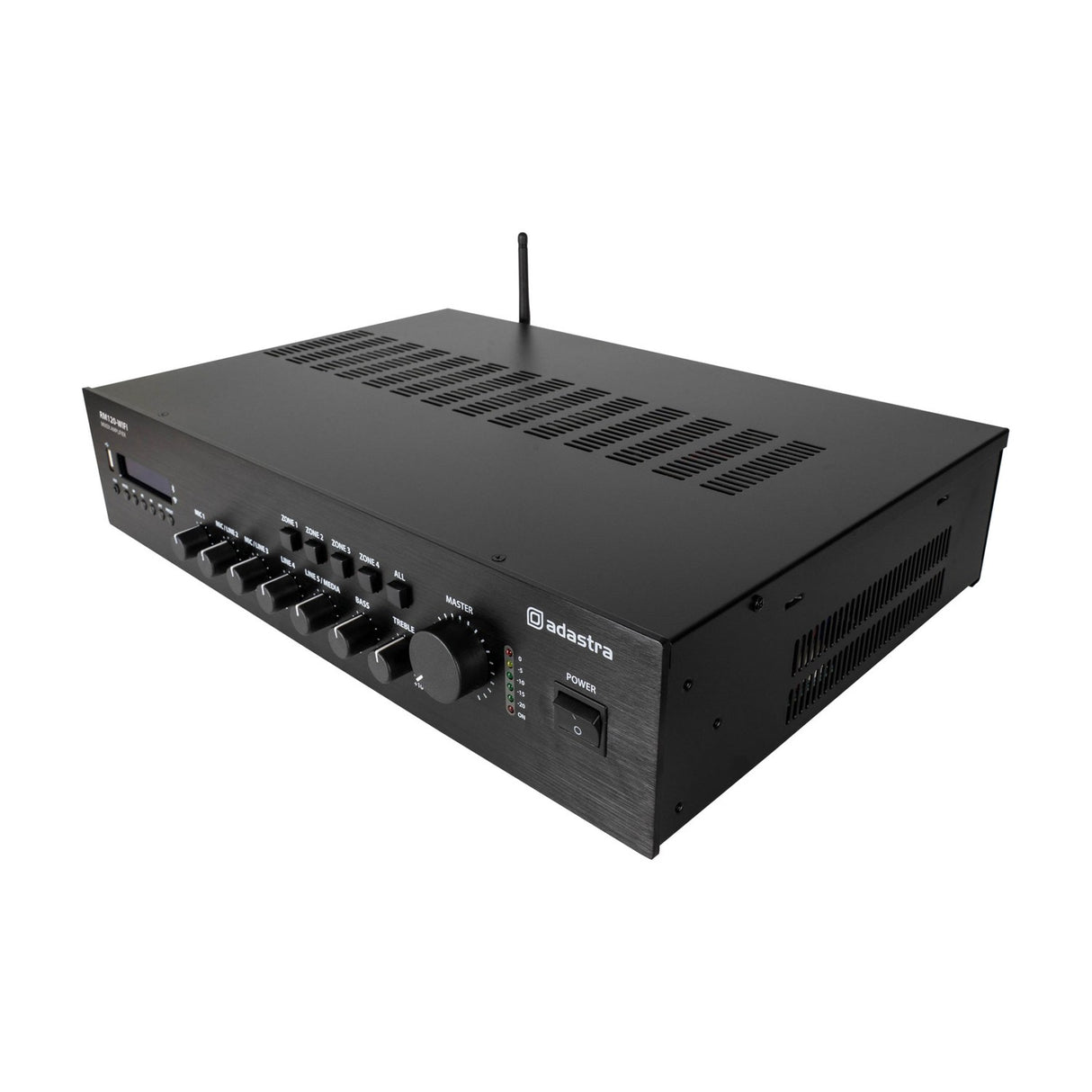

The Adastra RM120-WIFI is a 5-channel, 19" rack-mountable mixer-amplifier built for commercial sound installations. It powers 100V line speakers or standard low impedance speakers (4-16 Ohm), with 4 switchable 100V outputs across separate zones plus one unswitched "always on" output for priority alert speakers. Speaker connections are made on screw terminals, and the unit fits a standard equipment rack at 433 x 320 x 88mm.

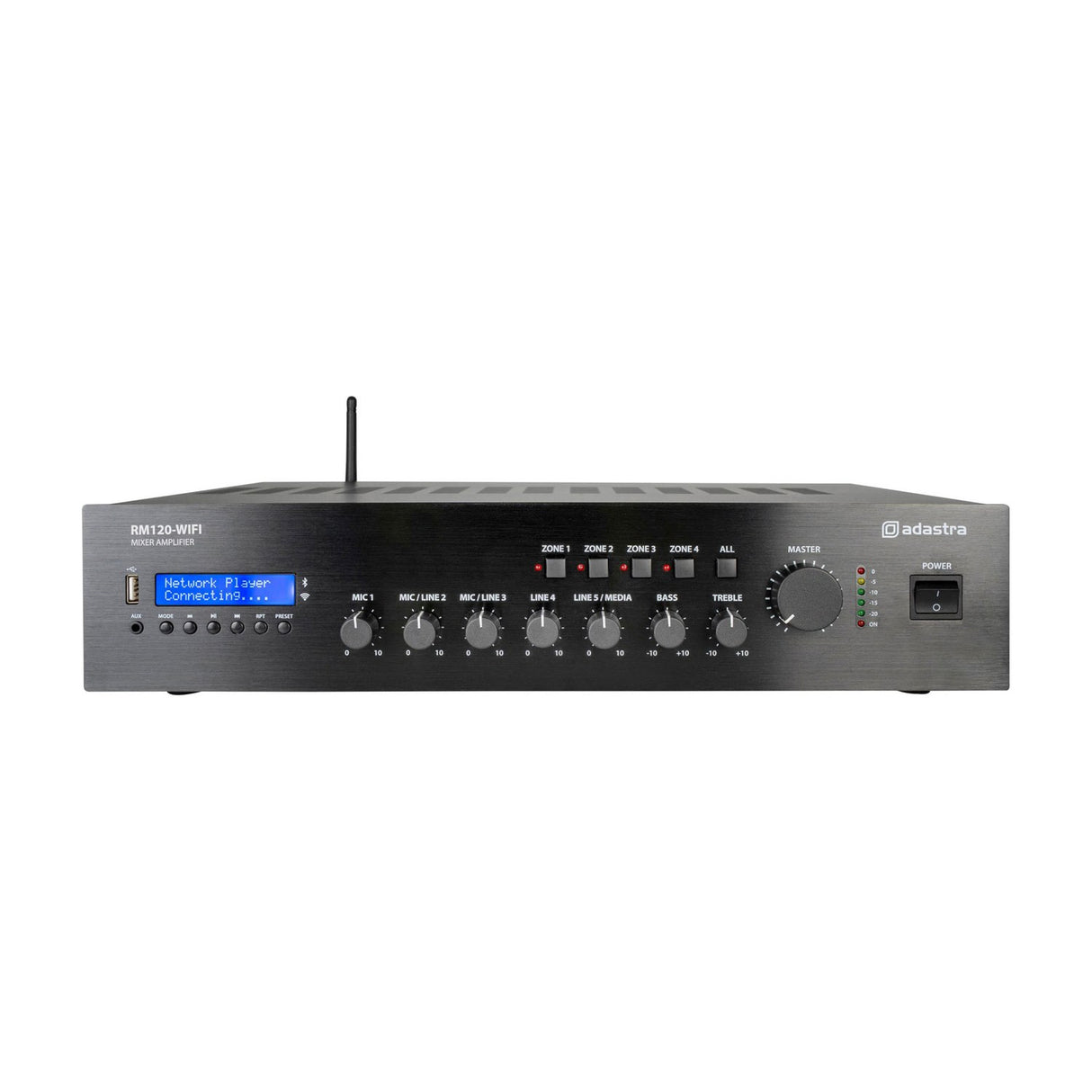

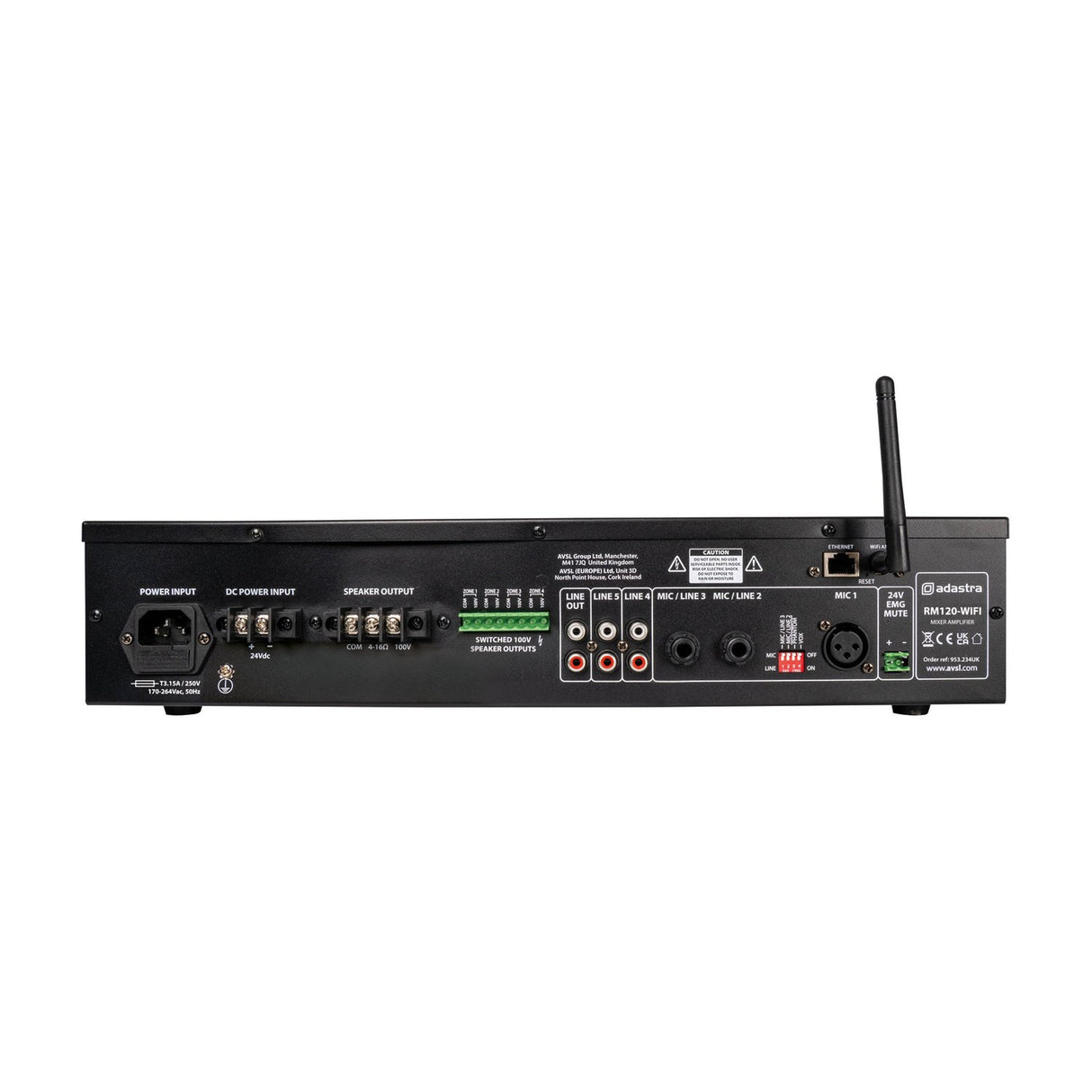

Input options cover most day-to-day needs. There is an XLR input with switchable +20V phantom power, two mic/line jack inputs, and two RCA line inputs, alongside an RCA line output. A switchable voiceover (VOX) function automatically lowers the background music when a signal is detected on mic input 1, which is useful for announcements. Rear panel 24V contacts let you mute everything except mic input 1 when triggered, handy for emergency or priority messaging. Front panel controls include level for each input group, bass and treble tone shaping, and master volume.

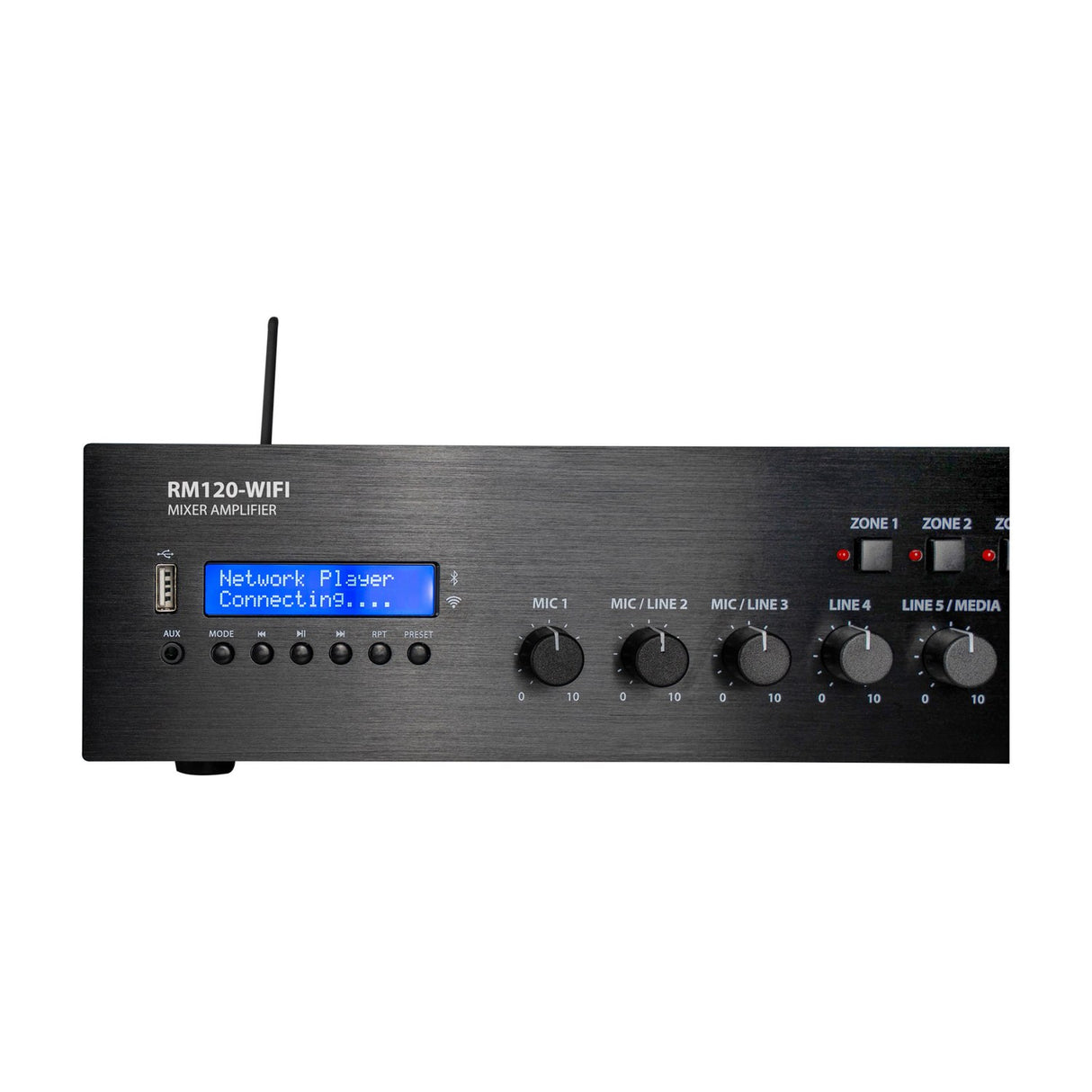

The built-in player section adds flexibility. It plays MP3 files from USB and streams wirelessly over Bluetooth 5.0. The main draw of the WIFI model is network audio: connect via RJ45 (LAN) or 2.4GHz WiFi to stream internet radio, playback services, or files from a local NAS drive. Setup and control run through the free WiiM Home app for Android or iOS, with several streaming services built in. Power comes from a 170-264Vac IEC mains supply, with 24Vdc screw terminal backup input for continued operation where required.

Specification
Weight 6.36KG
Fuse T3.15A
Output power : rms 120W
Power supply 170-264Vac, 50Hz (IEC)
DC power 24Vdc (screw terminals)
Inputs Mic XLR, 2 x mic/line jack, 2 x RCA line
Input sensitivity : mic 1 (balanced) -53dBV
Input impedance : mic 1 5k Ohm
Input sensitivity : line (unbalanced) -15dBV (-18.5dBV line 5)
Input impedance : inputs 2-5 1k Ohm
Line output RCA
Speaker outputs 4 switched + 1 non-switched 100V / 4-16 Ohm / COM
Bluetooth version 5.0
Network connection RJ45 (LAN) or 2.4GHz WiFi (802.11 b/g/n)
Remote control via WiiM Home app for iOS or Android
Controls Mic1, mic/line2+3, line4+5, bass, treble, master volume
Equaliser : bass 100Hz ±10dB
Equaliser : treble 10kHz ±10dB
Rear panel switches Phantom, Vox, Mic/Line (2 + 3)
Phantom power +20V (mic 1 XLR, switchable)
Audio source Network audio, USB player, Bluetooth receiver
Emergency control 24V contacts - mute all except Mic.1 when triggered
THD <1.0%
Dimensions 433mm x 320mm x 88mm
Downloads

Product Manual

Frequently Asked

Can it drive 100V line speakers and low impedance speakers?

Yes. It has 4 switchable 100V outputs plus an unswitched output, with an optional 4-16 Ohm low impedance output for standard speakers.

How do I set up the network streaming?

Streaming is controlled entirely through the free WiiM Home app on Android or iOS. Connect via RJ45 LAN or 2.4GHz WiFi (802.11 b/g/n) to access internet radio, streaming services or a local NAS drive.

Does it support Bluetooth?

Yes, it has a built-in Bluetooth 5.0 receiver, plus a USB player for MP3 files.

What does the voiceover feature do?

The switchable VOX function automatically lowers the background music level when a signal is detected on mic input 1, so announcements come through clearly.

Can it be used for emergency announcements?

Yes. Rear panel 24V contacts mute all channels except mic input 1 when triggered, and a separate always-on output keeps priority alert speakers live.

Will it fit a standard rack?

Yes. It is 19" rack-mountable at 433 x 320 x 88mm, roughly 2U in height.
