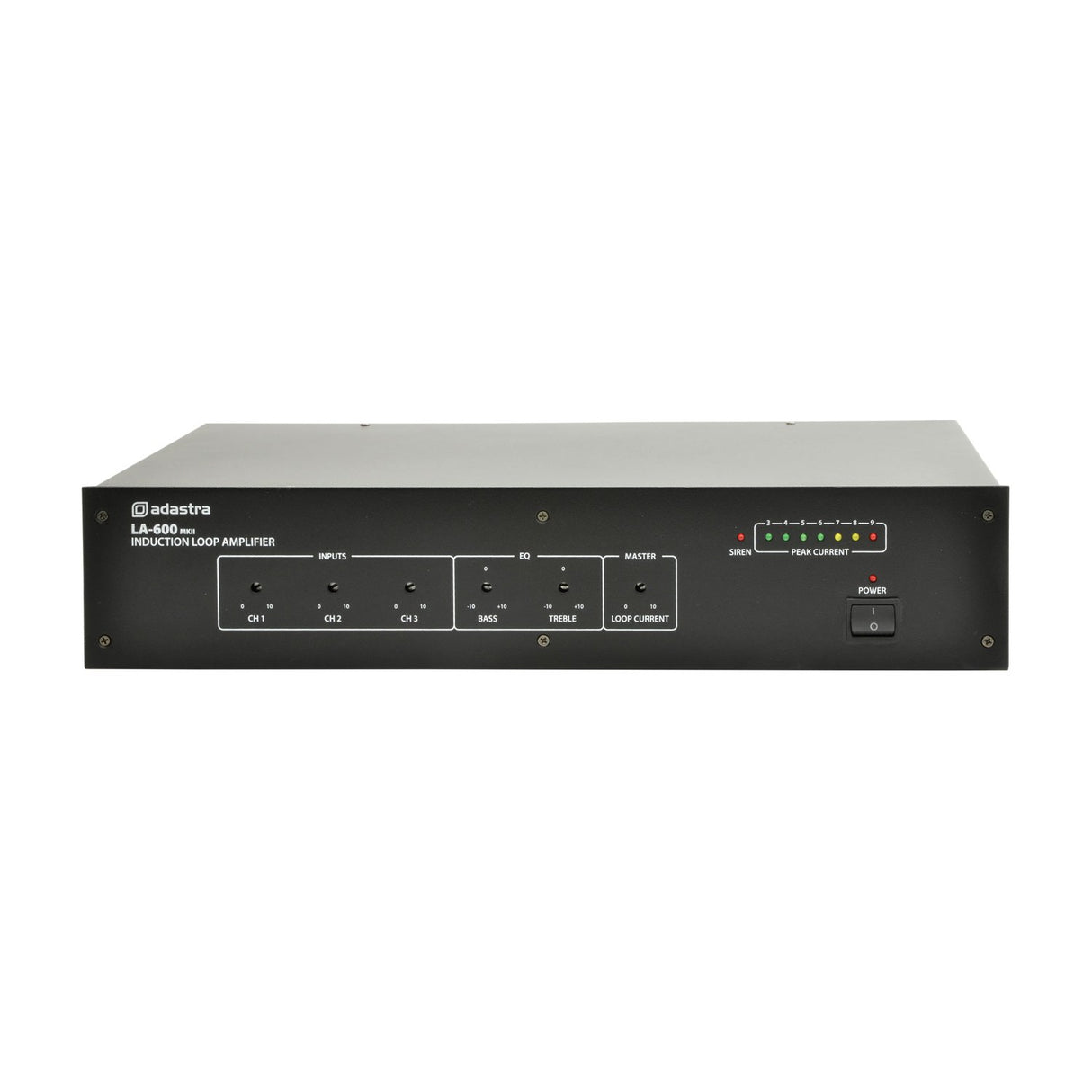

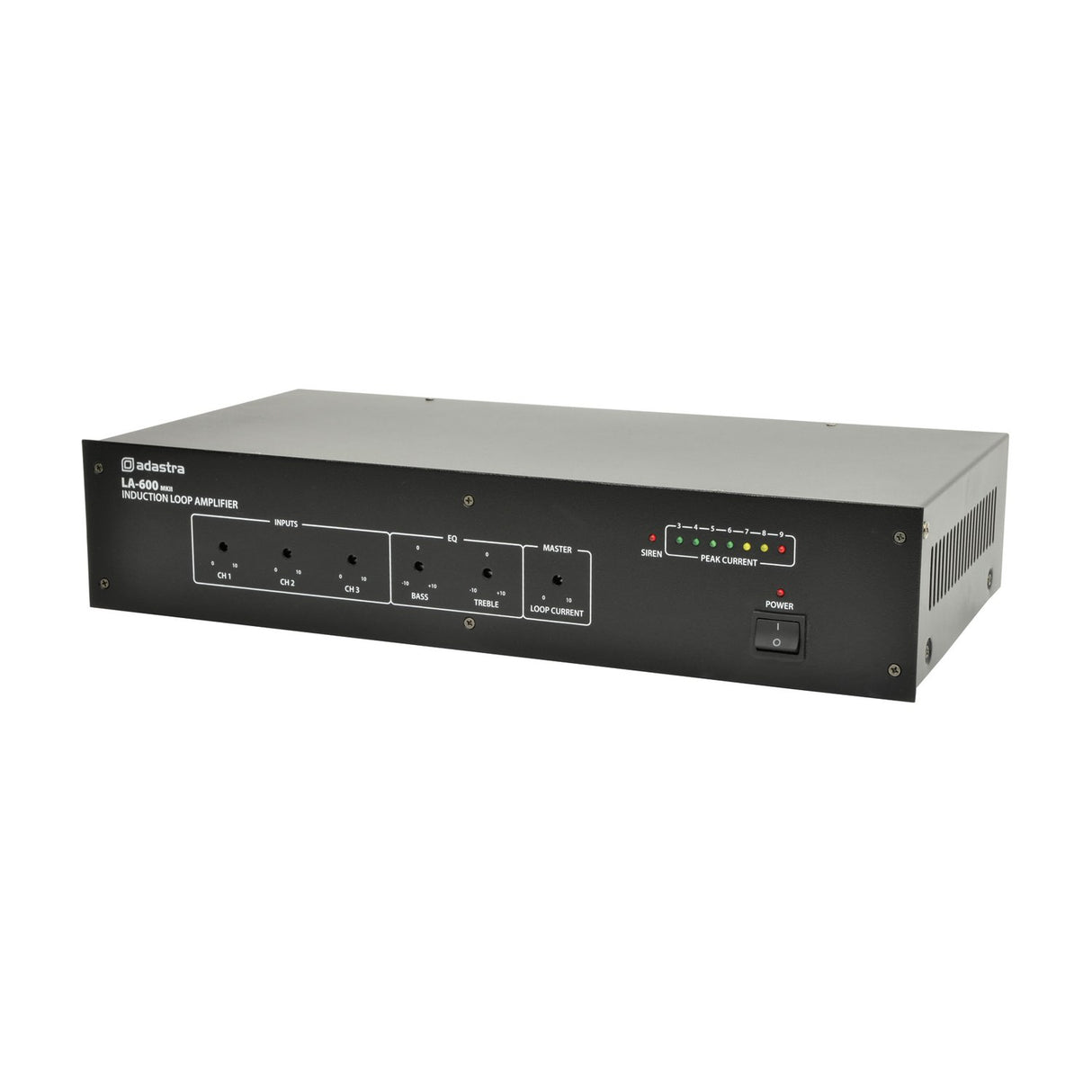

Adastra LA-600 mkII Rack Induction Loop Amplifier

The Adastra LA-600 mkII is an induction loop amplifier built to drive a cable loop around a room, giving assisted listening for hearing aid users. It works with most standard hearing aids and suits public and commercial buildings where clear sound matters. The unit fits a standard 19" rack, so it sits neatly alongside other equipment in an installation.

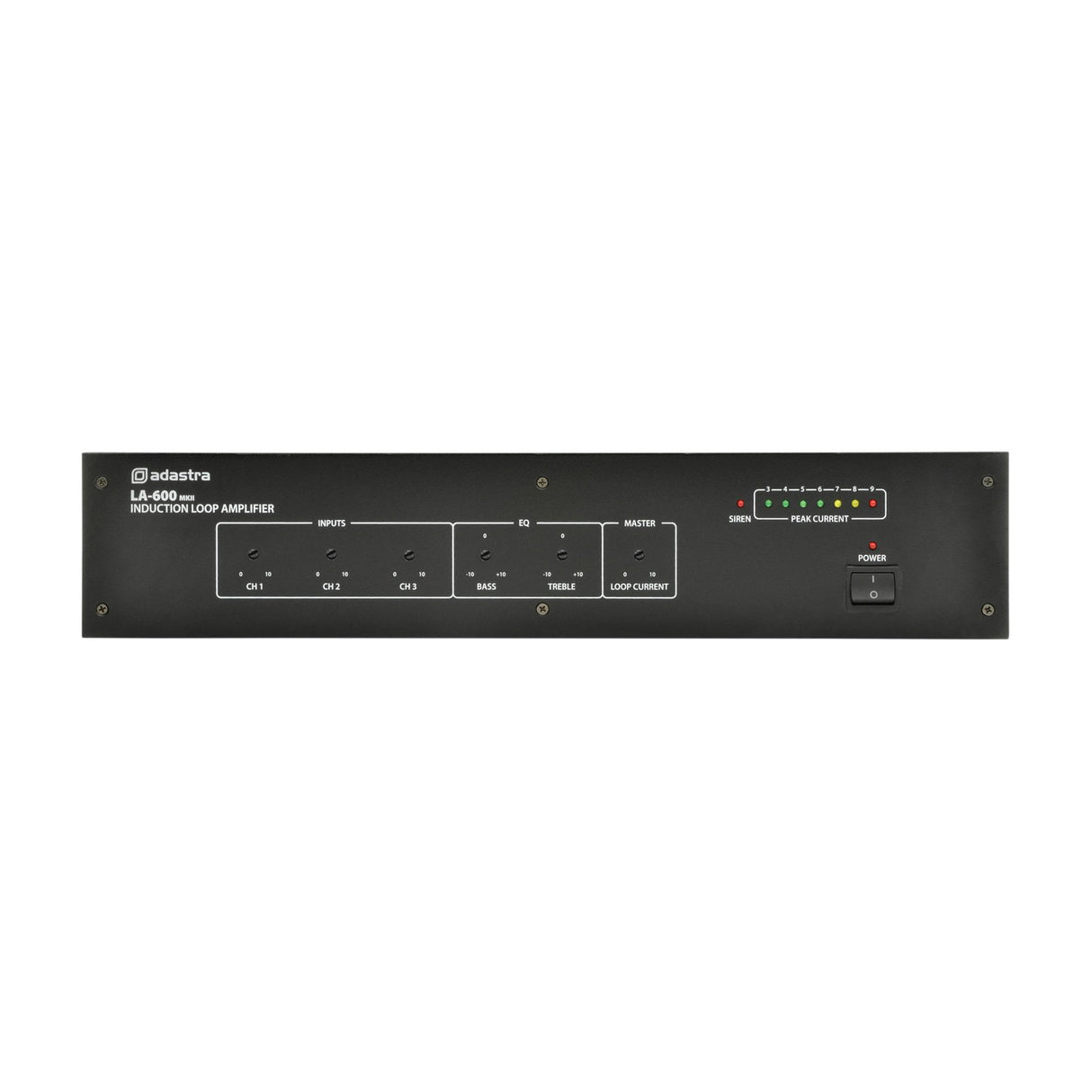

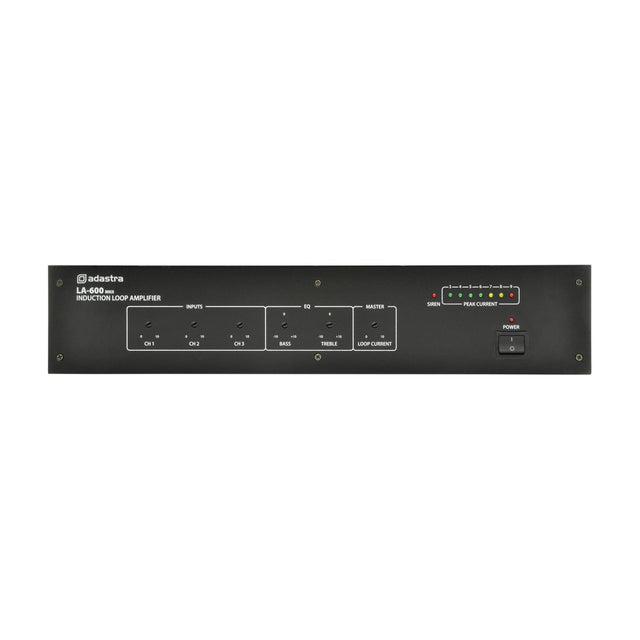

Three mic/line channels each have their own phantom power switch and mic/line level switch, so you can connect a mix of microphones and line sources. Front panel controls are adjusted with a screwdriver, covering channel volume, bass, treble and loop current level. These tamper proof controls help keep settings fixed once the system is set up. Channel 1 can be given priority, which is handy for announcements over other audio. Adjustable metal loss correction lets you compensate for metalwork in the building that would otherwise affect loop performance.

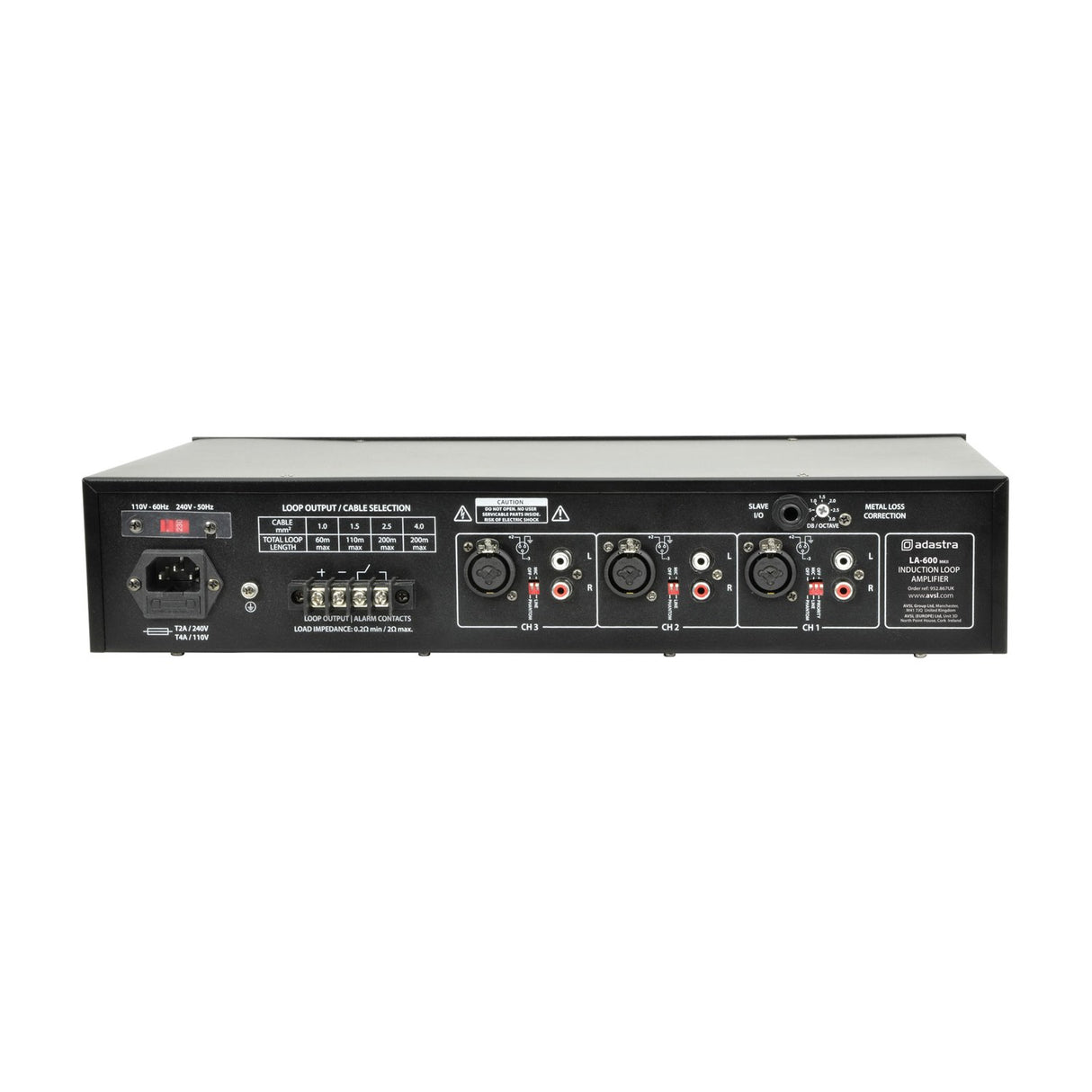

A peak current LED shows when the loop is running near its limit, and alarm contacts allow a built-in siren to sound if needed. The amplifier runs from 110/240Vac at 50/60Hz through an IEC connection. Frequency response is 50Hz to 5kHz (±3dB), with line input sensitivity of -6dBu into 6k Ohms and mic sensitivity of -56dBu into 2k Ohms. Signal to noise ratio is 75dB on line inputs and 60dB on mic inputs, with THD below 1%. Note that a hearing loop is also known as an induction loop or audio induction loop, and the same amplifier is often called a loop driver in North American listings.

Product Manual

How many inputs does the LA-600 mkII have?

It has three mic/line channels, each with its own phantom power and mic/line level switch, so you can mix microphones and line sources.

Is it rack mountable?

Yes. The unit is designed for a standard 19" rack, so it fits alongside other equipment in an installation.

Can I set a priority channel?

Yes. Channel 1 can be made switchable priority, which is useful for announcements that need to override other audio.

Will it work with standard hearing aids?

It suits most standard hearing aids using the built-in T-coil setting, providing assisted listening in public and commercial spaces.

What does metal loss correction do?

Adjustable metal loss correction compensates for metalwork in the building that would otherwise reduce loop performance.

How are the controls adjusted?

Front panel controls for volume, bass, treble and loop current are adjusted with a screwdriver. They are tamper proof to keep settings fixed after setup.
