10AX Fan Isolator Switch - Matt Black Screwless

£1099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

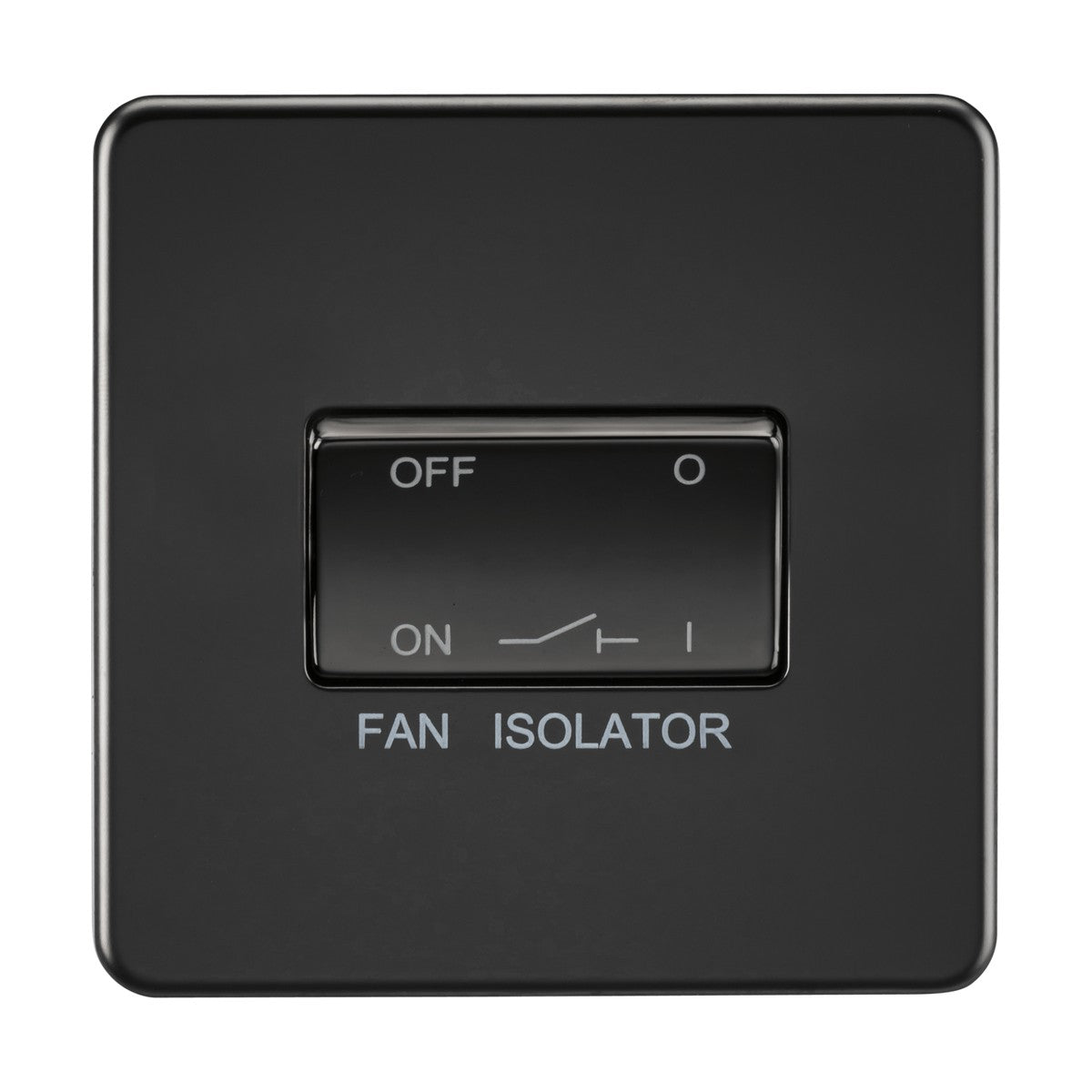

The Knightsbridge 10AX fan isolator switch provides triple-pole isolation for bathroom extractor fans, utility room ventilation and other fan units that need to be isolated independently of the lighting circuit. The matt black screwless faceplate measures 87.5mm square and clips onto a separate metal sub-frame, leaving no visible screws or fixings on the wall once fitted.

Designed for bathrooms, en-suites, utility rooms and other spaces where an extractor fan requires dedicated switching, the triple-pole configuration isolates fan, live and neutral lines simultaneously when switched to the 'OFF' position. This allows the fan circuit to be isolated for maintenance or cleaning without switching off the lighting circuit. The built-in gasket behind the faceplate provides additional protection against moisture ingress in humid environments.

The switch requires a 16mm minimum mounting box depth, making it suitable for shallow back boxes in stud walls and plasterboard installations where deeper metal boxes cannot fit. The premium-grade steel construction carries IP20 rating for general interior use and is certified to EN 60669-1 and EN 60669-2-4 standards. Knightsbridge backs the switch with a 25-year warranty.

Specification
Height 87.5 mm
Width 87.5 mm
Projection 4.3 mm
Min. Mounting Box Depth 16mm
Construction Premium grade steel
Finish Matt Black
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Earth Terminal Yes
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What back box depth is required?

A 16mm minimum mounting box depth is needed. The 4.3mm projection of the screwless cover plate adds minimal wall protrusion once fitted, making this switch suitable for shallow stud wall installations.

What is triple-pole isolation?

Triple-pole isolation means the switch breaks connections to the fan feed, live and neutral lines simultaneously when switched to 'OFF'. This allows the fan circuit to be isolated independently of the lighting circuit, which is useful for maintenance or cleaning the fan unit.

Is it suitable for bathroom use?

The switch carries IP20 rating, which is suitable for general interior use including bathrooms outside zones 0, 1 and 2. The built-in gasket provides additional moisture protection behind the faceplate.

What other finishes are available?

Knightsbridge produces fan isolator switches in a range of finishes including polished chrome, brushed chrome, polished brass, antique brass and white. Use the search function or filters to find other variants in stock at Niori.
