10AX 1 Gang Intermediate Switch - Anthracite Screwless

£899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

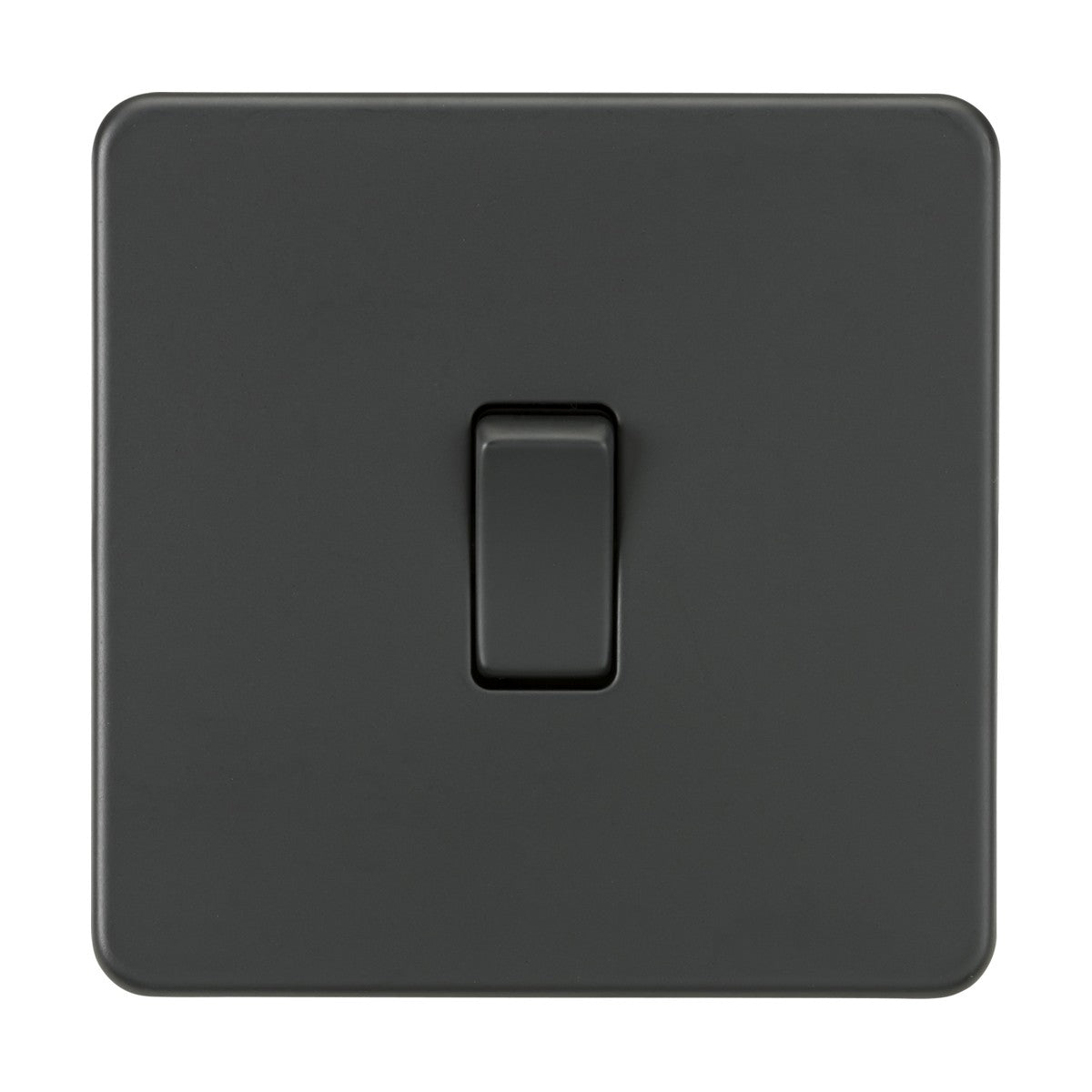

The Knightsbridge 10AX 1-gang intermediate switch in anthracite is designed for three-switch lighting circuits, where a light needs to be controlled from three separate locations such as top, middle and bottom of a staircase or at multiple points on a long landing. The switch sits between two 2-way switches in the circuit, allowing the light to be turned on or off from any of the three positions.

The screwless cover plate clips onto a separate metal sub-frame fixed to the back box, hiding all fixings once installed and giving a clean finish against the wall. The deep anthracite finish is a near-black grey tone that pairs with industrial, contemporary and monochrome interiors. The 87.5mm square faceplate has a low 4.3mm projection from the wall, maintaining a flush profile.

Rated at 10AX on 230V 50Hz mains, the switch handles lighting loads up to 2,300W and suits both tungsten and LED dimming circuits where the dimmer is positioned at one of the other switch locations. The premium-grade steel construction includes a built-in gasket behind the faceplate for IP20 moisture protection, and the switch is certified to EN 60669-1. Installation requires a minimum 16mm back box depth, making it compatible with shallow wall cavities.

Specification
Height 87.5 mm
Width 87.5 mm
Projection 4.3 mm
Min. Mounting Box Depth 16mm
Construction Premium grade steel
Finish Anthracite
Class I
IP Rating IP20
Primary Voltage 230V 50Hz
Earth Terminal Yes
Warranty 25
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

What is an intermediate switch and when is it needed?

An intermediate switch is used in 3-way lighting circuits where you need to control one light from three or more locations. It sits between two 2-way switches in the circuit. Common installations include staircases with switches at top, middle and bottom, or long landings and hallways with multiple control points.

What back box depth is required?

A minimum 16mm back box depth is needed for installation. The screwless cover plate adds a 4.3mm projection from the wall once fitted, giving a total 20.3mm depth from the wall surface to the front of the switch.

Is the screwless plate removable for redecorating?

Yes. The anthracite cover plate clips onto a separate metal sub-frame that is fixed to the back box. The cover can be removed for painting or wallpapering around the switch and then re-clipped without disturbing the wiring.

What other finishes are available in this range?

Knightsbridge produces this switch style in a range of finishes including polished chrome, brushed chrome, polished brass, antique brass, matt black and white. Use the search function or filters to find other variants in stock at Niori.
