QTX ZEPHYR-500 Compact 500W DMX Haze Machine

£17999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

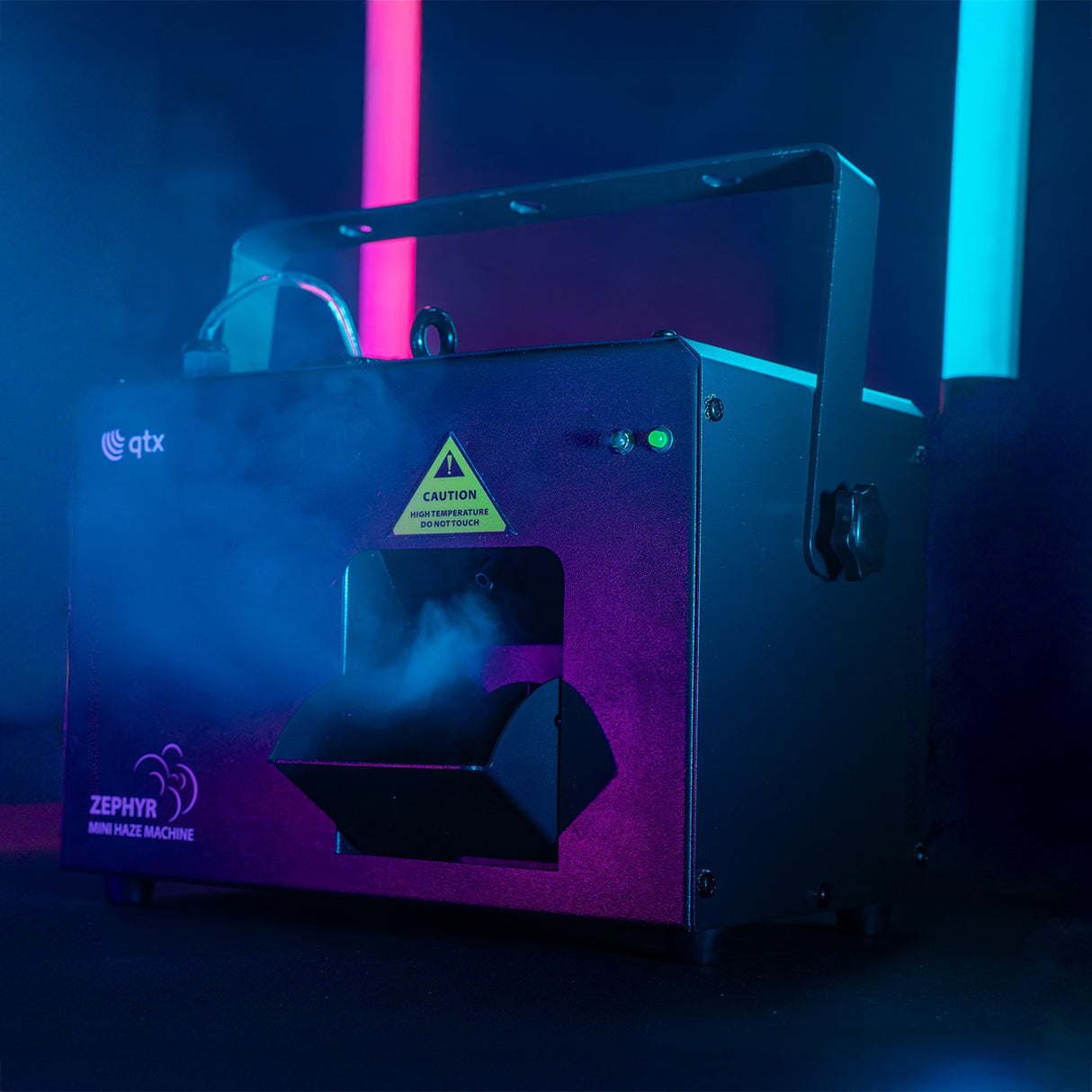

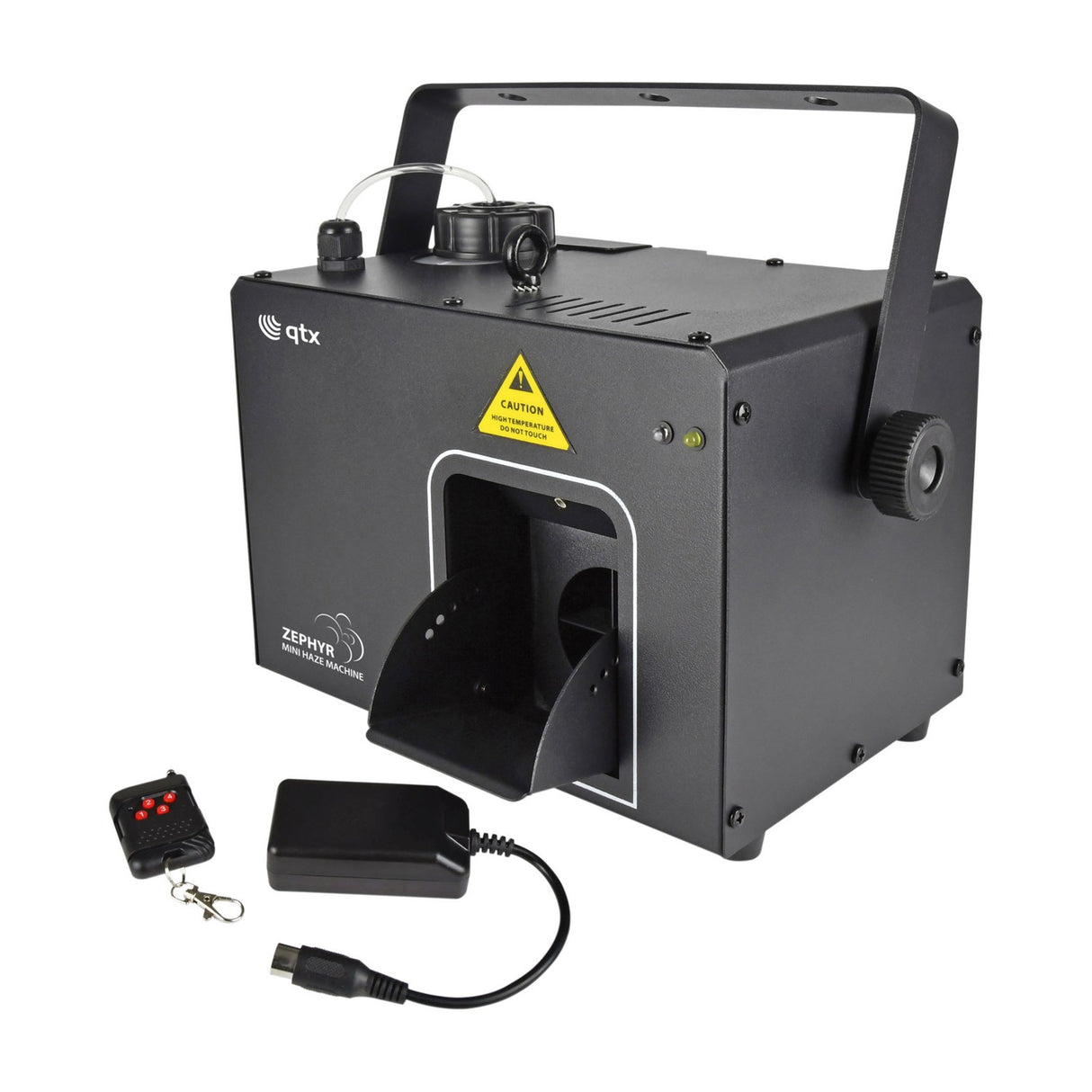

The QTX ZEPHYR-500 is a compact haze machine built for small and medium sized venues where space is tight but the effect needs to hold up. It runs a 500W vaporiser that puts out around 3,000 cubic feet per minute, spreading an even haze that catches beams and picks out lighting without laying down heavy fog. The metal housing keeps the footprint small, so it fits neatly on a shelf, truss or floor stand without getting in the way of the rest of your rig.

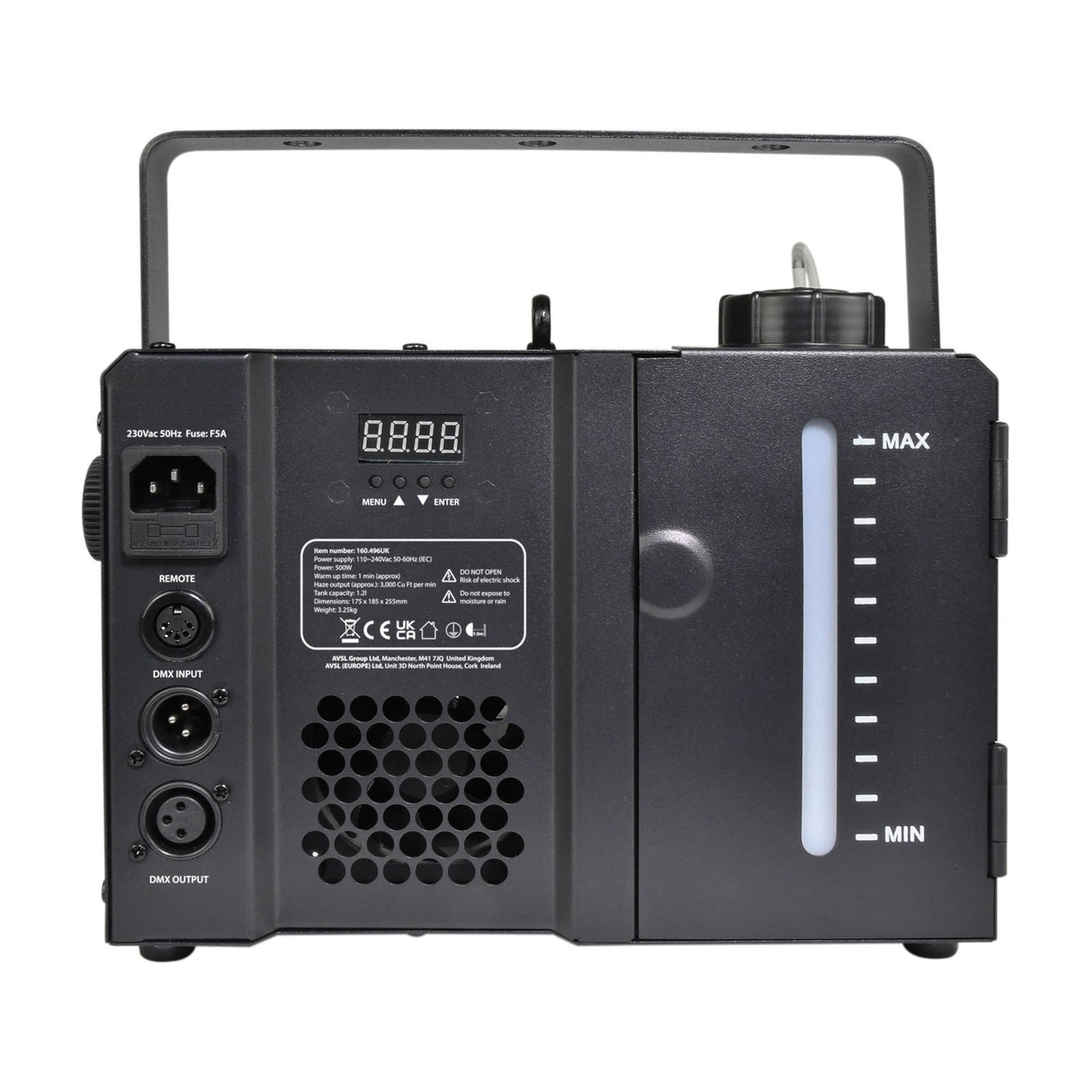

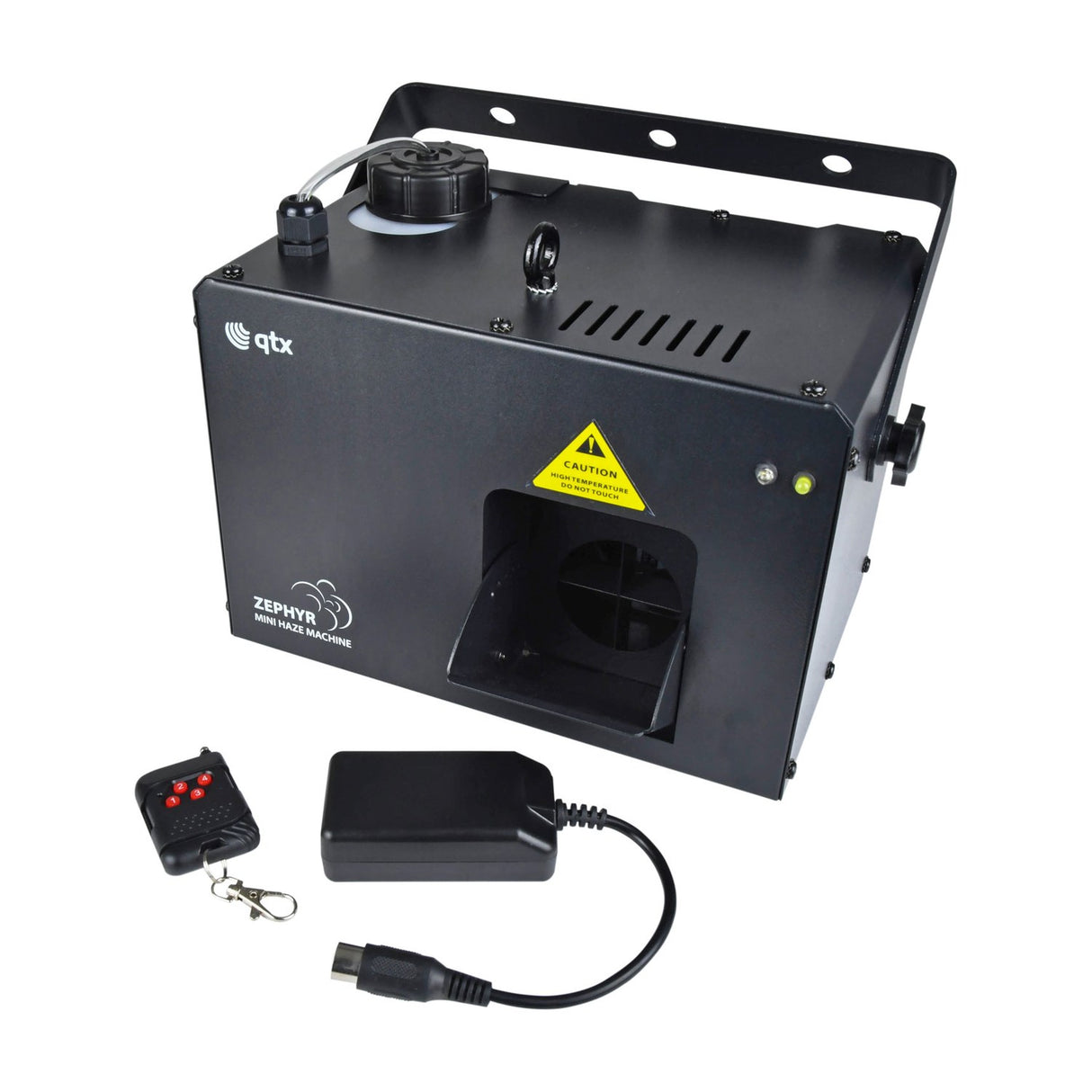

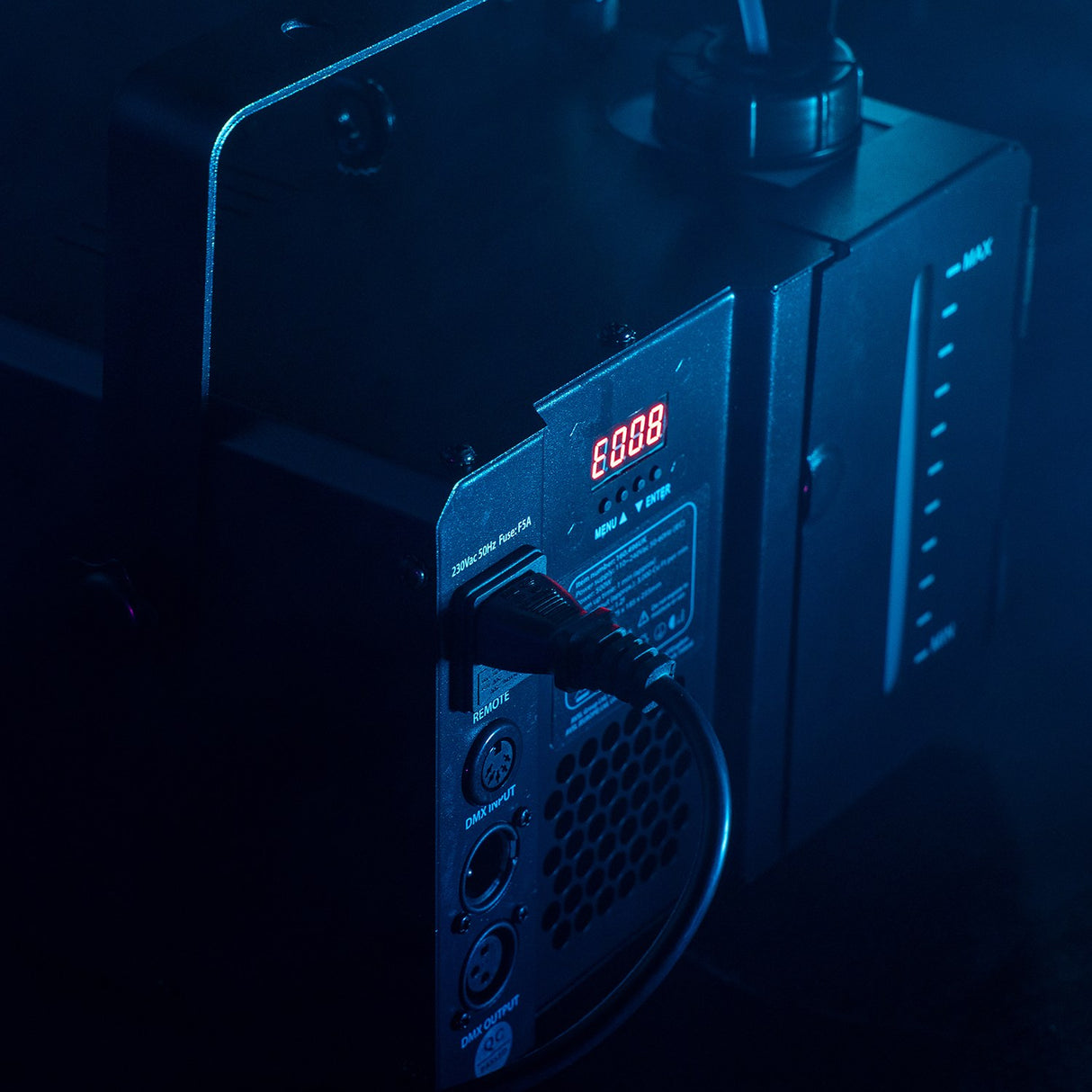

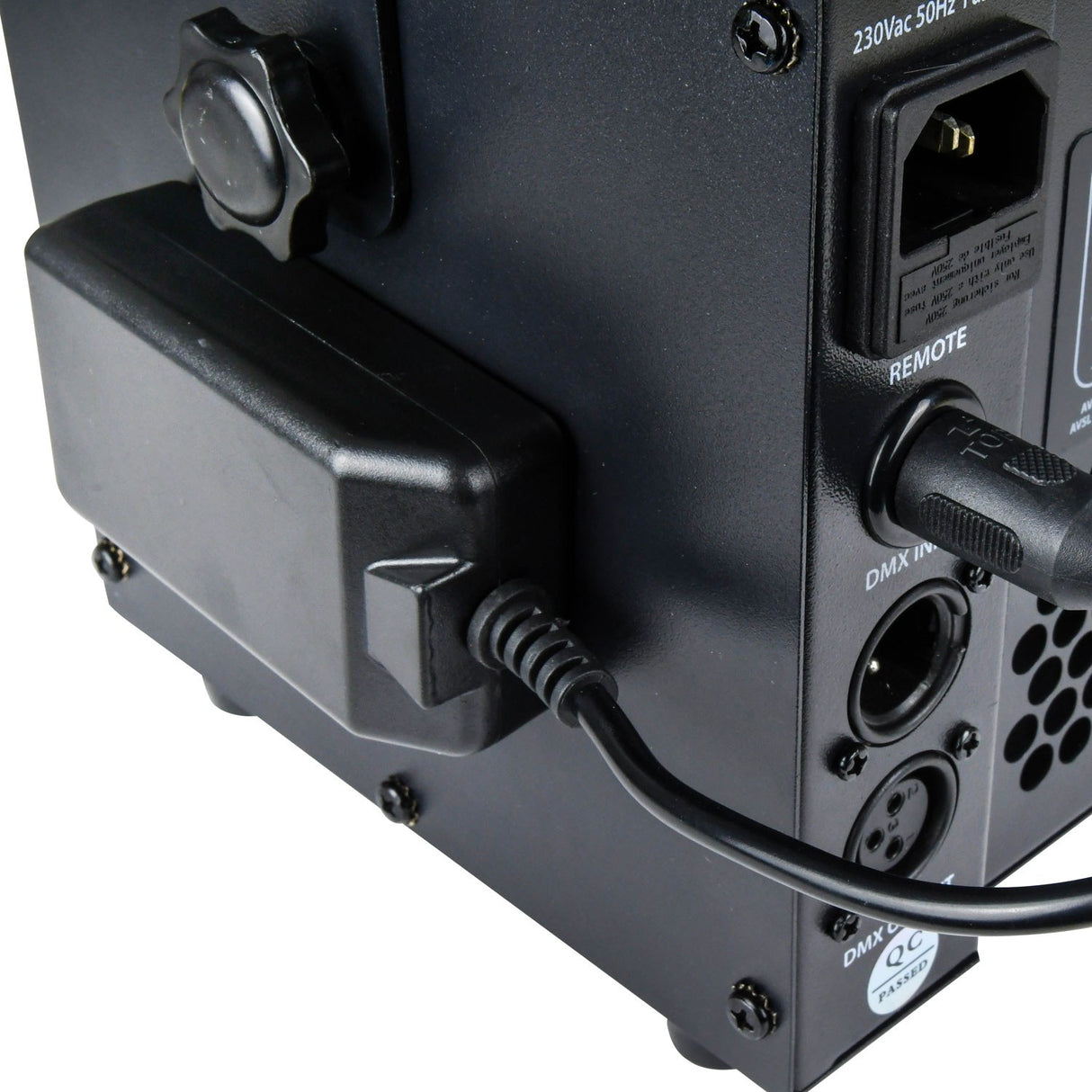

You get three ways to control the output. The rear panel lets you set the haze rate by hand, the supplied keyfob-style RF wireless remote handles it from across the room, and DMX-512 gives you two channels for tying the machine into a wider lighting desk. Warm-up takes around a minute, so you are not left waiting long before the first show. Fluid sits in a removable 1.2 litre tank behind a magnetic door, with a slot window showing the current level at a glance and a low-fluid cut-off switch that shuts the unit down before it can run dry and damage itself.

At 3.25kg with dimensions of 175 x 185 x 255mm, the ZEPHYR-500 is easy to pack down and move between gigs or installs. It runs on a standard 110~240Vac IEC supply with an F5A fuse and a 433MHz remote frequency. In the US you may see haze fluid sold as fog fluid, though the two are formulated differently, so check you are using the correct type for a haze effect. This is a straightforward, portable machine for anyone who wants a consistent haze in a small package.

Specification
Power supply 110~240Vac 50-60Hz (IEC)
Power 500W
Fuse rating F5A
Tank capacity 1.2 litres
Haze output (approx.) 3,000 Cu Ft per minute
Warm up time 1 minute (approx.)
Remote control frequency 433MHz
DMX channels 2
Dimensions 175mm x 185mm x 255mm
Weight 3.25KG
Downloads

Product Manual

Frequently Asked

How is the haze output controlled?

Three ways: the rear control panel, the supplied 433MHz RF wireless remote, or DMX-512 signal using its two DMX channels.

What size fluid tank does it use?

A removable 1.2 litre tank behind a magnetic door, with a slot window to show the current fluid level.

What happens if it runs out of fluid?

A low-level fluid cut-off switch shuts the unit down when the tank is empty, protecting it from damage caused by running dry.

How long does it take to warm up?

Around one minute from cold before it is ready to produce haze.

How much haze does it produce?

The 500W vaporiser gives an approximate output of 3,000 cubic feet per minute, suited to small and medium sized venues.

What are its dimensions and weight?

It measures 175 x 185 x 255mm and weighs 3.25kg, making it easy to transport and install.
