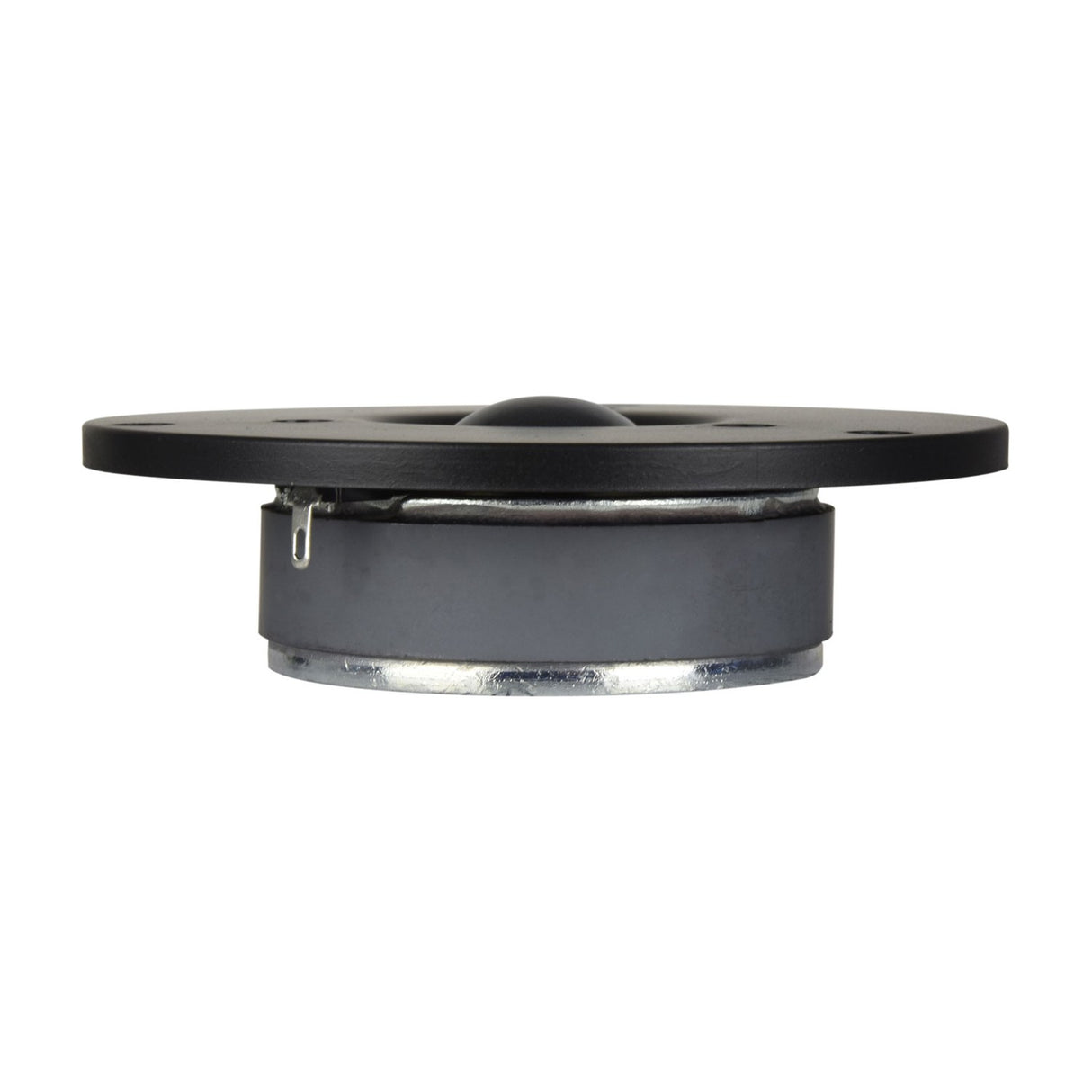

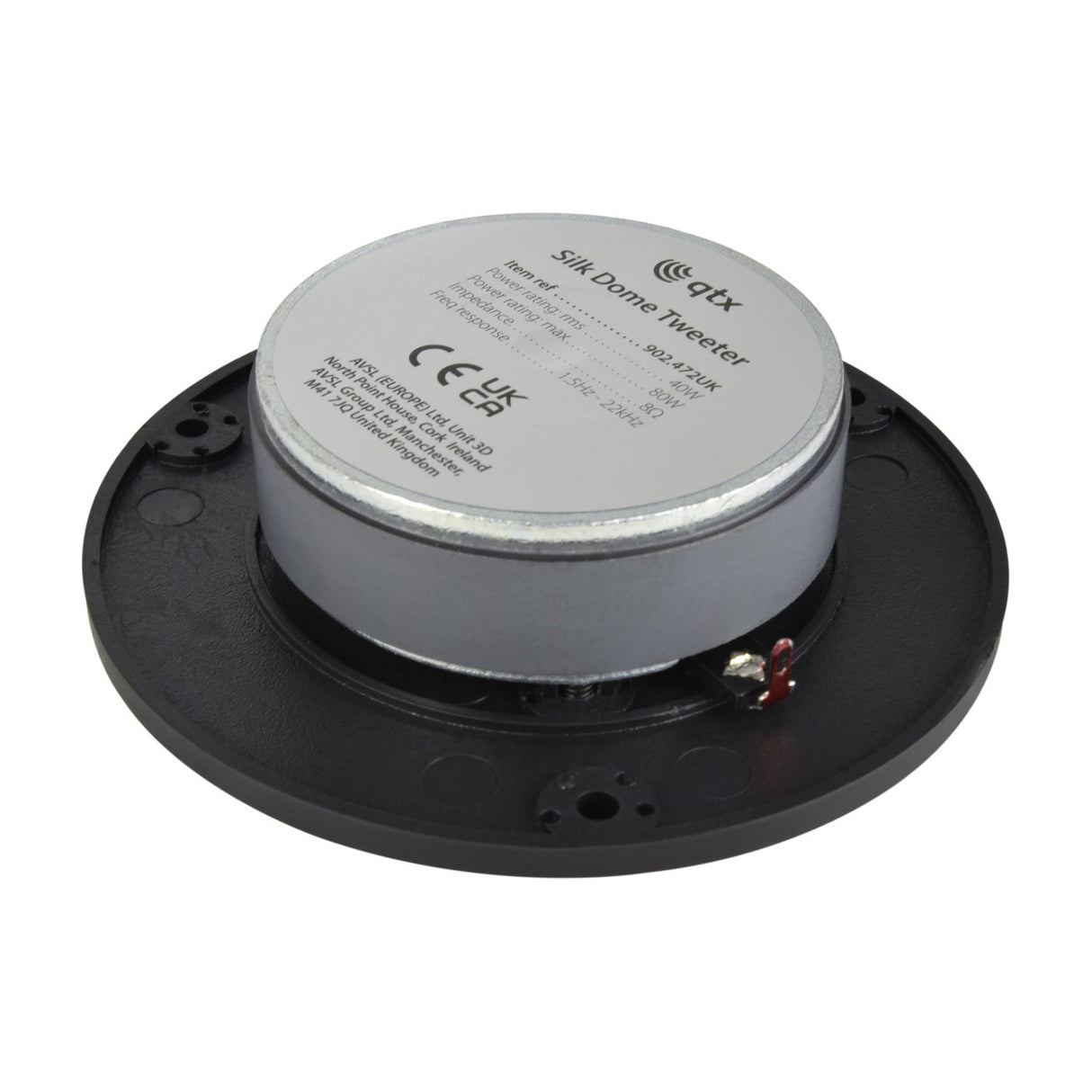

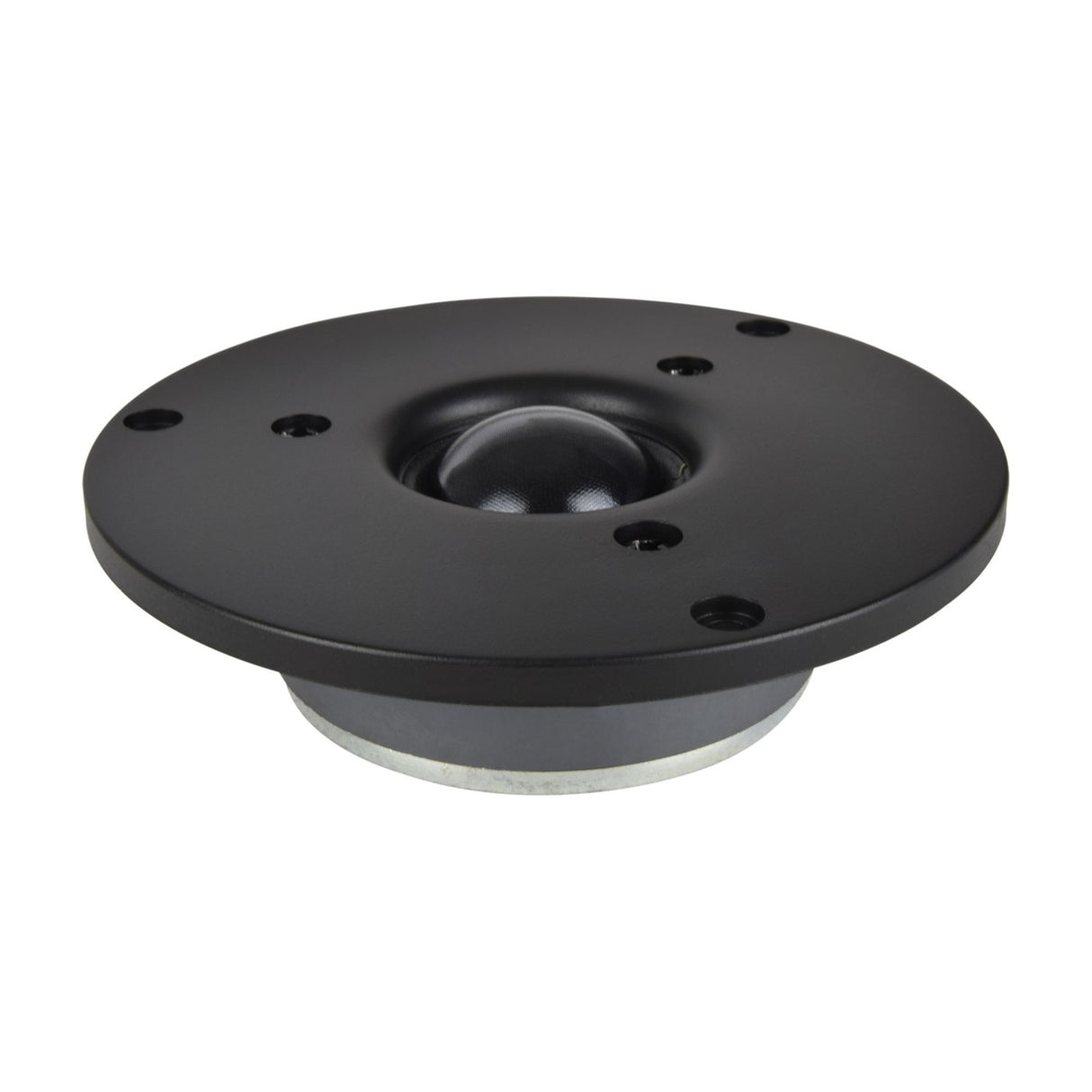

QTX Silk Dome Tweeter | 80W 8 Ohm Speaker Driver

£1099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This QTX silk dome tweeter handles the high frequencies in your speaker builds and repairs. The soft silk dome gives a smooth reproduction of treble detail, which many people find easier on the ear than a harder metal dome. It measures 110mm (4.5") across the frame, so it fits a wide range of enclosures and replacement projects.

Inside you get a 1.25" (3cm) aluminium voice coil paired with a strontium magnet weighing 284g. The magnet itself measures 15 x 70mm in diameter, giving the driver the pull it needs to stay accurate at higher volumes. Power handling runs to 40W RMS and 80W maximum, with an impedance of 8 ohms and a sensitivity of 95dB at 1W/1m. That level of output makes it a sensible match for most mid-sized passive speaker cabinets.

The frequency response covers 1.5kHz to 22kHz, so this tweeter takes over where a mid or bass driver leaves off and carries the sound right up to the top of the audible range. It works well as a direct replacement for a failed unit or as part of a two-way or three-way design you're putting together yourself. Fit it behind a suitable crossover and you'll get clean, controlled highs without any harshness.

Specification
Power max. 80W
Power rms 40W
Diameter 110mm (4.5")
Frequency response 1.5kHz - 22kHz
Impedance 8 ohms
Magnet weight 0.28KG
SPL @ 1W/1m 95dB
Voice coil 1.25"
Magnet size 15 x 70mmØ
Frequently Asked

What size cutout does this tweeter need?

The frame measures 110mm (4.5") in diameter, so check your enclosure or existing driver against that figure before ordering.

What power can it handle?

It handles 40W RMS and up to 80W maximum. Keep continuous power within the RMS figure for the longest life.

What impedance is it?

The tweeter is rated at 8 ohms, which suits most standard passive speaker builds and crossovers.

Does it need a crossover?

Yes. This is a high-frequency driver with a response from 1.5kHz to 22kHz, so it should sit behind a crossover that filters out lower frequencies.

Why choose a silk dome over a metal dome?

Silk domes tend to give a smoother, softer top end. Many listeners prefer them for a less harsh sound at high frequencies.

Can I use this as a replacement tweeter?

Yes, as long as the size, impedance and power rating match your original driver and crossover, it works as a direct replacement.
