Description

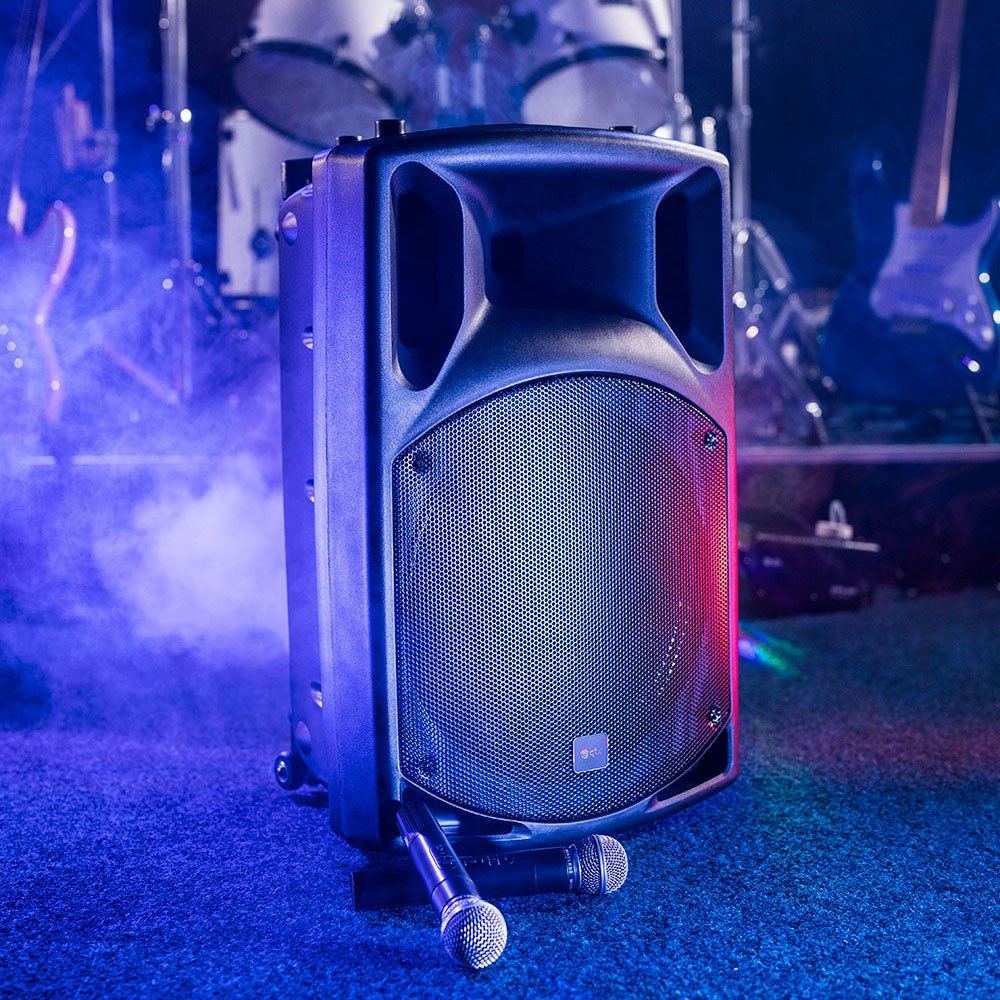

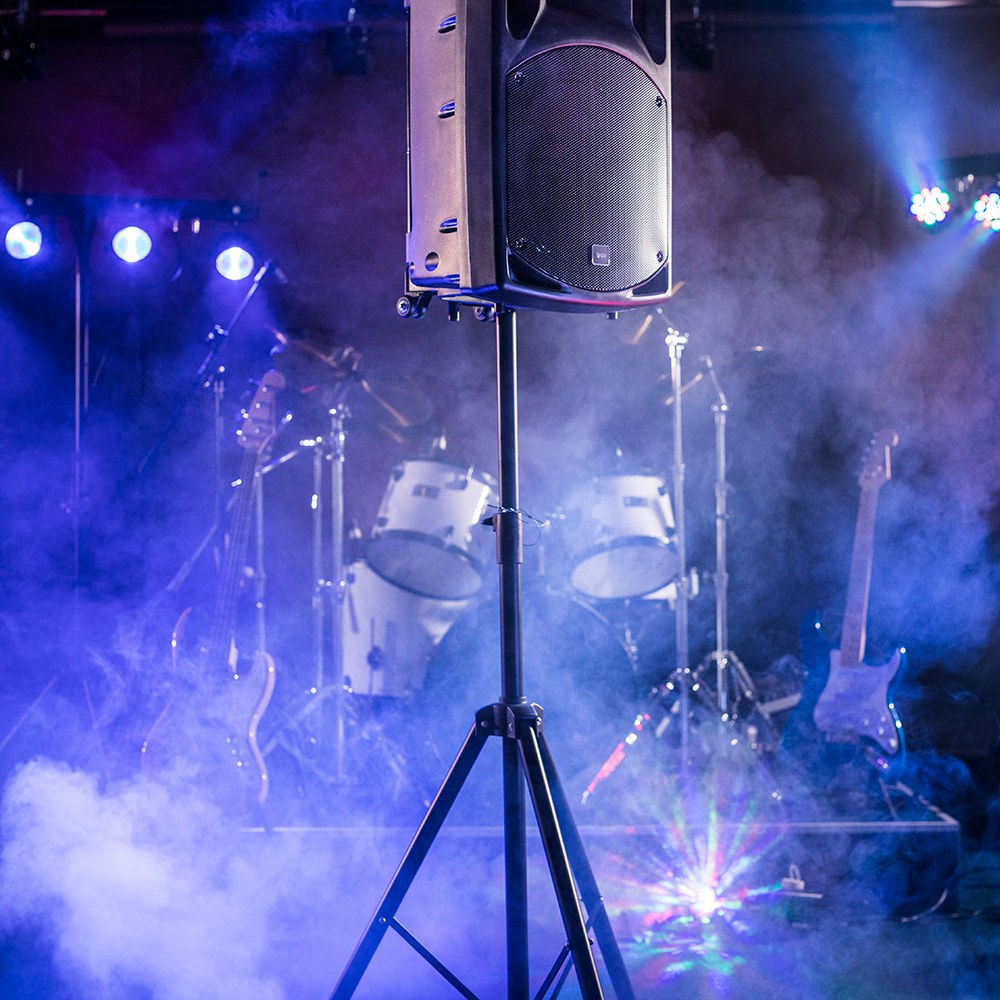

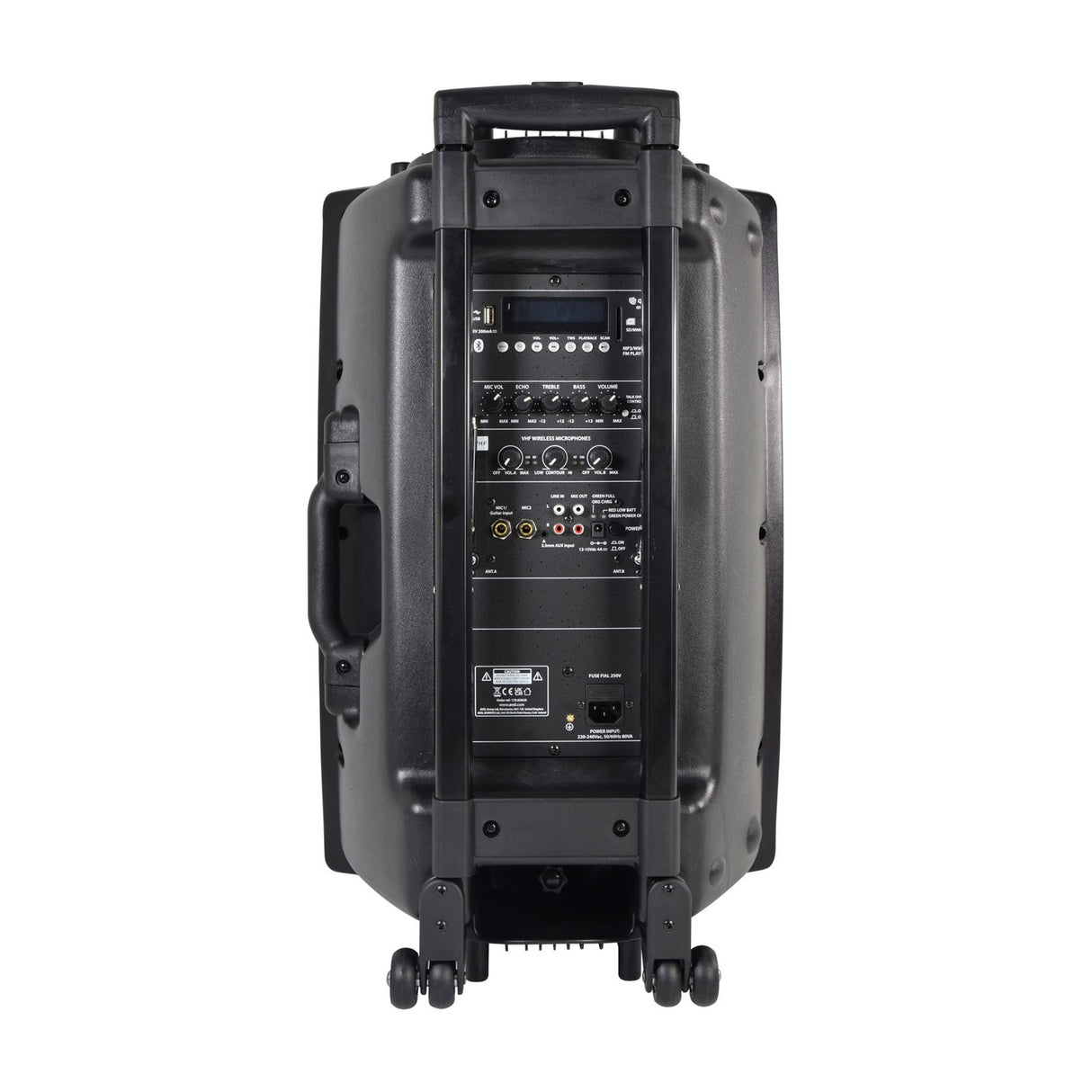

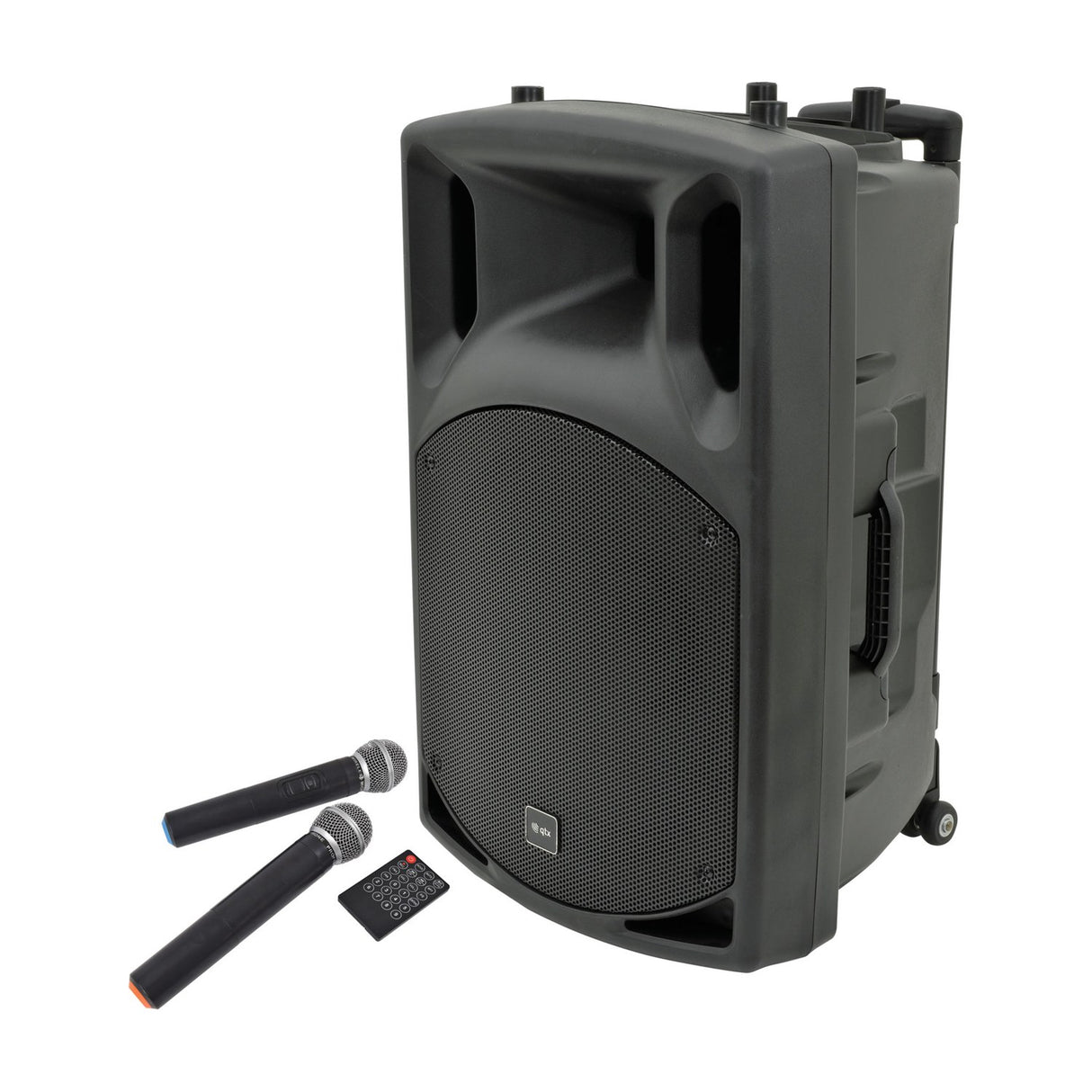

The QTX QX15PA is a self-contained portable PA system built for easy transport and quick setup. Pull and carry handles plus wheels let you move it between rooms and venues without a struggle, and a 35mm pole/stand mount means you can raise it on a speaker stand when you need more coverage. It runs from the mains (220-240Vac) or its internal rechargeable battery, giving you up to 8 hours of use away from a power socket.

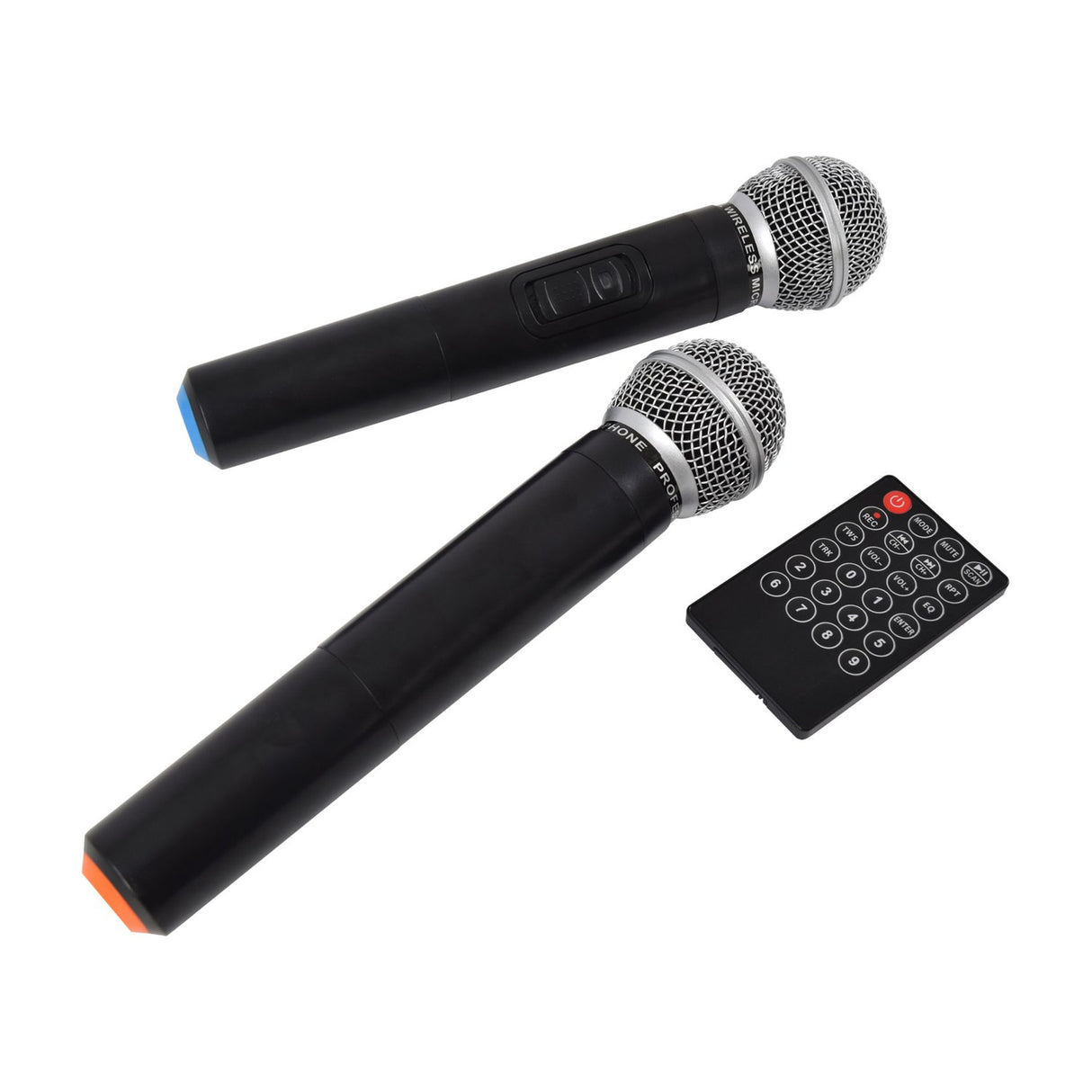

Two VHF wireless microphones are included on 174.1MHz and 175.0MHz, and there are two further mic inputs on 6.3mm jack, one of which doubles as a guitar input. The AUX input (3.5mm stereo jack) suits phones, tablets, laptops and mp3 players, while the RCA line in/out adds DJ connectivity and options for recording or expansion. An echo effect is on hand for the microphones, and the VCV 'voiceover' function automatically lowers the background music when a mic signal comes through, so announcements sit clearly over the top.

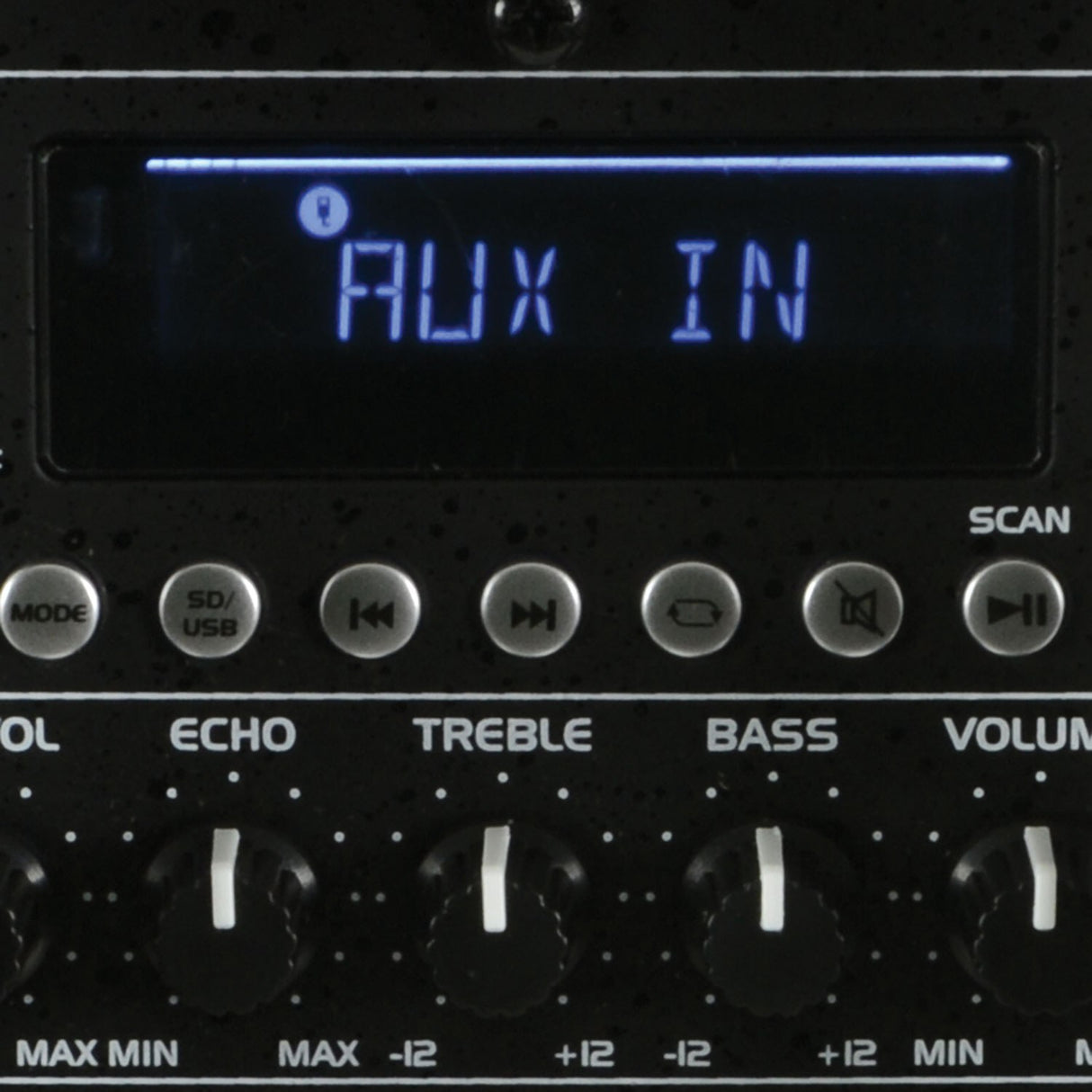

An inbuilt media player handles SD and USB media, an FM radio (also called an FM tuner) and paired Bluetooth 4.2 devices, all controllable from the supplied IR remote. The active amplifier delivers 50 + 50Wrms, paired with a 25mm titanium compression driver for the high frequencies and a dispersion of 90° x 60°. Front controls cover volume, bass, treble, echo, mic and VHF levels, contour, VCV and Bluetooth. Optional neck-worn transmitters are available on 174.1MHz and 175.0MHz for hands-free use.
Specification
| Power supply |
220-240Vac, 50/60Hz (IEC) / external 12Vdc / internal battery |
| HF driver |
25mm (1'') Titanium compression driver |
| Battery life |
Up to 8 hours |
| Controls |
Volume, Bass, Treble, Echo, Mic vol, VHF vol, Contour, VCV, Bluetooth |
| Wireless microphone frequencies |
174.1MHz + 175.0MHz |
| Amplifier : output |
50 + 50Wrms |
| Bluetooth version |
4.2 |
| Dispersion |
90° x 60° (H x V) |
| Inputs |
MIC.1/guitar, MIC.2 (6.3mm jack), Line In (L+R RCA), AUX (3.5mm stereo jack) |
Downloads
Product Manual
Frequently Asked
Does the QX15PA run on battery power?
Yes. It runs from the mains or its internal rechargeable battery, giving up to 8 hours of use between charges. It also accepts an external 12Vdc supply.
How many microphones are included?
Two VHF wireless microphones are supplied on 174.1MHz and 175.0MHz. There are also two wired mic inputs on 6.3mm jack.
Can I plug in a guitar?
Yes. One of the two wired mic inputs doubles as a guitar input, so you can connect a guitar directly.
What does the VCV 'voiceover' feature do?
When switched on, VCV automatically lowers the volume of background music whenever a mic signal is received, so speech is heard clearly over the music.
Can I mount it on a speaker stand?
Yes. It has a 35mm pole/stand mount, so you can raise it on a speaker stand or pole for wider coverage.
What audio sources can I play through it?
The inbuilt media player supports SD and USB media, an FM radio tuner and paired Bluetooth 4.2 devices, all via the included IR remote.
