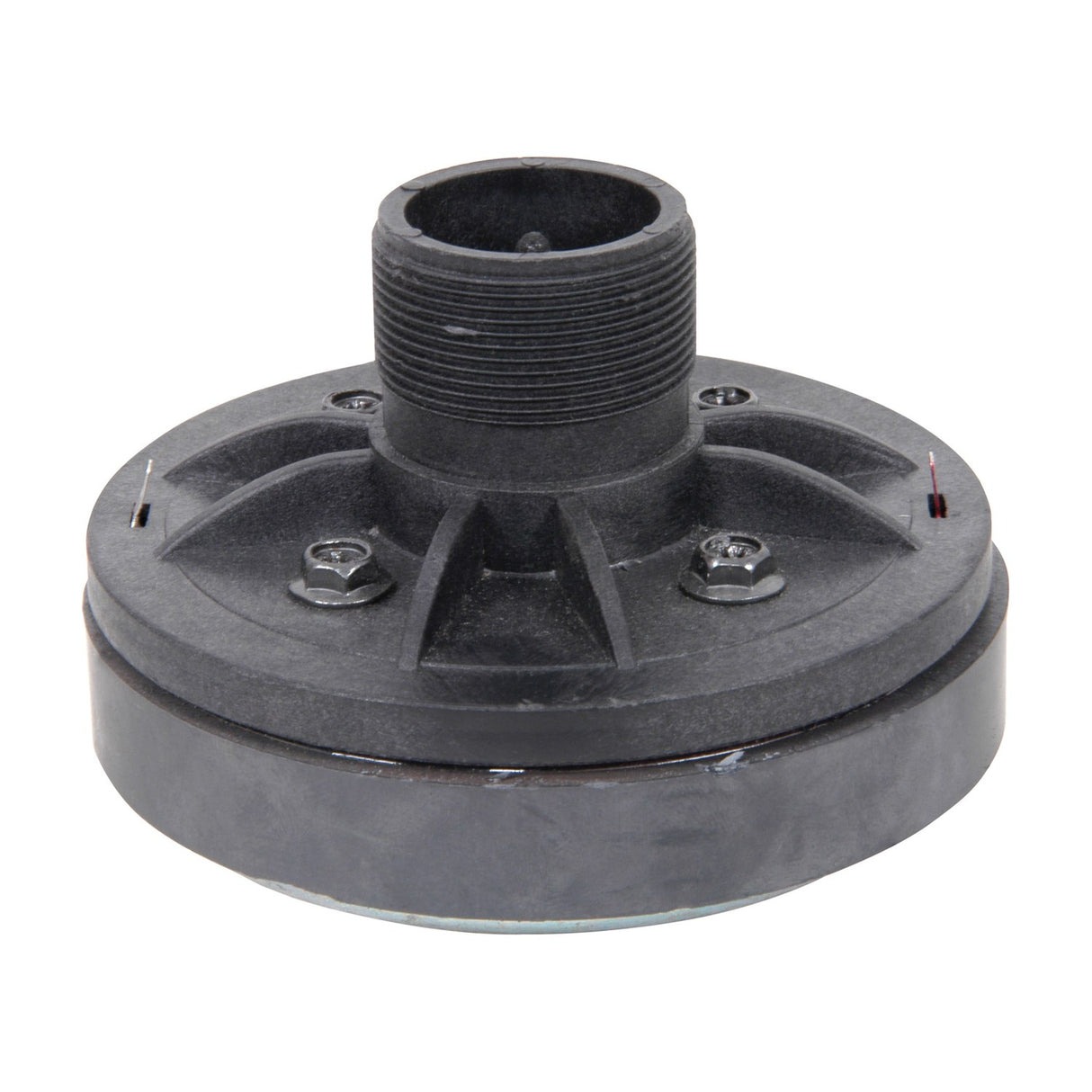

QTX HF Compression Driver, 1" Titanium Replacement

£1599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This is a 1" throat compression driver built to replace the high frequency horn driver in a range of QTX speaker cabinets. It uses a titanium diaphragm and a 35mm voice coil to handle the top end of the frequency range, covering 800Hz to 20kHz. If your existing HF driver has failed or lost output, this gives you a direct swap rather than replacing the whole cabinet.

The driver fits the QTX QR12 (178.212UK), QR15 (178.213UK), QS12 (178.562UK), QS12A (178.565UK), QS15 (178.568UK) and QS15A (178.569UK). It handles 35W RMS with a maximum power of 70W, so it matches the ratings of the horns already used in those cabinets. The 1" throat is a common fitting, which makes installation straightforward for anyone comfortable working inside a speaker enclosure.

At 63mm deep and 100mm in diameter, it sits behind the horn flare in the same space as the original part. The whole unit weighs 1.07kg. A compression driver, sometimes called a compression tweeter, works by pushing sound through a narrow throat and out through the horn, which gives it the efficiency needed for live sound and PA use. Keep the driver terminals clean and match the wiring polarity of the part you remove, and you should get the same performance the cabinet had when new.

Specification
Power max. 70W
Power rms 35W
Frequency response 800Hz - 20kHz
Voice coil 35mm
Dimensions 63mm x 100mmØ
Weight 1.07KG
Frequently Asked

Which QTX cabinets does this fit?

It replaces the HF horn driver in the QR12, QR15, QS12, QS12A, QS15 and QS15A cabinets.

What size is the throat?

It has a 1" throat, which is a standard fitting for these horns.

What is the diaphragm made from?

The diaphragm is titanium, paired with a 35mm voice coil.

What power can it handle?

It is rated at 35W RMS with a maximum of 70W.

What frequency range does it cover?

It covers 800Hz to 20kHz, handling the high frequency end of the speaker's output.

How do I fit it?

Remove the old driver from the horn, then fit this one in its place and match the wiring polarity. It is a direct swap in the listed cabinets.
